Write code to generate a square wave with a 75 duty cycle an

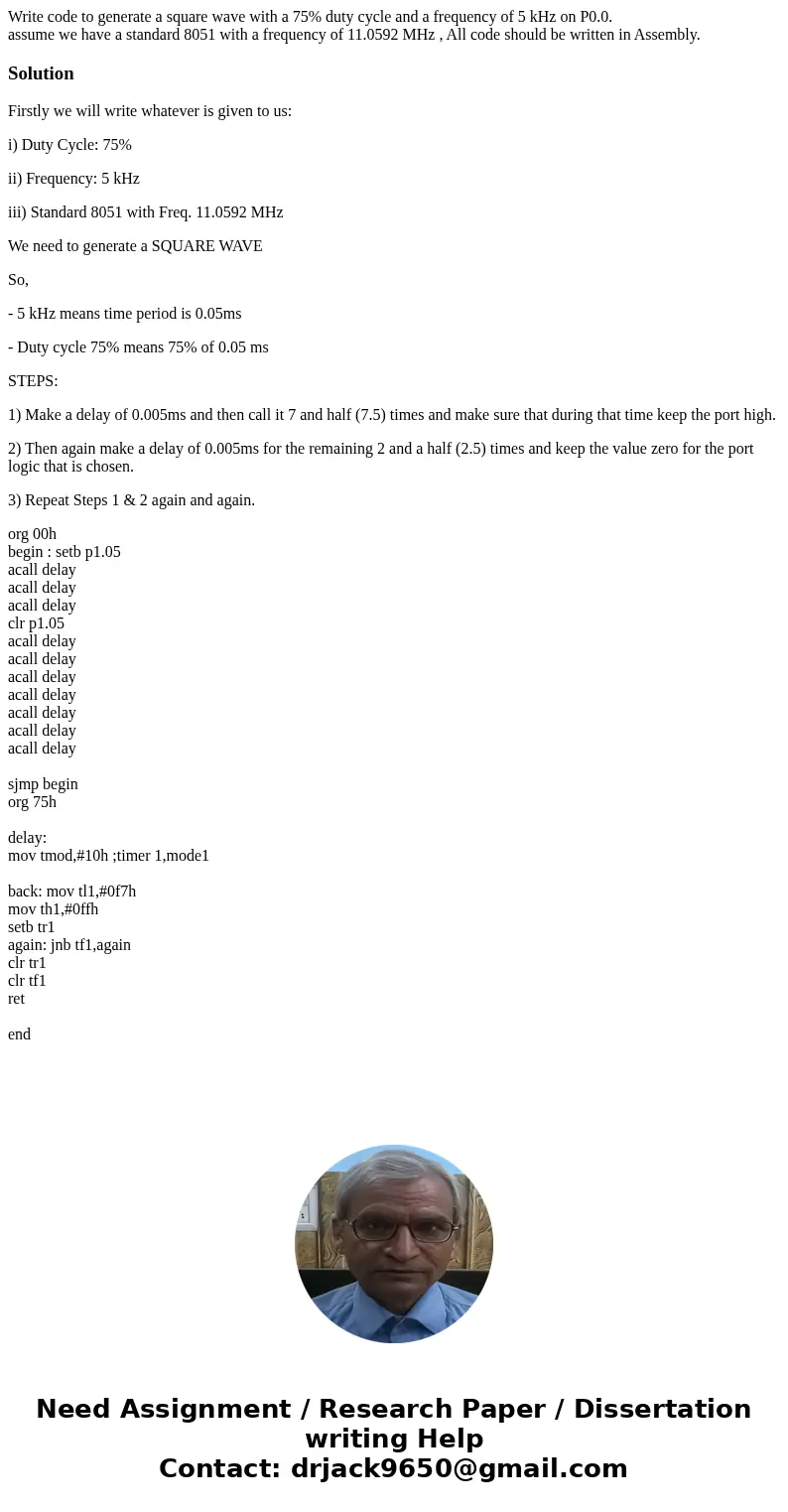

Write code to generate a square wave with a 75% duty cycle and a frequency of 5 kHz on P0.0.
assume we have a standard 8051 with a frequency of 11.0592 MHz , All code should be written in Assembly.

Solution

Firstly we will write whatever is given to us:

i) Duty Cycle: 75%

ii) Frequency: 5 kHz

iii) Standard 8051 with Freq. 11.0592 MHz

We need to generate a SQUARE WAVE

So,

- 5 kHz means time period is 0.05ms

- Duty cycle 75% means 75% of 0.05 ms

STEPS:

1) Make a delay of 0.005ms and then call it 7 and half (7.5) times and make sure that during that time keep the port high.

2) Then again make a delay of 0.005ms for the remaining 2 and a half (2.5) times and keep the value zero for the port logic that is chosen.

3) Repeat Steps 1 & 2 again and again.

org 00h
begin : setb p1.05
acall delay
acall delay
acall delay
clr p1.05
acall delay
acall delay
acall delay
acall delay
acall delay
acall delay
acall delay

sjmp begin
org 75h

delay:
mov tmod,#10h ;timer 1,mode1

back: mov tl1,#0f7h
mov th1,#0ffh
setb tr1
again: jnb tf1,again
clr tr1
clr tf1
ret

end
