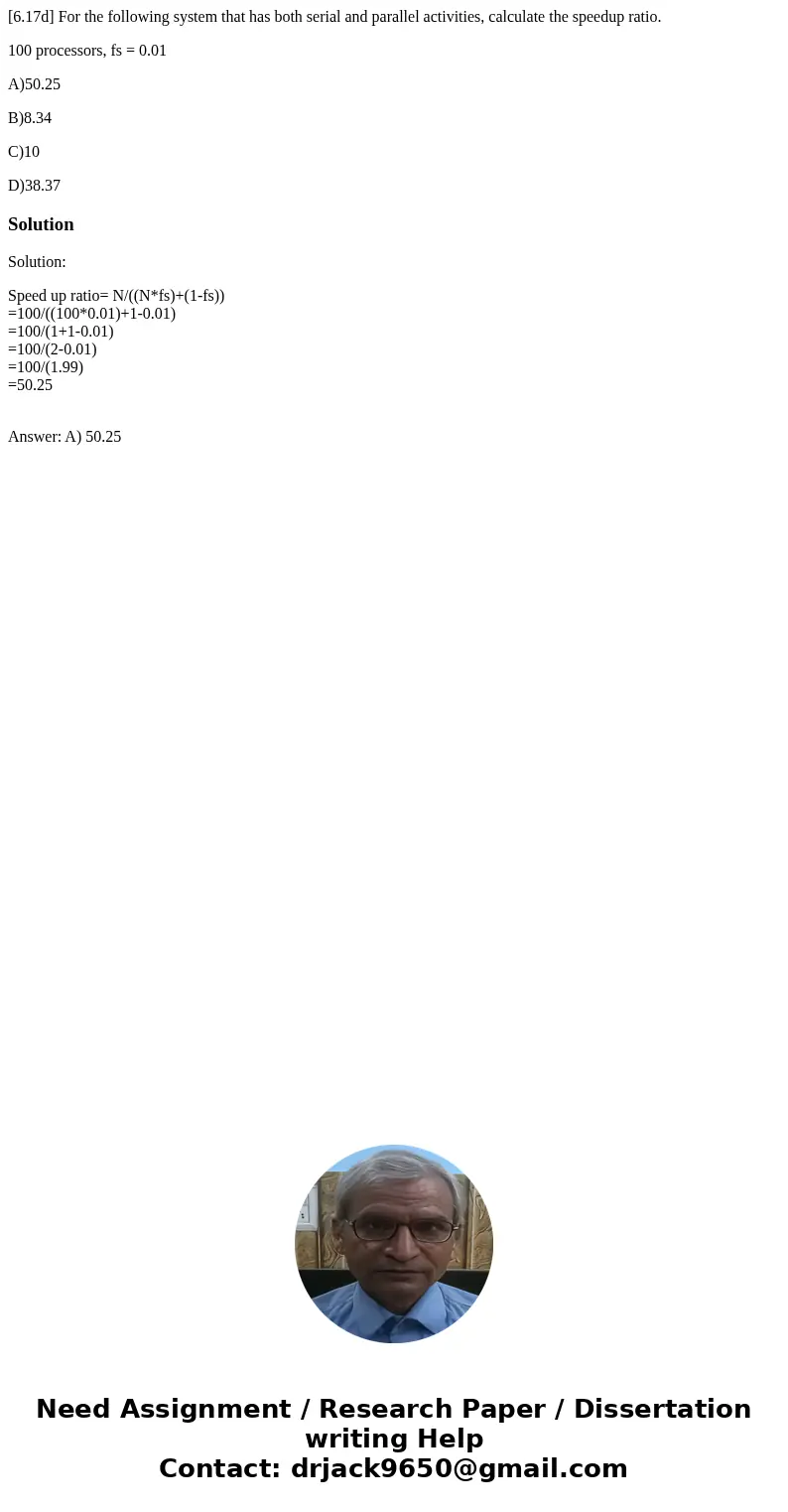

[6.17d] For the following system that has both serial and parallel activities, calculate the speedup ratio.
100 processors, fs = 0.01
A)50.25
B)8.34
C)10
D)38.37
Solution
Solution:
Speed up ratio= N/((N*fs)+(1-fs))
=100/((100*0.01)+1-0.01)
=100/(1+1-0.01)
=100/(2-0.01)
=100/(1.99)
=50.25
Answer: A) 50.25
