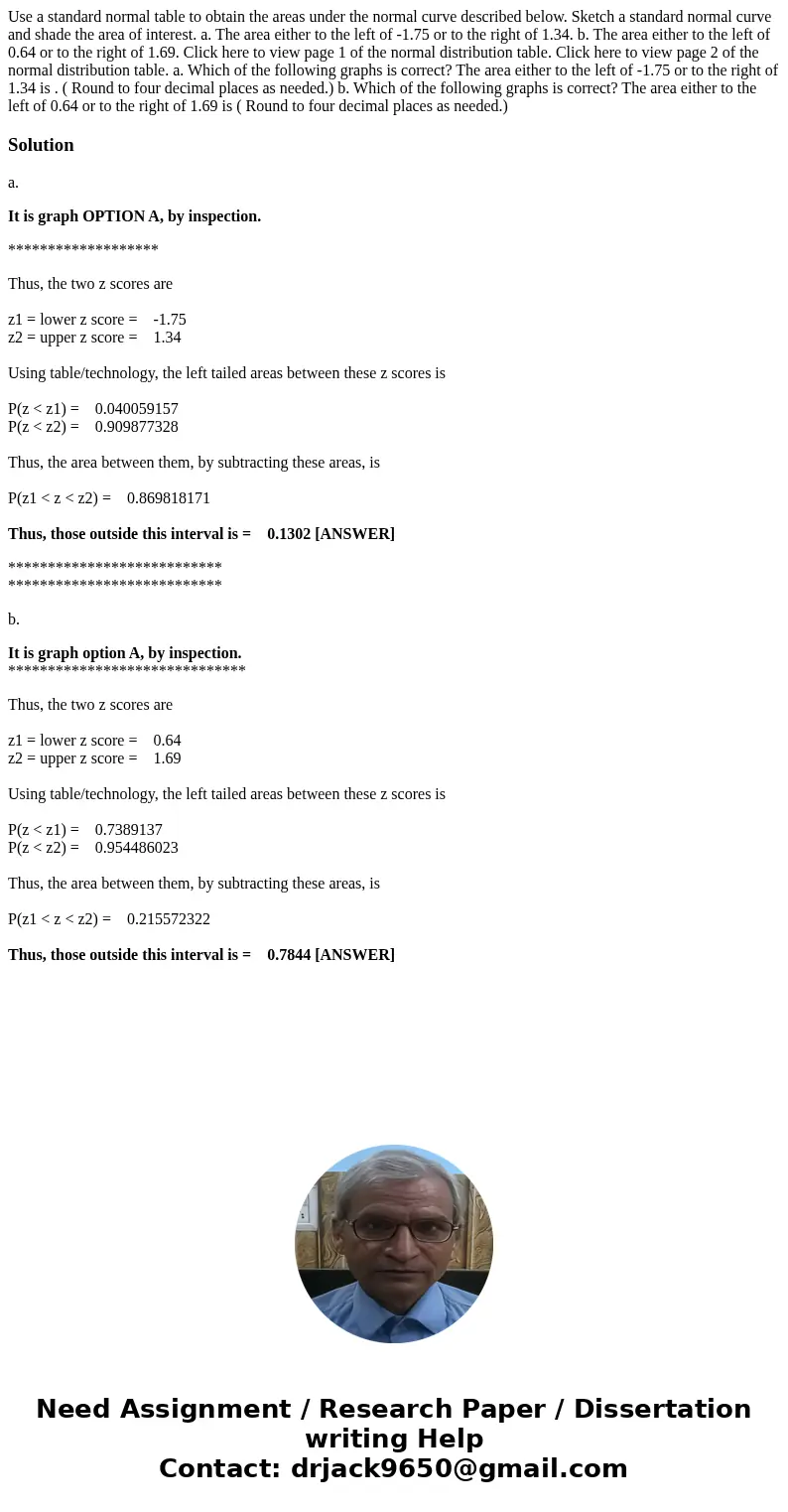

Use a standard normal table to obtain the areas under the normal curve described below. Sketch a standard normal curve and shade the area of interest. a. The area either to the left of -1.75 or to the right of 1.34. b. The area either to the left of 0.64 or to the right of 1.69. Click here to view page 1 of the normal distribution table. Click here to view page 2 of the normal distribution table. a. Which of the following graphs is correct? The area either to the left of -1.75 or to the right of 1.34 is . ( Round to four decimal places as needed.) b. Which of the following graphs is correct? The area either to the left of 0.64 or to the right of 1.69 is ( Round to four decimal places as needed.)

Solution

a.

It is graph OPTION A, by inspection.

*******************

Thus, the two z scores are

z1 = lower z score =    -1.75
z2 = upper z score =    1.34

Using table/technology, the left tailed areas between these z scores is

P(z < z1) =    0.040059157
P(z < z2) =    0.909877328

Thus, the area between them, by subtracting these areas, is

P(z1 < z < z2) =    0.869818171

Thus, those outside this interval is =    0.1302 [ANSWER]

***************************
***************************

b.

It is graph option A, by inspection.
******************************

Thus, the two z scores are

z1 = lower z score =    0.64
z2 = upper z score =    1.69

Using table/technology, the left tailed areas between these z scores is

P(z < z1) =    0.7389137
P(z < z2) =    0.954486023

Thus, the area between them, by subtracting these areas, is

P(z1 < z < z2) =    0.215572322

Thus, those outside this interval is =    0.7844 [ANSWER]
