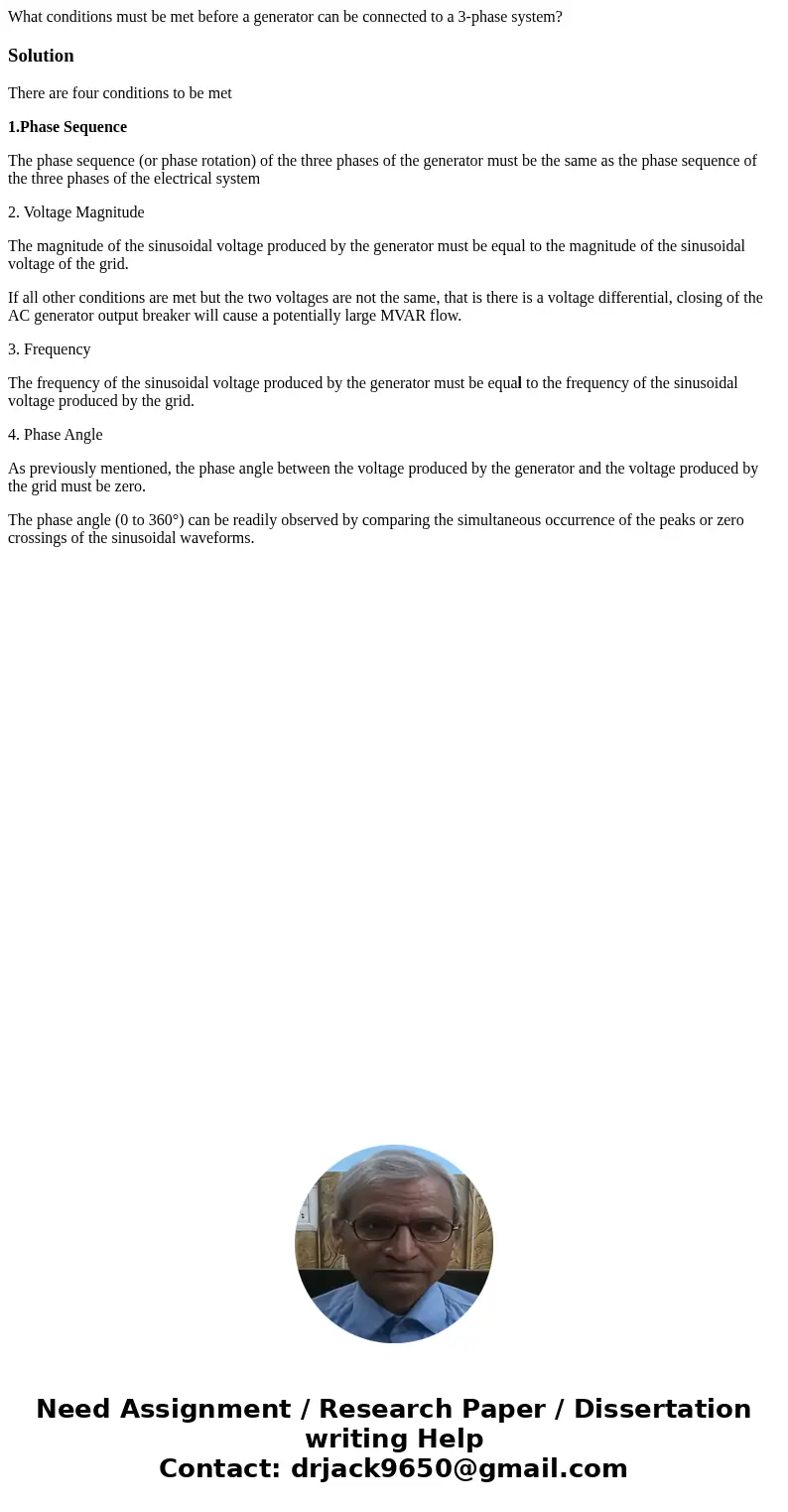

What conditions must be met before a generator can be connected to a 3-phase system?

Solution

There are four conditions to be met

1.Phase Sequence

The phase sequence (or phase rotation) of the three phases of the generator must be the same as the phase sequence of the three phases of the electrical system

2. Voltage Magnitude

The magnitude of the sinusoidal voltage produced by the generator must be equal to the magnitude of the sinusoidal voltage of the grid.

If all other conditions are met but the two voltages are not the same, that is there is a voltage differential, closing of the AC generator output breaker will cause a potentially large MVAR flow.

3. Frequency

The frequency of the sinusoidal voltage produced by the generator must be equal to the frequency of the sinusoidal voltage produced by the grid.

4. Phase Angle

As previously mentioned, the phase angle between the voltage produced by the generator and the voltage produced by the grid must be zero.

The phase angle (0 to 360°) can be readily observed by comparing the simultaneous occurrence of the peaks or zero crossings of the sinusoidal waveforms.
