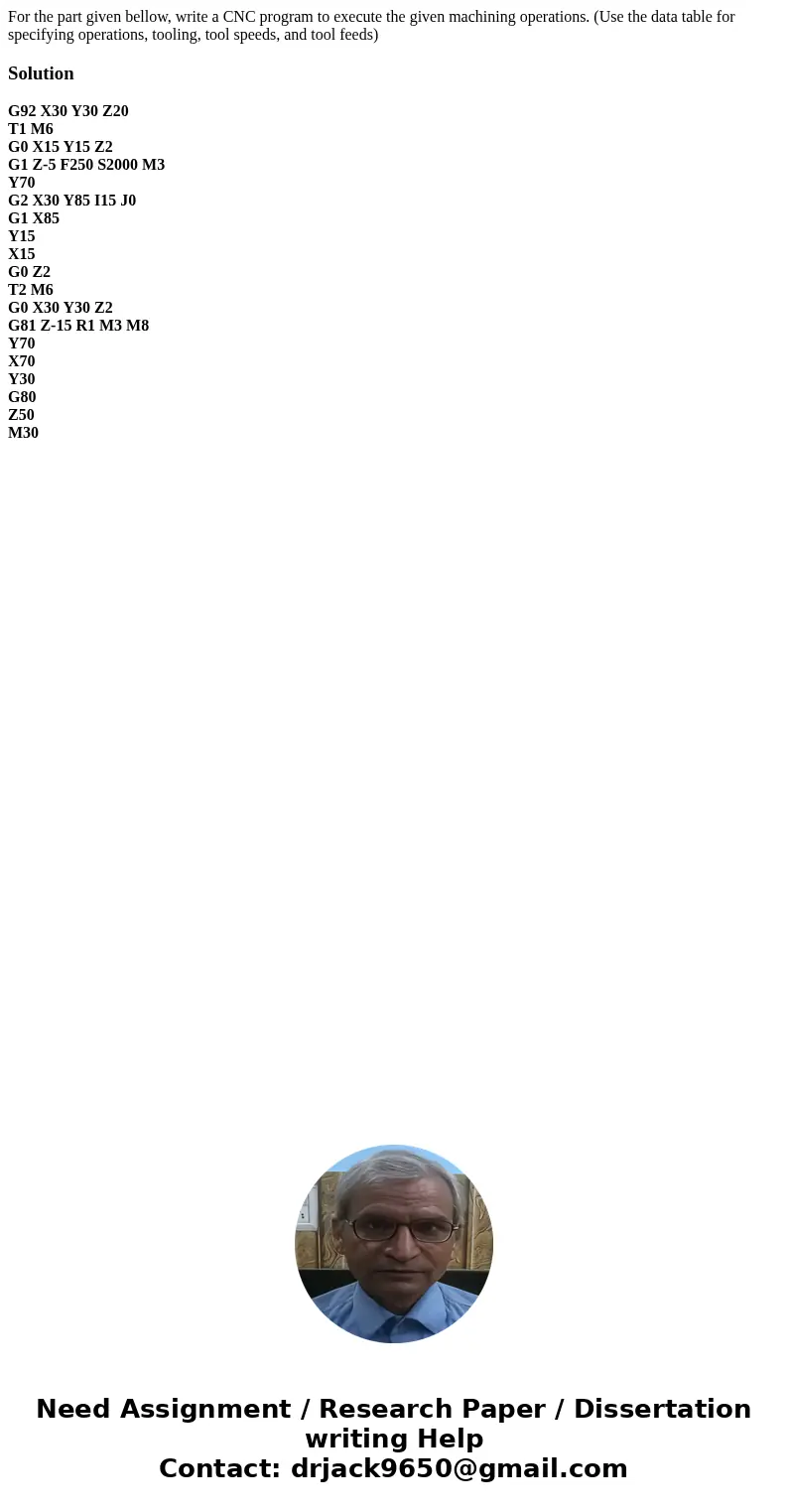

For the part given bellow, write a CNC program to execute the given machining operations. (Use the data table for specifying operations, tooling, tool speeds, and tool feeds)
Solution
G92 X30 Y30 Z20
T1 M6
G0 X15 Y15 Z2
G1 Z-5 F250 S2000 M3
Y70
G2 X30 Y85 I15 J0
G1 X85
Y15
X15
G0 Z2
T2 M6
G0 X30 Y30 Z2
G81 Z-15 R1 M3 M8
Y70
X70
Y30
G80
Z50
M30
