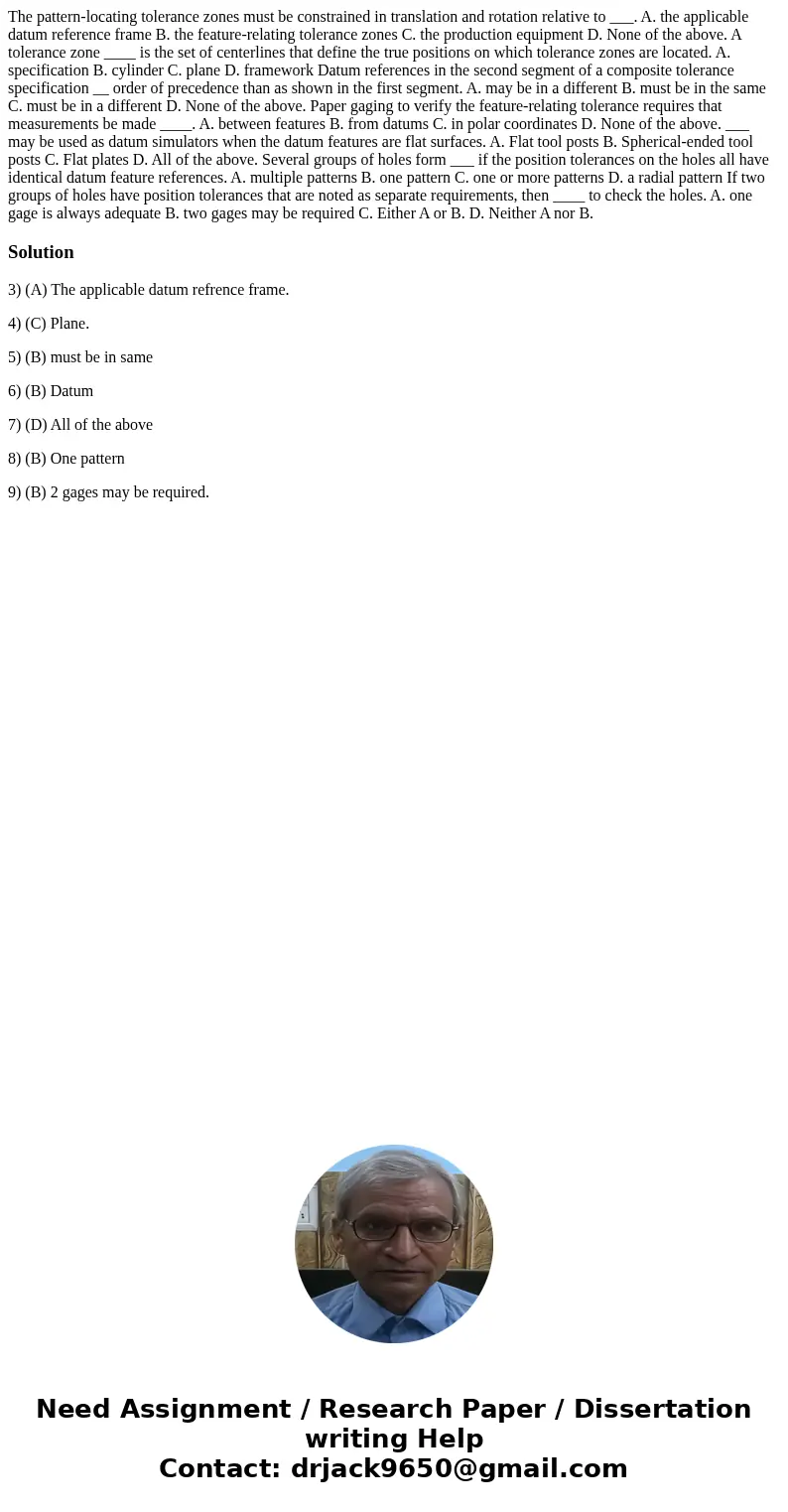

The pattern-locating tolerance zones must be constrained in translation and rotation relative to ___. A. the applicable datum reference frame B. the feature-relating tolerance zones C. the production equipment D. None of the above. A tolerance zone ____ is the set of centerlines that define the true positions on which tolerance zones are located. A. specification B. cylinder C. plane D. framework Datum references in the second segment of a composite tolerance specification __ order of precedence than as shown in the first segment. A. may be in a different B. must be in the same C. must be in a different D. None of the above. Paper gaging to verify the feature-relating tolerance requires that measurements be made ____. A. between features B. from datums C. in polar coordinates D. None of the above. ___ may be used as datum simulators when the datum features are flat surfaces. A. Flat tool posts B. Spherical-ended tool posts C. Flat plates D. All of the above. Several groups of holes form ___ if the position tolerances on the holes all have identical datum feature references. A. multiple patterns B. one pattern C. one or more patterns D. a radial pattern If two groups of holes have position tolerances that are noted as separate requirements, then ____ to check the holes. A. one gage is always adequate B. two gages may be required C. Either A or B. D. Neither A nor B.

Solution

3) (A) The applicable datum refrence frame.

4) (C) Plane.

5) (B) must be in same

6) (B) Datum

7) (D) All of the above

8) (B) One pattern
