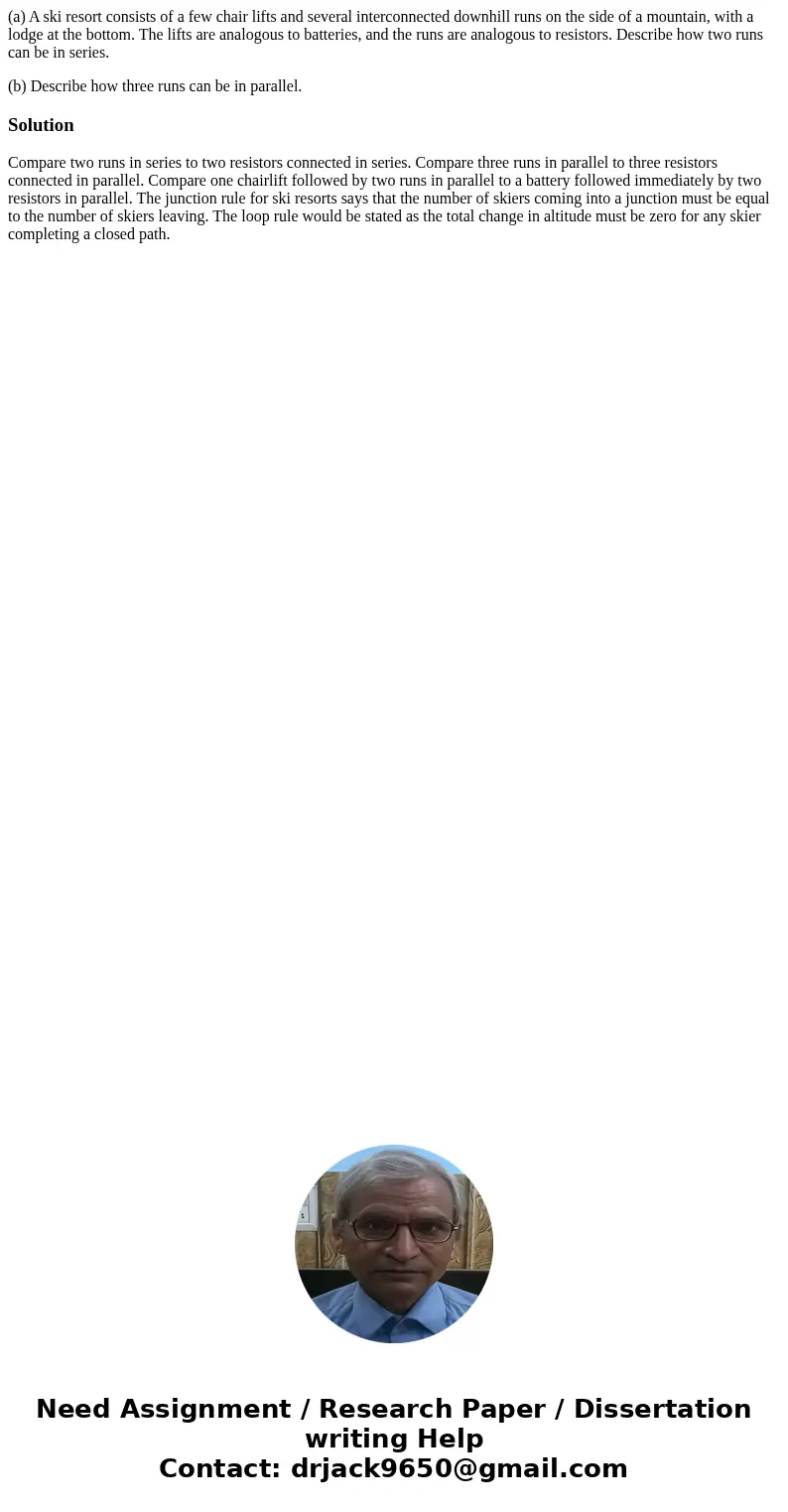

(a) A ski resort consists of a few chair lifts and several interconnected downhill runs on the side of a mountain, with a lodge at the bottom. The lifts are analogous to batteries, and the runs are analogous to resistors. Describe how two runs can be in series.

(b) Describe how three runs can be in parallel.

Solution

Compare two runs in series to two resistors connected in series. Compare three runs in parallel to three resistors connected in parallel. Compare one chairlift followed by two runs in parallel to a battery followed immediately by two resistors in parallel. The junction rule for ski resorts says that the number of skiers coming into a junction must be equal to the number of skiers leaving. The loop rule would be stated as the total change in altitude must be zero for any skier completing a closed path.
