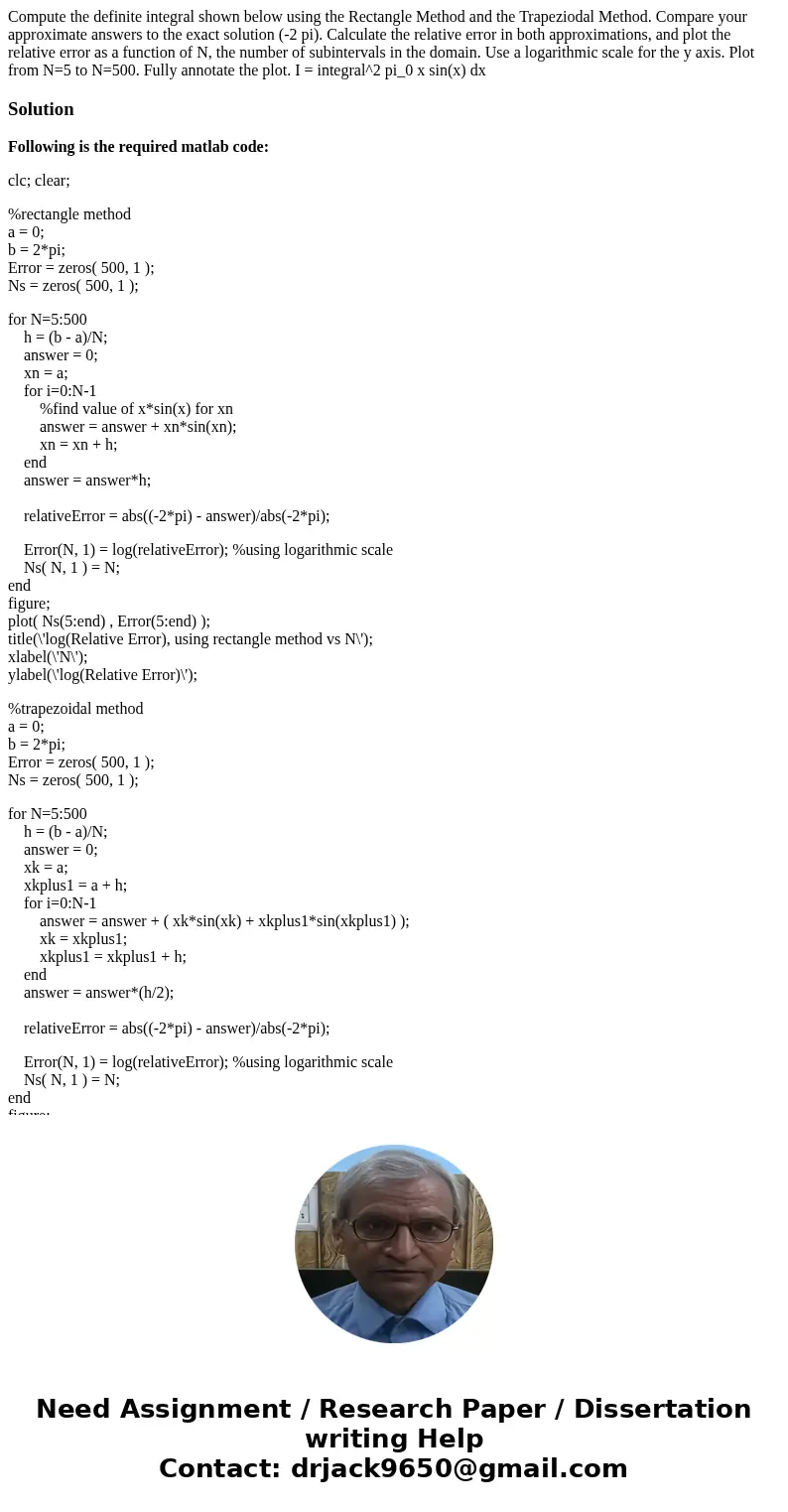

Compute the definite integral shown below using the Rectangle Method and the Trapeziodal Method. Compare your approximate answers to the exact solution (-2 pi). Calculate the relative error in both approximations, and plot the relative error as a function of N, the number of subintervals in the domain. Use a logarithmic scale for the y axis. Plot from N=5 to N=500. Fully annotate the plot. I = integral^2 pi_0 x sin(x) dx

Solution

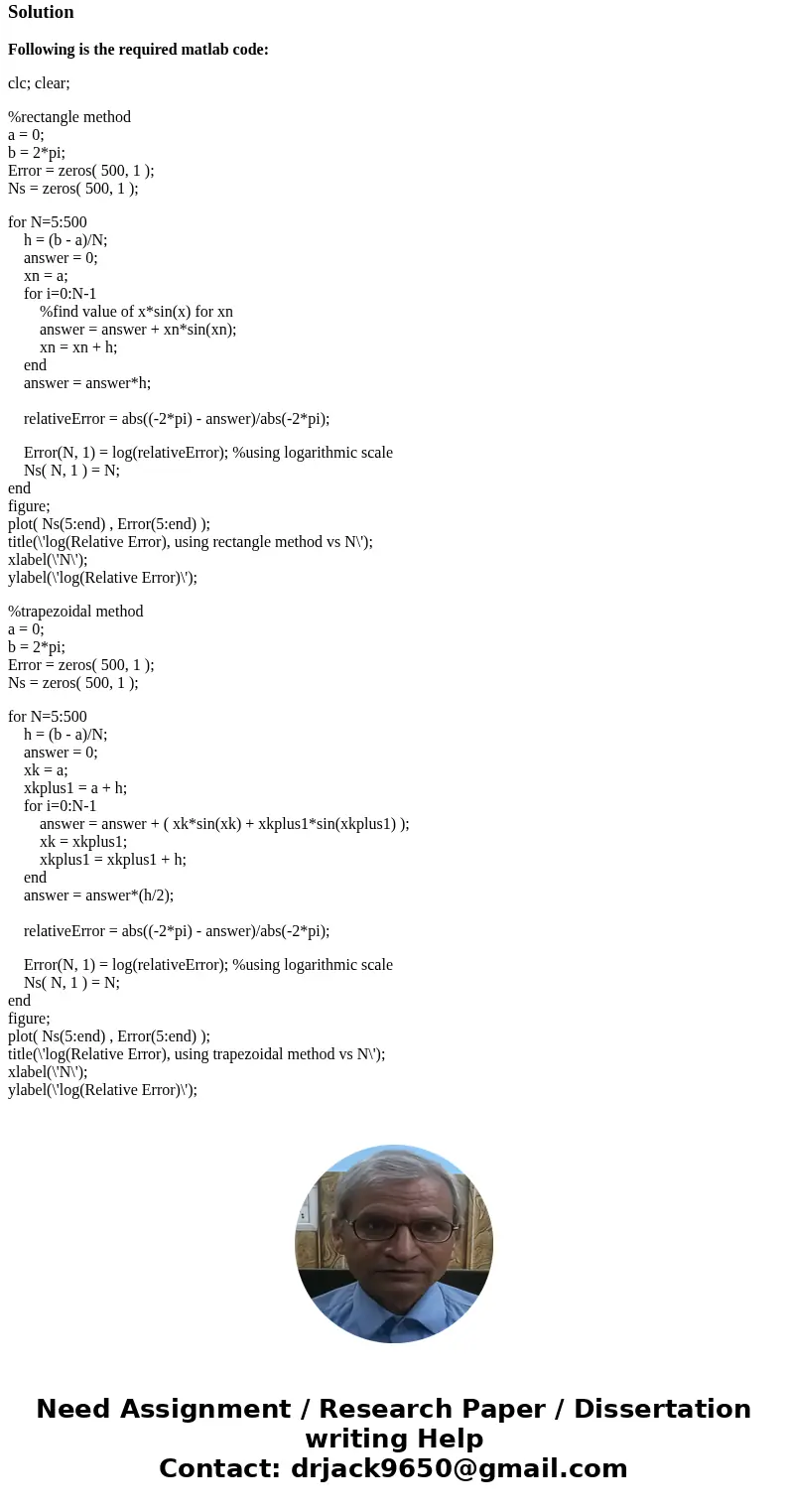

Following is the required matlab code:

clc; clear;

%rectangle method
a = 0;
b = 2*pi;
Error = zeros( 500, 1 );
Ns = zeros( 500, 1 );

for N=5:500
    h = (b - a)/N;
    answer = 0;
    xn = a;
    for i=0:N-1
        %find value of x*sin(x) for xn
        answer = answer + xn*sin(xn);
        xn = xn + h;
    end
    answer = answer*h;

    relativeError = abs((-2*pi) - answer)/abs(-2*pi);

    Error(N, 1) = log(relativeError); %using logarithmic scale
    Ns( N, 1 ) = N;
end
figure;
plot( Ns(5:end) , Error(5:end) );
title(\'log(Relative Error), using rectangle method vs N\');
xlabel(\'N\');
ylabel(\'log(Relative Error)\');

%trapezoidal method
a = 0;
b = 2*pi;
Error = zeros( 500, 1 );
Ns = zeros( 500, 1 );

for N=5:500
    h = (b - a)/N;
    answer = 0;
    xk = a;
    xkplus1 = a + h;
    for i=0:N-1
        answer = answer + ( xk*sin(xk) + xkplus1*sin(xkplus1) );
        xk = xkplus1;
        xkplus1 = xkplus1 + h;
    end
    answer = answer*(h/2);

    relativeError = abs((-2*pi) - answer)/abs(-2*pi);

    Error(N, 1) = log(relativeError); %using logarithmic scale
    Ns( N, 1 ) = N;
end
figure;
plot( Ns(5:end) , Error(5:end) );
title(\'log(Relative Error), using trapezoidal method vs N\');
xlabel(\'N\');
ylabel(\'log(Relative Error)\');
