Produce a system monitoring chart that could be used by used

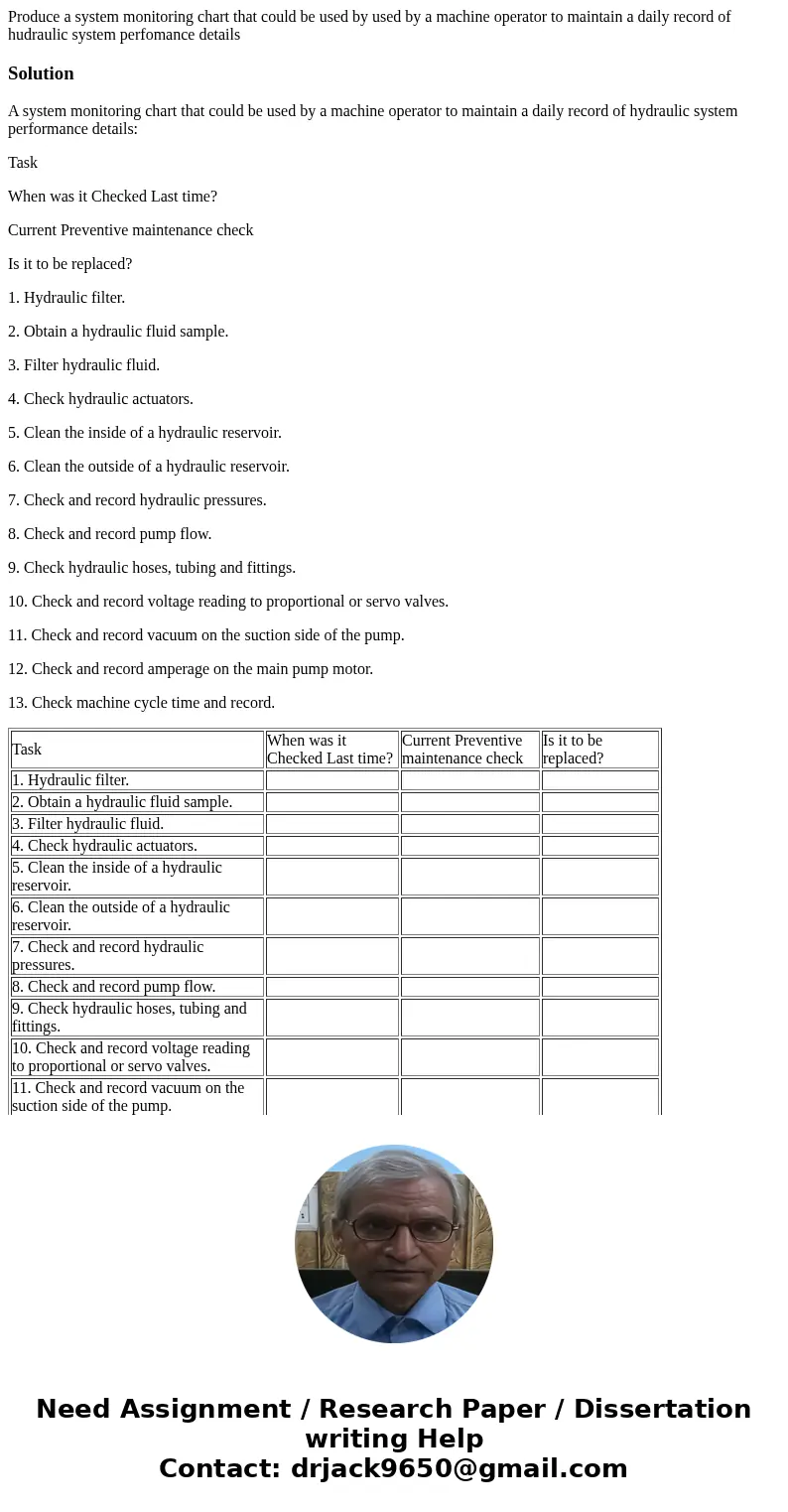

Produce a system monitoring chart that could be used by used by a machine operator to maintain a daily record of hudraulic system perfomance details
Solution

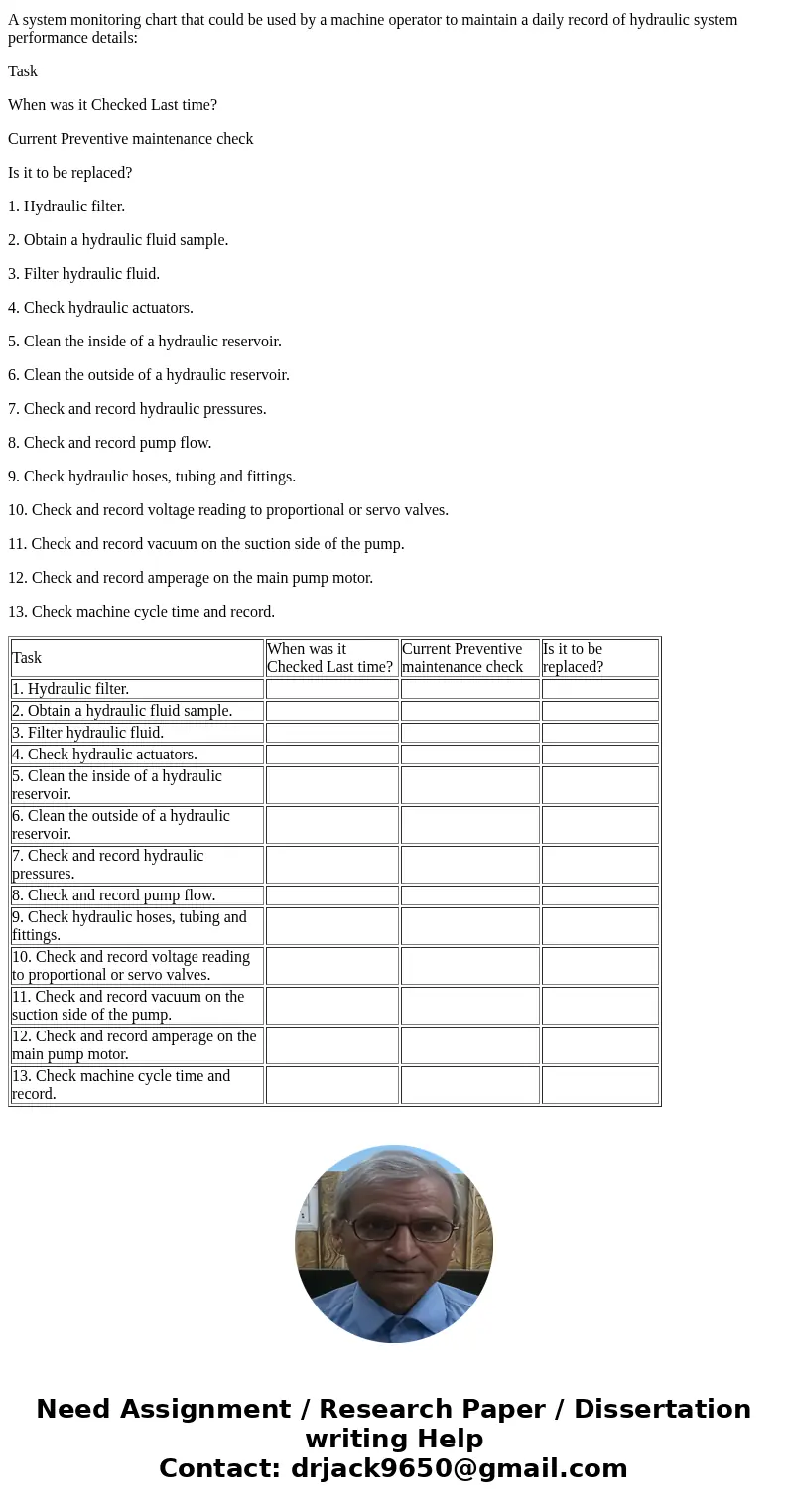

A system monitoring chart that could be used by a machine operator to maintain a daily record of hydraulic system performance details:
Task
When was it Checked Last time?
Current Preventive maintenance check
Is it to be replaced?
1. Hydraulic filter.
2. Obtain a hydraulic fluid sample.
3. Filter hydraulic fluid.
4. Check hydraulic actuators.
5. Clean the inside of a hydraulic reservoir.
6. Clean the outside of a hydraulic reservoir.
7. Check and record hydraulic pressures.
8. Check and record pump flow.
9. Check hydraulic hoses, tubing and fittings.
10. Check and record voltage reading to proportional or servo valves.
11. Check and record vacuum on the suction side of the pump.
12. Check and record amperage on the main pump motor.
13. Check machine cycle time and record.
| Task | When was it Checked Last time? | Current Preventive maintenance check | Is it to be replaced? |
| 1. Hydraulic filter. | |||
| 2. Obtain a hydraulic fluid sample. | |||
| 3. Filter hydraulic fluid. | |||
| 4. Check hydraulic actuators. | |||
| 5. Clean the inside of a hydraulic reservoir. | |||
| 6. Clean the outside of a hydraulic reservoir. | |||
| 7. Check and record hydraulic pressures. | |||
| 8. Check and record pump flow. | |||
| 9. Check hydraulic hoses, tubing and fittings. | |||
| 10. Check and record voltage reading to proportional or servo valves. | |||
| 11. Check and record vacuum on the suction side of the pump. | |||
| 12. Check and record amperage on the main pump motor. | |||
| 13. Check machine cycle time and record. |
