Using Matlab, SMath Studio, or other CAD software package, verify that you can reproduce the ZBUS result from the YBUS matrix listed below: Y_BUS = -j [14.5 -8 -4 -2.5 - 8 17 - 4 - 5 - 4 - 4 11.3333 0 -2.5 - 5 0 10.8333] Z_BUS = 1/Y_BUS = [0.2436 middot i 0.1938 middot i 0.1544 middot i 0.1456 middot i 0.1938 middot i 0.2295 middot i 0.1494 middot i 0.1506 middot i 0.1544 middot i 0.1494 middot i 0.1954 middot i 0.1046 middot i 0.1456 middot i 0.1506 middot i 0.1046 middot i 0.1954 middot i]

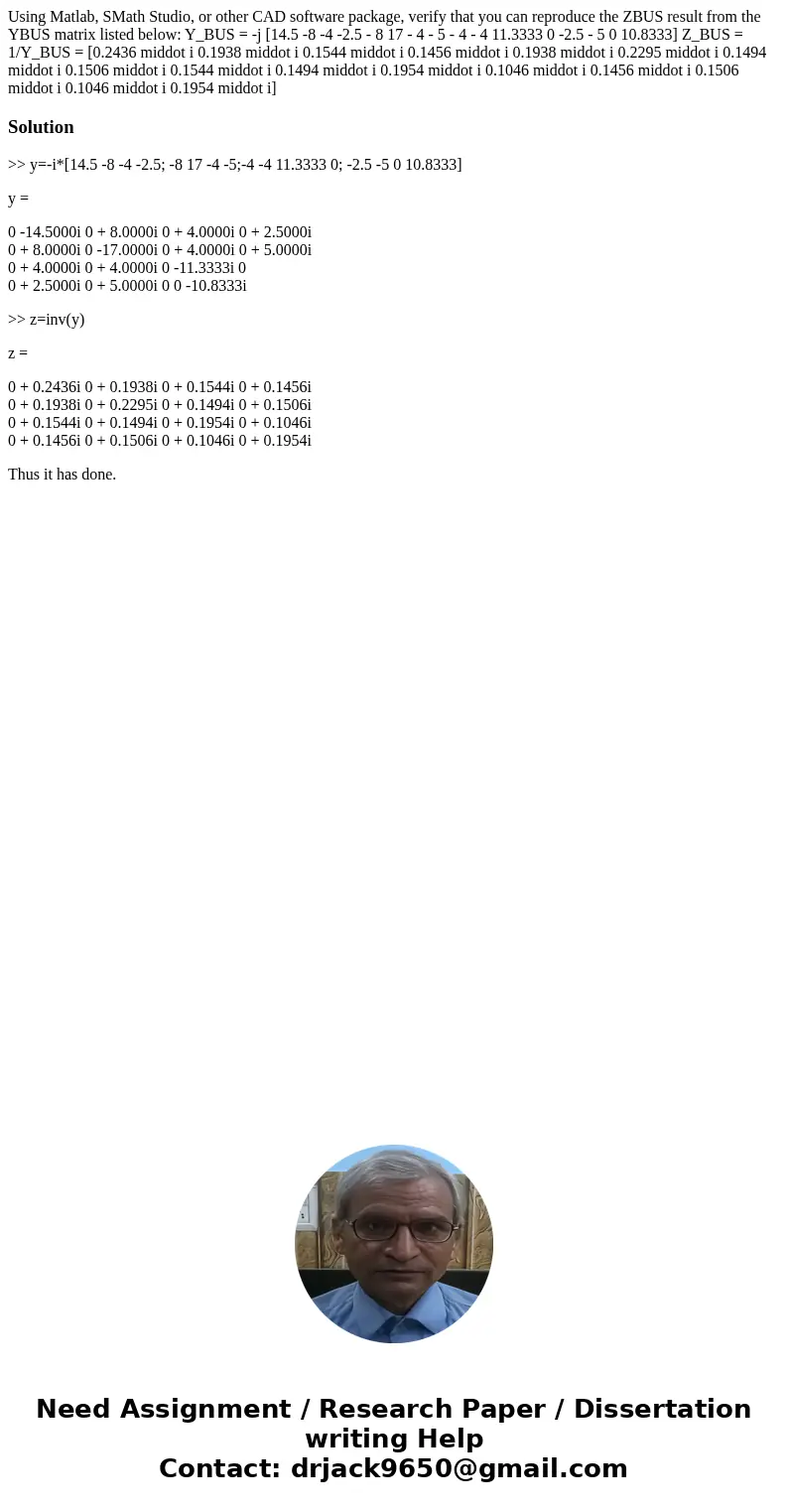

Solution

>> y=-i*[14.5 -8 -4 -2.5; -8 17 -4 -5;-4 -4 11.3333 0; -2.5 -5 0 10.8333]

y =

0 -14.5000i 0 + 8.0000i 0 + 4.0000i 0 + 2.5000i
0 + 8.0000i 0 -17.0000i 0 + 4.0000i 0 + 5.0000i
0 + 4.0000i 0 + 4.0000i 0 -11.3333i 0
0 + 2.5000i 0 + 5.0000i 0 0 -10.8333i

>> z=inv(y)

z =

0 + 0.2436i 0 + 0.1938i 0 + 0.1544i 0 + 0.1456i
0 + 0.1938i 0 + 0.2295i 0 + 0.1494i 0 + 0.1506i
0 + 0.1544i 0 + 0.1494i 0 + 0.1954i 0 + 0.1046i
0 + 0.1456i 0 + 0.1506i 0 + 0.1046i 0 + 0.1954i

Thus it has done.
