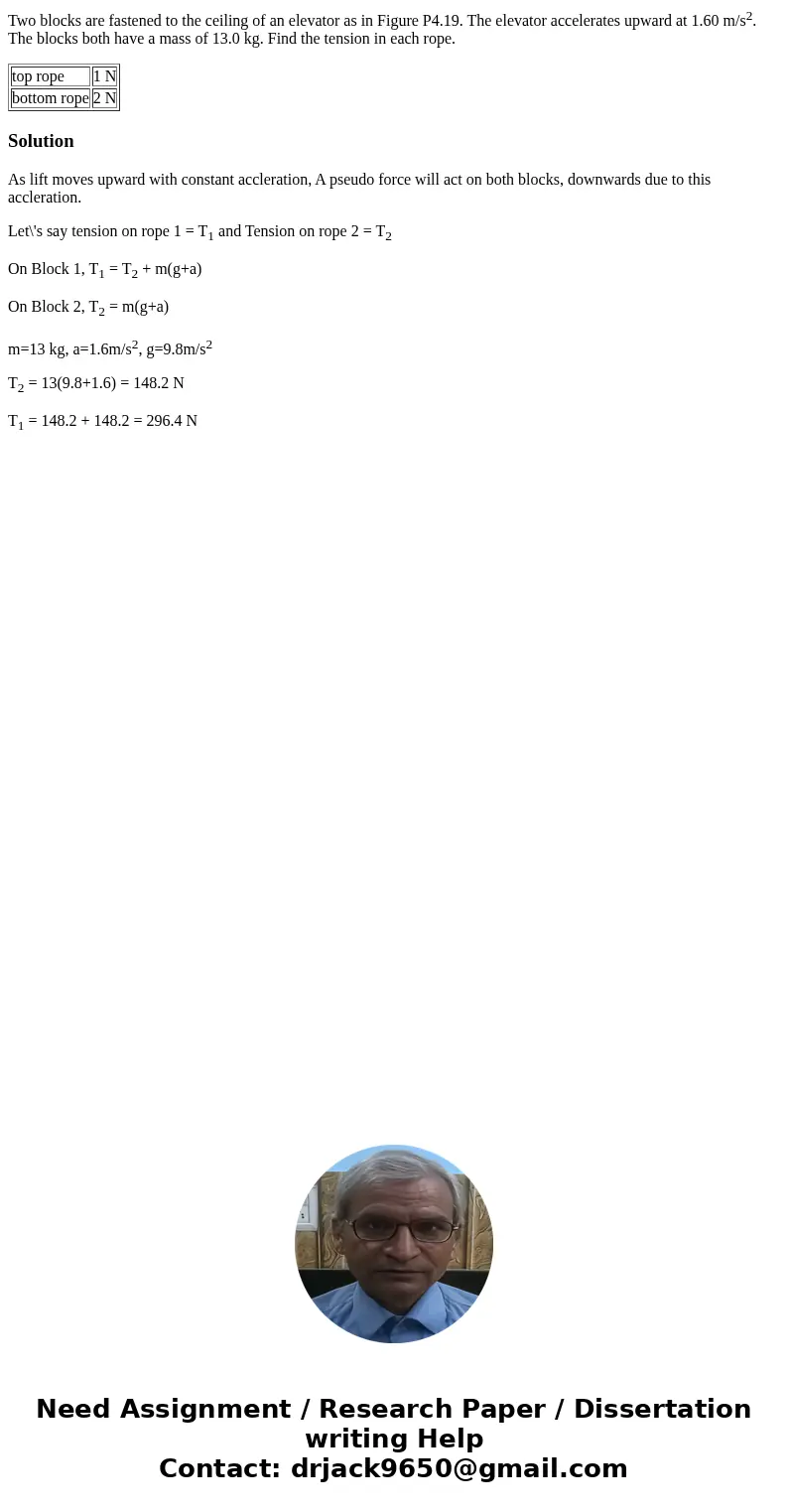

Two blocks are fastened to the ceiling of an elevator as in Figure P4.19. The elevator accelerates upward at 1.60 m/s². The blocks both have a mass of 13.0 kg. Find the tension in each rope.

Solution

As lift moves upward with constant accleration, A pseudo force will act on both blocks, downwards due to this accleration.

Let\'s say tension on rope 1 = T₁ and Tension on rope 2 = T₂

On Block 1, T₁ = T₂ + m(g+a)

On Block 2, T₂ = m(g+a)

m=13 kg, a=1.6m/s², g=9.8m/s²

T₂ = 13(9.8+1.6) = 148.2 N

T₁ = 148.2 + 148.2 = 296.4 N
