Determine the current I A B degree for the circuit shown in

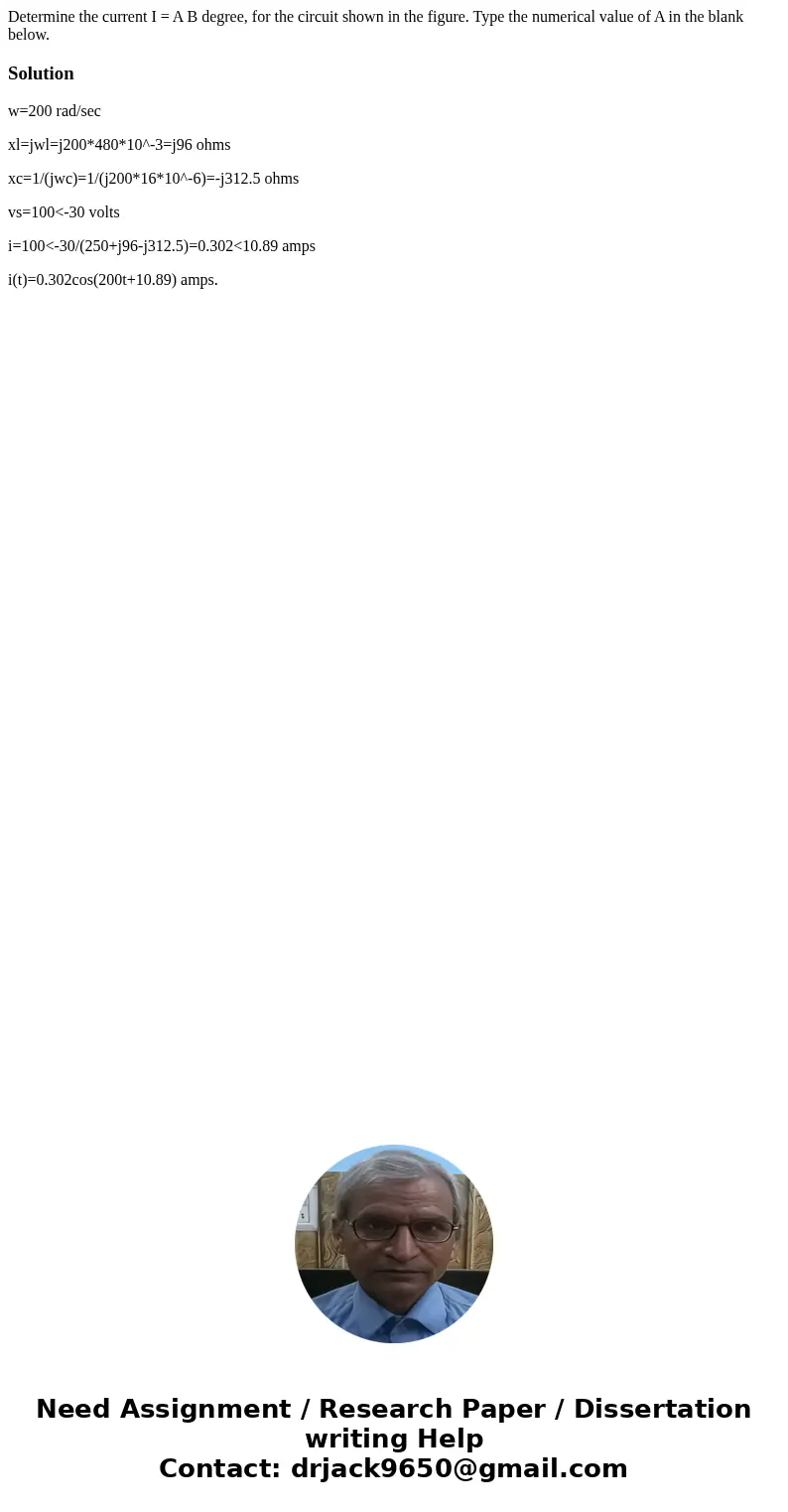

Determine the current I = A B degree, for the circuit shown in the figure. Type the numerical value of A in the blank below.

Solution

w=200 rad/sec

xl=jwl=j200*480*10^-3=j96 ohms

xc=1/(jwc)=1/(j200*16*10^-6)=-j312.5 ohms

vs=100<-30 volts

i=100<-30/(250+j96-j312.5)=0.302<10.89 amps

i(t)=0.302cos(200t+10.89) amps.
