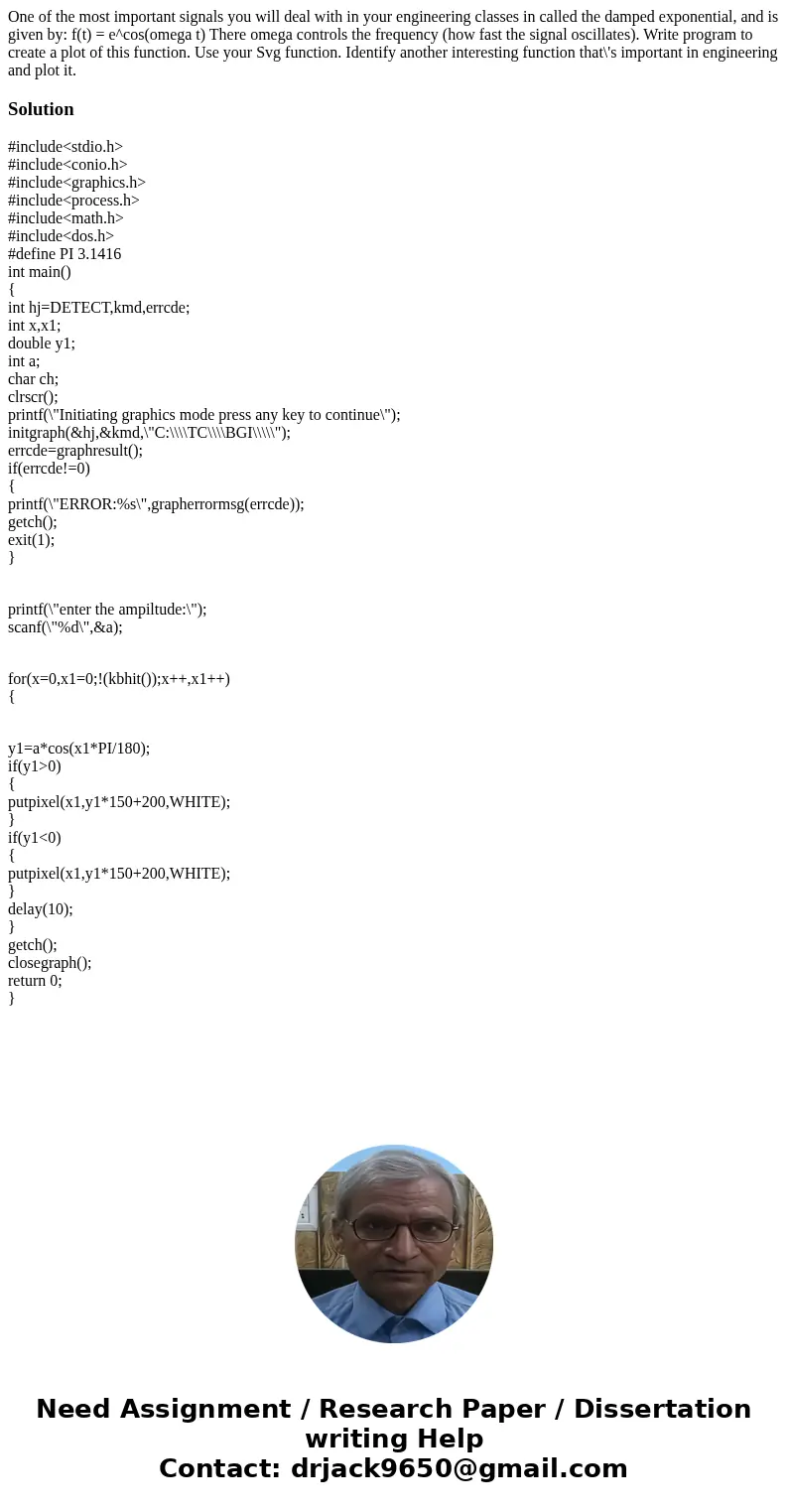

One of the most important signals you will deal with in your engineering classes in called the damped exponential, and is given by: f(t) = e^cos(omega t) There omega controls the frequency (how fast the signal oscillates). Write program to create a plot of this function. Use your Svg function. Identify another interesting function that\'s important in engineering and plot it.

Solution

#include<stdio.h>
#include<conio.h>
#include<graphics.h>
#include<process.h>
#include<math.h>
#include<dos.h>
#define PI 3.1416
int main()
{
int hj=DETECT,kmd,errcde;
int x,x1;
double y1;
int a;
char ch;
clrscr();
printf(\"Initiating graphics mode press any key to continue\");
initgraph(&hj,&kmd,\"C:\\\\TC\\\\BGI\\\\\");
errcde=graphresult();
if(errcde!=0)
{
printf(\"ERROR:%s\",grapherrormsg(errcde));
getch();
exit(1);
}

printf(\"enter the ampiltude:\");
scanf(\"%d\",&a);

for(x=0,x1=0;!(kbhit());x++,x1++)
{

y1=a*cos(x1*PI/180);
if(y1>0)
{
putpixel(x1,y1*150+200,WHITE);
}
if(y1<0)
{
putpixel(x1,y1*150+200,WHITE);
}
delay(10);
}
getch();
closegraph();
return 0;
}
