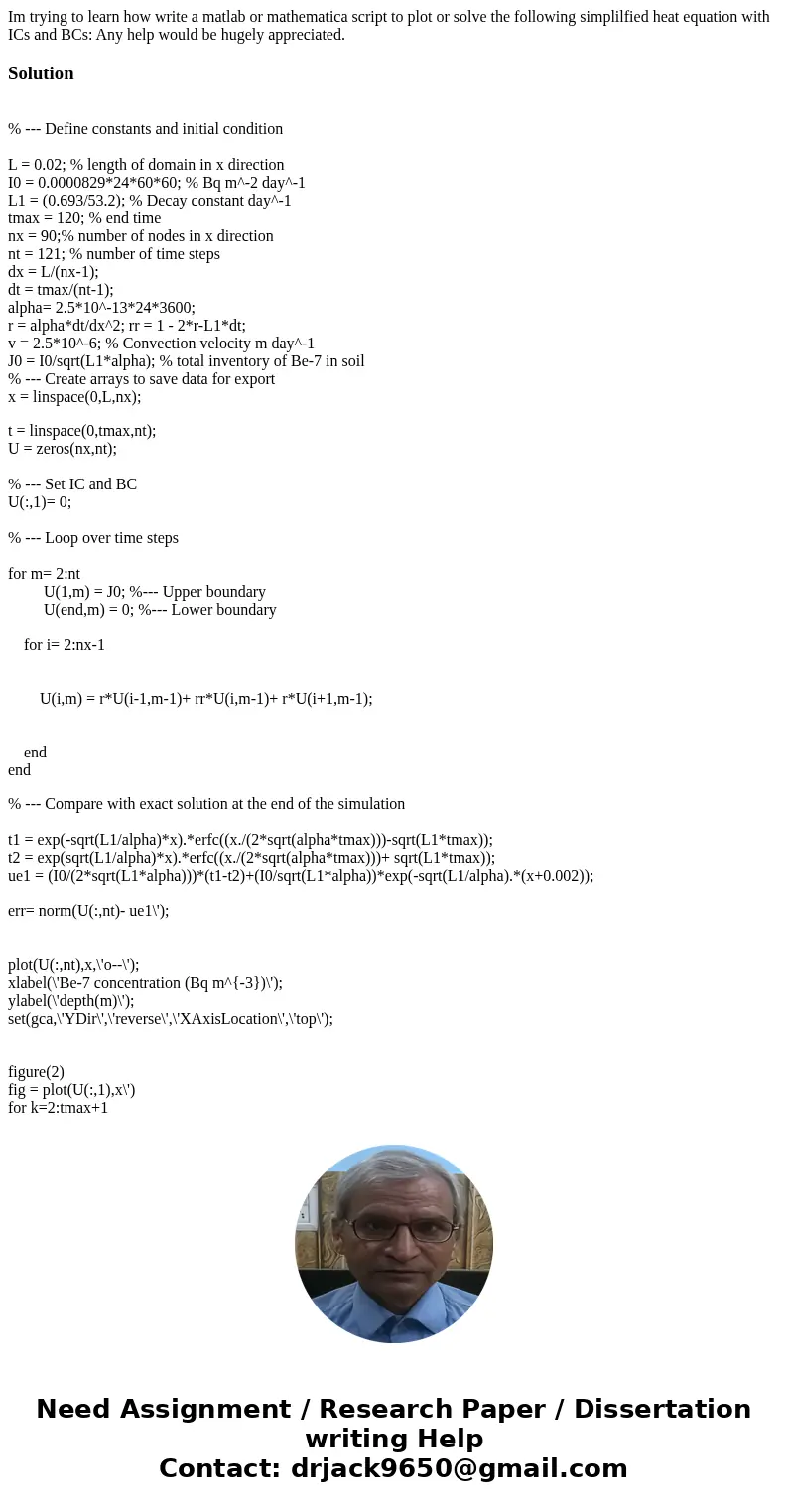

Im trying to learn how write a matlab or mathematica script
Im trying to learn how write a matlab or mathematica script to plot or solve the following simplilfied heat equation with ICs and BCs: Any help would be hugely appreciated.
Solution

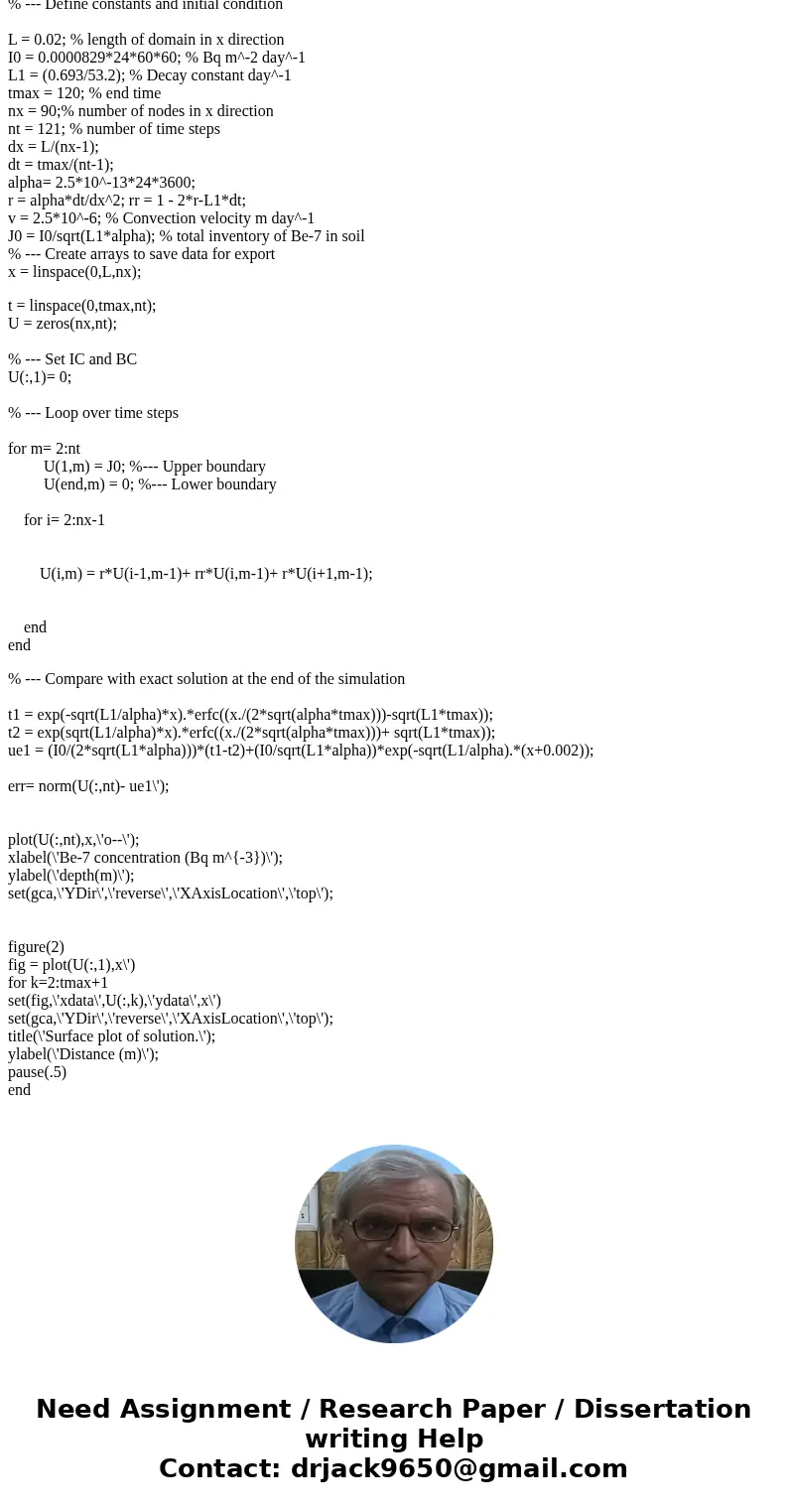

% --- Define constants and initial condition
L = 0.02; % length of domain in x direction
I0 = 0.0000829*24*60*60; % Bq m^-2 day^-1
L1 = (0.693/53.2); % Decay constant day^-1
tmax = 120; % end time
nx = 90;% number of nodes in x direction
nt = 121; % number of time steps
dx = L/(nx-1);
dt = tmax/(nt-1);
alpha= 2.5*10^-13*24*3600;
r = alpha*dt/dx^2; rr = 1 - 2*r-L1*dt;
v = 2.5*10^-6; % Convection velocity m day^-1
J0 = I0/sqrt(L1*alpha); % total inventory of Be-7 in soil
% --- Create arrays to save data for export
x = linspace(0,L,nx);
t = linspace(0,tmax,nt);
U = zeros(nx,nt);
% --- Set IC and BC
U(:,1)= 0;
% --- Loop over time steps
for m= 2:nt
U(1,m) = J0; %--- Upper boundary
U(end,m) = 0; %--- Lower boundary
for i= 2:nx-1
U(i,m) = r*U(i-1,m-1)+ rr*U(i,m-1)+ r*U(i+1,m-1);
end
end
% --- Compare with exact solution at the end of the simulation
t1 = exp(-sqrt(L1/alpha)*x).*erfc((x./(2*sqrt(alpha*tmax)))-sqrt(L1*tmax));
t2 = exp(sqrt(L1/alpha)*x).*erfc((x./(2*sqrt(alpha*tmax)))+ sqrt(L1*tmax));
ue1 = (I0/(2*sqrt(L1*alpha)))*(t1-t2)+(I0/sqrt(L1*alpha))*exp(-sqrt(L1/alpha).*(x+0.002));
err= norm(U(:,nt)- ue1\');
plot(U(:,nt),x,\'o--\');
xlabel(\'Be-7 concentration (Bq m^{-3})\');
ylabel(\'depth(m)\');
set(gca,\'YDir\',\'reverse\',\'XAxisLocation\',\'top\');
figure(2)
fig = plot(U(:,1),x\')
for k=2:tmax+1
set(fig,\'xdata\',U(:,k),\'ydata\',x\')
set(gca,\'YDir\',\'reverse\',\'XAxisLocation\',\'top\');
title(\'Surface plot of solution.\');
ylabel(\'Distance (m)\');
pause(.5)
end
