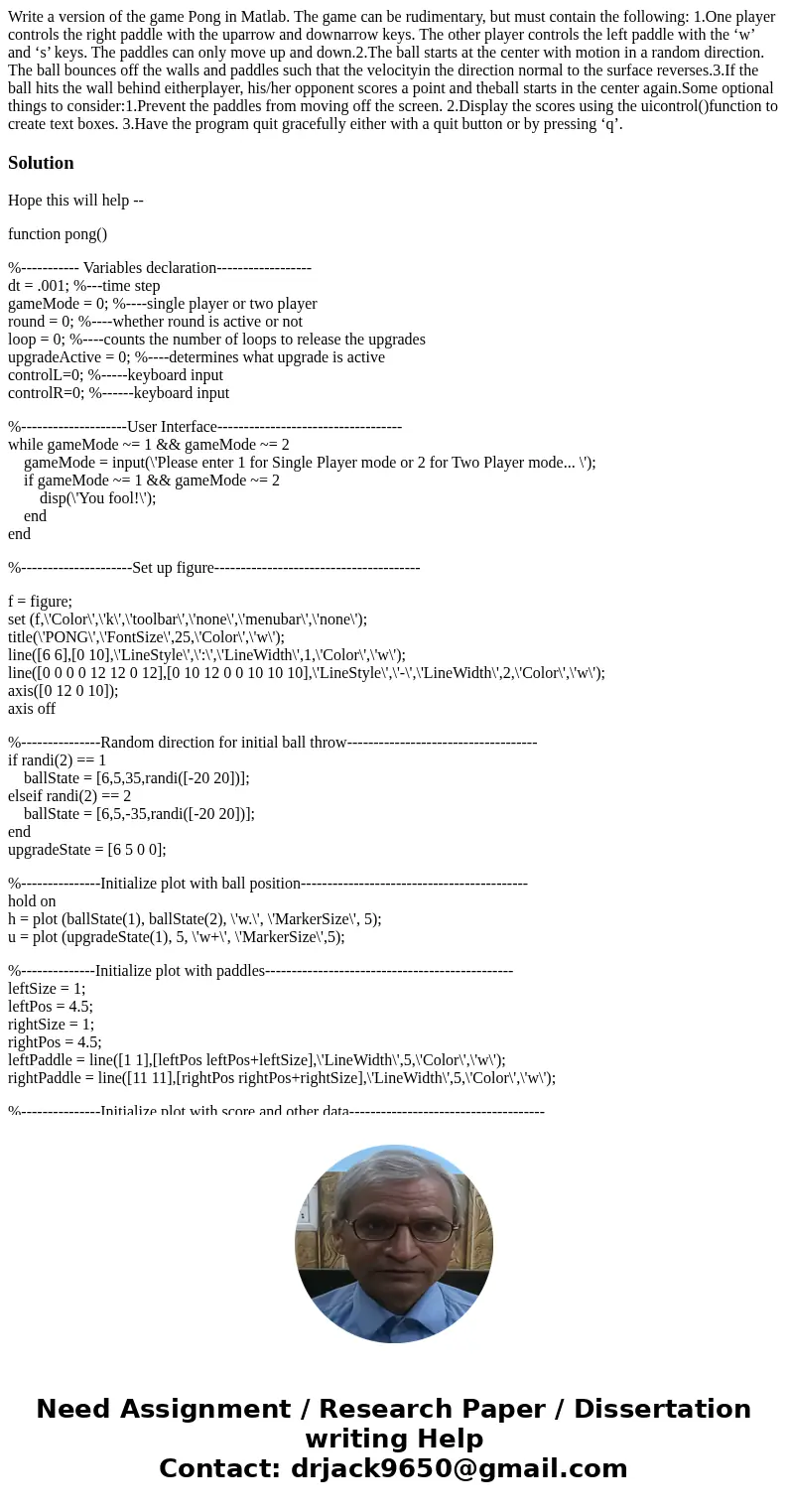

Write a version of the game Pong in Matlab. The game can be rudimentary, but must contain the following: 1.One player controls the right paddle with the uparrow and downarrow keys. The other player controls the left paddle with the ‘w’ and ‘s’ keys. The paddles can only move up and down.2.The ball starts at the center with motion in a random direction. The ball bounces off the walls and paddles such that the velocityin the direction normal to the surface reverses.3.If the ball hits the wall behind eitherplayer, his/her opponent scores a point and theball starts in the center again.Some optional things to consider:1.Prevent the paddles from moving off the screen. 2.Display the scores using the uicontrol()function to create text boxes. 3.Have the program quit gracefully either with a quit button or by pressing ‘q’.
Solution
Hope this will help --
function pong()
%----------- Variables declaration------------------
dt = .001; %---time step
gameMode = 0; %----single player or two player
round = 0; %----whether round is active or not
loop = 0; %----counts the number of loops to release the upgrades
upgradeActive = 0; %----determines what upgrade is active
controlL=0; %-----keyboard input
controlR=0; %------keyboard input
%--------------------User Interface-----------------------------------
while gameMode ~= 1 && gameMode ~= 2
gameMode = input(\'Please enter 1 for Single Player mode or 2 for Two Player mode... \');
if gameMode ~= 1 && gameMode ~= 2
disp(\'You fool!\');
end
end
%---------------------Set up figure---------------------------------------
f = figure;
set (f,\'Color\',\'k\',\'toolbar\',\'none\',\'menubar\',\'none\');
title(\'PONG\',\'FontSize\',25,\'Color\',\'w\');
line([6 6],[0 10],\'LineStyle\',\':\',\'LineWidth\',1,\'Color\',\'w\');
line([0 0 0 0 12 12 0 12],[0 10 12 0 0 10 10 10],\'LineStyle\',\'-\',\'LineWidth\',2,\'Color\',\'w\');
axis([0 12 0 10]);
axis off
%---------------Random direction for initial ball throw------------------------------------
if randi(2) == 1
ballState = [6,5,35,randi([-20 20])];
elseif randi(2) == 2
ballState = [6,5,-35,randi([-20 20])];
end
upgradeState = [6 5 0 0];
%---------------Initialize plot with ball position-------------------------------------------
hold on
h = plot (ballState(1), ballState(2), \'w.\', \'MarkerSize\', 5);
u = plot (upgradeState(1), 5, \'w+\', \'MarkerSize\',5);
%--------------Initialize plot with paddles-----------------------------------------------
leftSize = 1;
leftPos = 4.5;
rightSize = 1;
rightPos = 4.5;
leftPaddle = line([1 1],[leftPos leftPos+leftSize],\'LineWidth\',5,\'Color\',\'w\');
rightPaddle = line([11 11],[rightPos rightPos+rightSize],\'LineWidth\',5,\'Color\',\'w\');
%---------------Initialize plot with score and other data-------------------------------------

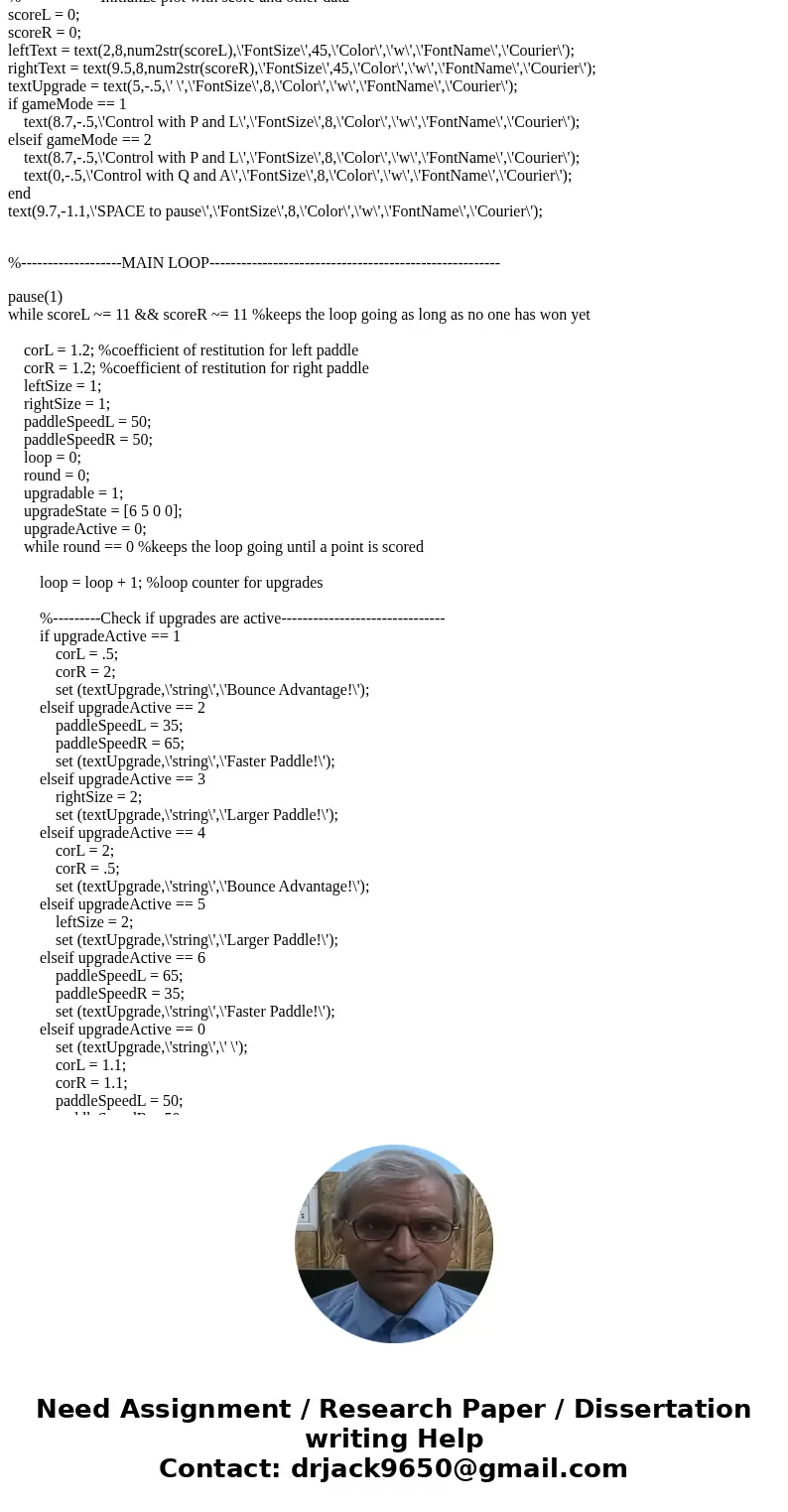

scoreL = 0;
scoreR = 0;
leftText = text(2,8,num2str(scoreL),\'FontSize\',45,\'Color\',\'w\',\'FontName\',\'Courier\');
rightText = text(9.5,8,num2str(scoreR),\'FontSize\',45,\'Color\',\'w\',\'FontName\',\'Courier\');
textUpgrade = text(5,-.5,\' \',\'FontSize\',8,\'Color\',\'w\',\'FontName\',\'Courier\');
if gameMode == 1
text(8.7,-.5,\'Control with P and L\',\'FontSize\',8,\'Color\',\'w\',\'FontName\',\'Courier\');
elseif gameMode == 2
text(8.7,-.5,\'Control with P and L\',\'FontSize\',8,\'Color\',\'w\',\'FontName\',\'Courier\');
text(0,-.5,\'Control with Q and A\',\'FontSize\',8,\'Color\',\'w\',\'FontName\',\'Courier\');
end
text(9.7,-1.1,\'SPACE to pause\',\'FontSize\',8,\'Color\',\'w\',\'FontName\',\'Courier\');
%-------------------MAIN LOOP-------------------------------------------------------
pause(1)
while scoreL ~= 11 && scoreR ~= 11 %keeps the loop going as long as no one has won yet
corL = 1.2; %coefficient of restitution for left paddle
corR = 1.2; %coefficient of restitution for right paddle
leftSize = 1;
rightSize = 1;
paddleSpeedL = 50;
paddleSpeedR = 50;
loop = 0;
round = 0;
upgradable = 1;
upgradeState = [6 5 0 0];
upgradeActive = 0;
while round == 0 %keeps the loop going until a point is scored
loop = loop + 1; %loop counter for upgrades
%---------Check if upgrades are active-------------------------------
if upgradeActive == 1
corL = .5;
corR = 2;
set (textUpgrade,\'string\',\'Bounce Advantage!\');
elseif upgradeActive == 2
paddleSpeedL = 35;
paddleSpeedR = 65;
set (textUpgrade,\'string\',\'Faster Paddle!\');
elseif upgradeActive == 3
rightSize = 2;
set (textUpgrade,\'string\',\'Larger Paddle!\');
elseif upgradeActive == 4
corL = 2;
corR = .5;
set (textUpgrade,\'string\',\'Bounce Advantage!\');
elseif upgradeActive == 5
leftSize = 2;
set (textUpgrade,\'string\',\'Larger Paddle!\');
elseif upgradeActive == 6
paddleSpeedL = 65;
paddleSpeedR = 35;
set (textUpgrade,\'string\',\'Faster Paddle!\');
elseif upgradeActive == 0
set (textUpgrade,\'string\',\' \');
corL = 1.1;
corR = 1.1;
paddleSpeedL = 50;

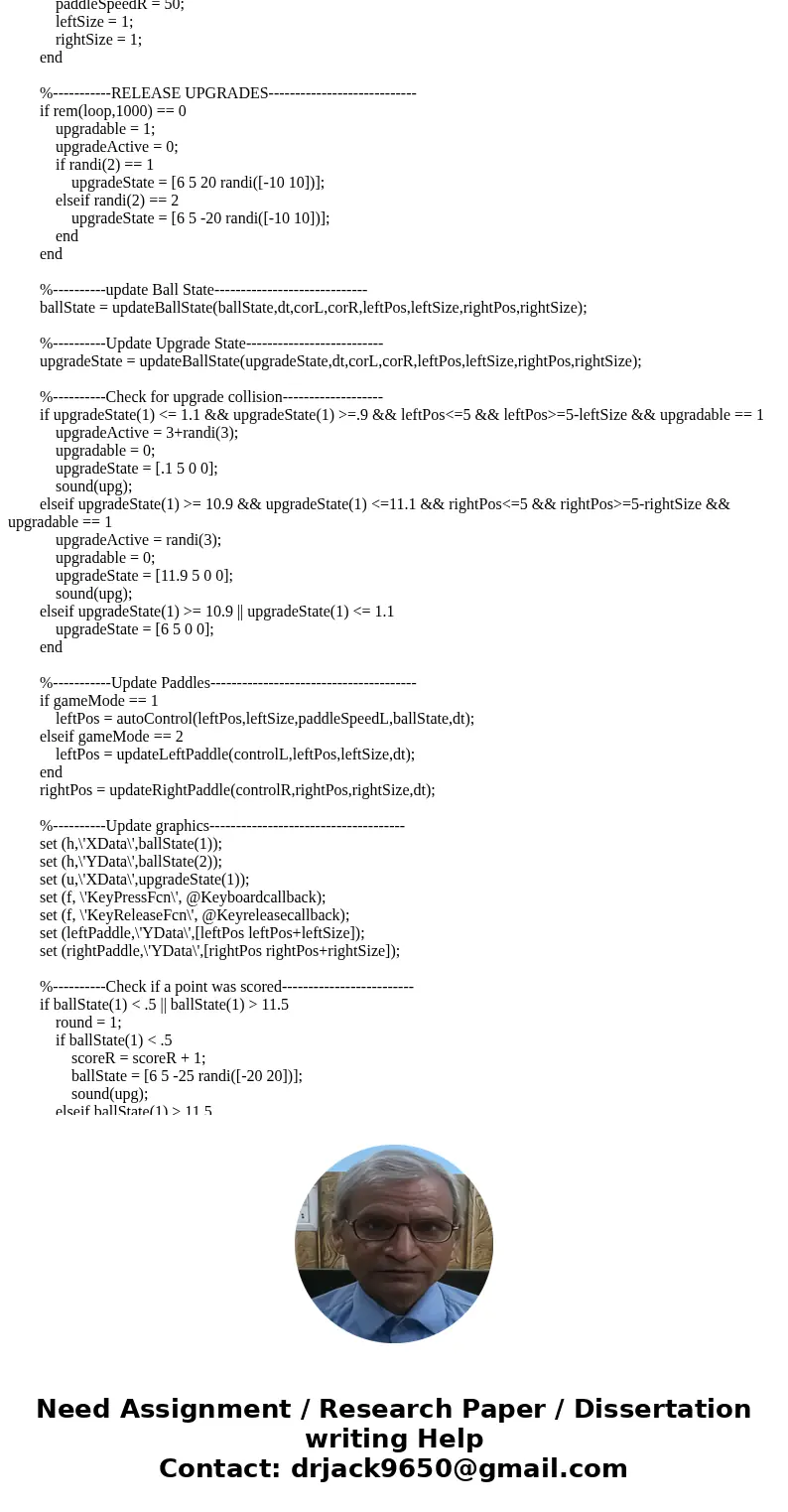

paddleSpeedR = 50;
leftSize = 1;
rightSize = 1;
end
%-----------RELEASE UPGRADES----------------------------
if rem(loop,1000) == 0
upgradable = 1;
upgradeActive = 0;
if randi(2) == 1
upgradeState = [6 5 20 randi([-10 10])];
elseif randi(2) == 2
upgradeState = [6 5 -20 randi([-10 10])];
end
end
%----------update Ball State-----------------------------
ballState = updateBallState(ballState,dt,corL,corR,leftPos,leftSize,rightPos,rightSize);
%----------Update Upgrade State--------------------------
upgradeState = updateBallState(upgradeState,dt,corL,corR,leftPos,leftSize,rightPos,rightSize);
%----------Check for upgrade collision-------------------
if upgradeState(1) <= 1.1 && upgradeState(1) >=.9 && leftPos<=5 && leftPos>=5-leftSize && upgradable == 1
upgradeActive = 3+randi(3);
upgradable = 0;
upgradeState = [.1 5 0 0];
sound(upg);
elseif upgradeState(1) >= 10.9 && upgradeState(1) <=11.1 && rightPos<=5 && rightPos>=5-rightSize && upgradable == 1
upgradeActive = randi(3);
upgradable = 0;
upgradeState = [11.9 5 0 0];
sound(upg);
elseif upgradeState(1) >= 10.9 || upgradeState(1) <= 1.1
upgradeState = [6 5 0 0];
end
%-----------Update Paddles---------------------------------------
if gameMode == 1
leftPos = autoControl(leftPos,leftSize,paddleSpeedL,ballState,dt);
elseif gameMode == 2
leftPos = updateLeftPaddle(controlL,leftPos,leftSize,dt);
end
rightPos = updateRightPaddle(controlR,rightPos,rightSize,dt);
%----------Update graphics-------------------------------------
set (h,\'XData\',ballState(1));
set (h,\'YData\',ballState(2));
set (u,\'XData\',upgradeState(1));
set (f, \'KeyPressFcn\', @Keyboardcallback);
set (f, \'KeyReleaseFcn\', @Keyreleasecallback);
set (leftPaddle,\'YData\',[leftPos leftPos+leftSize]);
set (rightPaddle,\'YData\',[rightPos rightPos+rightSize]);
%----------Check if a point was scored-------------------------
if ballState(1) < .5 || ballState(1) > 11.5
round = 1;
if ballState(1) < .5
scoreR = scoreR + 1;
ballState = [6 5 -25 randi([-20 20])];
sound(upg);

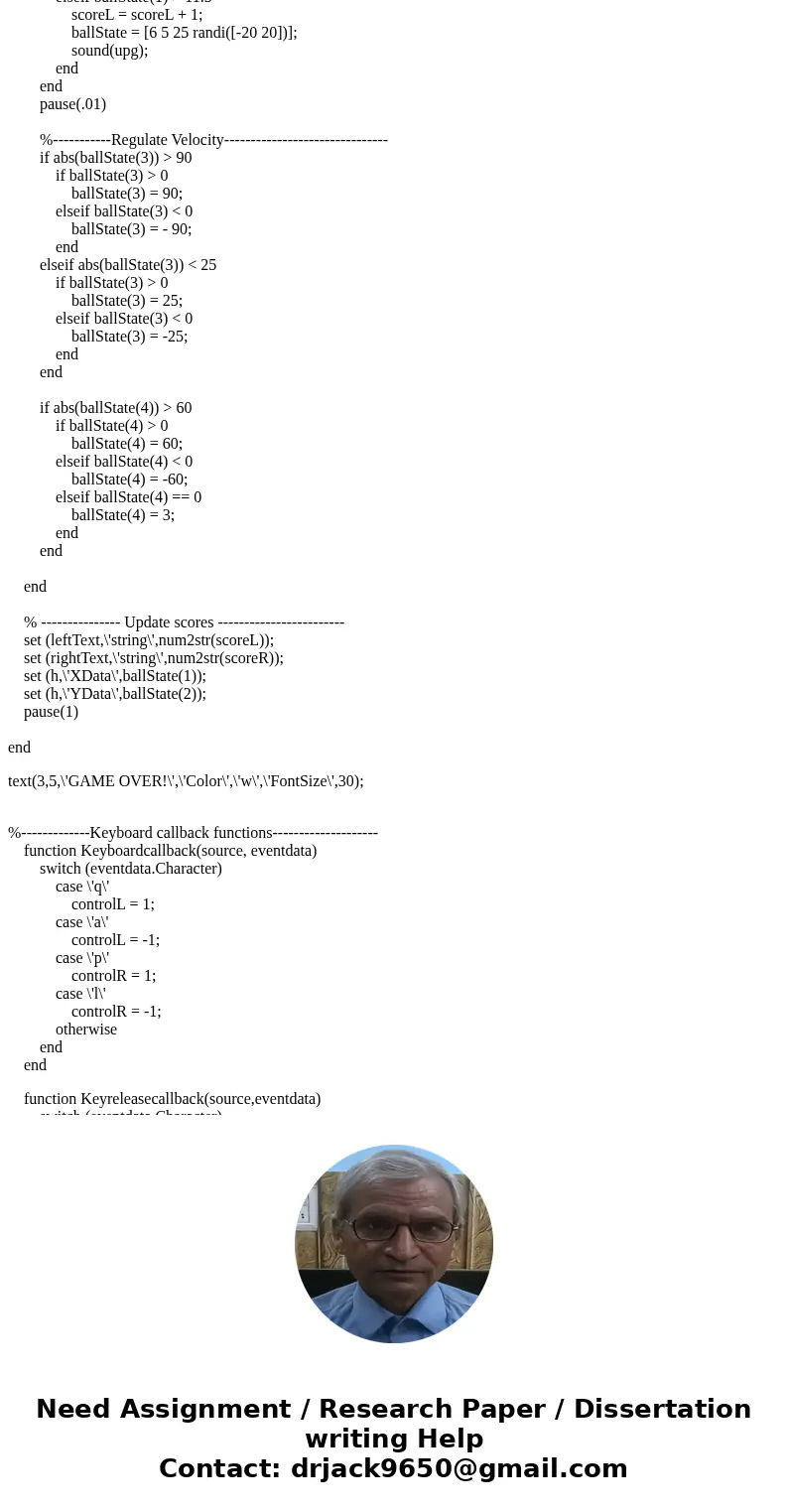

elseif ballState(1) > 11.5
scoreL = scoreL + 1;
ballState = [6 5 25 randi([-20 20])];
sound(upg);
end
end
pause(.01)
%-----------Regulate Velocity-------------------------------
if abs(ballState(3)) > 90
if ballState(3) > 0
ballState(3) = 90;
elseif ballState(3) < 0
ballState(3) = - 90;
end
elseif abs(ballState(3)) < 25
if ballState(3) > 0
ballState(3) = 25;
elseif ballState(3) < 0
ballState(3) = -25;
end
end
if abs(ballState(4)) > 60
if ballState(4) > 0
ballState(4) = 60;
elseif ballState(4) < 0
ballState(4) = -60;
elseif ballState(4) == 0
ballState(4) = 3;
end
end
end
% --------------- Update scores ------------------------
set (leftText,\'string\',num2str(scoreL));
set (rightText,\'string\',num2str(scoreR));
set (h,\'XData\',ballState(1));
set (h,\'YData\',ballState(2));
pause(1)
end
text(3,5,\'GAME OVER!\',\'Color\',\'w\',\'FontSize\',30);
%-------------Keyboard callback functions--------------------
function Keyboardcallback(source, eventdata)
switch (eventdata.Character)
case \'q\'
controlL = 1;
case \'a\'
controlL = -1;
case \'p\'
controlR = 1;
case \'l\'
controlR = -1;
otherwise
end
end

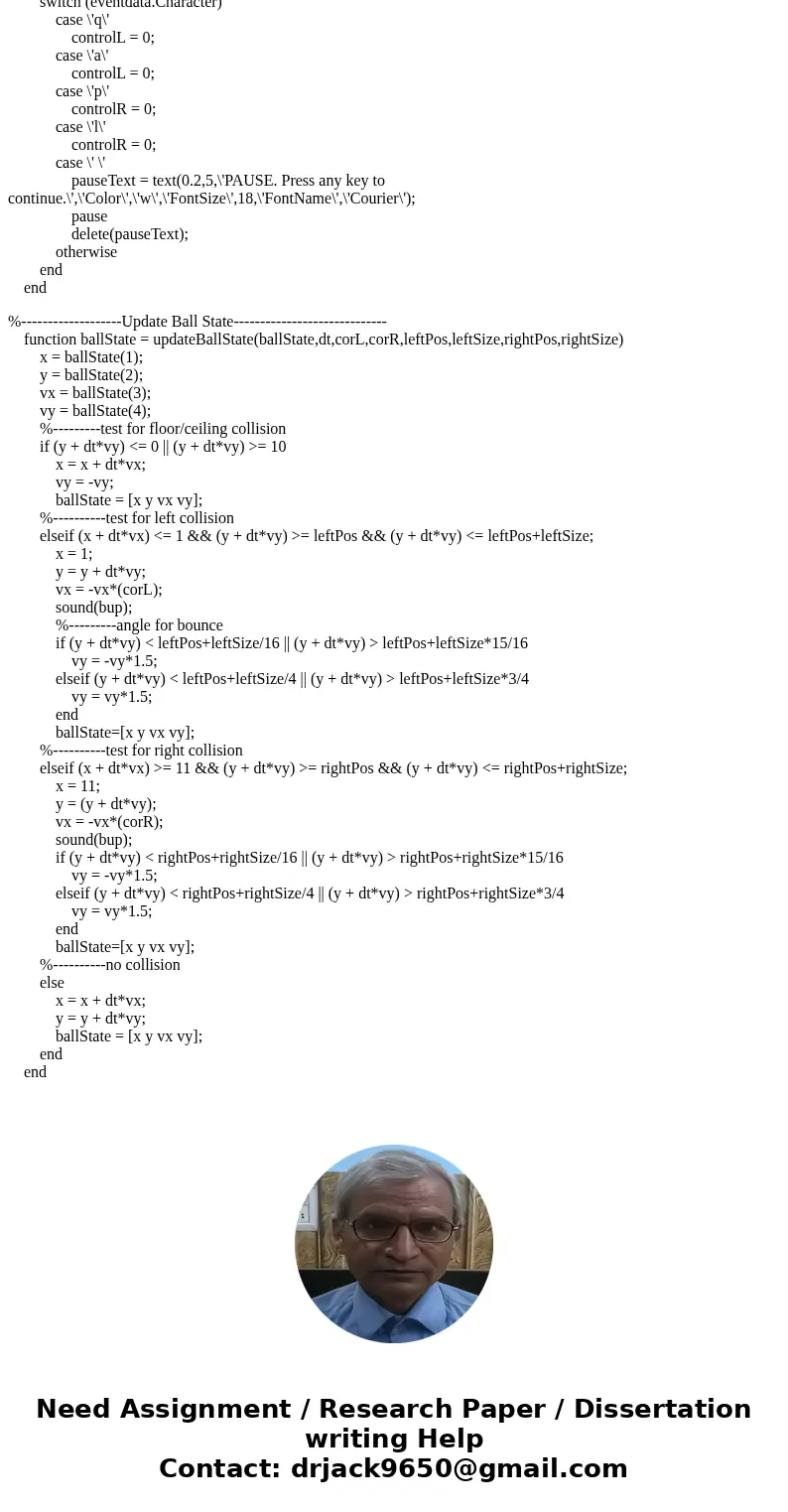

function Keyreleasecallback(source,eventdata)
switch (eventdata.Character)
case \'q\'
controlL = 0;
case \'a\'
controlL = 0;
case \'p\'
controlR = 0;
case \'l\'
controlR = 0;
case \' \'
pauseText = text(0.2,5,\'PAUSE. Press any key to continue.\',\'Color\',\'w\',\'FontSize\',18,\'FontName\',\'Courier\');
pause
delete(pauseText);
otherwise
end
end
%-------------------Update Ball State-----------------------------
function ballState = updateBallState(ballState,dt,corL,corR,leftPos,leftSize,rightPos,rightSize)
x = ballState(1);
y = ballState(2);
vx = ballState(3);
vy = ballState(4);
%---------test for floor/ceiling collision
if (y + dt*vy) <= 0 || (y + dt*vy) >= 10
x = x + dt*vx;
vy = -vy;
ballState = [x y vx vy];
%----------test for left collision
elseif (x + dt*vx) <= 1 && (y + dt*vy) >= leftPos && (y + dt*vy) <= leftPos+leftSize;
x = 1;
y = y + dt*vy;
vx = -vx*(corL);
sound(bup);
%---------angle for bounce
if (y + dt*vy) < leftPos+leftSize/16 || (y + dt*vy) > leftPos+leftSize*15/16
vy = -vy*1.5;
elseif (y + dt*vy) < leftPos+leftSize/4 || (y + dt*vy) > leftPos+leftSize*3/4
vy = vy*1.5;
end

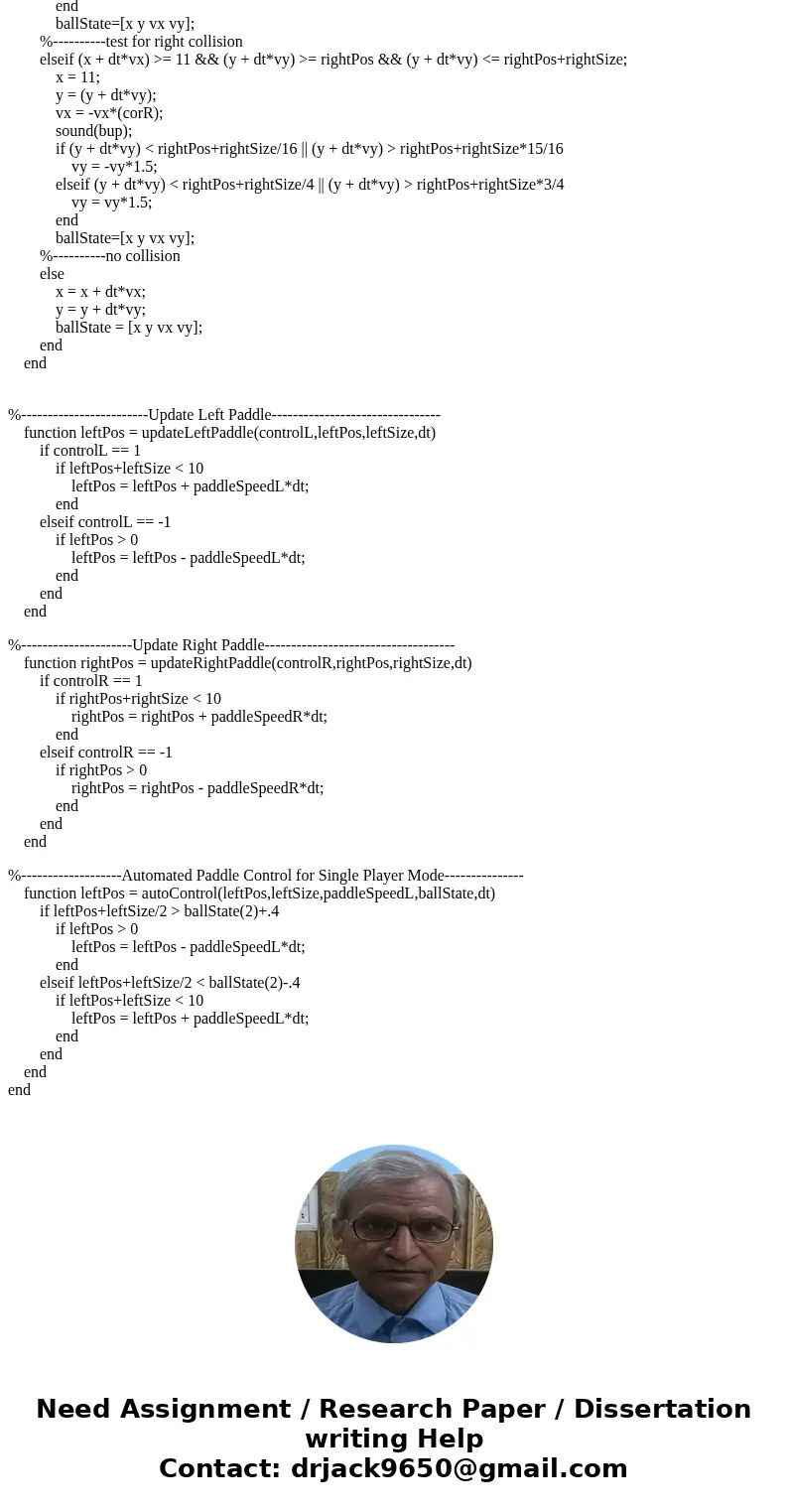

ballState=[x y vx vy];
%----------test for right collision
elseif (x + dt*vx) >= 11 && (y + dt*vy) >= rightPos && (y + dt*vy) <= rightPos+rightSize;
x = 11;
y = (y + dt*vy);
vx = -vx*(corR);
sound(bup);
if (y + dt*vy) < rightPos+rightSize/16 || (y + dt*vy) > rightPos+rightSize*15/16
vy = -vy*1.5;
elseif (y + dt*vy) < rightPos+rightSize/4 || (y + dt*vy) > rightPos+rightSize*3/4
vy = vy*1.5;
end
ballState=[x y vx vy];
%----------no collision
else
x = x + dt*vx;
y = y + dt*vy;
ballState = [x y vx vy];
end
end
%------------------------Update Left Paddle--------------------------------
function leftPos = updateLeftPaddle(controlL,leftPos,leftSize,dt)
if controlL == 1
if leftPos+leftSize < 10
leftPos = leftPos + paddleSpeedL*dt;
end
elseif controlL == -1
if leftPos > 0
leftPos = leftPos - paddleSpeedL*dt;
end
end
end
%---------------------Update Right Paddle------------------------------------
function rightPos = updateRightPaddle(controlR,rightPos,rightSize,dt)
if controlR == 1
if rightPos+rightSize < 10
rightPos = rightPos + paddleSpeedR*dt;
end
elseif controlR == -1
if rightPos > 0
rightPos = rightPos - paddleSpeedR*dt;
end
end
end
%-------------------Automated Paddle Control for Single Player Mode---------------
function leftPos = autoControl(leftPos,leftSize,paddleSpeedL,ballState,dt)
if leftPos+leftSize/2 > ballState(2)+.4
if leftPos > 0
leftPos = leftPos - paddleSpeedL*dt;
end
elseif leftPos+leftSize/2 < ballState(2)-.4
if leftPos+leftSize < 10
leftPos = leftPos + paddleSpeedL*dt;
end
end
end
end
