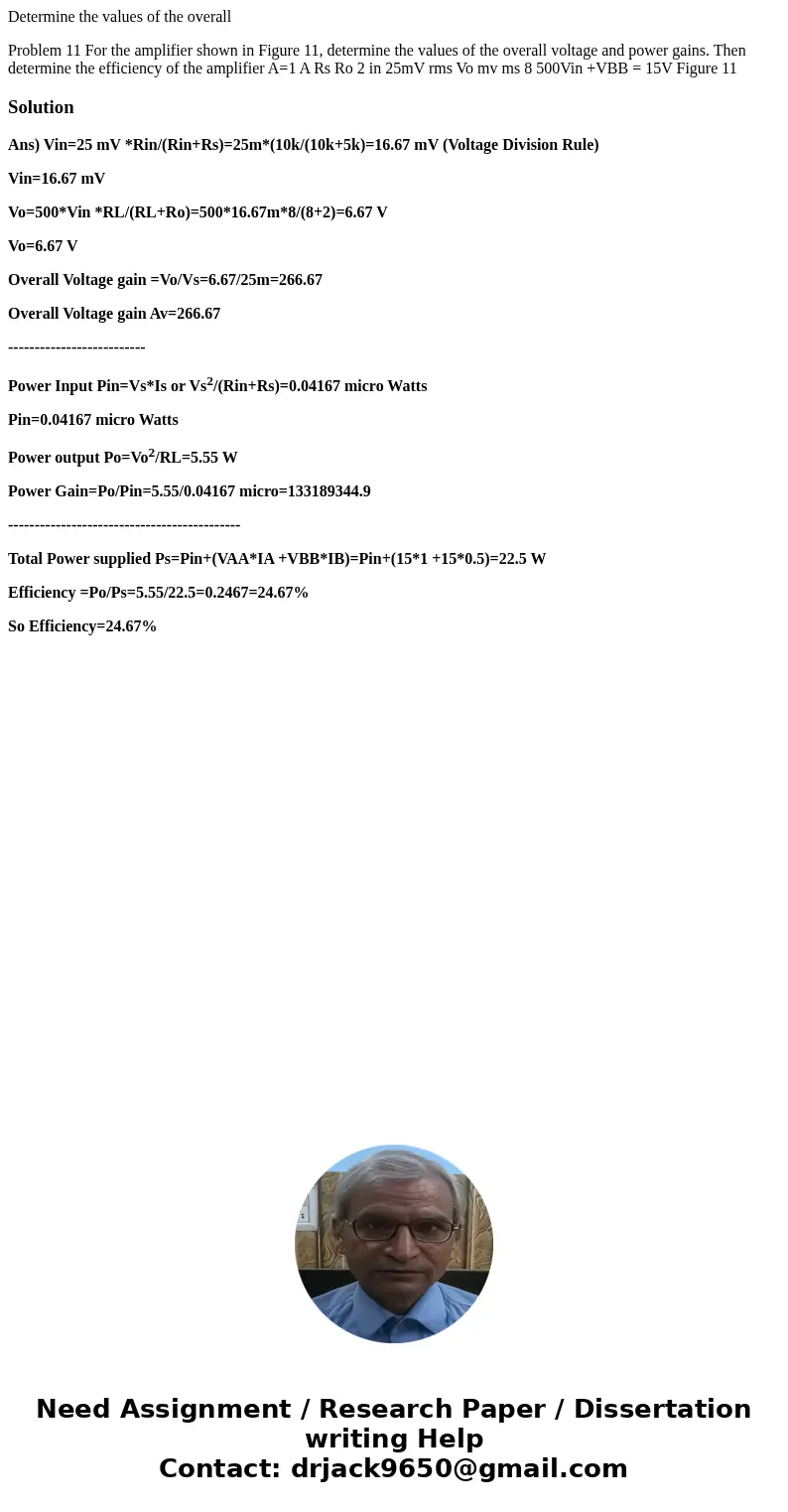

Problem 11 For the amplifier shown in Figure 11, determine the values of the overall voltage and power gains. Then determine the efficiency of the amplifier A=1 A Rs Ro 2 in 25mV rms Vo mv ms 8 500Vin +VBB = 15V Figure 11

Solution

Ans) Vin=25 mV *Rin/(Rin+Rs)=25m*(10k/(10k+5k)=16.67 mV (Voltage Division Rule)

Vin=16.67 mV

Vo=500*Vin *RL/(RL+Ro)=500*16.67m*8/(8+2)=6.67 V

Vo=6.67 V

Overall Voltage gain =Vo/Vs=6.67/25m=266.67

Overall Voltage gain Av=266.67

--------------------------

Power Input Pin=Vs*Is or Vs²/(Rin+Rs)=0.04167 micro Watts

Pin=0.04167 micro Watts

Power output Po=Vo²/RL=5.55 W

Power Gain=Po/Pin=5.55/0.04167 micro=133189344.9

--------------------------------------------

Total Power supplied Ps=Pin+(VAA*IA +VBB*IB)=Pin+(15*1 +15*0.5)=22.5 W

Efficiency =Po/Ps=5.55/22.5=0.2467=24.67%

So Efficiency=24.67%
