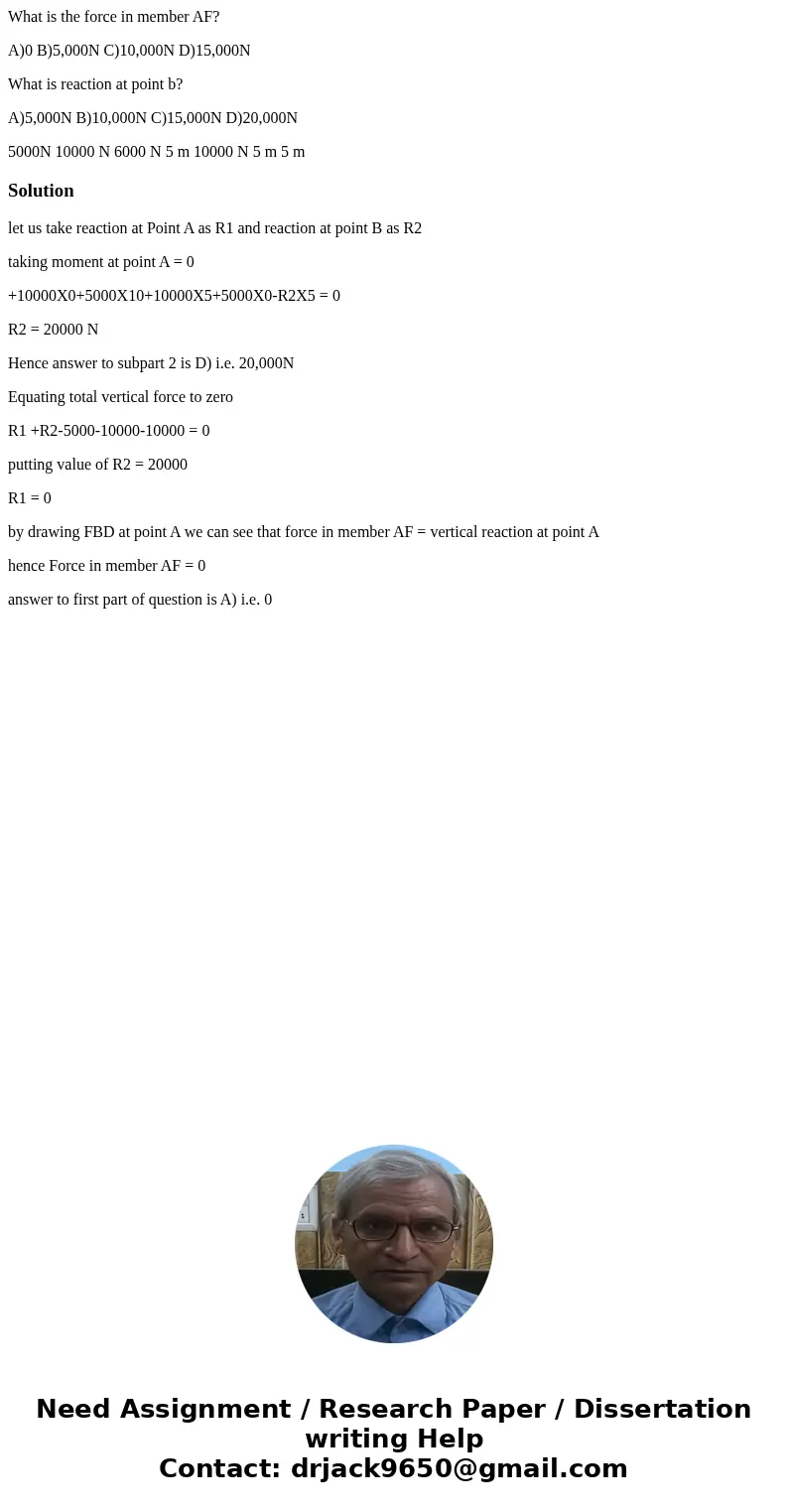

What is the force in member AF?

A)0 B)5,000N C)10,000N D)15,000N

What is reaction at point b?

A)5,000N B)10,000N C)15,000N D)20,000N

5000N 10000 N 6000 N 5 m 10000 N 5 m 5 m

let us take reaction at Point A as R1 and reaction at point B as R2

taking moment at point A = 0

+10000X0+5000X10+10000X5+5000X0-R2X5 = 0

R2 = 20000 N

Hence answer to subpart 2 is D) i.e. 20,000N

Equating total vertical force to zero

R1 +R2-5000-10000-10000 = 0

putting value of R2 = 20000

R1 = 0

by drawing FBD at point A we can see that force in member AF = vertical reaction at point A

hence Force in member AF = 0

answer to first part of question is A) i.e. 0
