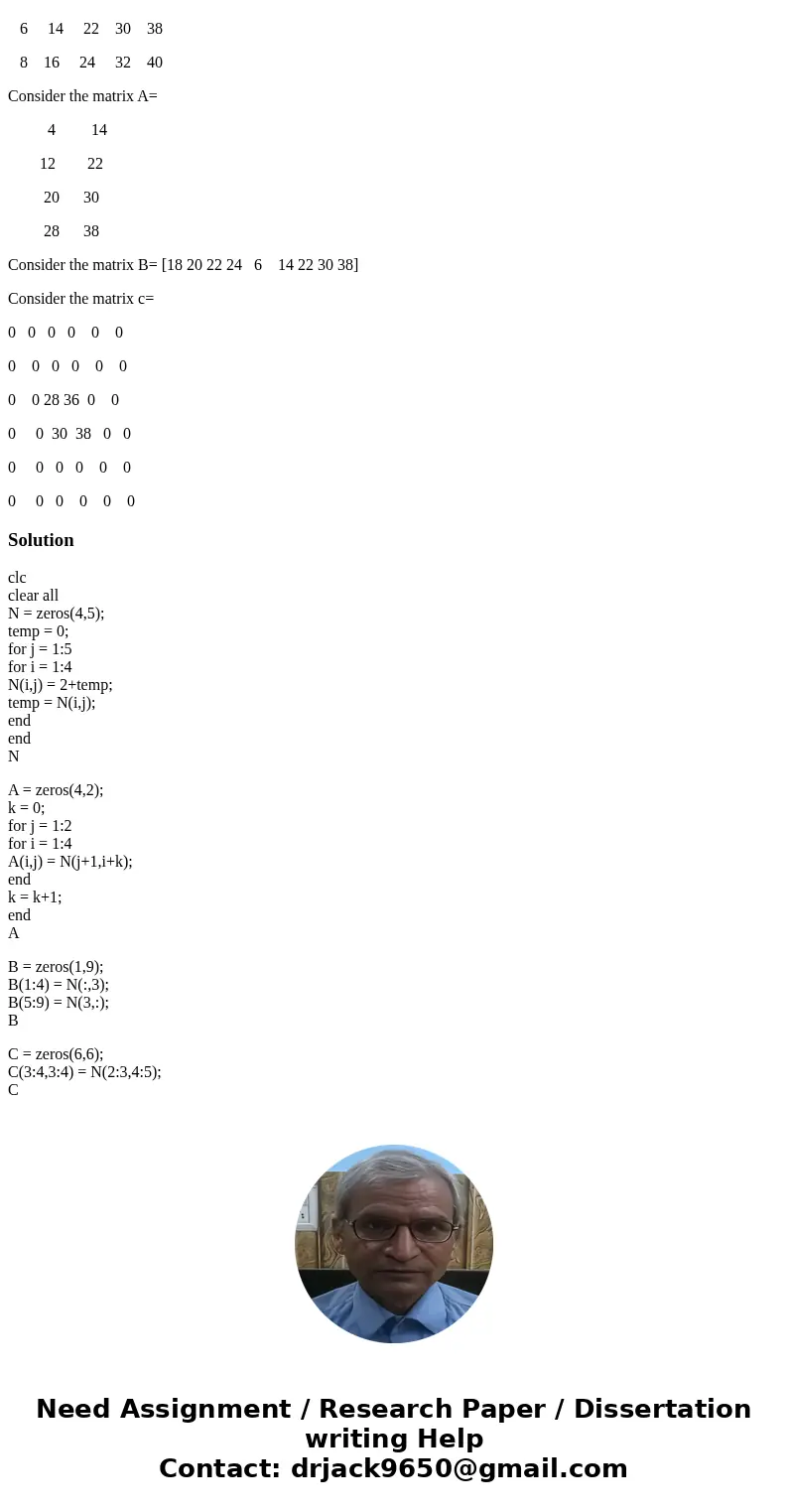

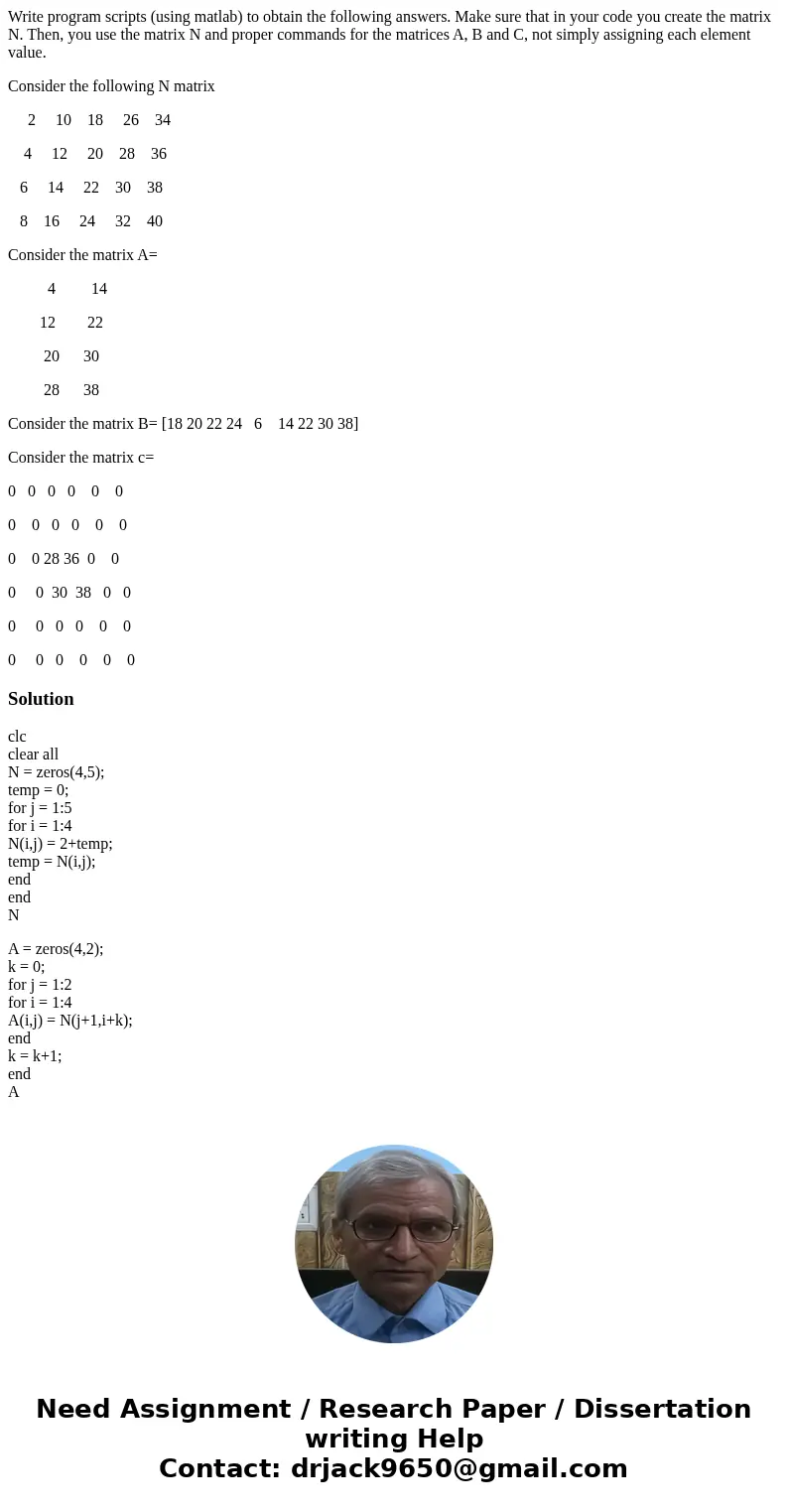

Write program scripts using matlab to obtain the following a

Write program scripts (using matlab) to obtain the following answers. Make sure that in your code you create the matrix N. Then, you use the matrix N and proper commands for the matrices A, B and C, not simply assigning each element value.

Consider the following N matrix

     2     10    18     26    34

    4     12     20    28    36

   6     14     22    30    38

   8    16     24     32    40

Consider the matrix A=

          4         14

        12        22

         20      30

         28      38

Consider the matrix B= [18 20 22 24   6    14 22 30 38]

Consider the matrix c=

0   0   0   0    0    0

0    0   0   0    0    0

0    0 28 36  0    0

0     0  30  38   0   0

0     0   0   0    0    0

0     0   0    0    0    0

Solution

clc
clear all
N = zeros(4,5);
temp = 0;
for j = 1:5
for i = 1:4
N(i,j) = 2+temp;
temp = N(i,j);
end
end
N

A = zeros(4,2);
k = 0;
for j = 1:2
for i = 1:4
A(i,j) = N(j+1,i+k);
end
k = k+1;
end
A

B = zeros(1,9);
B(1:4) = N(:,3);
B(5:9) = N(3,:);
B

C = zeros(6,6);
C(3:4,3:4) = N(2:3,4:5);
C
