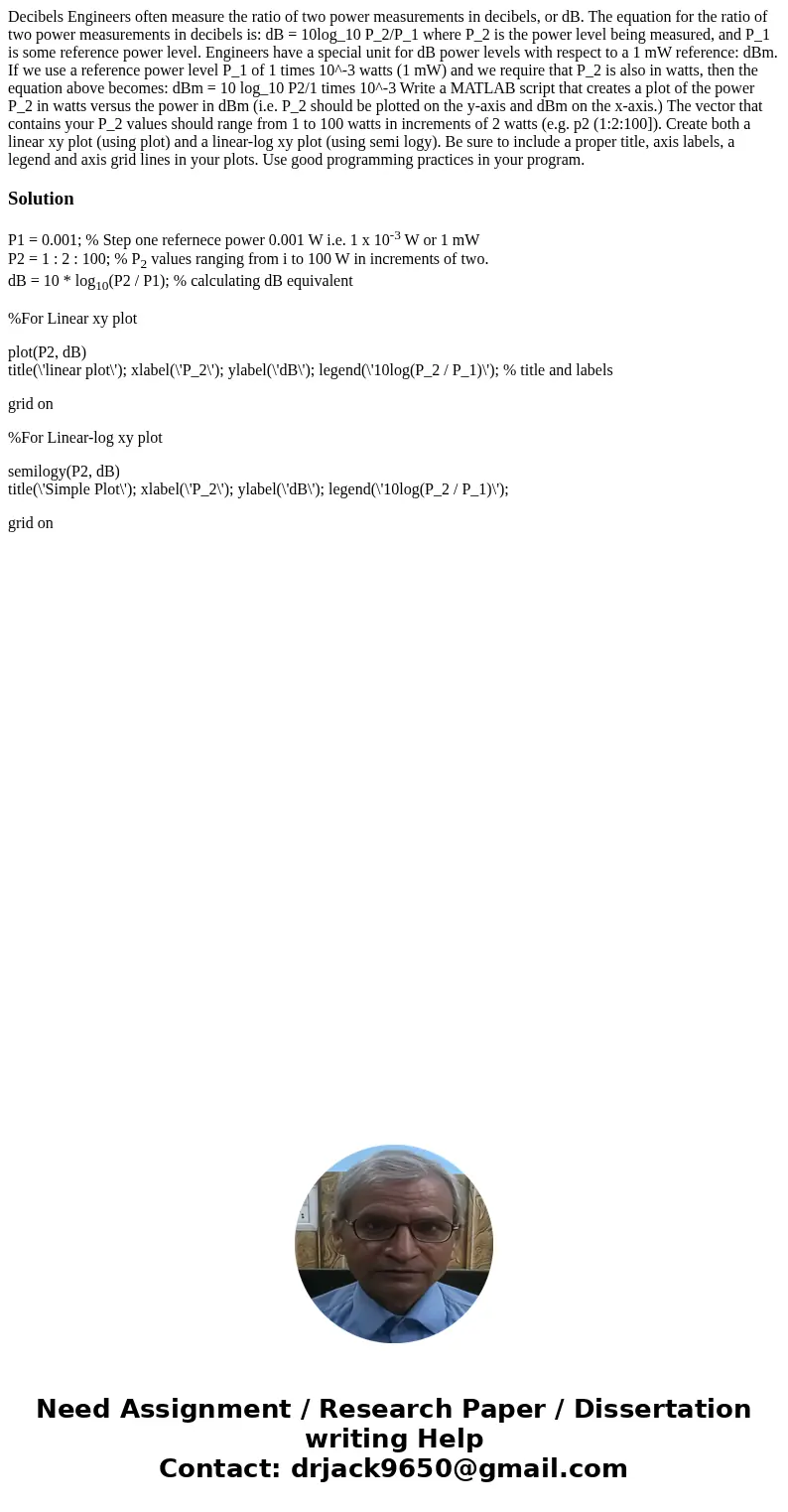

Decibels Engineers often measure the ratio of two power measurements in decibels, or dB. The equation for the ratio of two power measurements in decibels is: dB = 10log_10 P_2/P_1 where P_2 is the power level being measured, and P_1 is some reference power level. Engineers have a special unit for dB power levels with respect to a 1 mW reference: dBm. If we use a reference power level P_1 of 1 times 10^-3 watts (1 mW) and we require that P_2 is also in watts, then the equation above becomes: dBm = 10 log_10 P2/1 times 10^-3 Write a MATLAB script that creates a plot of the power P_2 in watts versus the power in dBm (i.e. P_2 should be plotted on the y-axis and dBm on the x-axis.) The vector that contains your P_2 values should range from 1 to 100 watts in increments of 2 watts (e.g. p2 (1:2:100]). Create both a linear xy plot (using plot) and a linear-log xy plot (using semi logy). Be sure to include a proper title, axis labels, a legend and axis grid lines in your plots. Use good programming practices in your program.

Solution

P1 = 0.001; % Step one refernece power 0.001 W i.e. 1 x 10^-3 W or 1 mW
P2 = 1 : 2 : 100; % P₂ values ranging from i to 100 W in increments of two.
dB = 10 * log₁₀(P2 / P1); % calculating dB equivalent

%For Linear xy plot

plot(P2, dB)
title(\'linear plot\'); xlabel(\'P_2\'); ylabel(\'dB\'); legend(\'10log(P_2 / P_1)\'); % title and labels

grid on

%For Linear-log xy plot

semilogy(P2, dB)
title(\'Simple Plot\'); xlabel(\'P_2\'); ylabel(\'dB\'); legend(\'10log(P_2 / P_1)\');

grid on
