Write a test bench for the sequence detector given below lib

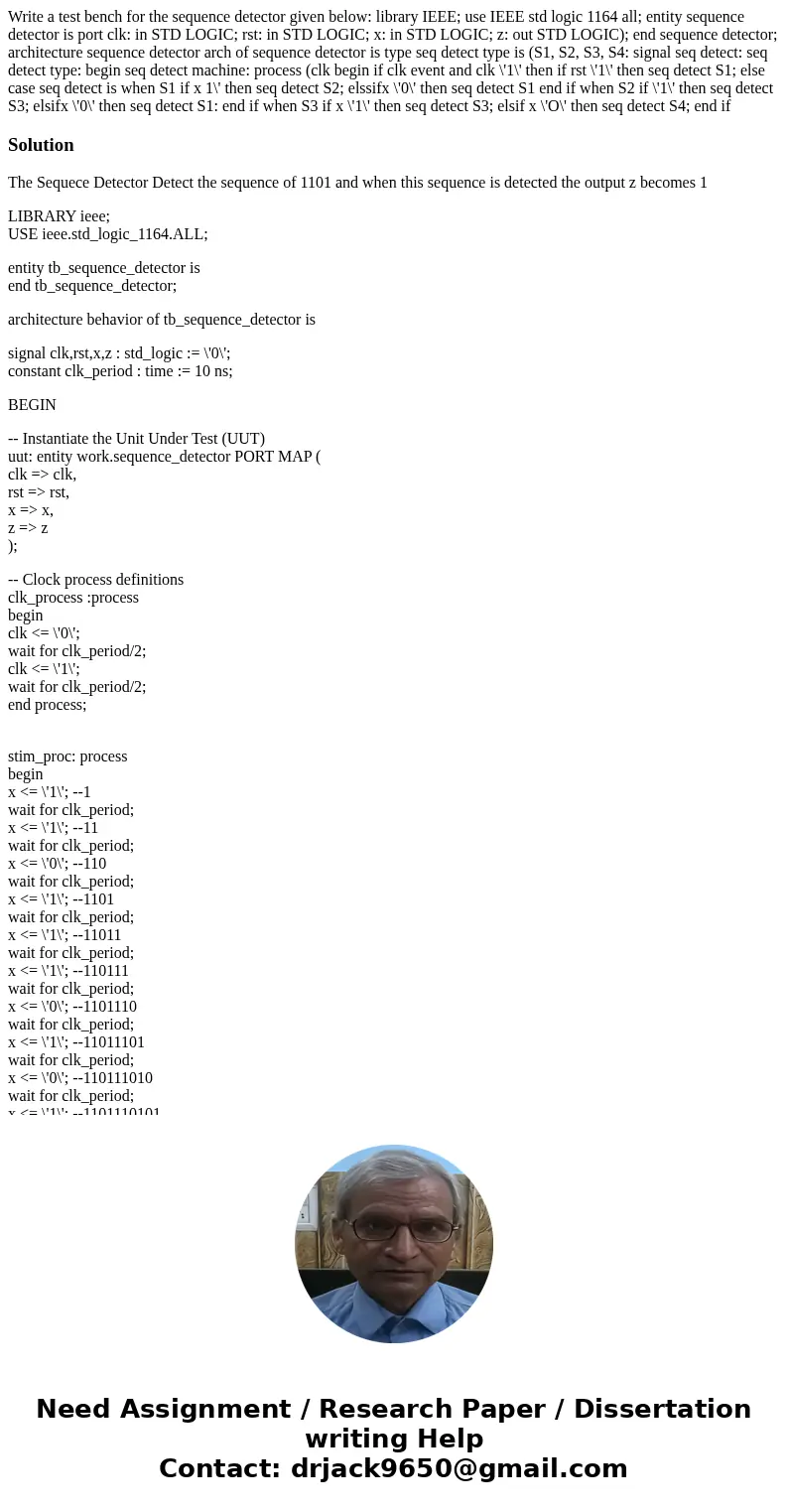

Write a test bench for the sequence detector given below: library IEEE; use IEEE std logic 1164 all; entity sequence detector is port clk: in STD LOGIC; rst: in STD LOGIC; x: in STD LOGIC; z: out STD LOGIC); end sequence detector; architecture sequence detector arch of sequence detector is type seq detect type is (S1, S2, S3, S4: signal seq detect: seq detect type: begin seq detect machine: process (clk begin if clk event and clk \'1\' then if rst \'1\' then seq detect S1; else case seq detect is when S1 if x 1\' then seq detect S2; elssifx \'0\' then seq detect S1 end if when S2 if \'1\' then seq detect S3; elsifx \'0\' then seq detect S1: end if when S3 if x \'1\' then seq detect S3; elsif x \'O\' then seq detect S4; end if

Solution

The Sequece Detector Detect the sequence of 1101 and when this sequence is detected the output z becomes 1

LIBRARY ieee;
USE ieee.std_logic_1164.ALL;

entity tb_sequence_detector is
end tb_sequence_detector;

architecture behavior of tb_sequence_detector is

signal clk,rst,x,z : std_logic := \'0\';
constant clk_period : time := 10 ns;

BEGIN

-- Instantiate the Unit Under Test (UUT)
uut: entity work.sequence_detector PORT MAP (
clk => clk,
rst => rst,
x => x,
z => z
);

-- Clock process definitions

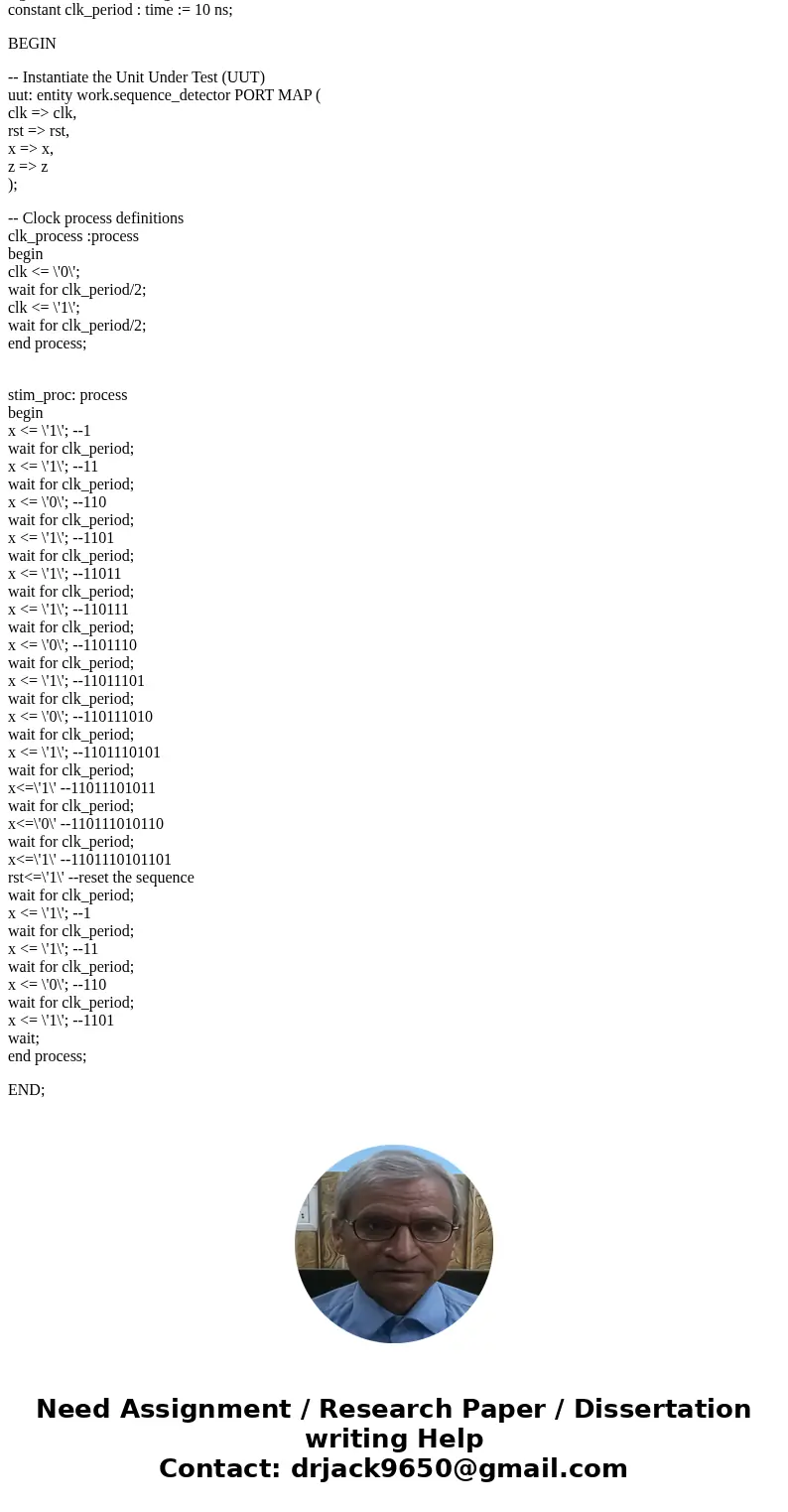

clk_process :process
begin
clk <= \'0\';
wait for clk_period/2;
clk <= \'1\';
wait for clk_period/2;
end process;

stim_proc: process
begin
x <= \'1\'; --1
wait for clk_period;
x <= \'1\'; --11
wait for clk_period;
x <= \'0\'; --110
wait for clk_period;
x <= \'1\'; --1101
wait for clk_period;
x <= \'1\'; --11011
wait for clk_period;
x <= \'1\'; --110111
wait for clk_period;
x <= \'0\'; --1101110
wait for clk_period;
x <= \'1\'; --11011101
wait for clk_period;
x <= \'0\'; --110111010
wait for clk_period;
x <= \'1\'; --1101110101
wait for clk_period;
x<=\'1\' --11011101011
wait for clk_period;
x<=\'0\' --110111010110
wait for clk_period;
x<=\'1\' --1101110101101
rst<=\'1\' --reset the sequence
wait for clk_period;
x <= \'1\'; --1
wait for clk_period;
x <= \'1\'; --11
wait for clk_period;
x <= \'0\'; --110
wait for clk_period;
x <= \'1\'; --1101
wait;
end process;

END;
