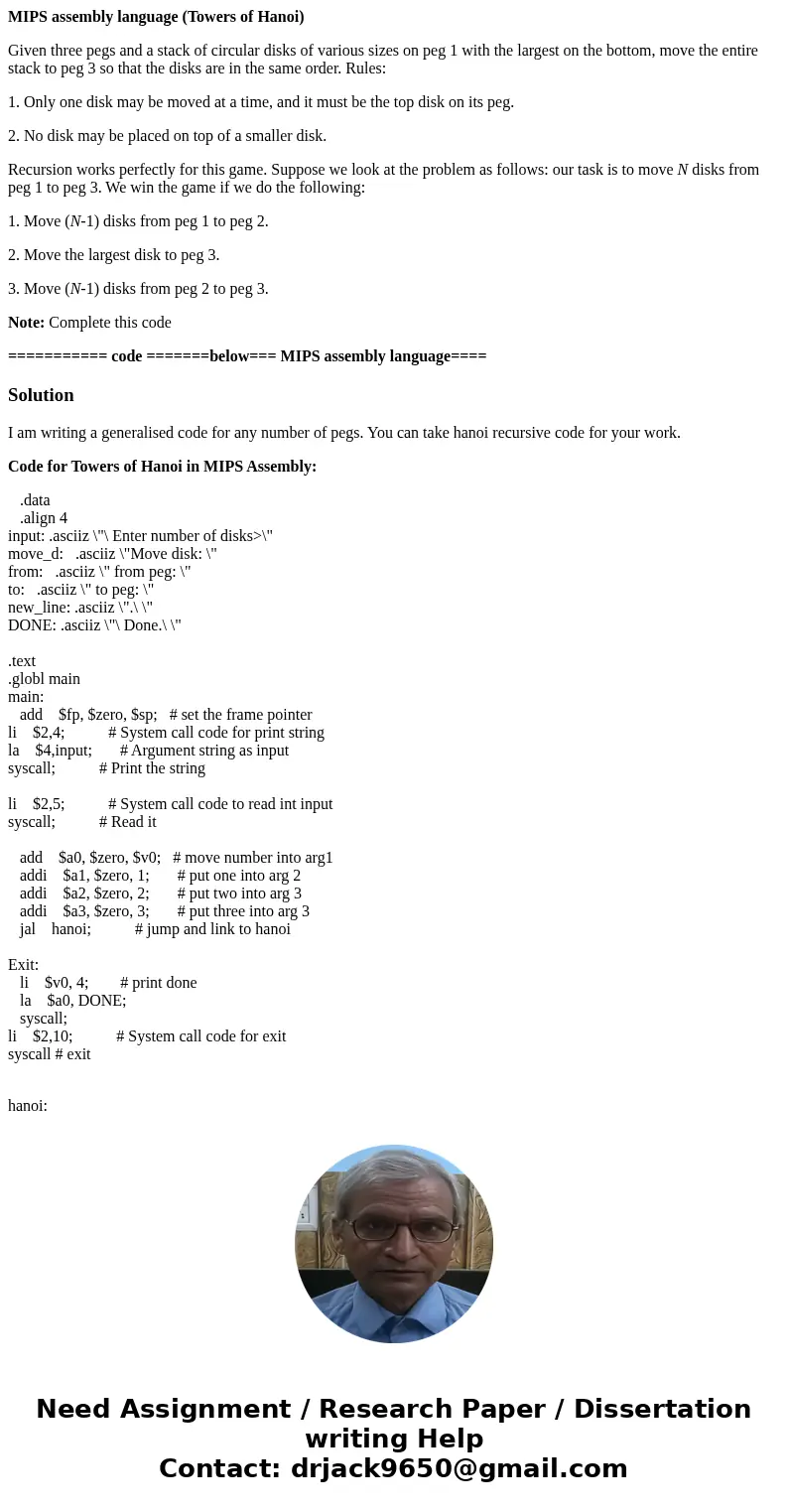

MIPS assembly language (Towers of Hanoi)

Given three pegs and a stack of circular disks of various sizes on peg 1 with the largest on the bottom, move the entire stack to peg 3 so that the disks are in the same order. Rules:

1. Only one disk may be moved at a time, and it must be the top disk on its peg.

2. No disk may be placed on top of a smaller disk.

Recursion works perfectly for this game. Suppose we look at the problem as follows: our task is to move N disks from peg 1 to peg 3. We win the game if we do the following:

1. Move (N-1) disks from peg 1 to peg 2.

2. Move the largest disk to peg 3.

3. Move (N-1) disks from peg 2 to peg 3.

Note: Complete this code

=========== code =======below=== MIPS assembly language====

Solution

I am writing a generalised code for any number of pegs. You can take hanoi recursive code for your work.

Code for Towers of Hanoi in MIPS Assembly:

   .data
   .align 4
input: .asciiz \"\ Enter number of disks>\"
move_d:   .asciiz \"Move disk: \"
from:   .asciiz \" from peg: \"
to:   .asciiz \" to peg: \"
new_line: .asciiz \".\ \"
DONE: .asciiz \"\ Done.\ \"

.text
.globl main
main:
   add    $fp, $zero, $sp;   # set the frame pointer
li    $2,4;           # System call code for print string
la    $4,input;       # Argument string as input
syscall;           # Print the string

li    $2,5;           # System call code to read int input
syscall;           # Read it

   add    $a0, $zero, $v0;   # move number into arg1
   addi    $a1, $zero, 1;       # put one into arg 2
   addi    $a2, $zero, 2;       # put two into arg 3
   addi    $a3, $zero, 3;       # put three into arg 3
   jal    hanoi;           # jump and link to hanoi

Exit:
   li    $v0, 4;        # print done
   la    $a0, DONE;
   syscall;
li    $2,10;           # System call code for exit
syscall # exit

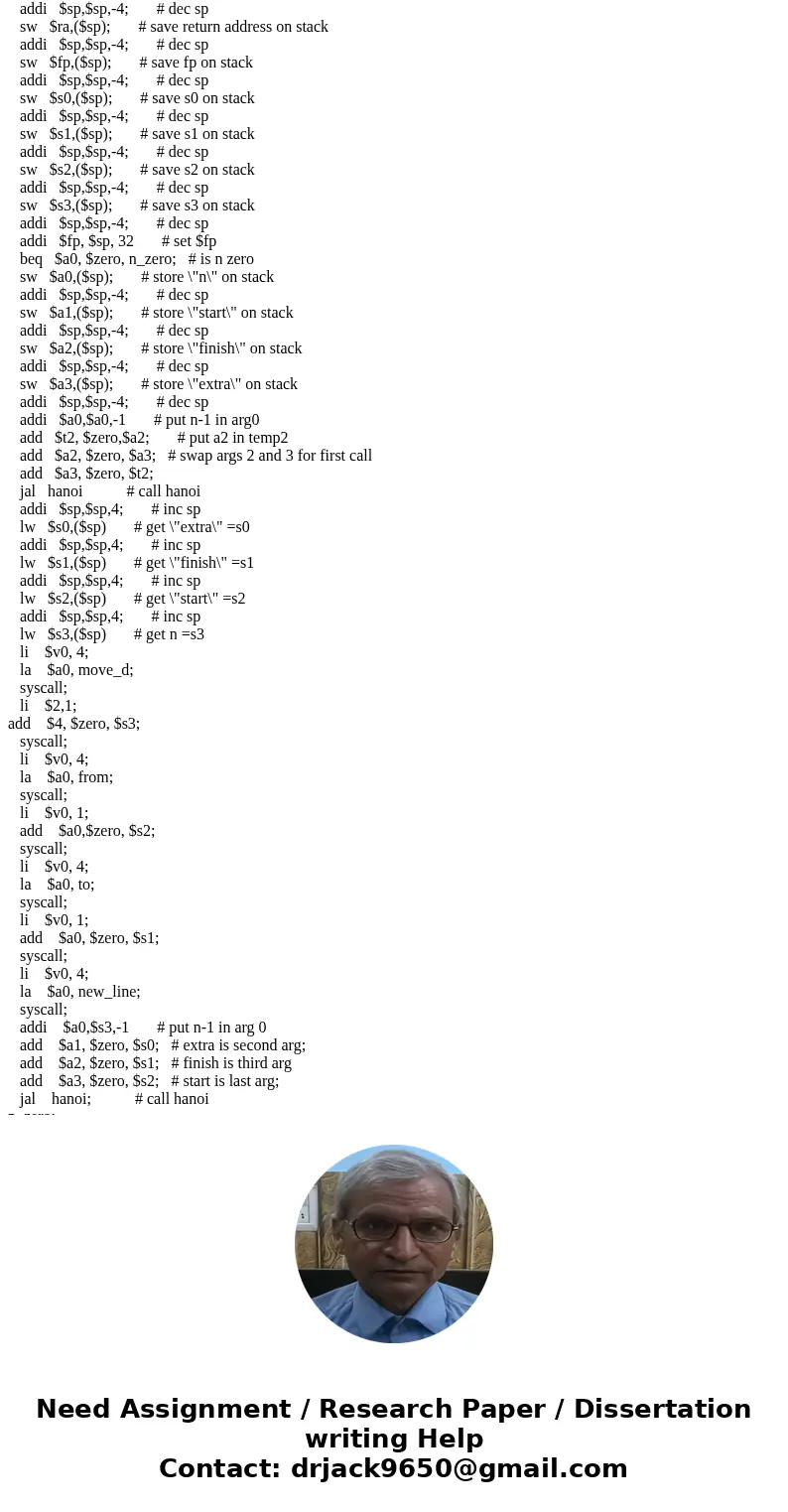

hanoi:
   addi   $sp,$sp,-4;       # dec sp
   sw   $ra,($sp);       # save return address on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $fp,($sp);       # save fp on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $s0,($sp);       # save s0 on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $s1,($sp);       # save s1 on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $s2,($sp);       # save s2 on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $s3,($sp);       # save s3 on stack
   addi   $sp,$sp,-4;       # dec sp
   addi   $fp, $sp, 32       # set $fp
   beq   $a0, $zero, n_zero;   # is n zero
   sw   $a0,($sp);       # store \"n\" on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $a1,($sp);       # store \"start\" on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $a2,($sp);       # store \"finish\" on stack
   addi   $sp,$sp,-4;       # dec sp
   sw   $a3,($sp);       # store \"extra\" on stack
   addi   $sp,$sp,-4;       # dec sp
   addi   $a0,$a0,-1       # put n-1 in arg0
   add   $t2, $zero,$a2;       # put a2 in temp2
   add   $a2, $zero, $a3;   # swap args 2 and 3 for first call
   add   $a3, $zero, $t2;
   jal   hanoi           # call hanoi
   addi   $sp,$sp,4;       # inc sp
   lw   $s0,($sp)       # get \"extra\" =s0
   addi   $sp,$sp,4;       # inc sp
   lw   $s1,($sp)       # get \"finish\" =s1
   addi   $sp,$sp,4;       # inc sp
   lw   $s2,($sp)       # get \"start\" =s2
   addi   $sp,$sp,4;       # inc sp
   lw   $s3,($sp)       # get n =s3
   li    $v0, 4;
   la    $a0, move_d;
   syscall;
   li    $2,1;
add    $4, $zero, $s3;
   syscall;
   li    $v0, 4;
   la    $a0, from;
   syscall;
   li    $v0, 1;
   add    $a0,$zero, $s2;
   syscall;
   li    $v0, 4;
   la    $a0, to;
   syscall;
   li    $v0, 1;
   add    $a0, $zero, $s1;
   syscall;
   li    $v0, 4;
   la    $a0, new_line;
   syscall;

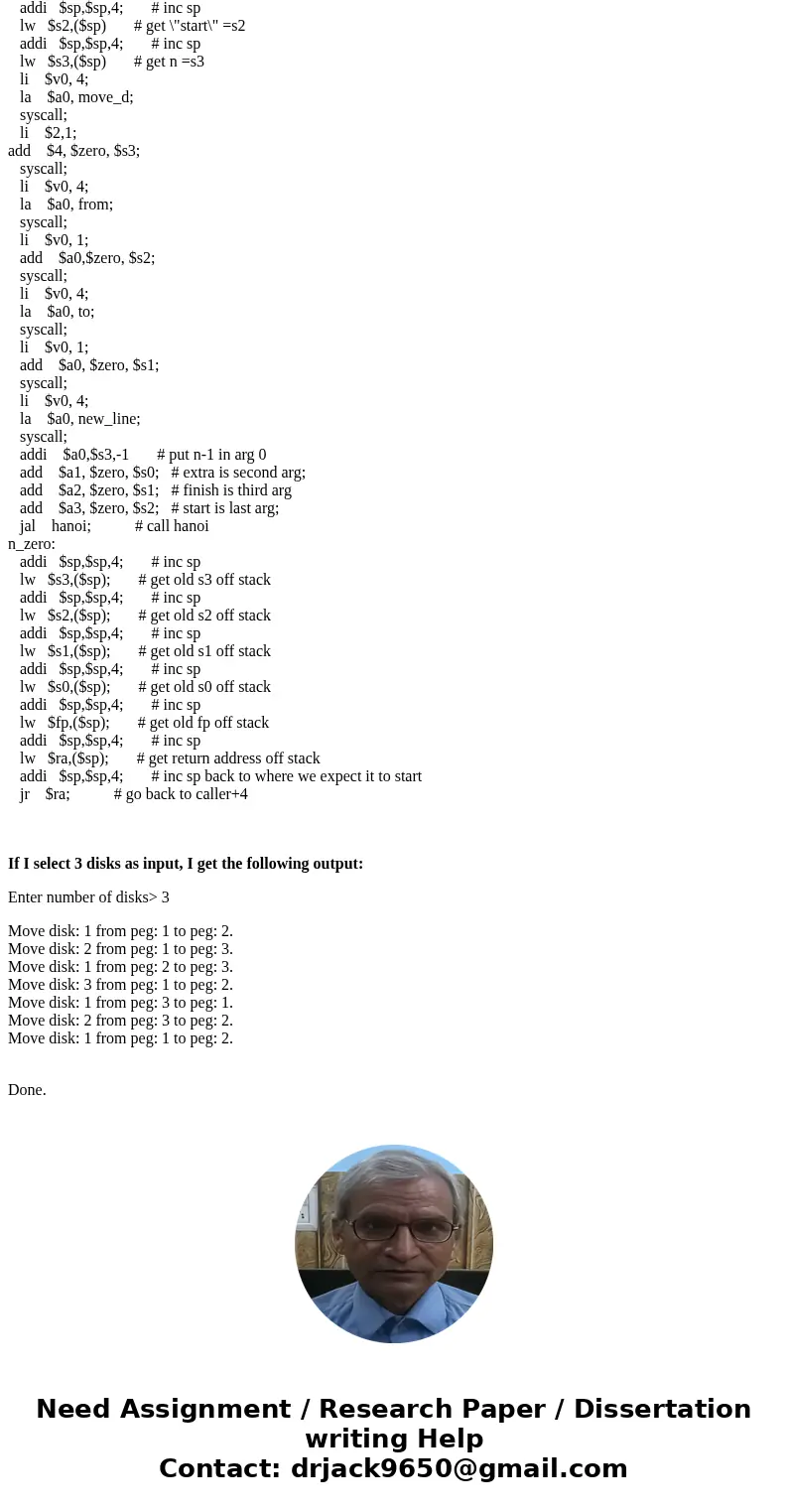

   addi    $a0,$s3,-1       # put n-1 in arg 0
   add    $a1, $zero, $s0;   # extra is second arg;
   add    $a2, $zero, $s1;   # finish is third arg
   add    $a3, $zero, $s2;   # start is last arg;
   jal    hanoi;           # call hanoi
n_zero:
   addi   $sp,$sp,4;       # inc sp
   lw   $s3,($sp);       # get old s3 off stack
   addi   $sp,$sp,4;       # inc sp
   lw   $s2,($sp);       # get old s2 off stack
   addi   $sp,$sp,4;       # inc sp
   lw   $s1,($sp);       # get old s1 off stack
   addi   $sp,$sp,4;       # inc sp
   lw   $s0,($sp);       # get old s0 off stack
   addi   $sp,$sp,4;       # inc sp
   lw   $fp,($sp);       # get old fp off stack
   addi   $sp,$sp,4;       # inc sp
   lw   $ra,($sp);       # get return address off stack
   addi   $sp,$sp,4;       # inc sp back to where we expect it to start
   jr    $ra;           # go back to caller+4


If I select 3 disks as input, I get the following output:

Enter number of disks> 3

Move disk: 1 from peg: 1 to peg: 2.
Move disk: 2 from peg: 1 to peg: 3.
Move disk: 1 from peg: 2 to peg: 3.
Move disk: 3 from peg: 1 to peg: 2.
Move disk: 1 from peg: 3 to peg: 1.
Move disk: 2 from peg: 3 to peg: 2.
Move disk: 1 from peg: 1 to peg: 2.

Done.
