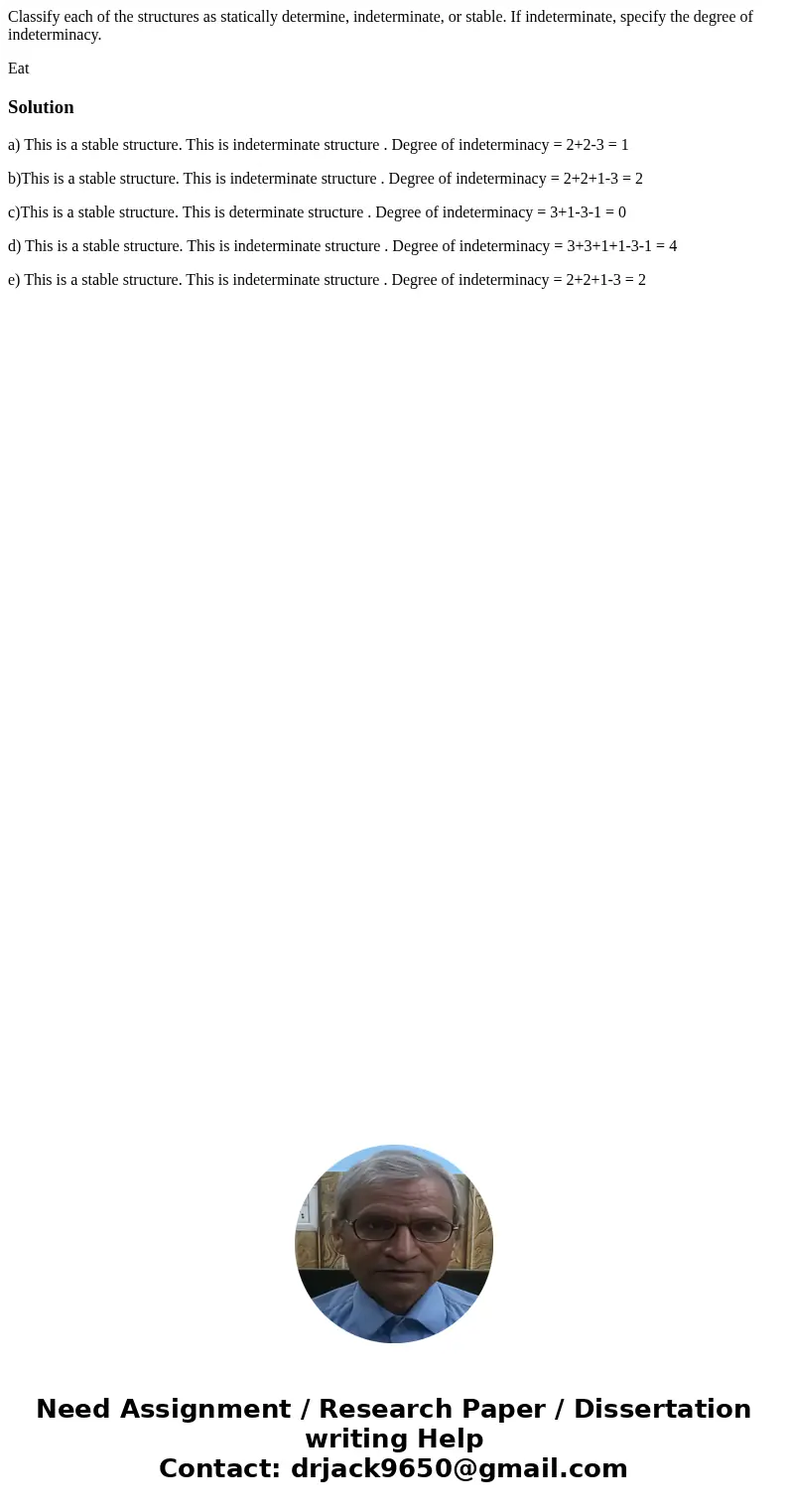

Classify each of the structures as statically determine, indeterminate, or stable. If indeterminate, specify the degree of indeterminacy.

Solution

a) This is a stable structure. This is indeterminate structure . Degree of indeterminacy = 2+2-3 = 1

b)This is a stable structure. This is indeterminate structure . Degree of indeterminacy = 2+2+1-3 = 2

c)This is a stable structure. This is determinate structure . Degree of indeterminacy = 3+1-3-1 = 0

d) This is a stable structure. This is indeterminate structure . Degree of indeterminacy = 3+3+1+1-3-1 = 4

e) This is a stable structure. This is indeterminate structure . Degree of indeterminacy = 2+2+1-3 = 2
