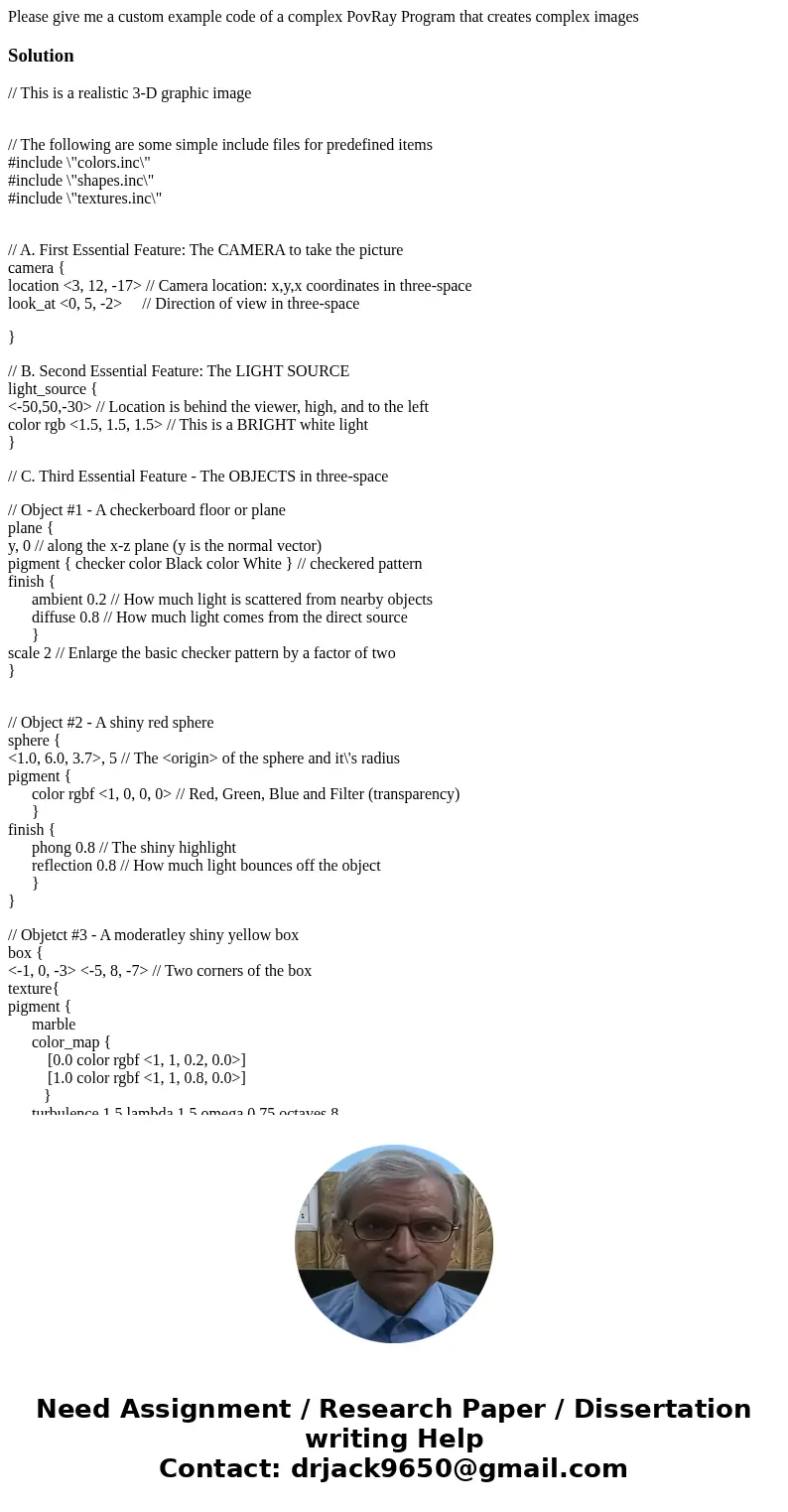

Please give me a custom example code of a complex PovRay Pro

Please give me a custom example code of a complex PovRay Program that creates complex images

Solution

// This is a realistic 3-D graphic image

// The following are some simple include files for predefined items
#include \"colors.inc\"
#include \"shapes.inc\"
#include \"textures.inc\"

// A. First Essential Feature: The CAMERA to take the picture
camera {
location <3, 12, -17> // Camera location: x,y,x coordinates in three-space
look_at <0, 5, -2>     // Direction of view in three-space

}

// B. Second Essential Feature: The LIGHT SOURCE
light_source {
<-50,50,-30> // Location is behind the viewer, high, and to the left
color rgb <1.5, 1.5, 1.5> // This is a BRIGHT white light
}

// C. Third Essential Feature - The OBJECTS in three-space

// Object #1 - A checkerboard floor or plane
plane {
y, 0 // along the x-z plane (y is the normal vector)
pigment { checker color Black color White } // checkered pattern
finish {
      ambient 0.2 // How much light is scattered from nearby objects
      diffuse 0.8 // How much light comes from the direct source
      }
scale 2 // Enlarge the basic checker pattern by a factor of two
}

// Object #2 - A shiny red sphere
sphere {
<1.0, 6.0, 3.7>, 5 // The <origin> of the sphere and it\'s radius
pigment {
      color rgbf <1, 0, 0, 0> // Red, Green, Blue and Filter (transparency)
      }
finish {
      phong 0.8 // The shiny highlight
      reflection 0.8 // How much light bounces off the object
      }
}

// Objetct #3 - A moderatley shiny yellow box
box {
<-1, 0, -3> <-5, 8, -7> // Two corners of the box
texture{
pigment {
      marble
      color_map {
          [0.0 color rgbf <1, 1, 0.2, 0.0>]
          [1.0 color rgbf <1, 1, 0.8, 0.0>]
         }
      turbulence 1.5 lambda 1.5 omega 0.75 octaves 8
      }
normal {bumps 0.2 scale 0.2}
finish {
      phong 0.8
      reflection 0.2
      ambient 0.15
      diffuse 0.75
      }
}
}

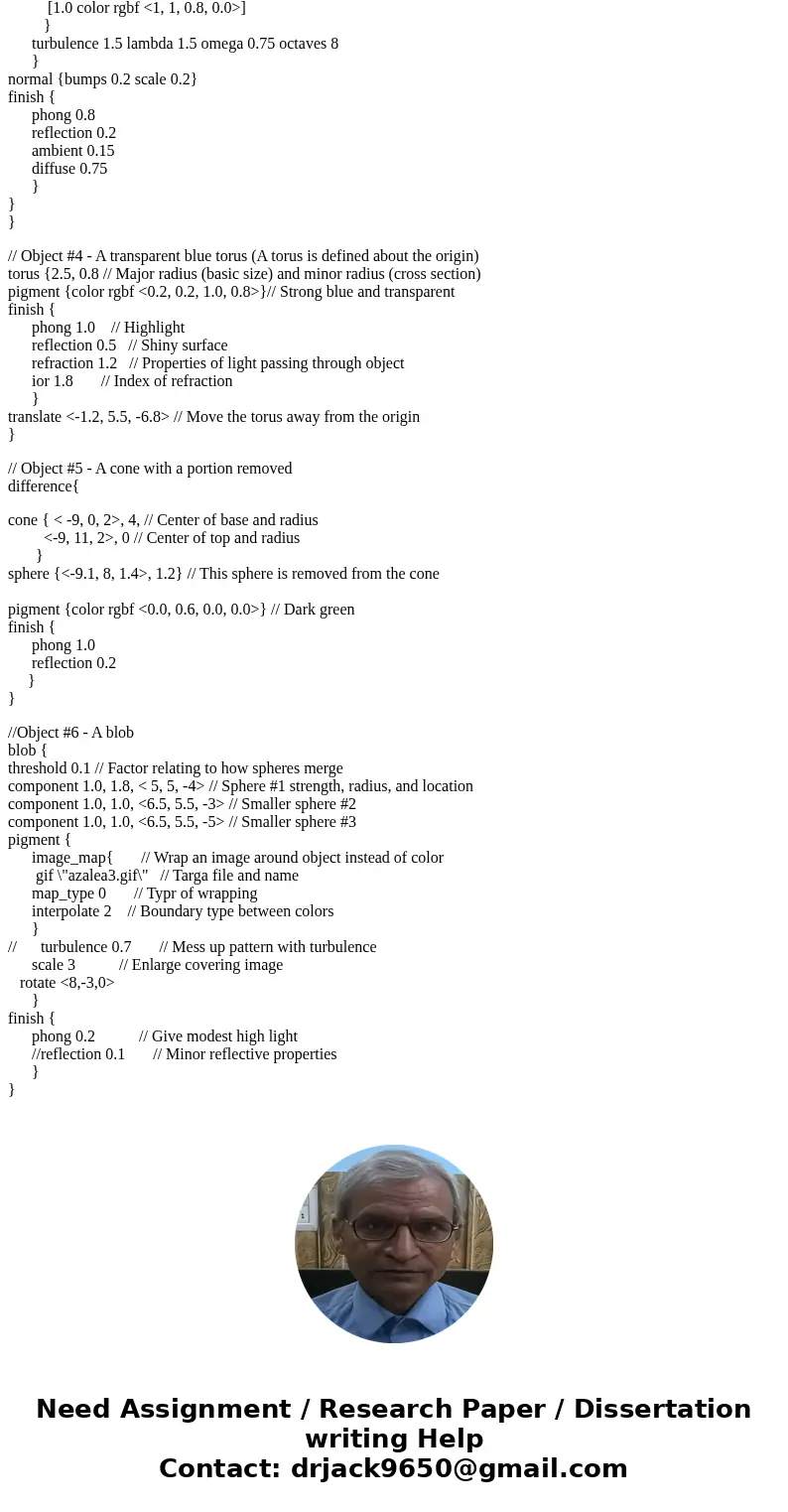

// Object #4 - A transparent blue torus (A torus is defined about the origin)
torus {2.5, 0.8 // Major radius (basic size) and minor radius (cross section)
pigment {color rgbf <0.2, 0.2, 1.0, 0.8>}// Strong blue and transparent
finish {
      phong 1.0    // Highlight
      reflection 0.5   // Shiny surface
      refraction 1.2   // Properties of light passing through object
      ior 1.8       // Index of refraction
      }
translate <-1.2, 5.5, -6.8> // Move the torus away from the origin
}

// Object #5 - A cone with a portion removed
difference{

cone { < -9, 0, 2>, 4, // Center of base and radius
         <-9, 11, 2>, 0 // Center of top and radius
       }
sphere {<-9.1, 8, 1.4>, 1.2} // This sphere is removed from the cone

pigment {color rgbf <0.0, 0.6, 0.0, 0.0>} // Dark green
finish {
      phong 1.0
      reflection 0.2
     }
}

//Object #6 - A blob
blob {
threshold 0.1 // Factor relating to how spheres merge
component 1.0, 1.8, < 5, 5, -4> // Sphere #1 strength, radius, and location
component 1.0, 1.0, <6.5, 5.5, -3> // Smaller sphere #2
component 1.0, 1.0, <6.5, 5.5, -5> // Smaller sphere #3
pigment {
      image_map{       // Wrap an image around object instead of color
       gif \"azalea3.gif\"   // Targa file and name
      map_type 0       // Typr of wrapping
      interpolate 2    // Boundary type between colors
      }
//      turbulence 0.7       // Mess up pattern with turbulence
      scale 3           // Enlarge covering image
   rotate <8,-3,0>
      }
finish {
      phong 0.2           // Give modest high light
      //reflection 0.1       // Minor reflective properties
      }
}
