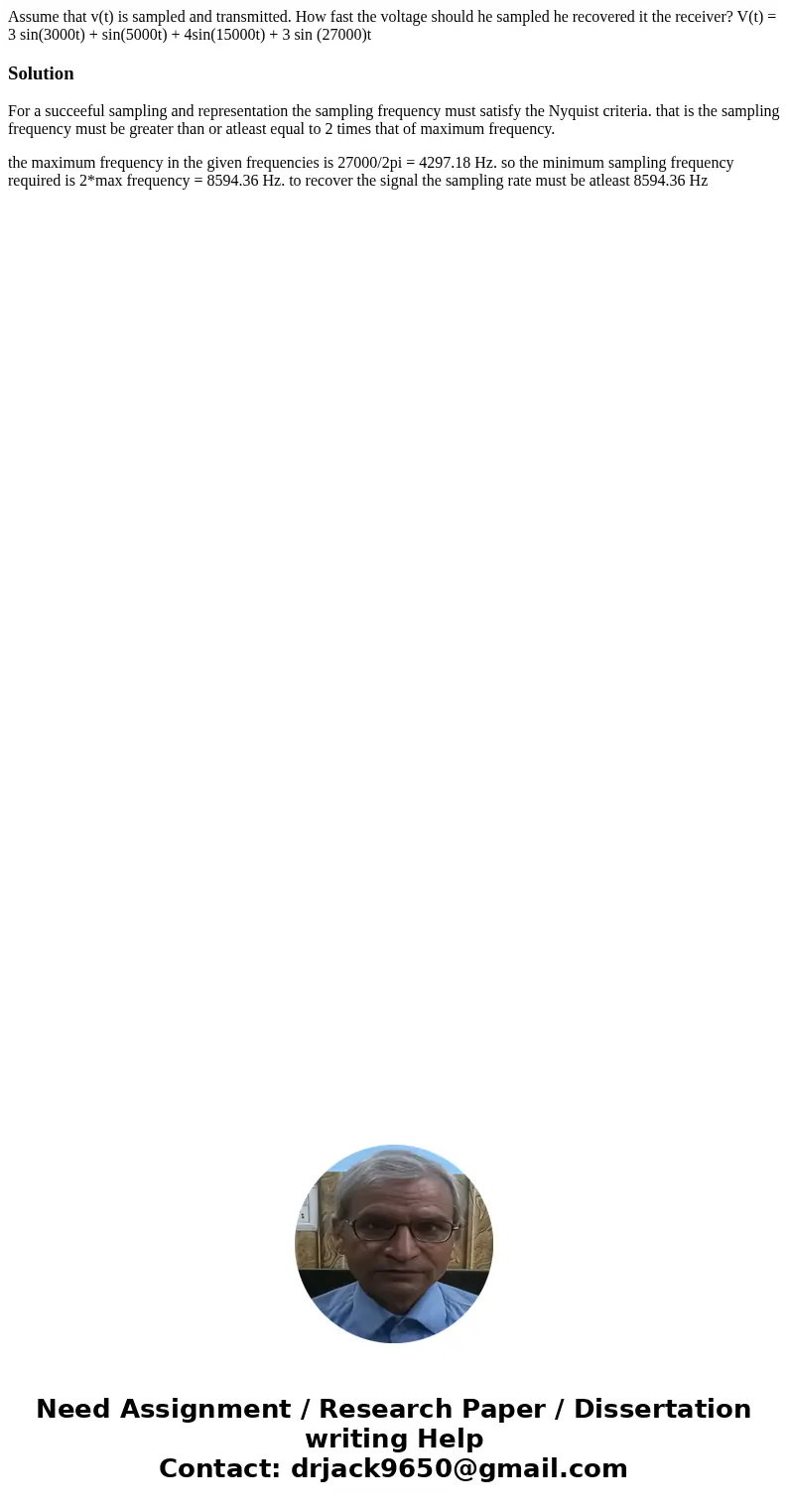

Assume that v(t) is sampled and transmitted. How fast the voltage should he sampled he recovered it the receiver? V(t) = 3 sin(3000t) + sin(5000t) + 4sin(15000t) + 3 sin (27000)t

Solution

For a succeeful sampling and representation the sampling frequency must satisfy the Nyquist criteria. that is the sampling frequency must be greater than or atleast equal to 2 times that of maximum frequency.

the maximum frequency in the given frequencies is 27000/2pi = 4297.18 Hz. so the minimum sampling frequency required is 2*max frequency = 8594.36 Hz. to recover the signal the sampling rate must be atleast 8594.36 Hz
