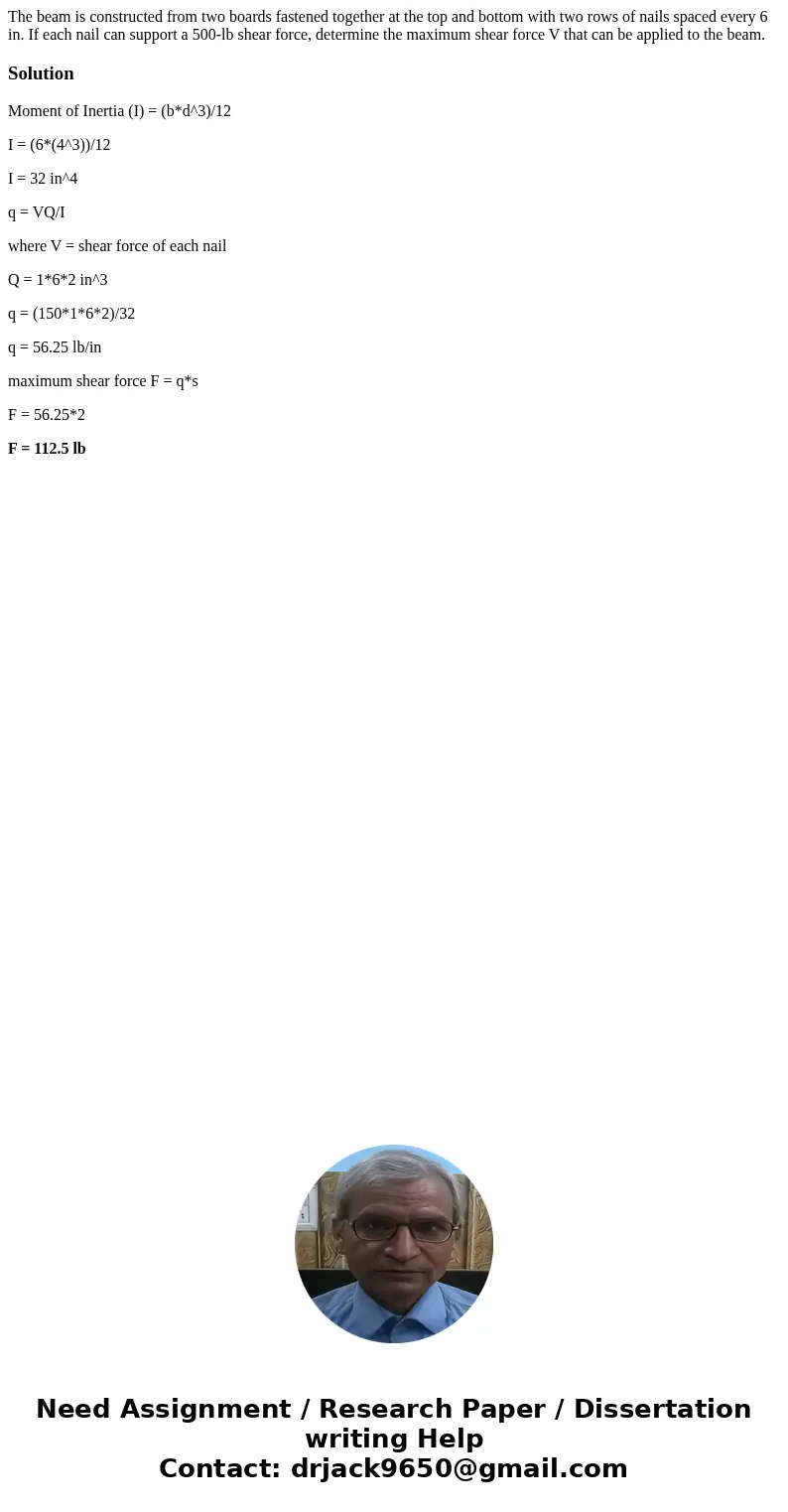

The beam is constructed from two boards fastened together at the top and bottom with two rows of nails spaced every 6 in. If each nail can support a 500-lb shear force, determine the maximum shear force V that can be applied to the beam.

Solution

Moment of Inertia (I) = (b*d^3)/12

I = (6*(4^3))/12

I = 32 in^4

q = VQ/I

where V = shear force of each nail

Q = 1*6*2 in^3

q = (150*1*6*2)/32

q = 56.25 lb/in

maximum shear force F = q*s

F = 56.25*2

F = 112.5 lb
