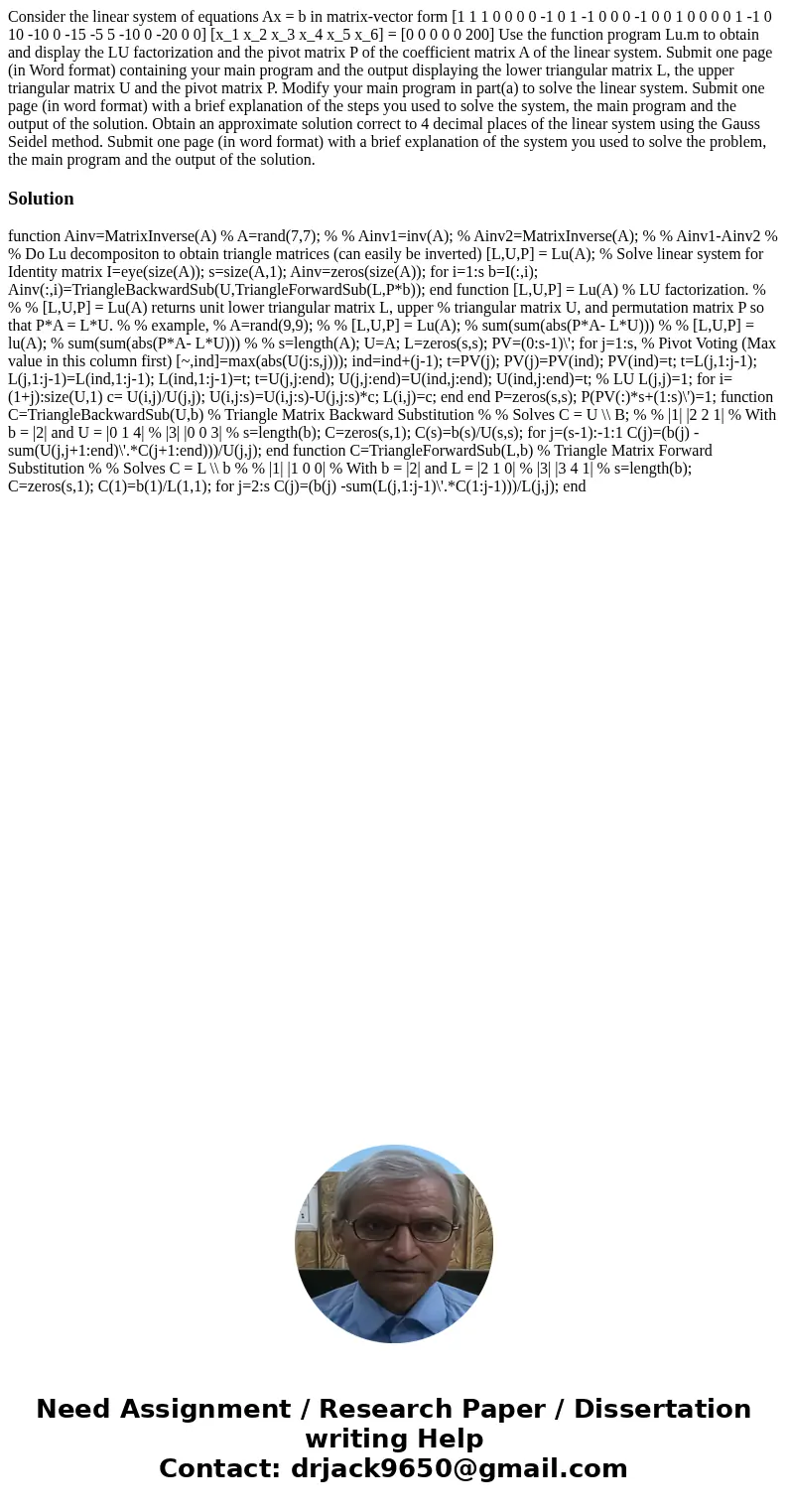

Consider the linear system of equations Ax = b in matrix-vector form [1 1 1 0 0 0 0 -1 0 1 -1 0 0 0 -1 0 0 1 0 0 0 0 1 -1 0 10 -10 0 -15 -5 5 -10 0 -20 0 0] [x_1 x_2 x_3 x_4 x_5 x_6] = [0 0 0 0 0 200] Use the function program Lu.m to obtain and display the LU factorization and the pivot matrix P of the coefficient matrix A of the linear system. Submit one page (in Word format) containing your main program and the output displaying the lower triangular matrix L, the upper triangular matrix U and the pivot matrix P. Modify your main program in part(a) to solve the linear system. Submit one page (in word format) with a brief explanation of the steps you used to solve the system, the main program and the output of the solution. Obtain an approximate solution correct to 4 decimal places of the linear system using the Gauss Seidel method. Submit one page (in word format) with a brief explanation of the system you used to solve the problem, the main program and the output of the solution.

Solution

function Ainv=MatrixInverse(A) % A=rand(7,7); % % Ainv1=inv(A); % Ainv2=MatrixInverse(A); % % Ainv1-Ainv2 % % Do Lu decompositon to obtain triangle matrices (can easily be inverted) [L,U,P] = Lu(A); % Solve linear system for Identity matrix I=eye(size(A)); s=size(A,1); Ainv=zeros(size(A)); for i=1:s b=I(:,i); Ainv(:,i)=TriangleBackwardSub(U,TriangleForwardSub(L,P*b)); end function [L,U,P] = Lu(A) % LU factorization. % % % [L,U,P] = Lu(A) returns unit lower triangular matrix L, upper % triangular matrix U, and permutation matrix P so that P*A = L*U. % % example, % A=rand(9,9); % % [L,U,P] = Lu(A); % sum(sum(abs(P*A- L*U))) % % [L,U,P] = lu(A); % sum(sum(abs(P*A- L*U))) % % s=length(A); U=A; L=zeros(s,s); PV=(0:s-1)\'; for j=1:s, % Pivot Voting (Max value in this column first) [~,ind]=max(abs(U(j:s,j))); ind=ind+(j-1); t=PV(j); PV(j)=PV(ind); PV(ind)=t; t=L(j,1:j-1); L(j,1:j-1)=L(ind,1:j-1); L(ind,1:j-1)=t; t=U(j,j:end); U(j,j:end)=U(ind,j:end); U(ind,j:end)=t; % LU L(j,j)=1; for i=(1+j):size(U,1) c= U(i,j)/U(j,j); U(i,j:s)=U(i,j:s)-U(j,j:s)*c; L(i,j)=c; end end P=zeros(s,s); P(PV(:)*s+(1:s)\')=1; function C=TriangleBackwardSub(U,b) % Triangle Matrix Backward Substitution % % Solves C = U \\ B; % % |1| |2 2 1| % With b = |2| and U = |0 1 4| % |3| |0 0 3| % s=length(b); C=zeros(s,1); C(s)=b(s)/U(s,s); for j=(s-1):-1:1 C(j)=(b(j) -sum(U(j,j+1:end)\'.*C(j+1:end)))/U(j,j); end function C=TriangleForwardSub(L,b) % Triangle Matrix Forward Substitution % % Solves C = L \\ b % % |1| |1 0 0| % With b = |2| and L = |2 1 0| % |3| |3 4 1| % s=length(b); C=zeros(s,1); C(1)=b(1)/L(1,1); for j=2:s C(j)=(b(j) -sum(L(j,1:j-1)\'.*C(1:j-1)))/L(j,j); end
