Magic vlsi software Please let me know which contact using h

Magic vlsi software
Please let me know which contact using heare shown in red
Upp WC NSS

Solution

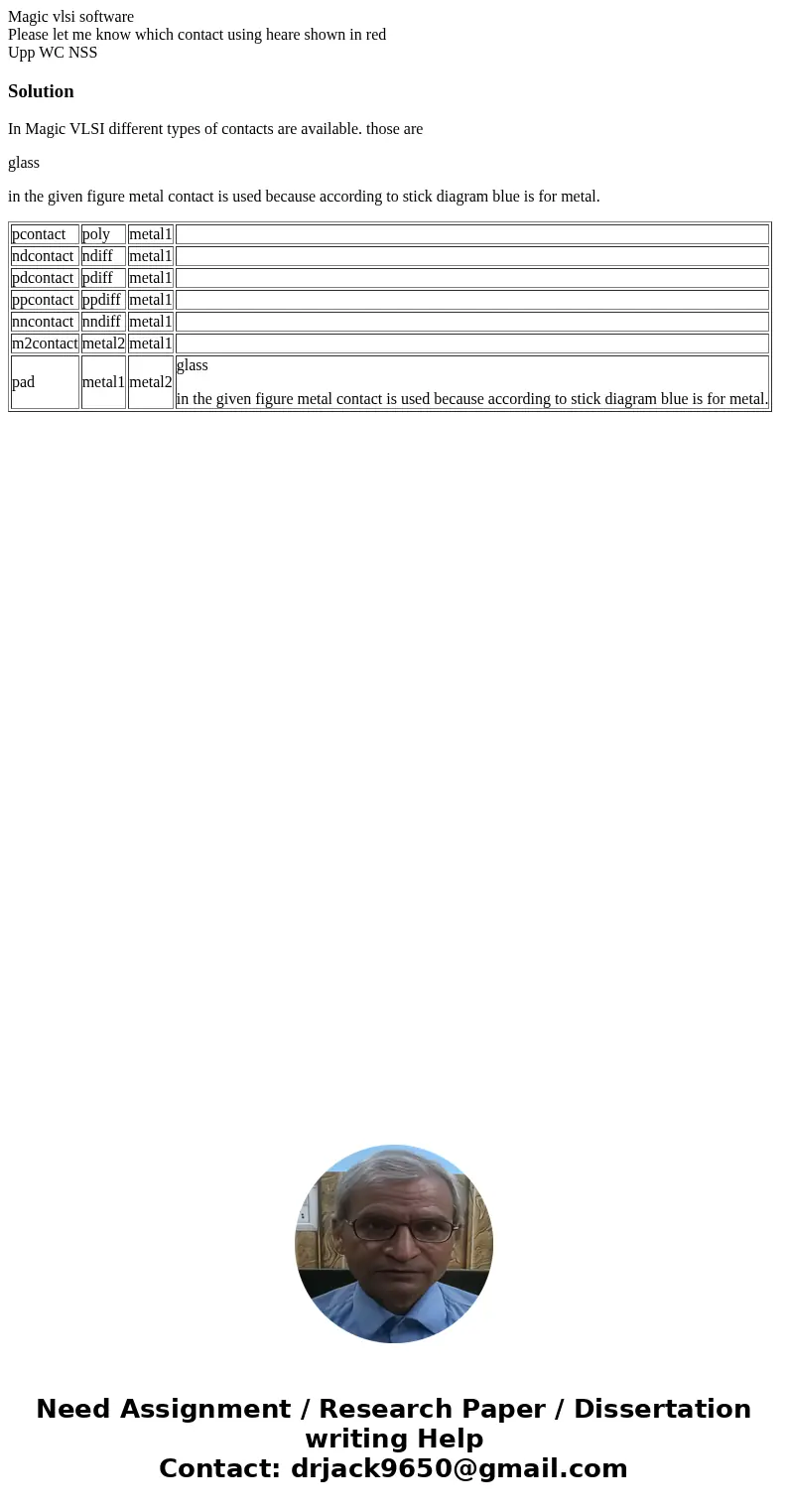

In Magic VLSI different types of contacts are available. those are

glass

in the given figure metal contact is used because according to stick diagram blue is for metal.

pcontact poly metal1
ndcontact ndiff metal1
pdcontact pdiff metal1
ppcontact ppdiff metal1
nncontact nndiff metal1
m2contact metal2 metal1
pad metal1 metal2

glass

in the given figure metal contact is used because according to stick diagram blue is for metal.
