library IEEE use IEEESTDLOGIC1164all entity Counter1 is port

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity Counter1 is port (
init, clk : in std_logic;
q0, q1, q2 : inout std_logic
);
end Counter1;

architecture dataflow of Counter1 is
begin
q0 <= \'0\' when init = \'1\' else
q1 when rising_edge (clk);
q1 <= \'0\' when init = \'1\' else
q2 when rising_edge (clk);
q2 <= \'1\' when init = \'1\' else
q0 when rising_edge (clk);
end dataflow;

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity sim is
end sim;

architecture behavior of sim is component Counter1 port (
init: in std_logic;
clk: in std_logic;
q0: out std_logic;
q1: out std_logic;
q2: out std_logic
);
end component;

signal init: std_logic := \'0\';
signal clk: std_logic := \'0\';

signal q0: std_logic;
signal q1: std_logic;
signal q2: std_logic;

begin
uut: Counter1 port map (
init => init,
clk => clk,
q0 => q0,
q1 => q1,
q2 => q2
);

process
begin
init <= \'0\'; clk <= \'0\'; wait for 500ns;
init <= \'0\'; clk <= \'1\'; wait for 500ns;
init <= \'1\'; clk <= \'0\'; wait for 500ns;
init <= \'1\'; clk <= \'1\'; wait;
end process;
END;

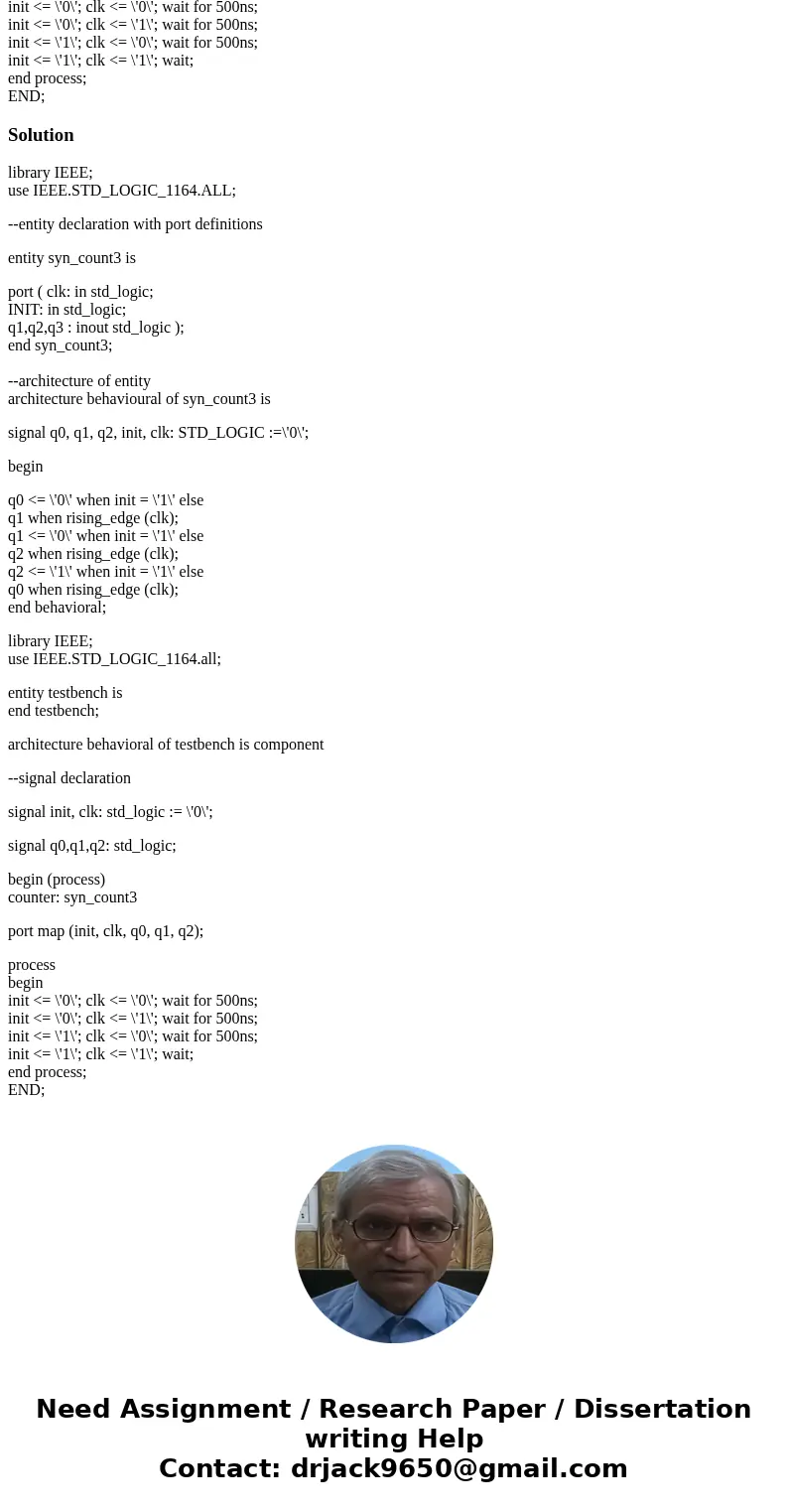

library IEEE;
use IEEE.STD_LOGIC_1164.ALL;

--entity declaration with port definitions

entity syn_count3 is

port ( clk: in std_logic;
INIT: in std_logic;
q1,q2,q3 : inout std_logic );
end syn_count3;

--architecture of entity
architecture behavioural of syn_count3 is

signal q0, q1, q2, init, clk: STD_LOGIC :=\'0\';

begin

q0 <= \'0\' when init = \'1\' else
q1 when rising_edge (clk);
q1 <= \'0\' when init = \'1\' else
q2 when rising_edge (clk);
q2 <= \'1\' when init = \'1\' else
q0 when rising_edge (clk);
end behavioral;

library IEEE;
use IEEE.STD_LOGIC_1164.all;

entity testbench is
end testbench;

architecture behavioral of testbench is component

--signal declaration

signal init, clk: std_logic := \'0\';

signal q0,q1,q2: std_logic;

begin (process)
counter: syn_count3

port map (init, clk, q0, q1, q2);
