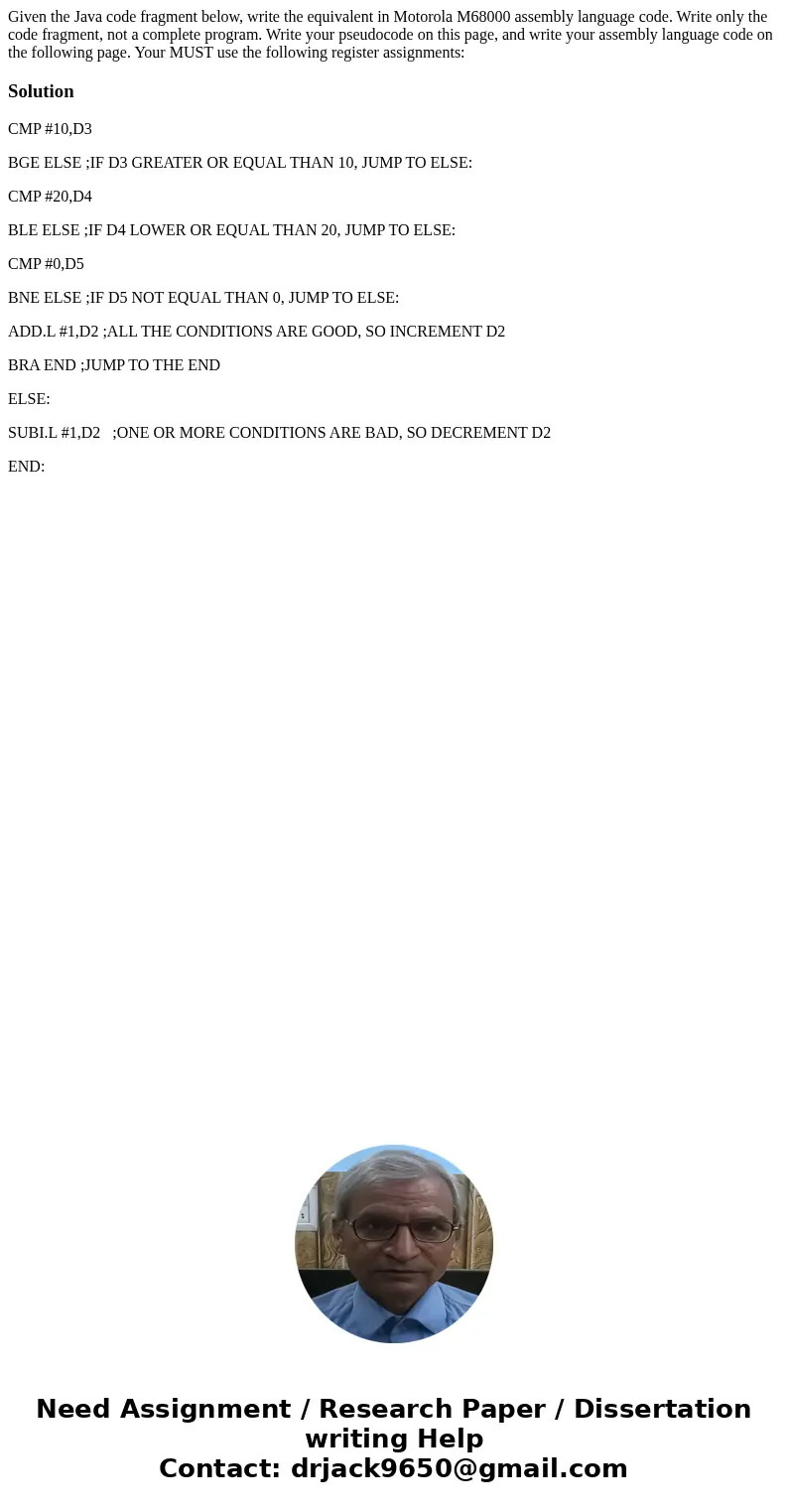

Given the Java code fragment below write the equivalent in M

Given the Java code fragment below, write the equivalent in Motorola M68000 assembly language code. Write only the code fragment, not a complete program. Write your pseudocode on this page, and write your assembly language code on the following page. Your MUST use the following register assignments:

Solution

CMP #10,D3

BGE ELSE ;IF D3 GREATER OR EQUAL THAN 10, JUMP TO ELSE:

CMP #20,D4

BLE ELSE ;IF D4 LOWER OR EQUAL THAN 20, JUMP TO ELSE:

CMP #0,D5

BNE ELSE ;IF D5 NOT EQUAL THAN 0, JUMP TO ELSE:

ADD.L #1,D2 ;ALL THE CONDITIONS ARE GOOD, SO INCREMENT D2

BRA END ;JUMP TO THE END

ELSE:

SUBI.L #1,D2   ;ONE OR MORE CONDITIONS ARE BAD, SO DECREMENT D2

END:
