id effect trans Name CET Assigr 1) IBarc and voe for the Ciro each case. Assume a transis Bet +15V Active 1K. 68K 5V O.

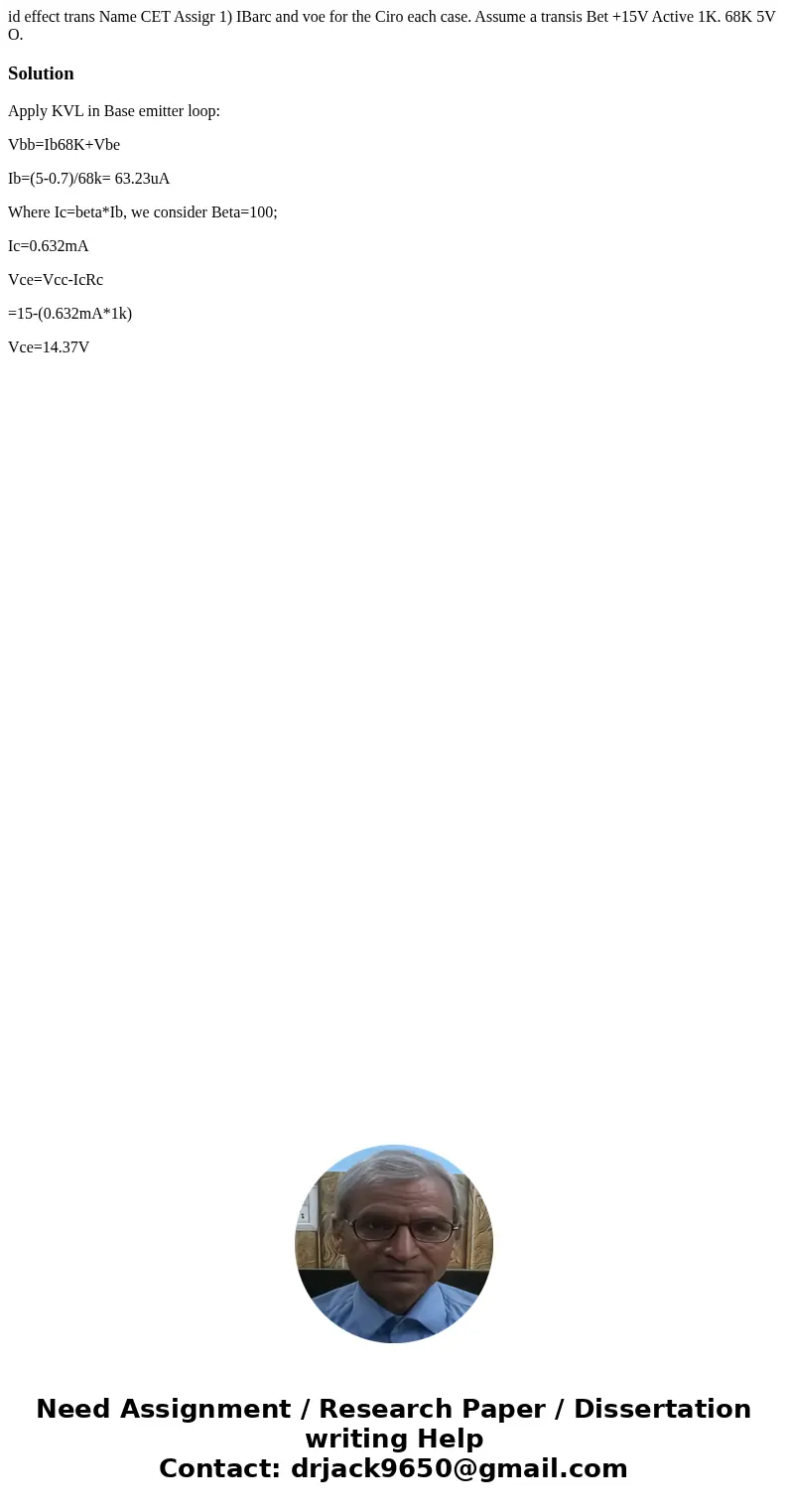

Solution

Apply KVL in Base emitter loop:

Vbb=Ib68K+Vbe

Ib=(5-0.7)/68k= 63.23uA

Where Ic=beta*Ib, we consider Beta=100;

Ic=0.632mA

Vce=Vcc-IcRc

=15-(0.632mA*1k)

Vce=14.37V
