Name Quiz Assume ideal flow from reservoir A to reservoir B

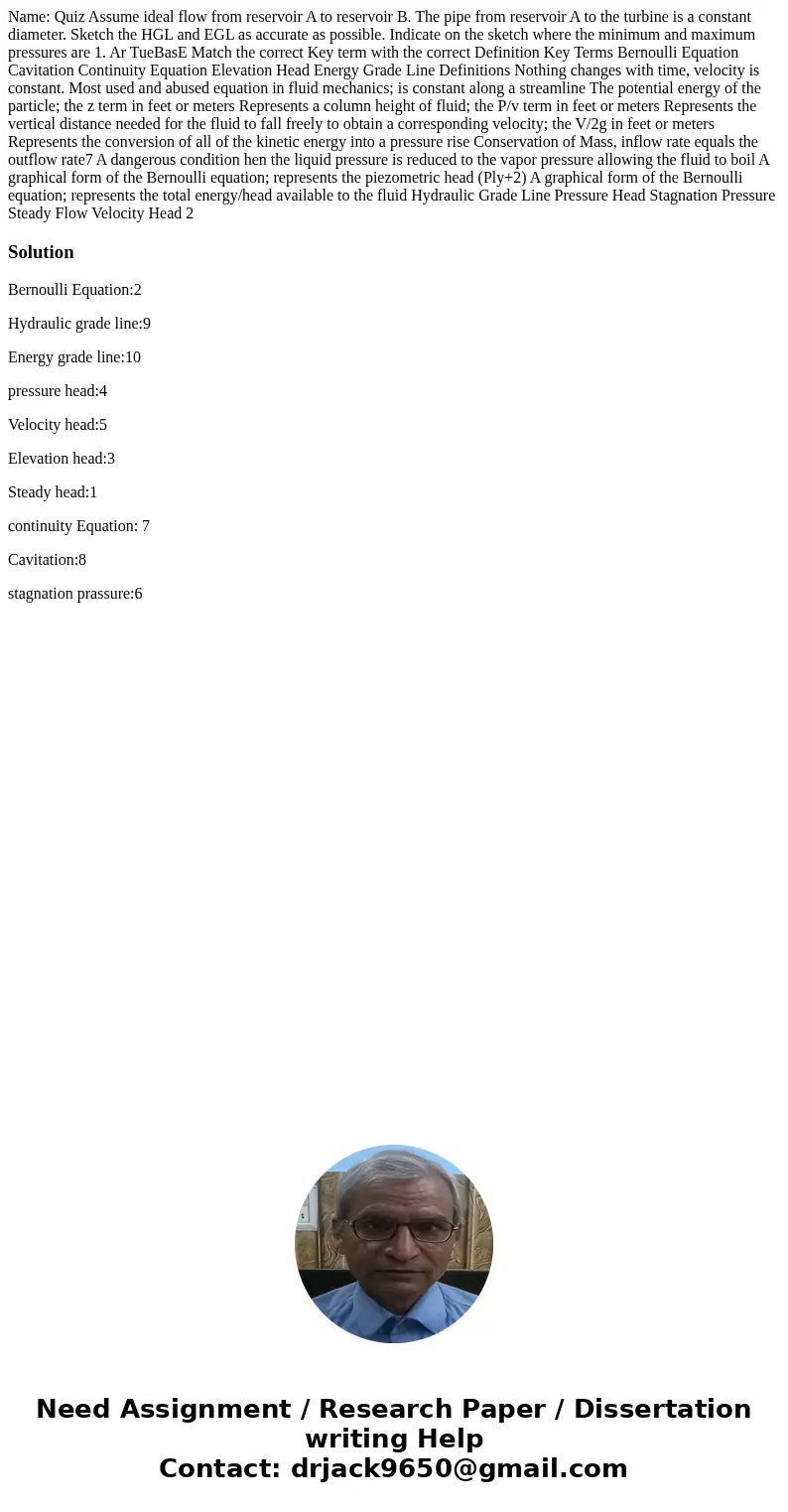

Name: Quiz Assume ideal flow from reservoir A to reservoir B. The pipe from reservoir A to the turbine is a constant diameter. Sketch the HGL and EGL as accurate as possible. Indicate on the sketch where the minimum and maximum pressures are 1. Ar TueBasE Match the correct Key term with the correct Definition Key Terms Bernoulli Equation Cavitation Continuity Equation Elevation Head Energy Grade Line Definitions Nothing changes with time, velocity is constant. Most used and abused equation in fluid mechanics; is constant along a streamline The potential energy of the particle; the z term in feet or meters Represents a column height of fluid; the P/v term in feet or meters Represents the vertical distance needed for the fluid to fall freely to obtain a corresponding velocity; the V/2g in feet or meters Represents the conversion of all of the kinetic energy into a pressure rise Conservation of Mass, inflow rate equals the outflow rate7 A dangerous condition hen the liquid pressure is reduced to the vapor pressure allowing the fluid to boil A graphical form of the Bernoulli equation; represents the piezometric head (Ply+2) A graphical form of the Bernoulli equation; represents the total energy/head available to the fluid Hydraulic Grade Line Pressure Head Stagnation Pressure Steady Flow Velocity Head 2

Solution

Bernoulli Equation:2

Hydraulic grade line:9

Energy grade line:10

pressure head:4

Velocity head:5

Elevation head:3

Steady head:1

continuity Equation: 7

Cavitation:8

stagnation prassure:6
