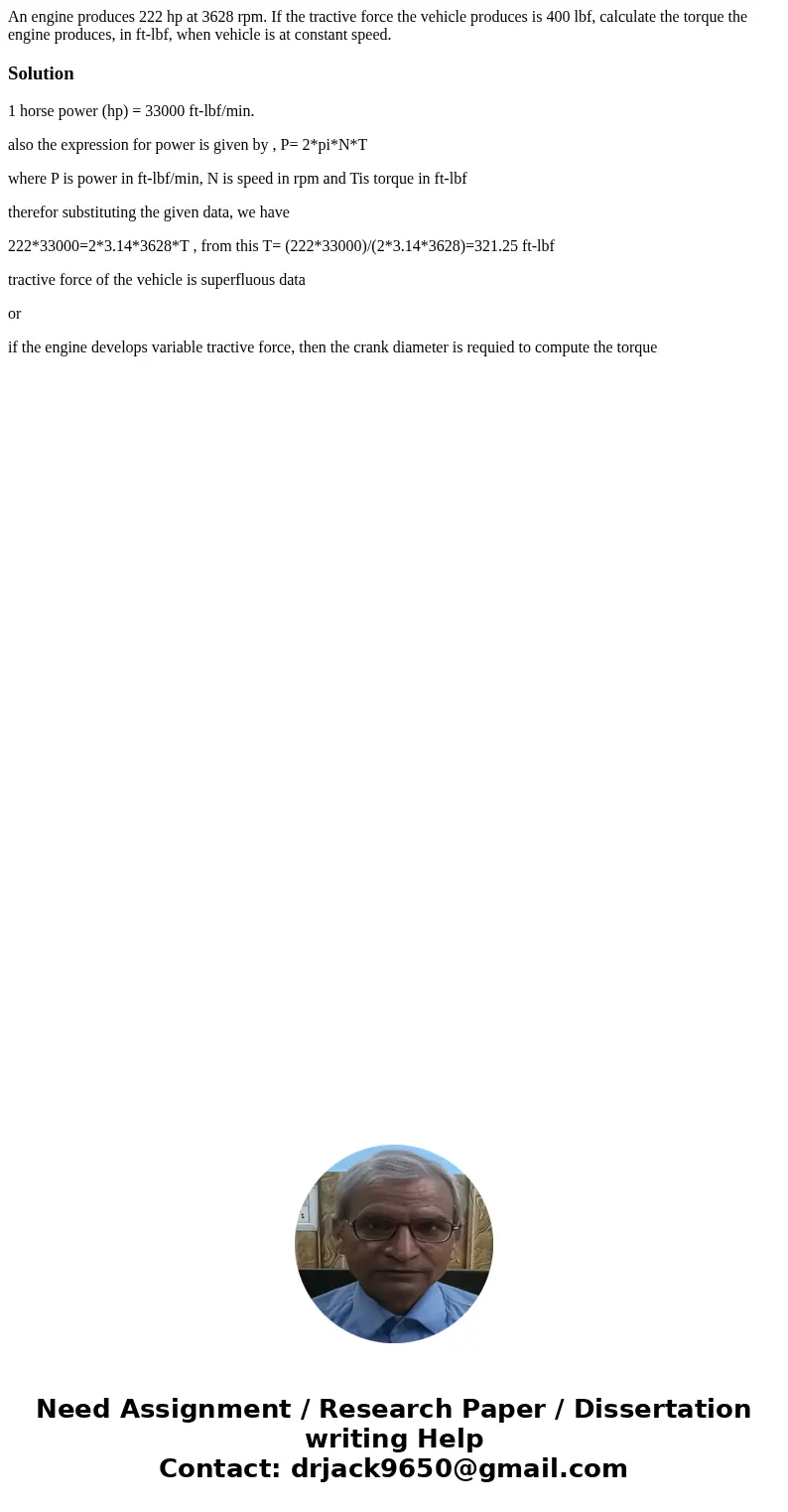

An engine produces 222 hp at 3628 rpm. If the tractive force the vehicle produces is 400 lbf, calculate the torque the engine produces, in ft-lbf, when vehicle is at constant speed.

Solution

1 horse power (hp) = 33000 ft-lbf/min.

also the expression for power is given by , P= 2*pi*N*T

where P is power in ft-lbf/min, N is speed in rpm and Tis torque in ft-lbf

therefor substituting the given data, we have

222*33000=2*3.14*3628*T , from this T= (222*33000)/(2*3.14*3628)=321.25 ft-lbf

tractive force of the vehicle is superfluous data

or

if the engine develops variable tractive force, then the crank diameter is requied to compute the torque
