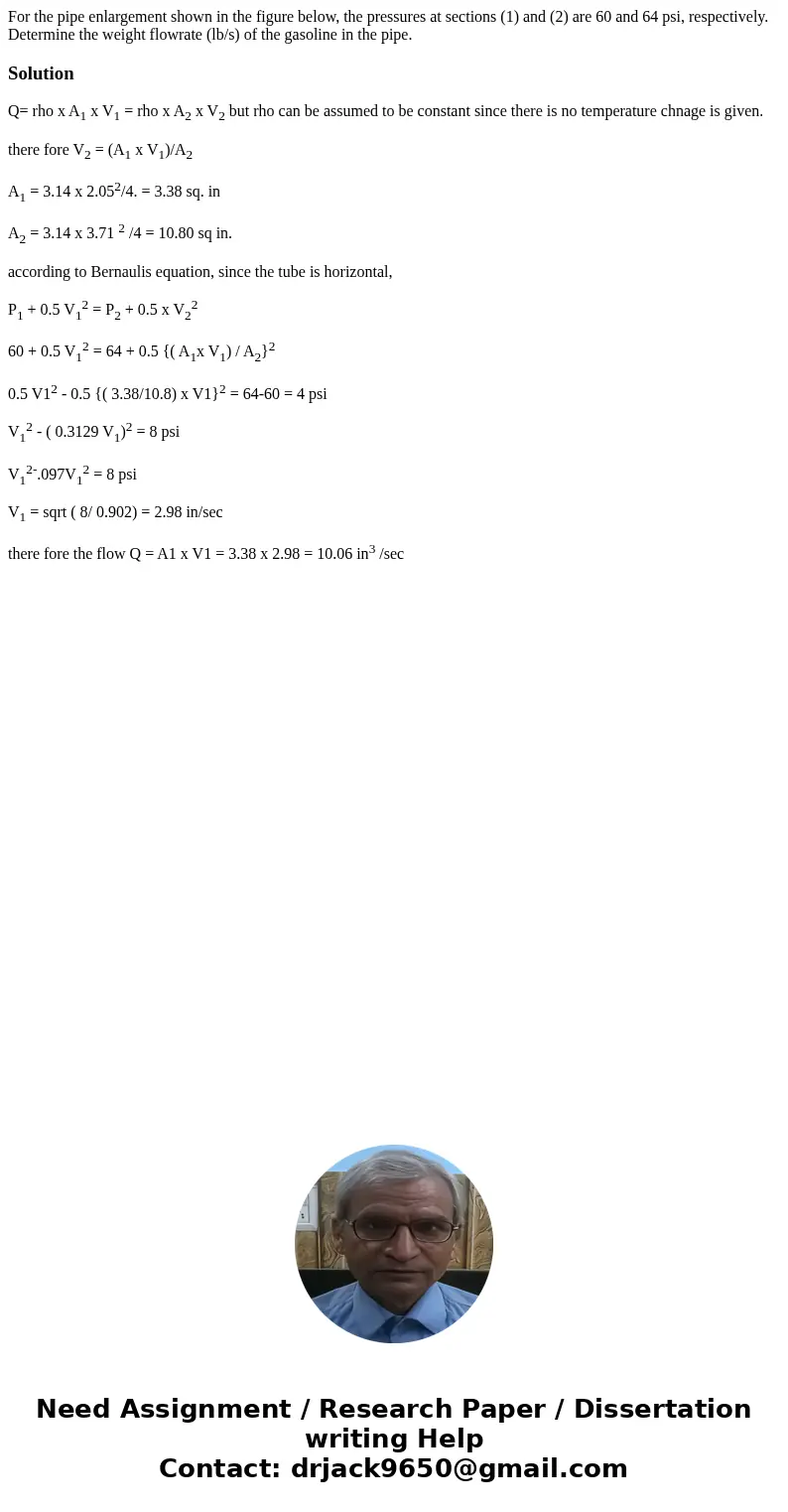

For the pipe enlargement shown in the figure below, the pressures at sections (1) and (2) are 60 and 64 psi, respectively. Determine the weight flowrate (lb/s) of the gasoline in the pipe.

Solution

Q= rho x A₁ x V₁ = rho x A₂ x V₂ but rho can be assumed to be constant since there is no temperature chnage is given.

there fore V₂ = (A₁ x V₁)/A₂

A₁ = 3.14 x 2.05²/4. = 3.38 sq. in

A₂ = 3.14 x 3.71 ² /4 = 10.80 sq in.

according to Bernaulis equation, since the tube is horizontal,

P₁ + 0.5 V₁² = P₂ + 0.5 x V₂²

60 + 0.5 V₁² = 64 + 0.5 {( A₁x V₁) / A₂}²

0.5 V1² - 0.5 {( 3.38/10.8) x V1}² = 64-60 = 4 psi

V₁² - ( 0.3129 V₁)² = 8 psi

V₁^2-.097V₁² = 8 psi

V₁ = sqrt ( 8/ 0.902) = 2.98 in/sec

there fore the flow Q = A1 x V1 = 3.38 x 2.98 = 10.06 in³ /sec
