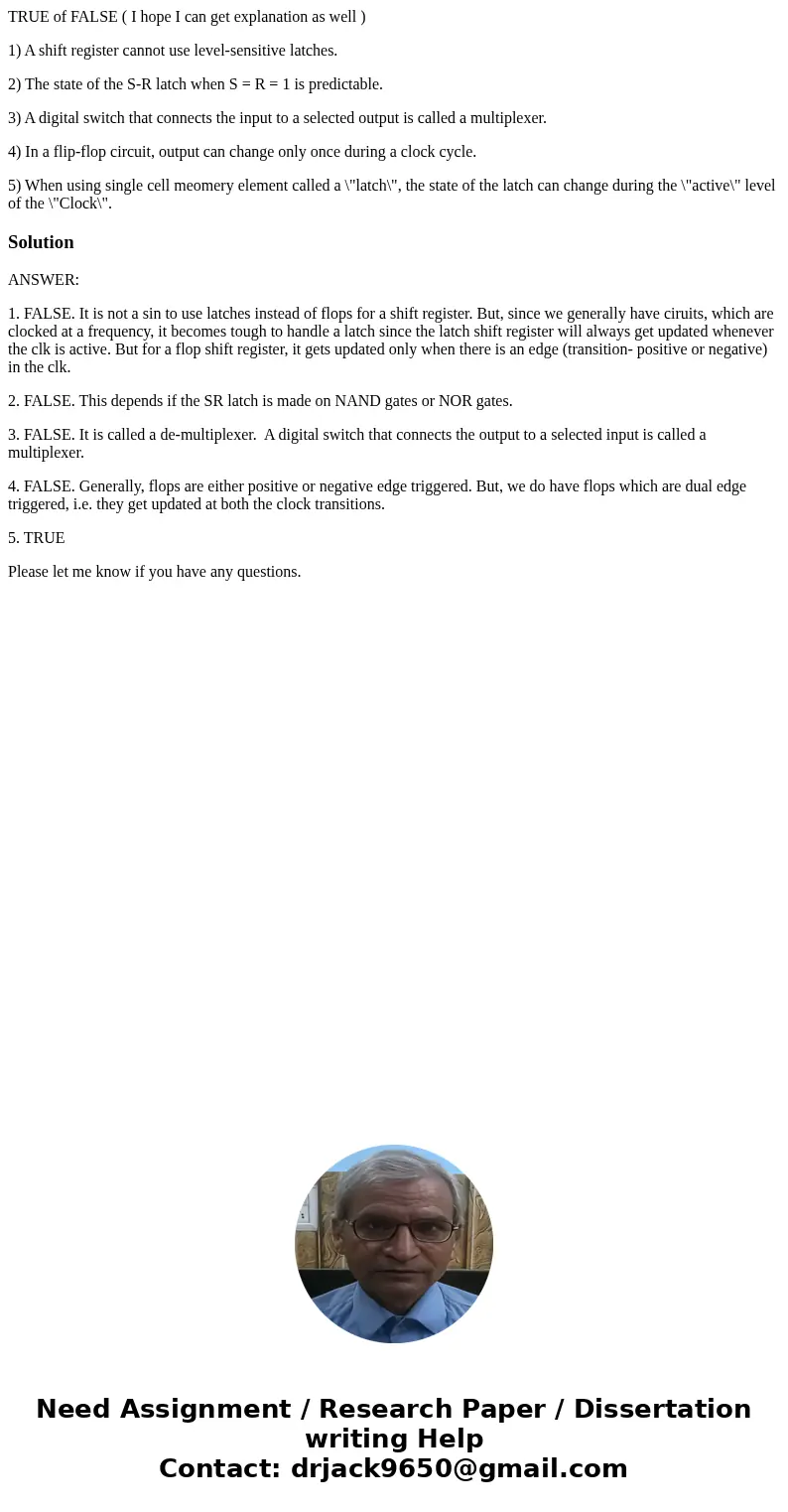

TRUE of FALSE I hope I can get explanation as well 1 A shi

TRUE of FALSE ( I hope I can get explanation as well )

1) A shift register cannot use level-sensitive latches.

2) The state of the S-R latch when S = R = 1 is predictable.

3) A digital switch that connects the input to a selected output is called a multiplexer.

4) In a flip-flop circuit, output can change only once during a clock cycle.

5) When using single cell meomery element called a \"latch\", the state of the latch can change during the \"active\" level of the \"Clock\".

Solution

ANSWER:

1. FALSE. It is not a sin to use latches instead of flops for a shift register. But, since we generally have ciruits, which are clocked at a frequency, it becomes tough to handle a latch since the latch shift register will always get updated whenever the clk is active. But for a flop shift register, it gets updated only when there is an edge (transition- positive or negative) in the clk.

2. FALSE. This depends if the SR latch is made on NAND gates or NOR gates.

3. FALSE. It is called a de-multiplexer.  A digital switch that connects the output to a selected input is called a multiplexer.

4. FALSE. Generally, flops are either positive or negative edge triggered. But, we do have flops which are dual edge triggered, i.e. they get updated at both the clock transitions.

5. TRUE

Please let me know if you have any questions.
