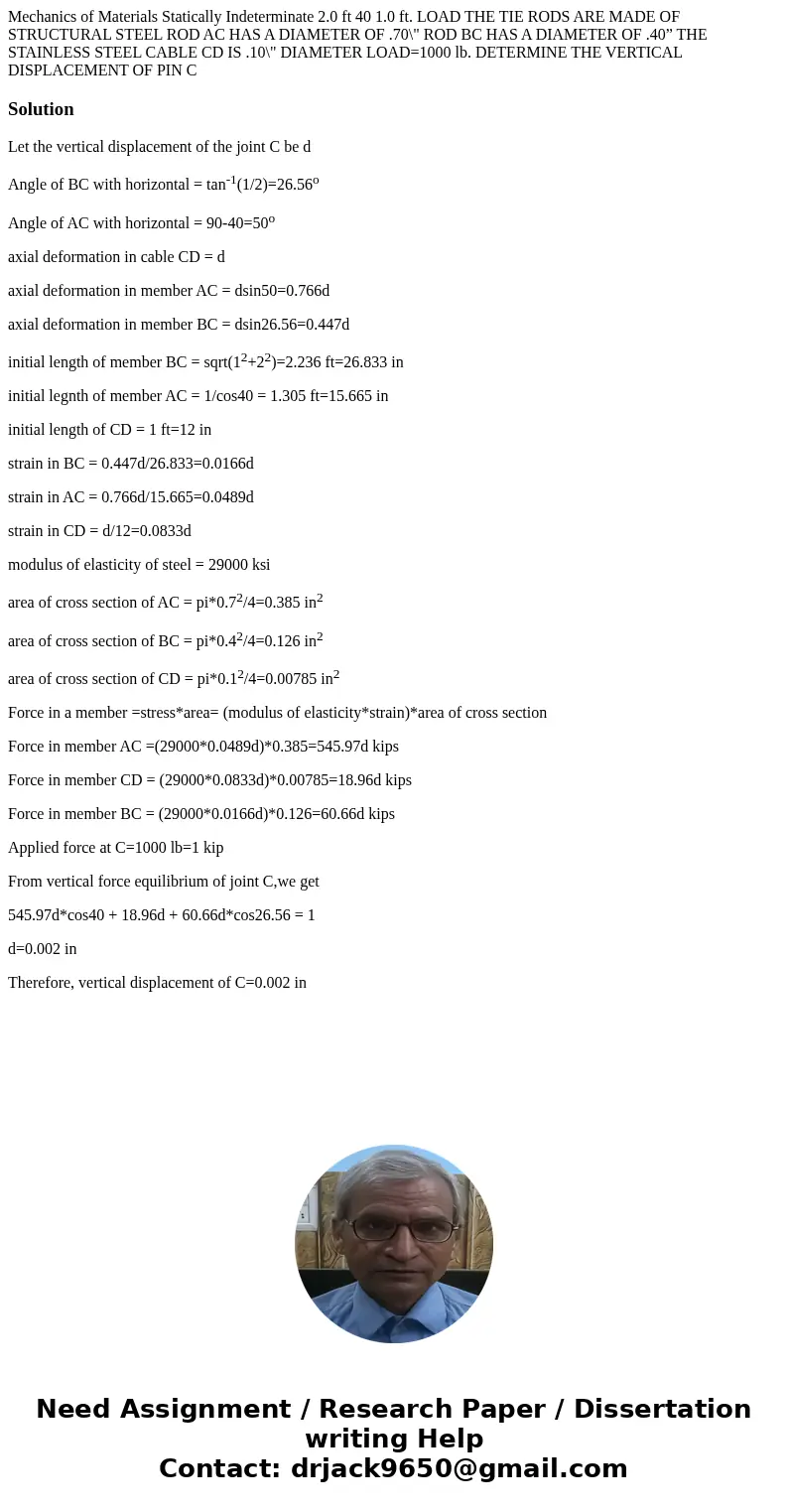

Mechanics of Materials Statically Indeterminate 2.0 ft 40 1.0 ft. LOAD THE TIE RODS ARE MADE OF STRUCTURAL STEEL ROD AC HAS A DIAMETER OF .70\" ROD BC HAS A DIAMETER OF .40” THE STAINLESS STEEL CABLE CD IS .10\" DIAMETER LOAD=1000 lb. DETERMINE THE VERTICAL DISPLACEMENT OF PIN C

Solution

Let the vertical displacement of the joint C be d

Angle of BC with horizontal = tan^-1(1/2)=26.56^o

Angle of AC with horizontal = 90-40=50^o

axial deformation in cable CD = d

axial deformation in member AC = dsin50=0.766d

axial deformation in member BC = dsin26.56=0.447d

initial length of member BC = sqrt(1²+2²)=2.236 ft=26.833 in

initial legnth of member AC = 1/cos40 = 1.305 ft=15.665 in

initial length of CD = 1 ft=12 in

strain in BC = 0.447d/26.833=0.0166d

strain in AC = 0.766d/15.665=0.0489d

strain in CD = d/12=0.0833d

modulus of elasticity of steel = 29000 ksi

area of cross section of AC = pi*0.7²/4=0.385 in²

area of cross section of BC = pi*0.4²/4=0.126 in²

area of cross section of CD = pi*0.1²/4=0.00785 in²

Force in a member =stress*area= (modulus of elasticity*strain)*area of cross section

Force in member AC =(29000*0.0489d)*0.385=545.97d kips

Force in member CD = (29000*0.0833d)*0.00785=18.96d kips

Force in member BC = (29000*0.0166d)*0.126=60.66d kips

Applied force at C=1000 lb=1 kip

From vertical force equilibrium of joint C,we get

545.97d*cos40 + 18.96d + 60.66d*cos26.56 = 1

d=0.002 in

Therefore, vertical displacement of C=0.002 in
