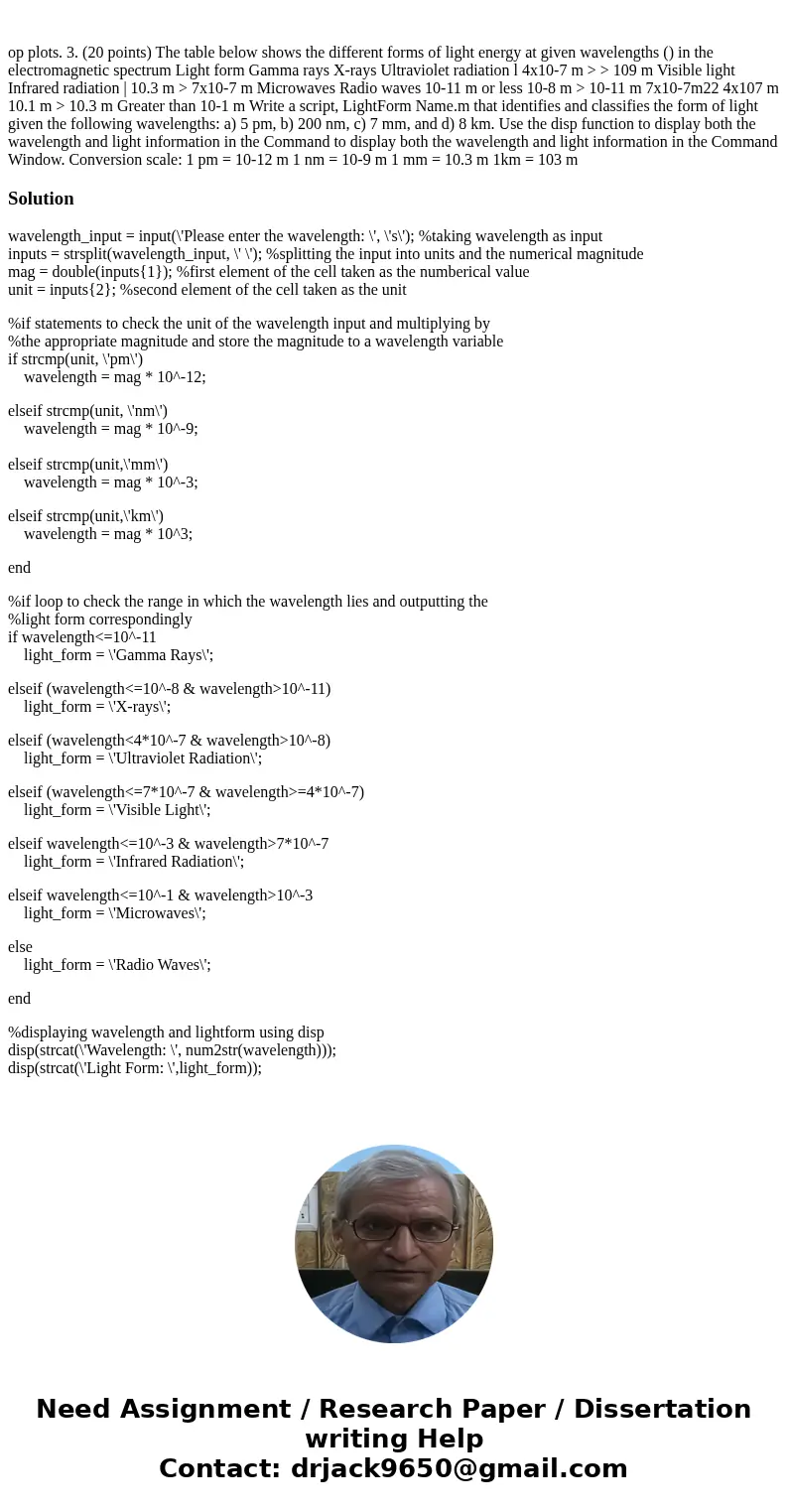

op plots. 3. (20 points) The table below shows the different forms of light energy at given wavelengths () in the electromagnetic spectrum Light form Gamma rays X-rays Ultraviolet radiation l 4x10-7 m > > 109 m Visible light Infrared radiation | 10.3 m > 7x10-7 m Microwaves Radio waves 10-11 m or less 10-8 m > 10-11 m 7x10-7m22 4x107 m 10.1 m > 10.3 m Greater than 10-1 m Write a script, LightForm Name.m that identifies and classifies the form of light given the following wavelengths: a) 5 pm, b) 200 nm, c) 7 mm, and d) 8 km. Use the disp function to display both the wavelength and light information in the Command to display both the wavelength and light information in the Command Window. Conversion scale: 1 pm = 10-12 m 1 nm = 10-9 m 1 mm = 10.3 m 1km = 103 m

Solution

wavelength_input = input(\'Please enter the wavelength: \', \'s\'); %taking wavelength as input
inputs = strsplit(wavelength_input, \' \'); %splitting the input into units and the numerical magnitude
mag = double(inputs{1}); %first element of the cell taken as the numberical value
unit = inputs{2}; %second element of the cell taken as the unit

%if statements to check the unit of the wavelength input and multiplying by
%the appropriate magnitude and store the magnitude to a wavelength variable
if strcmp(unit, \'pm\')
    wavelength = mag * 10^-12;

elseif strcmp(unit, \'nm\')
    wavelength = mag * 10^-9;

elseif strcmp(unit,\'mm\')
    wavelength = mag * 10^-3;

elseif strcmp(unit,\'km\')
    wavelength = mag * 10^3;

end

%if loop to check the range in which the wavelength lies and outputting the
%light form correspondingly
if wavelength<=10^-11
    light_form = \'Gamma Rays\';

elseif (wavelength<=10^-8 & wavelength>10^-11)
    light_form = \'X-rays\';

elseif (wavelength<4*10^-7 & wavelength>10^-8)
    light_form = \'Ultraviolet Radiation\';

elseif (wavelength<=7*10^-7 & wavelength>=4*10^-7)
    light_form = \'Visible Light\';

elseif wavelength<=10^-3 & wavelength>7*10^-7
    light_form = \'Infrared Radiation\';

elseif wavelength<=10^-1 & wavelength>10^-3
    light_form = \'Microwaves\';

else
    light_form = \'Radio Waves\';

end

%displaying wavelength and lightform using disp
disp(strcat(\'Wavelength: \', num2str(wavelength)));
disp(strcat(\'Light Form: \',light_form));
