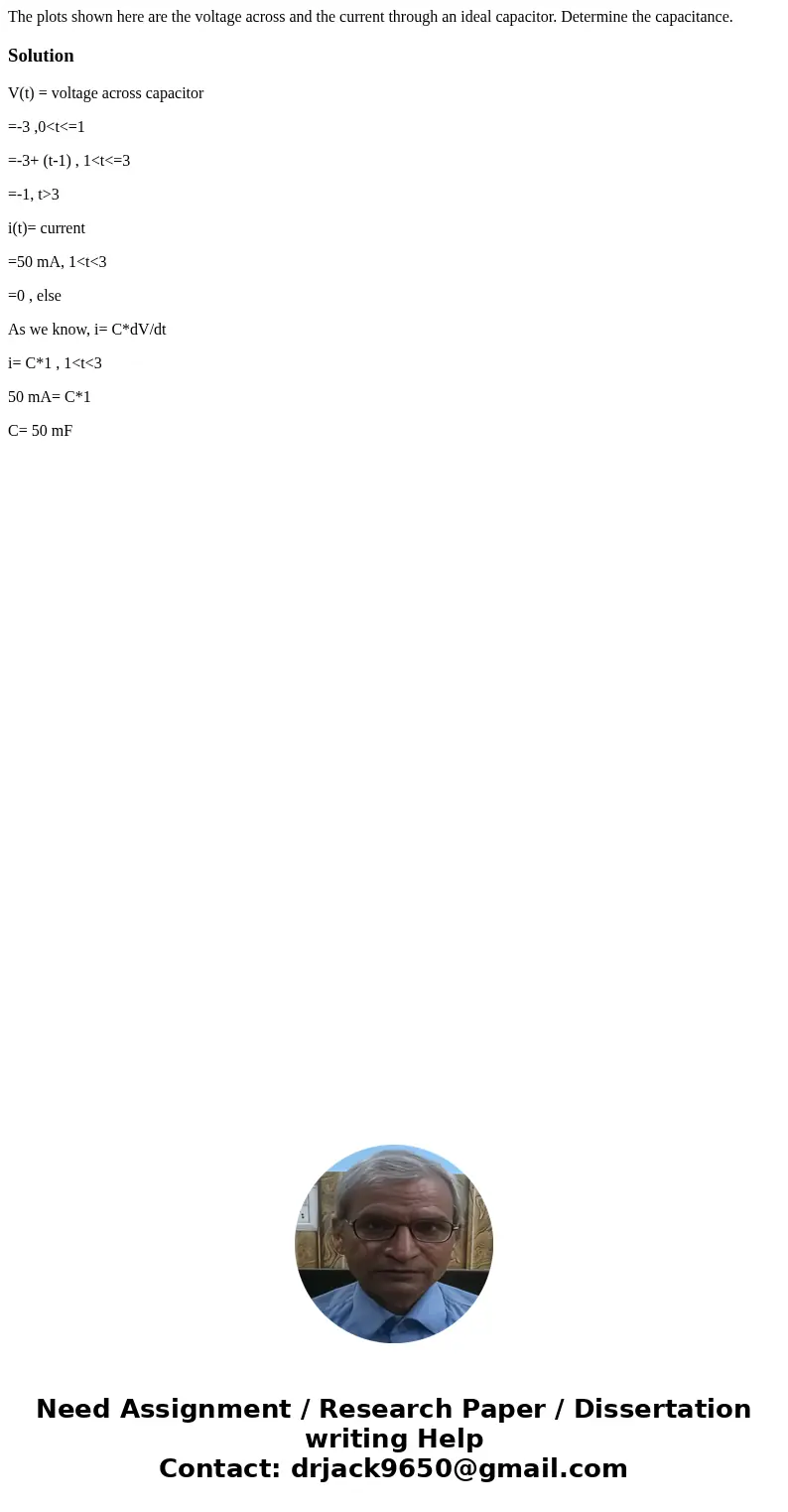

The plots shown here are the voltage across and the current through an ideal capacitor. Determine the capacitance.

Solution

V(t) = voltage across capacitor

=-3 ,0<t<=1

=-3+ (t-1) , 1<t<=3

=-1, t>3

i(t)= current

=50 mA, 1<t<3

=0 , else

As we know, i= C*dV/dt

i= C*1 , 1<t<3

50 mA= C*1

C= 50 mF
