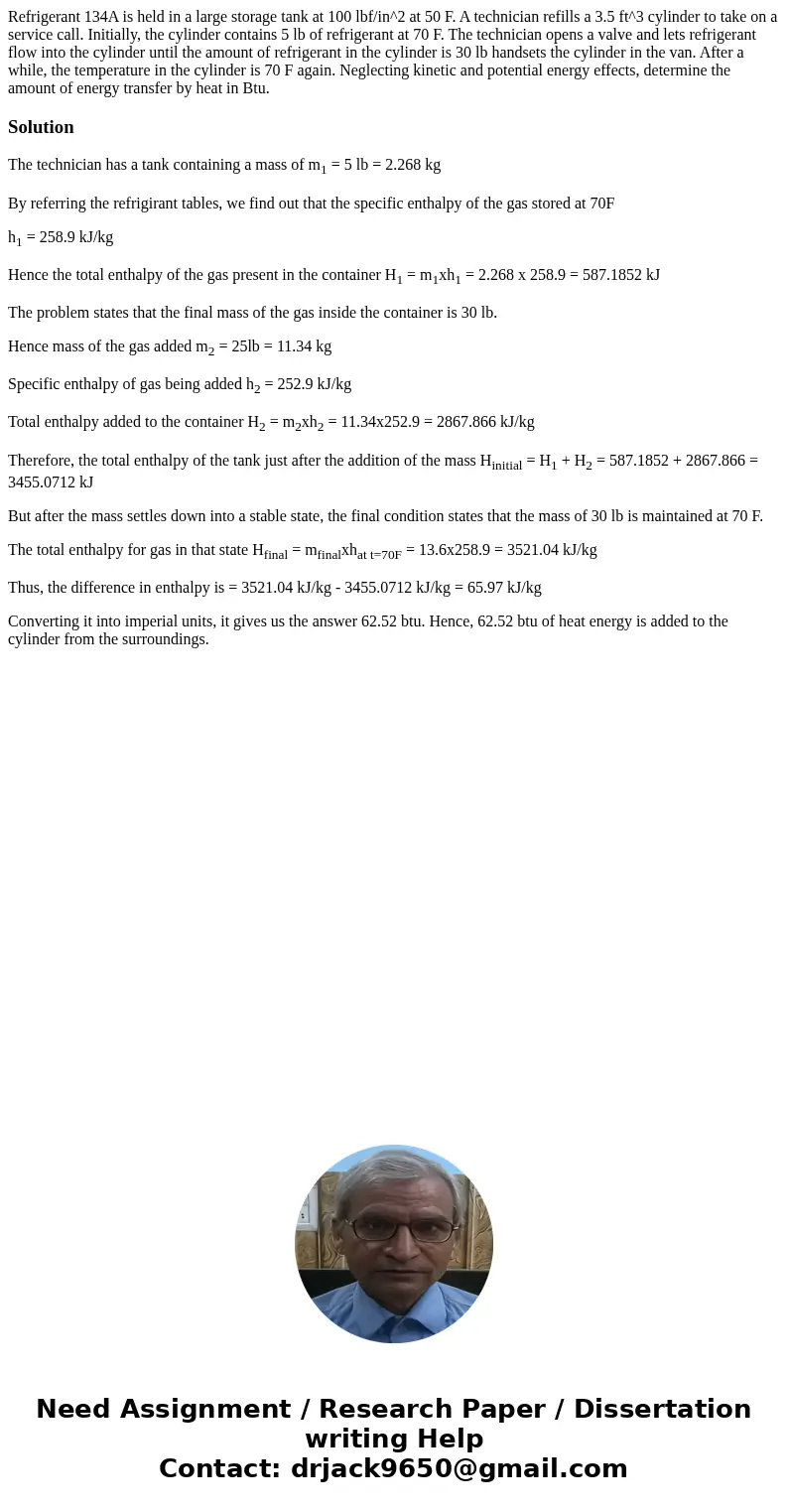

Refrigerant 134A is held in a large storage tank at 100 lbf/in^2 at 50 F. A technician refills a 3.5 ft^3 cylinder to take on a service call. Initially, the cylinder contains 5 lb of refrigerant at 70 F. The technician opens a valve and lets refrigerant flow into the cylinder until the amount of refrigerant in the cylinder is 30 lb handsets the cylinder in the van. After a while, the temperature in the cylinder is 70 F again. Neglecting kinetic and potential energy effects, determine the amount of energy transfer by heat in Btu.

The technician has a tank containing a mass of m₁ = 5 lb = 2.268 kg

By referring the refrigirant tables, we find out that the specific enthalpy of the gas stored at 70F

h₁ = 258.9 kJ/kg

Hence the total enthalpy of the gas present in the container H₁ = m₁xh₁ = 2.268 x 258.9 = 587.1852 kJ

The problem states that the final mass of the gas inside the container is 30 lb.

Hence mass of the gas added m₂ = 25lb = 11.34 kg

Specific enthalpy of gas being added h₂ = 252.9 kJ/kg

Total enthalpy added to the container H₂ = m₂xh₂ = 11.34x252.9 = 2867.866 kJ/kg

Therefore, the total enthalpy of the tank just after the addition of the mass H_initial = H₁ + H₂ = 587.1852 + 2867.866 = 3455.0712 kJ

But after the mass settles down into a stable state, the final condition states that the mass of 30 lb is maintained at 70 F.

The total enthalpy for gas in that state H_final = m_finalxh_{at t=70F} = 13.6x258.9 = 3521.04 kJ/kg

Thus, the difference in enthalpy is = 3521.04 kJ/kg - 3455.0712 kJ/kg = 65.97 kJ/kg

Converting it into imperial units, it gives us the answer 62.52 btu. Hence, 62.52 btu of heat energy is added to the cylinder from the surroundings.
