Please solve the following in MATLAB Please add the comments

Please solve the following in MATLAB. Please add the comments in each line and provide the coding window and the command window. Please read the question very carefully and make sure to solve using if or while loops and if, ifelse statments.

Thank you!!

Solution

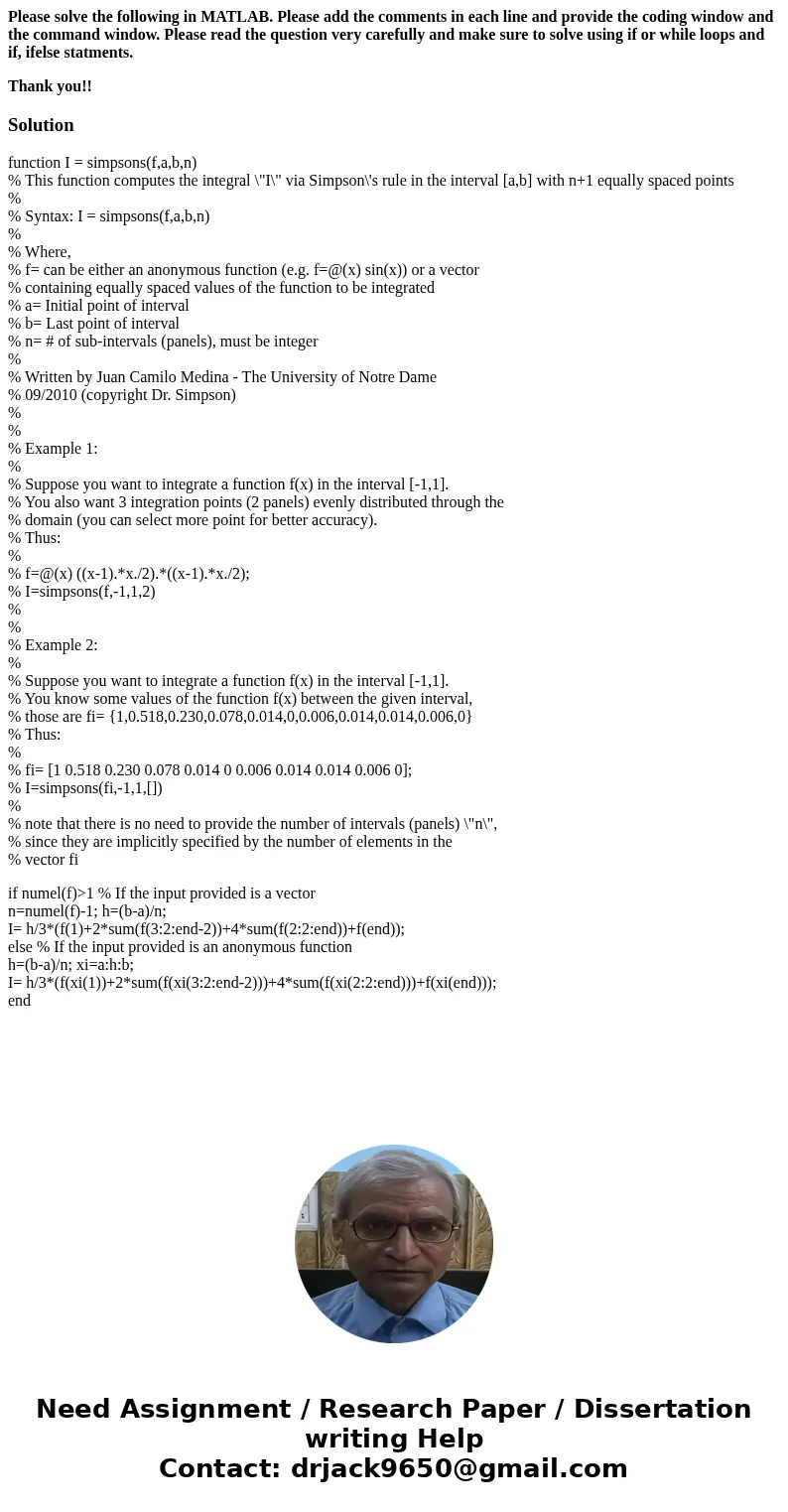

function I = simpsons(f,a,b,n)
% This function computes the integral \"I\" via Simpson\'s rule in the interval [a,b] with n+1 equally spaced points
%
% Syntax: I = simpsons(f,a,b,n)
%
% Where,
% f= can be either an anonymous function (e.g. f=@(x) sin(x)) or a vector
% containing equally spaced values of the function to be integrated
% a= Initial point of interval
% b= Last point of interval
% n= # of sub-intervals (panels), must be integer
%
% Written by Juan Camilo Medina - The University of Notre Dame
% 09/2010 (copyright Dr. Simpson)
%
%
% Example 1:
%
% Suppose you want to integrate a function f(x) in the interval [-1,1].
% You also want 3 integration points (2 panels) evenly distributed through the
% domain (you can select more point for better accuracy).
% Thus:
%
% f=@(x) ((x-1).*x./2).*((x-1).*x./2);
% I=simpsons(f,-1,1,2)
%
%
% Example 2:
%
% Suppose you want to integrate a function f(x) in the interval [-1,1].
% You know some values of the function f(x) between the given interval,
% those are fi= {1,0.518,0.230,0.078,0.014,0,0.006,0.014,0.014,0.006,0}
% Thus:
%
% fi= [1 0.518 0.230 0.078 0.014 0 0.006 0.014 0.014 0.006 0];
% I=simpsons(fi,-1,1,[])
%
% note that there is no need to provide the number of intervals (panels) \"n\",
% since they are implicitly specified by the number of elements in the
% vector fi

if numel(f)>1 % If the input provided is a vector
n=numel(f)-1; h=(b-a)/n;
I= h/3*(f(1)+2*sum(f(3:2:end-2))+4*sum(f(2:2:end))+f(end));
else % If the input provided is an anonymous function
h=(b-a)/n; xi=a:h:b;
I= h/3*(f(xi(1))+2*sum(f(xi(3:2:end-2)))+4*sum(f(xi(2:2:end)))+f(xi(end)));
end
