For the rigid frames shown in Figure, determine the displacements and rotations of the nodes, the element forces, and the reactions. The values of E;A, and I to be used are listed next to each figure.

Solution

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

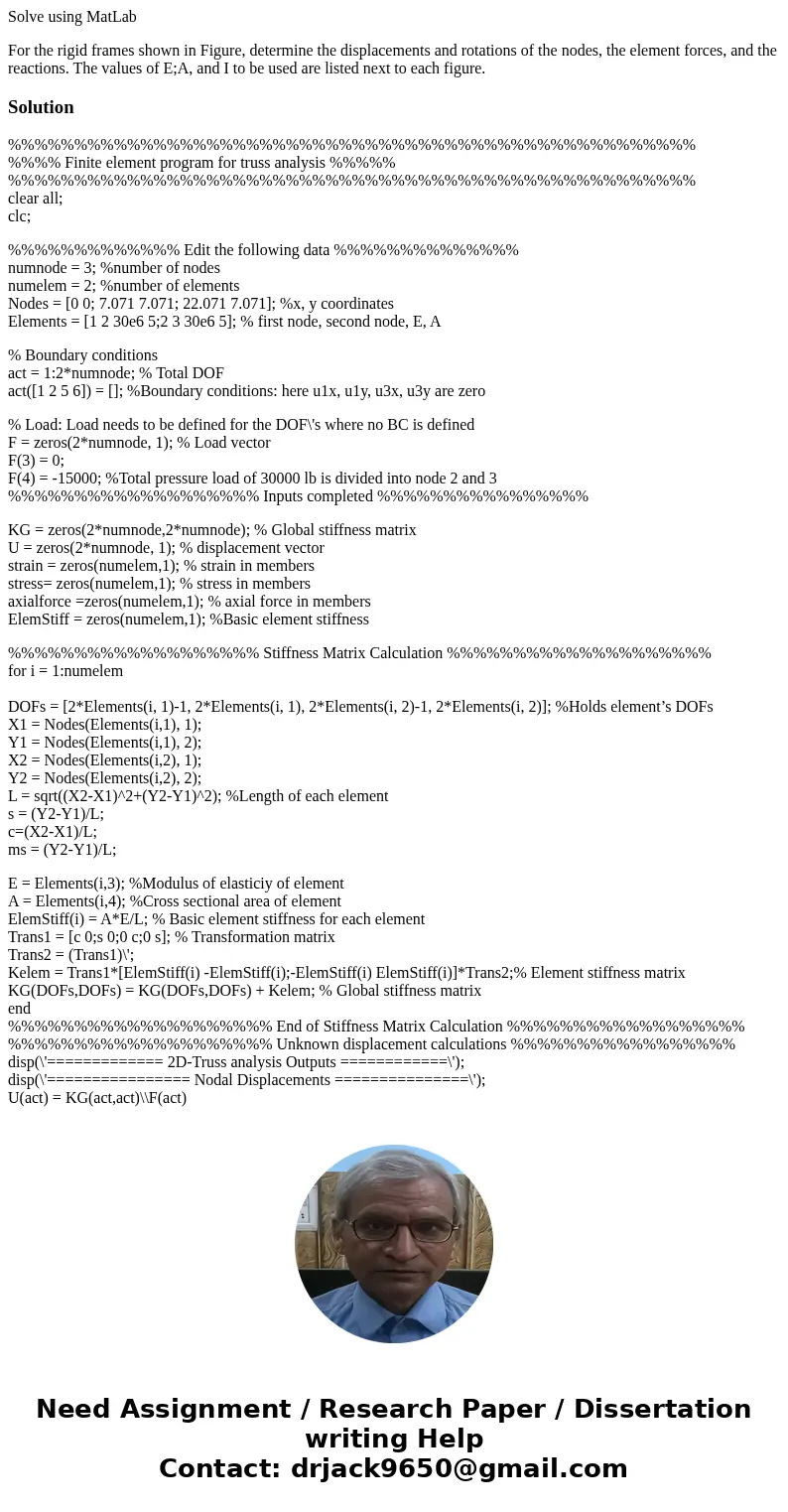

%%%% Finite element program for truss analysis %%%%%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
clear all;
clc;

%%%%%%%%%%%%% Edit the following data %%%%%%%%%%%%%%
numnode = 3; %number of nodes
numelem = 2; %number of elements
Nodes = [0 0; 7.071 7.071; 22.071 7.071]; %x, y coordinates
Elements = [1 2 30e6 5;2 3 30e6 5]; % first node, second node, E, A

% Boundary conditions
act = 1:2*numnode; % Total DOF
act([1 2 5 6]) = []; %Boundary conditions: here u1x, u1y, u3x, u3y are zero

% Load: Load needs to be defined for the DOF\'s where no BC is defined
F = zeros(2*numnode, 1); % Load vector
F(3) = 0;
F(4) = -15000; %Total pressure load of 30000 lb is divided into node 2 and 3
%%%%%%%%%%%%%%%%%%% Inputs completed %%%%%%%%%%%%%%%%

KG = zeros(2*numnode,2*numnode); % Global stiffness matrix
U = zeros(2*numnode, 1); % displacement vector
strain = zeros(numelem,1); % strain in members
stress= zeros(numelem,1); % stress in members
axialforce =zeros(numelem,1); % axial force in members
ElemStiff = zeros(numelem,1); %Basic element stiffness

%%%%%%%%%%%%%%%%%%% Stiffness Matrix Calculation %%%%%%%%%%%%%%%%%%%%
for i = 1:numelem

DOFs = [2*Elements(i, 1)-1, 2*Elements(i, 1), 2*Elements(i, 2)-1, 2*Elements(i, 2)]; %Holds element’s DOFs
X1 = Nodes(Elements(i,1), 1);
Y1 = Nodes(Elements(i,1), 2);
X2 = Nodes(Elements(i,2), 1);
Y2 = Nodes(Elements(i,2), 2);
L = sqrt((X2-X1)^2+(Y2-Y1)^2); %Length of each element
s = (Y2-Y1)/L;
c=(X2-X1)/L;
ms = (Y2-Y1)/L;

E = Elements(i,3); %Modulus of elasticiy of element
A = Elements(i,4); %Cross sectional area of element
ElemStiff(i) = A*E/L; % Basic element stiffness for each element
Trans1 = [c 0;s 0;0 c;0 s]; % Transformation matrix
Trans2 = (Trans1)\';
Kelem = Trans1*[ElemStiff(i) -ElemStiff(i);-ElemStiff(i) ElemStiff(i)]*Trans2;% Element stiffness matrix
KG(DOFs,DOFs) = KG(DOFs,DOFs) + Kelem; % Global stiffness matrix
end
%%%%%%%%%%%%%%%%%%%% End of Stiffness Matrix Calculation %%%%%%%%%%%%%%%%%%
%%%%%%%%%%%%%%%%%%%% Unknown displacement calculations %%%%%%%%%%%%%%%%%
disp(\'============= 2D-Truss analysis Outputs ============\');
disp(\'================ Nodal Displacements ===============\');
U(act) = KG(act,act)\\F(act)

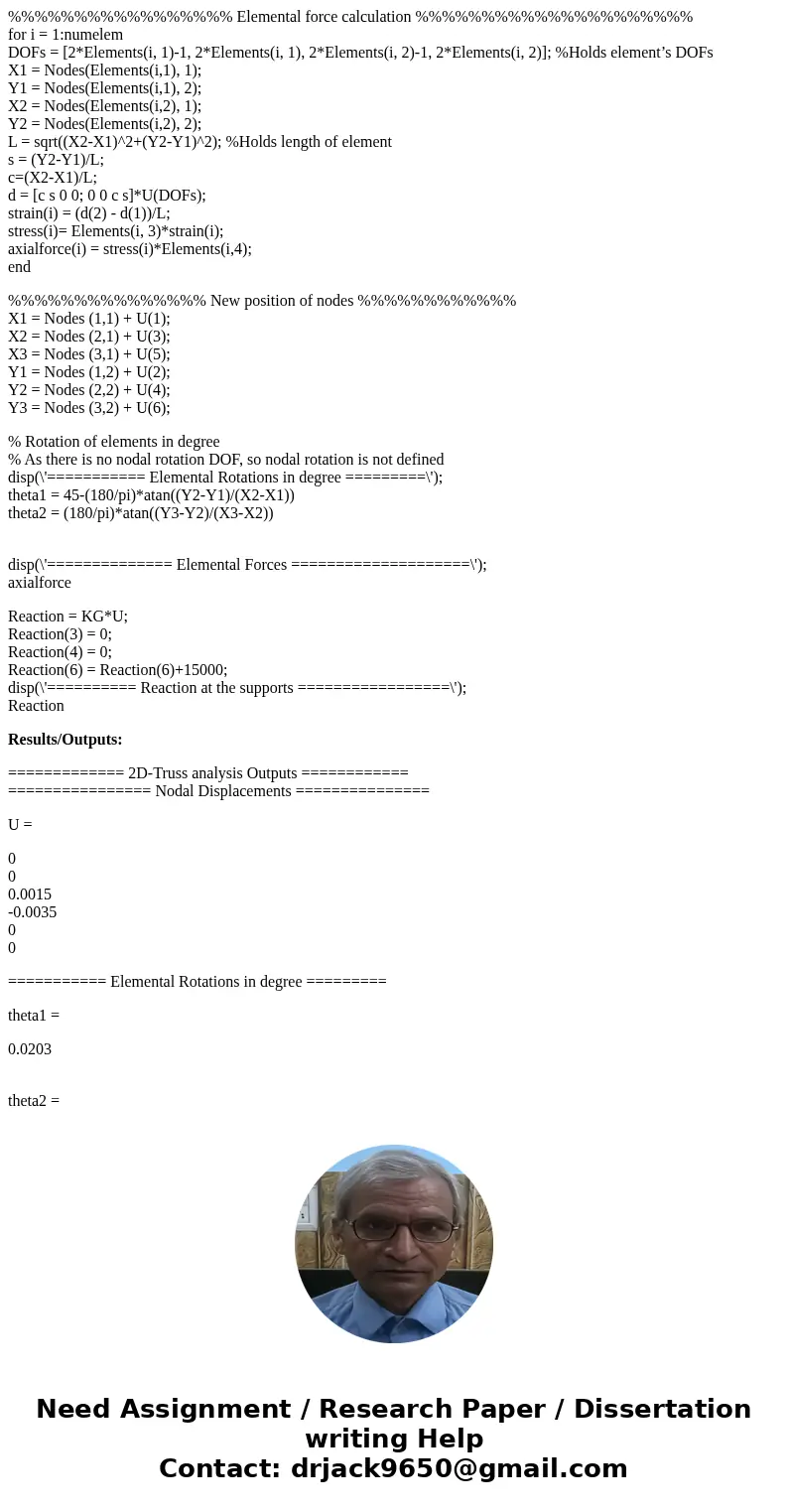

%%%%%%%%%%%%%%%%% Elemental force calculation %%%%%%%%%%%%%%%%%%%%%
for i = 1:numelem
DOFs = [2*Elements(i, 1)-1, 2*Elements(i, 1), 2*Elements(i, 2)-1, 2*Elements(i, 2)]; %Holds element’s DOFs
X1 = Nodes(Elements(i,1), 1);
Y1 = Nodes(Elements(i,1), 2);
X2 = Nodes(Elements(i,2), 1);
Y2 = Nodes(Elements(i,2), 2);
L = sqrt((X2-X1)^2+(Y2-Y1)^2); %Holds length of element
s = (Y2-Y1)/L;
c=(X2-X1)/L;
d = [c s 0 0; 0 0 c s]*U(DOFs);
strain(i) = (d(2) - d(1))/L;
stress(i)= Elements(i, 3)*strain(i);
axialforce(i) = stress(i)*Elements(i,4);
end

%%%%%%%%%%%%%%% New position of nodes %%%%%%%%%%%%
X1 = Nodes (1,1) + U(1);
X2 = Nodes (2,1) + U(3);
X3 = Nodes (3,1) + U(5);
Y1 = Nodes (1,2) + U(2);
Y2 = Nodes (2,2) + U(4);
Y3 = Nodes (3,2) + U(6);

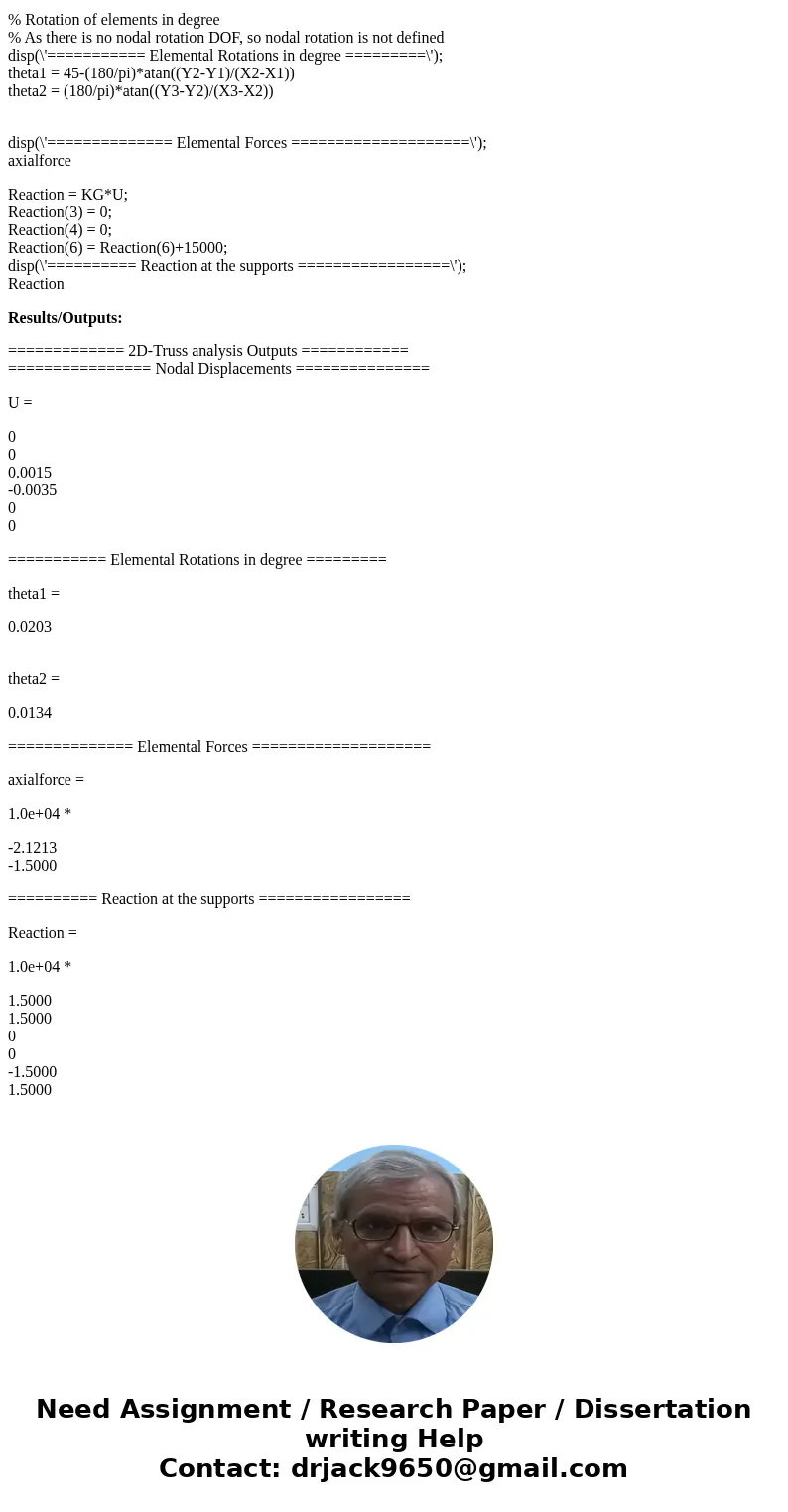

% Rotation of elements in degree
% As there is no nodal rotation DOF, so nodal rotation is not defined
disp(\'=========== Elemental Rotations in degree =========\');
theta1 = 45-(180/pi)*atan((Y2-Y1)/(X2-X1))
theta2 = (180/pi)*atan((Y3-Y2)/(X3-X2))


disp(\'============== Elemental Forces ====================\');
axialforce

Reaction = KG*U;
Reaction(3) = 0;
Reaction(4) = 0;
Reaction(6) = Reaction(6)+15000;
disp(\'========== Reaction at the supports =================\');
Reaction

Results/Outputs:

============= 2D-Truss analysis Outputs ============
================ Nodal Displacements ===============

U =

0
0
0.0015
-0.0035
0
0

=========== Elemental Rotations in degree =========

theta1 =

0.0203


theta2 =

0.0134

============== Elemental Forces ====================

axialforce =

1.0e+04 *

-2.1213
-1.5000

========== Reaction at the supports =================

Reaction =

1.0e+04 *

1.5000
1.5000
0
0
-1.5000
1.5000
