Write a program that solves sudoku problems The program shou

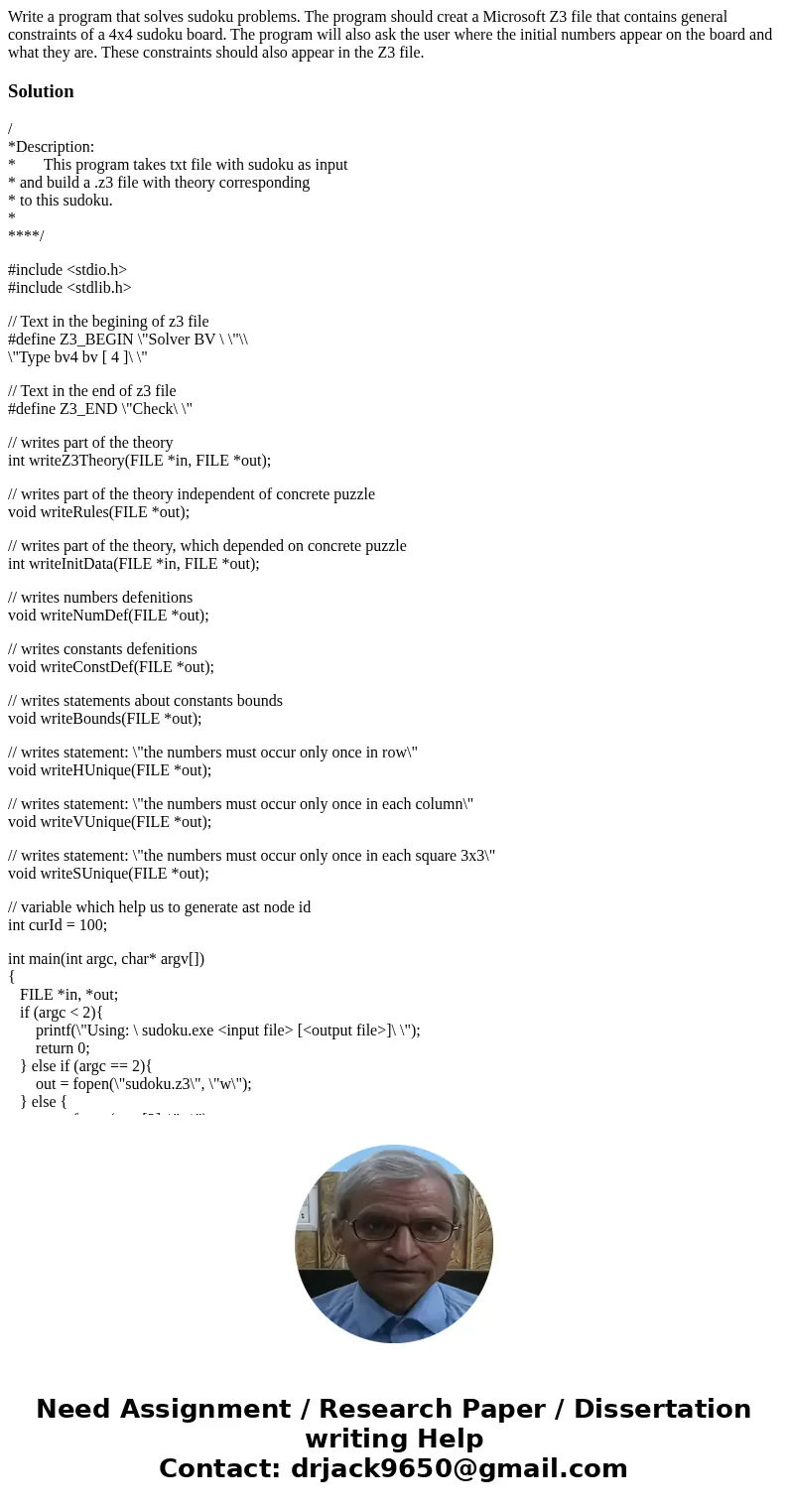

Write a program that solves sudoku problems. The program should creat a Microsoft Z3 file that contains general constraints of a 4x4 sudoku board. The program will also ask the user where the initial numbers appear on the board and what they are. These constraints should also appear in the Z3 file.

Solution

/
*Description:
*       This program takes txt file with sudoku as input
* and build a .z3 file with theory corresponding
* to this sudoku.
*
****/

#include <stdio.h>
#include <stdlib.h>

// Text in the begining of z3 file
#define Z3_BEGIN \"Solver BV \ \"\\
\"Type bv4 bv [ 4 ]\ \"

// Text in the end of z3 file
#define Z3_END \"Check\ \"

// writes part of the theory
int writeZ3Theory(FILE *in, FILE *out);

// writes part of the theory independent of concrete puzzle
void writeRules(FILE *out);

// writes part of the theory, which depended on concrete puzzle
int writeInitData(FILE *in, FILE *out);

// writes numbers defenitions
void writeNumDef(FILE *out);

// writes constants defenitions
void writeConstDef(FILE *out);

// writes statements about constants bounds
void writeBounds(FILE *out);

// writes statement: \"the numbers must occur only once in row\"
void writeHUnique(FILE *out);

// writes statement: \"the numbers must occur only once in each column\"
void writeVUnique(FILE *out);

// writes statement: \"the numbers must occur only once in each square 3x3\"
void writeSUnique(FILE *out);

// variable which help us to generate ast node id
int curId = 100;

int main(int argc, char* argv[])
{
   FILE *in, *out;
   if (argc < 2){
       printf(\"Using: \ sudoku.exe <input file> [<output file>]\ \");
       return 0;
   } else if (argc == 2){
       out = fopen(\"sudoku.z3\", \"w\");
   } else {

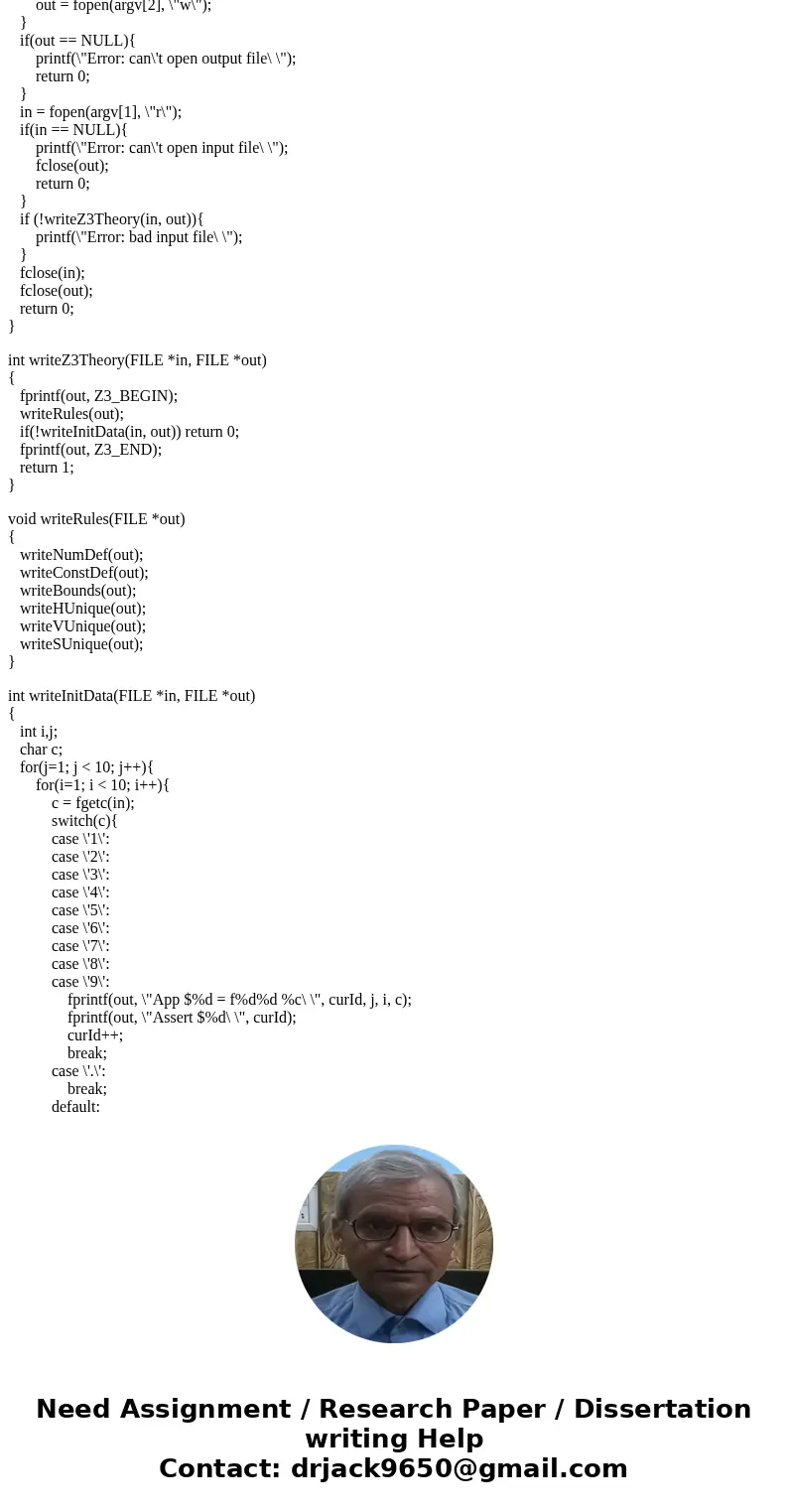

       out = fopen(argv[2], \"w\");
   }
   if(out == NULL){
       printf(\"Error: can\'t open output file\ \");
       return 0;
   }
   in = fopen(argv[1], \"r\");
   if(in == NULL){
       printf(\"Error: can\'t open input file\ \");
       fclose(out);
       return 0;
   }
   if (!writeZ3Theory(in, out)){
       printf(\"Error: bad input file\ \");
   }
   fclose(in);
   fclose(out);
   return 0;
}

int writeZ3Theory(FILE *in, FILE *out)
{
   fprintf(out, Z3_BEGIN);
   writeRules(out);
   if(!writeInitData(in, out)) return 0;
   fprintf(out, Z3_END);
   return 1;
}

void writeRules(FILE *out)
{
   writeNumDef(out);
   writeConstDef(out);
   writeBounds(out);
   writeHUnique(out);
   writeVUnique(out);
   writeSUnique(out);
}

int writeInitData(FILE *in, FILE *out)
{
   int i,j;
   char c;
   for(j=1; j < 10; j++){
       for(i=1; i < 10; i++){
           c = fgetc(in);
           switch(c){
           case \'1\':
           case \'2\':
           case \'3\':
           case \'4\':
           case \'5\':
           case \'6\':
           case \'7\':
           case \'8\':
           case \'9\':
               fprintf(out, \"App $%d = f%d%d %c\ \", curId, j, i, c);
               fprintf(out, \"Assert $%d\ \", curId);
               curId++;
               break;
           case \'.\':
               break;
           default:
               return 0;
           }
       }

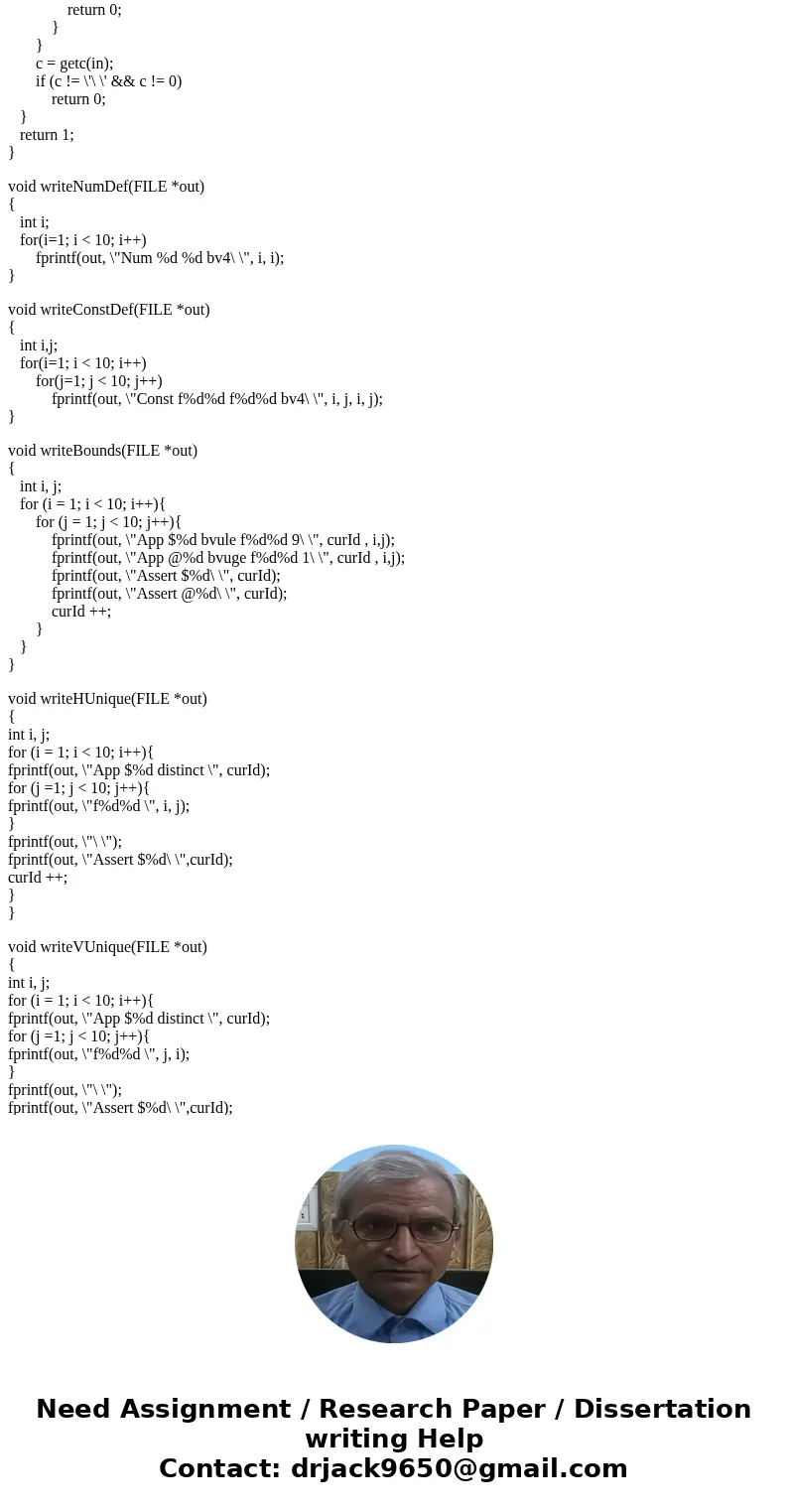

       c = getc(in);
       if (c != \'\ \' && c != 0)
           return 0;
   }
   return 1;
}

void writeNumDef(FILE *out)
{
   int i;
   for(i=1; i < 10; i++)
       fprintf(out, \"Num %d %d bv4\ \", i, i);
}

void writeConstDef(FILE *out)
{
   int i,j;
   for(i=1; i < 10; i++)
       for(j=1; j < 10; j++)
           fprintf(out, \"Const f%d%d f%d%d bv4\ \", i, j, i, j);
}

void writeBounds(FILE *out)
{
   int i, j;
   for (i = 1; i < 10; i++){
       for (j = 1; j < 10; j++){
           fprintf(out, \"App $%d bvule f%d%d 9\ \", curId , i,j);
           fprintf(out, \"App @%d bvuge f%d%d 1\ \", curId , i,j);
           fprintf(out, \"Assert $%d\ \", curId);
           fprintf(out, \"Assert @%d\ \", curId);
           curId ++;
       }
   }
}

void writeHUnique(FILE *out)
{
int i, j;
for (i = 1; i < 10; i++){
fprintf(out, \"App $%d distinct \", curId);
for (j =1; j < 10; j++){
fprintf(out, \"f%d%d \", i, j);
}
fprintf(out, \"\ \");
fprintf(out, \"Assert $%d\ \",curId);
curId ++;
}
}

void writeVUnique(FILE *out)
{
int i, j;
for (i = 1; i < 10; i++){
fprintf(out, \"App $%d distinct \", curId);
for (j =1; j < 10; j++){
fprintf(out, \"f%d%d \", j, i);
}
fprintf(out, \"\ \");
fprintf(out, \"Assert $%d\ \",curId);
curId ++;
}
}

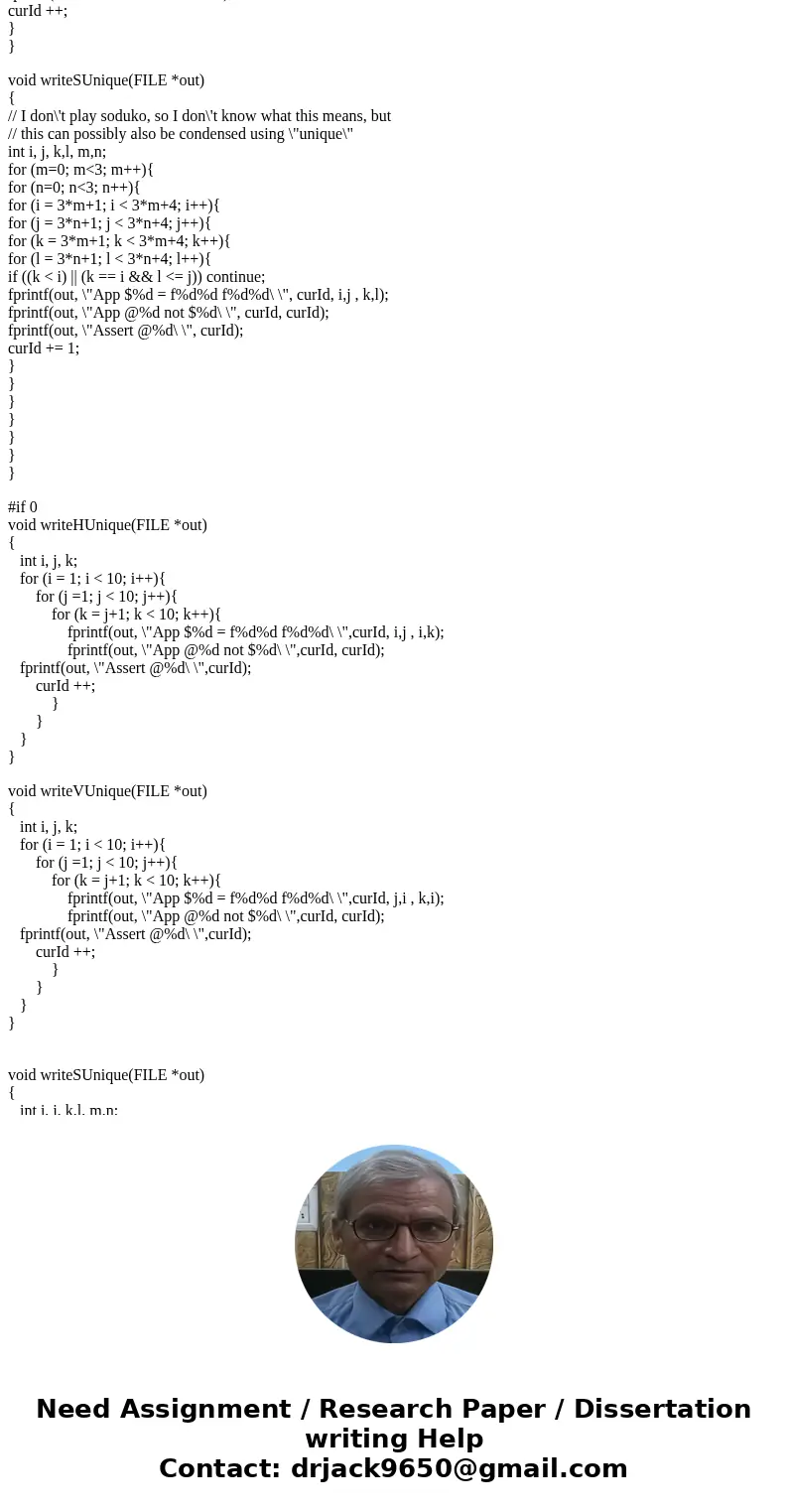

void writeSUnique(FILE *out)
{
// I don\'t play soduko, so I don\'t know what this means, but
// this can possibly also be condensed using \"unique\"
int i, j, k,l, m,n;
for (m=0; m<3; m++){
for (n=0; n<3; n++){
for (i = 3*m+1; i < 3*m+4; i++){
for (j = 3*n+1; j < 3*n+4; j++){
for (k = 3*m+1; k < 3*m+4; k++){
for (l = 3*n+1; l < 3*n+4; l++){
if ((k < i) || (k == i && l <= j)) continue;
fprintf(out, \"App $%d = f%d%d f%d%d\ \", curId, i,j , k,l);
fprintf(out, \"App @%d not $%d\ \", curId, curId);
fprintf(out, \"Assert @%d\ \", curId);
curId += 1;
}
}
}
}
}
}
}

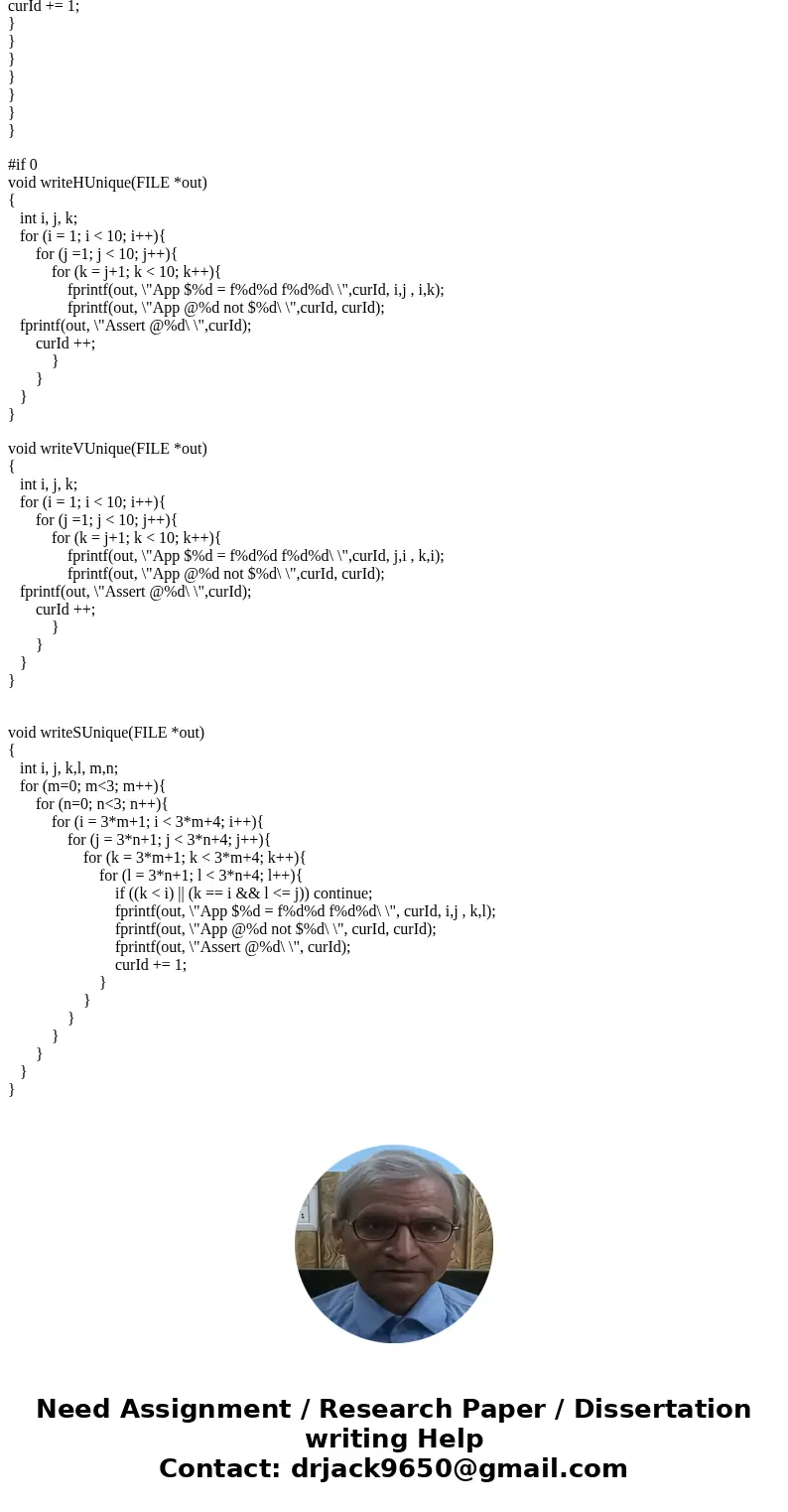

#if 0
void writeHUnique(FILE *out)
{
   int i, j, k;
   for (i = 1; i < 10; i++){
       for (j =1; j < 10; j++){
           for (k = j+1; k < 10; k++){
               fprintf(out, \"App $%d = f%d%d f%d%d\ \",curId, i,j , i,k);
               fprintf(out, \"App @%d not $%d\ \",curId, curId);
   fprintf(out, \"Assert @%d\ \",curId);
       curId ++;
           }
       }
   }
}

void writeVUnique(FILE *out)
{
   int i, j, k;
   for (i = 1; i < 10; i++){
       for (j =1; j < 10; j++){
           for (k = j+1; k < 10; k++){
               fprintf(out, \"App $%d = f%d%d f%d%d\ \",curId, j,i , k,i);
               fprintf(out, \"App @%d not $%d\ \",curId, curId);
   fprintf(out, \"Assert @%d\ \",curId);
       curId ++;
           }
       }
   }
}

void writeSUnique(FILE *out)
{
   int i, j, k,l, m,n;
   for (m=0; m<3; m++){
       for (n=0; n<3; n++){
           for (i = 3*m+1; i < 3*m+4; i++){
               for (j = 3*n+1; j < 3*n+4; j++){
                   for (k = 3*m+1; k < 3*m+4; k++){
                       for (l = 3*n+1; l < 3*n+4; l++){
                           if ((k < i) || (k == i && l <= j)) continue;
                           fprintf(out, \"App $%d = f%d%d f%d%d\ \", curId, i,j , k,l);
                           fprintf(out, \"App @%d not $%d\ \", curId, curId);
                           fprintf(out, \"Assert @%d\ \", curId);
                           curId += 1;
                       }
                   }
               }
           }
       }
   }
}
