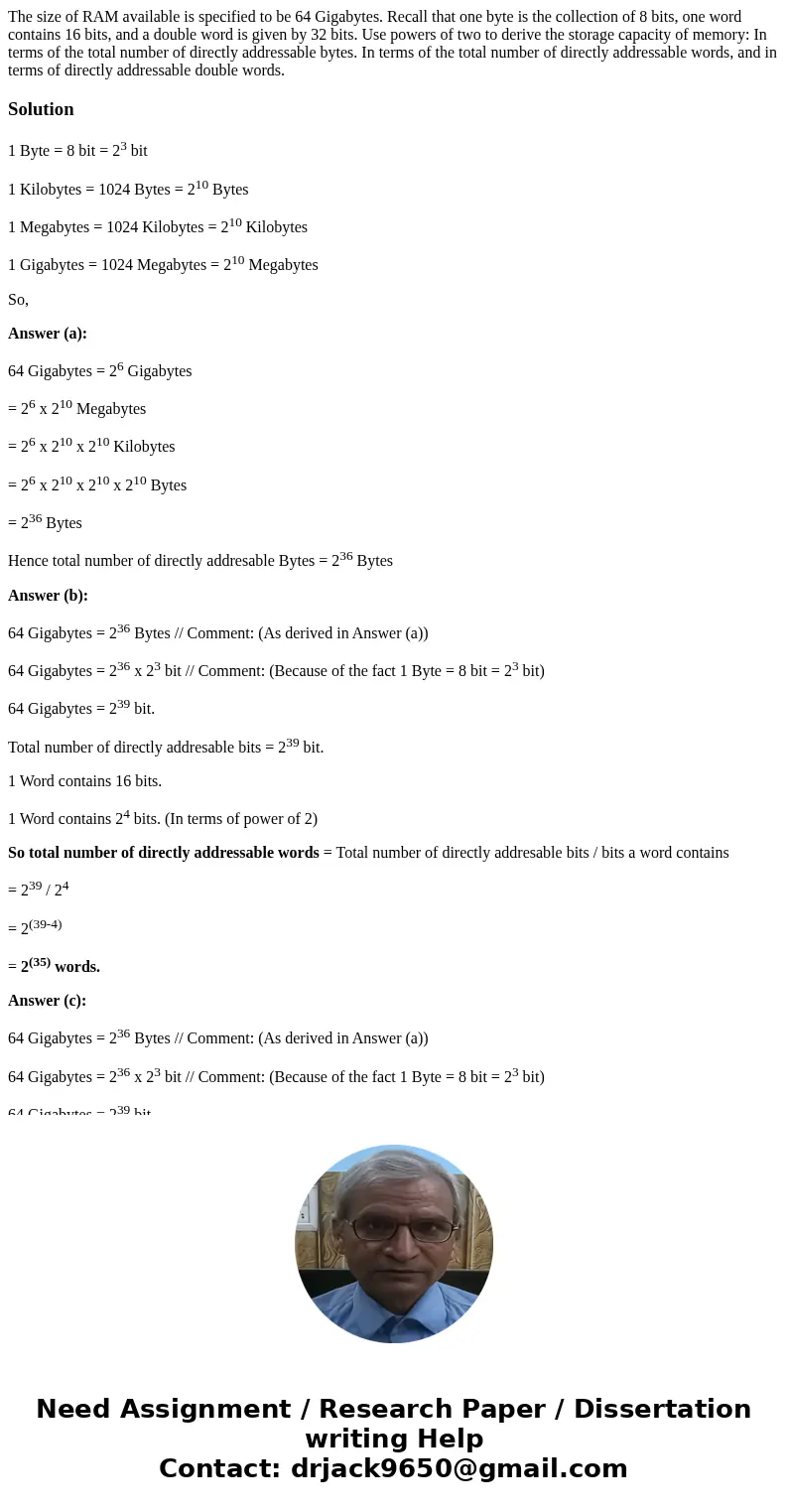

The size of RAM available is specified to be 64 Gigabytes. Recall that one byte is the collection of 8 bits, one word contains 16 bits, and a double word is given by 32 bits. Use powers of two to derive the storage capacity of memory: In terms of the total number of directly addressable bytes. In terms of the total number of directly addressable words, and in terms of directly addressable double words.

Solution

1 Byte = 8 bit = 2³ bit

1 Kilobytes = 1024 Bytes = 2¹⁰ Bytes

1 Megabytes = 1024 Kilobytes = 2¹⁰ Kilobytes

1 Gigabytes = 1024 Megabytes = 2¹⁰ Megabytes

So,

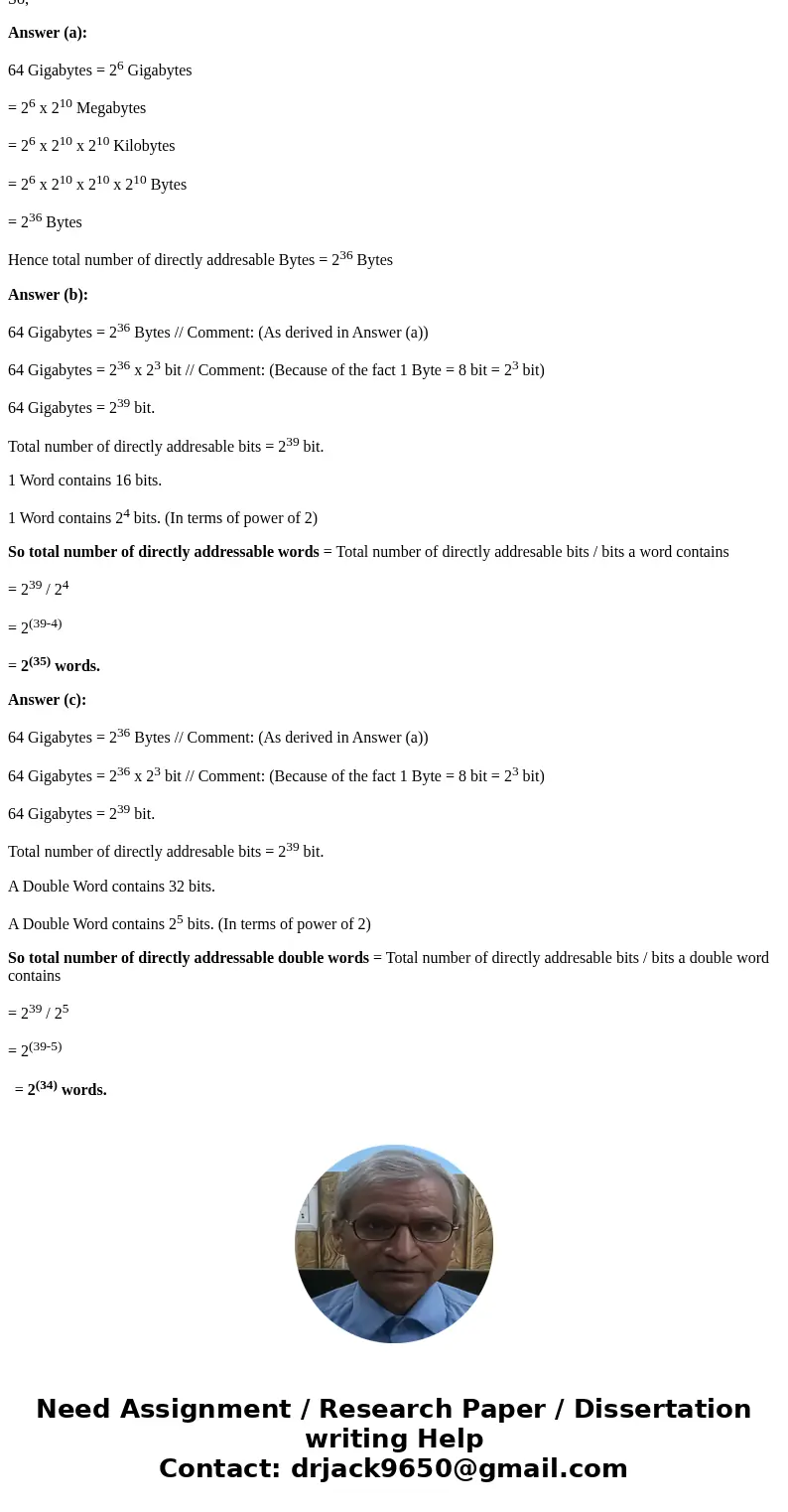

Answer (a):

64 Gigabytes = 2⁶ Gigabytes

= 2⁶ x 2¹⁰ Megabytes

= 2⁶ x 2¹⁰ x 2¹⁰ Kilobytes

= 2⁶ x 2¹⁰ x 2¹⁰ x 2¹⁰ Bytes

= 2³⁶ Bytes

Hence total number of directly addresable Bytes = 2³⁶ Bytes

Answer (b):

64 Gigabytes = 2³⁶ Bytes // Comment: (As derived in Answer (a))

64 Gigabytes = 2³⁶ x 2³ bit // Comment: (Because of the fact 1 Byte = 8 bit = 2³ bit)

64 Gigabytes = 2³⁹ bit.

Total number of directly addresable bits = 2³⁹ bit.

1 Word contains 16 bits.

1 Word contains 2⁴ bits. (In terms of power of 2)

So total number of directly addressable words = Total number of directly addresable bits / bits a word contains

= 2³⁹ / 2⁴

= 2^(39-4)

= 2⁽³⁵⁾ words.

Answer (c):

64 Gigabytes = 2³⁶ Bytes // Comment: (As derived in Answer (a))

64 Gigabytes = 2³⁶ x 2³ bit // Comment: (Because of the fact 1 Byte = 8 bit = 2³ bit)

64 Gigabytes = 2³⁹ bit.

Total number of directly addresable bits = 2³⁹ bit.

A Double Word contains 32 bits.

A Double Word contains 2⁵ bits. (In terms of power of 2)

So total number of directly addressable double words = Total number of directly addresable bits / bits a double word contains

= 2³⁹ / 2⁵

= 2^(39-5)

  = 2⁽³⁴⁾ words.
