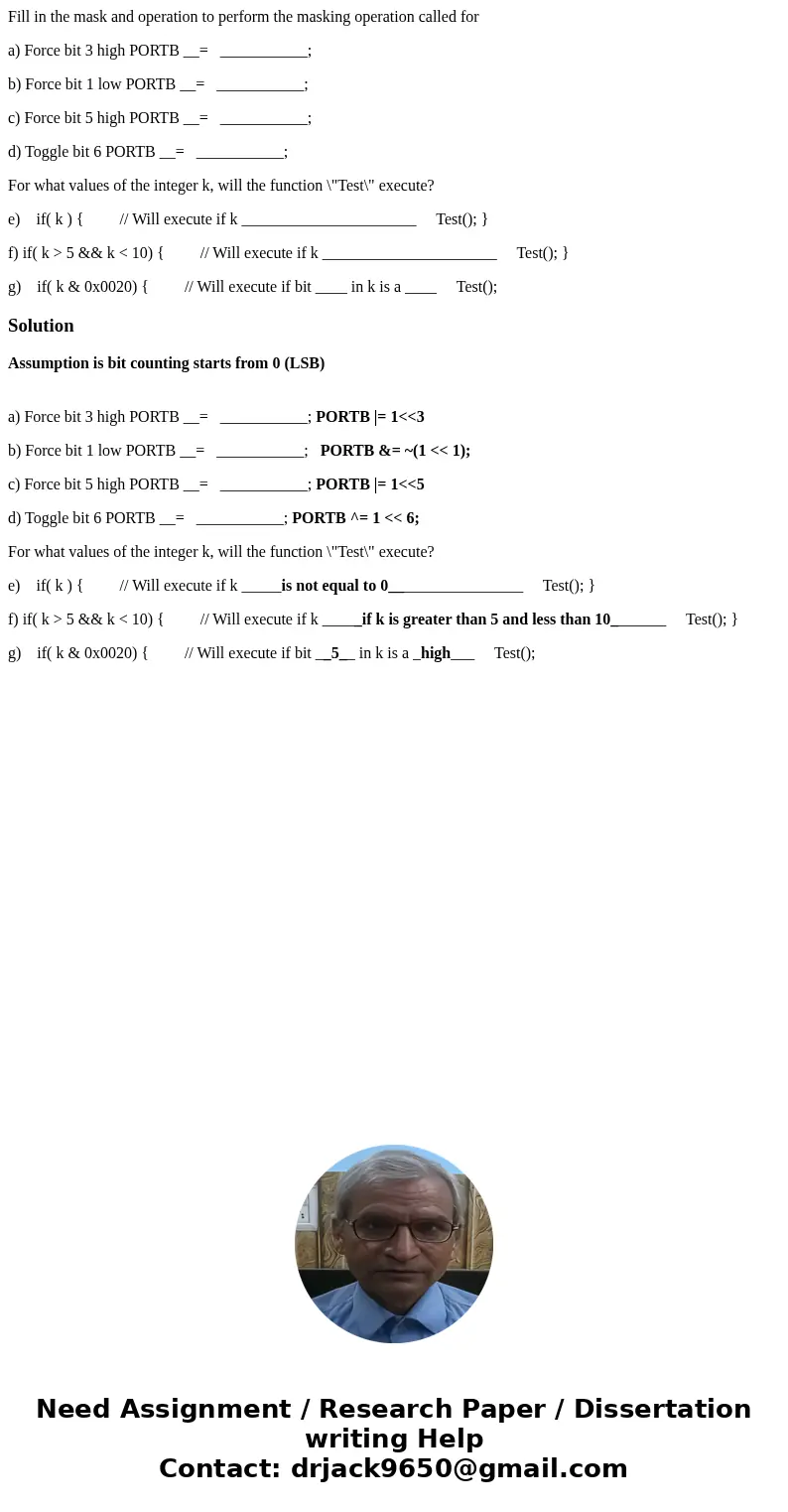

Fill in the mask and operation to perform the masking operat

Fill in the mask and operation to perform the masking operation called for

a) Force bit 3 high PORTB __=   ___________;

b) Force bit 1 low PORTB __=   ___________;

c) Force bit 5 high PORTB __=   ___________;

d) Toggle bit 6 PORTB __=   ___________;

For what values of the integer k, will the function \"Test\" execute?

e)    if( k ) {         // Will execute if k ______________________     Test(); }

f) if( k > 5 && k < 10) {         // Will execute if k ______________________     Test(); }

g)    if( k & 0x0020) {         // Will execute if bit ____ in k is a ____     Test();

Solution

Assumption is bit counting starts from 0 (LSB)


a) Force bit 3 high PORTB __=   ___________; PORTB |= 1<<3

b) Force bit 1 low PORTB __=   ___________;   PORTB &= ~(1 << 1);

c) Force bit 5 high PORTB __=   ___________; PORTB |= 1<<5

d) Toggle bit 6 PORTB __=   ___________; PORTB ^= 1 << 6;

For what values of the integer k, will the function \"Test\" execute?

e)    if( k ) {         // Will execute if k _____is not equal to 0_________________     Test(); }

f) if( k > 5 && k < 10) {         // Will execute if k _____if k is greater than 5 and less than 10_______     Test(); }

g)    if( k & 0x0020) {         // Will execute if bit __5__ in k is a _high___     Test();
