Homework Sourseplease need help with this exercise data structure i should
please need help with this exercise data structure:
i should use the below code for infix to postfix code and i should add the bellow question to the code. so that way it works all together on the same program from the infix to postfix
questions:
A = 3; // your code should store A and 3 as a key-value pair
B = 4; // your code should store B and 4 as a key-value pair
A; // your code should now look-up A and then display its value
later we (you) will add the ability to write
Y = A * B + 3;
Y; // your code should show 16
the code:
import java.io.*; // for I/O
////////////////////////////////////////////////////////////////
class StackX {
private int maxSize;
private char[] stackArray;
private int top;
// --------------------------------------------------------------
public StackX(int s) // constructor
{
maxSize = s;
stackArray = new char[maxSize];
top = -1;
}
// --------------------------------------------------------------
public void push(char j) // put item on top of stack
{
stackArray[++top] = j;
}
// --------------------------------------------------------------
public char pop() // take item from top of stack
{
return stackArray[top--];
}
// --------------------------------------------------------------

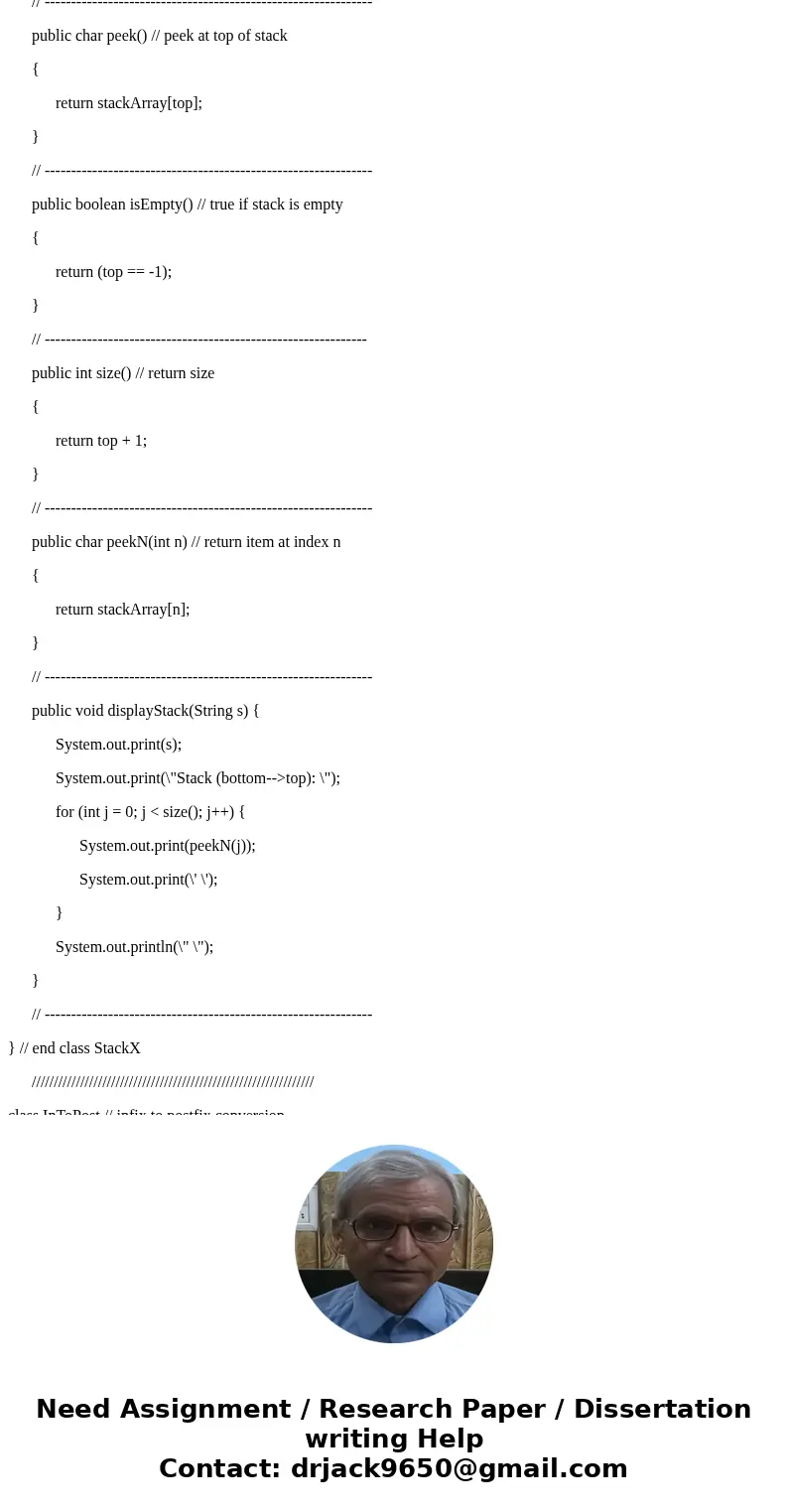

public char peek() // peek at top of stack
{
return stackArray[top];
}
// --------------------------------------------------------------
public boolean isEmpty() // true if stack is empty
{
return (top == -1);
}
// -------------------------------------------------------------
public int size() // return size
{
return top + 1;
}
// --------------------------------------------------------------
public char peekN(int n) // return item at index n
{
return stackArray[n];
}
// --------------------------------------------------------------
public void displayStack(String s) {
System.out.print(s);
System.out.print(\"Stack (bottom-->top): \");
for (int j = 0; j < size(); j++) {
System.out.print(peekN(j));
System.out.print(\' \');
}
System.out.println(\" \");
}
// --------------------------------------------------------------
} // end class StackX
////////////////////////////////////////////////////////////////

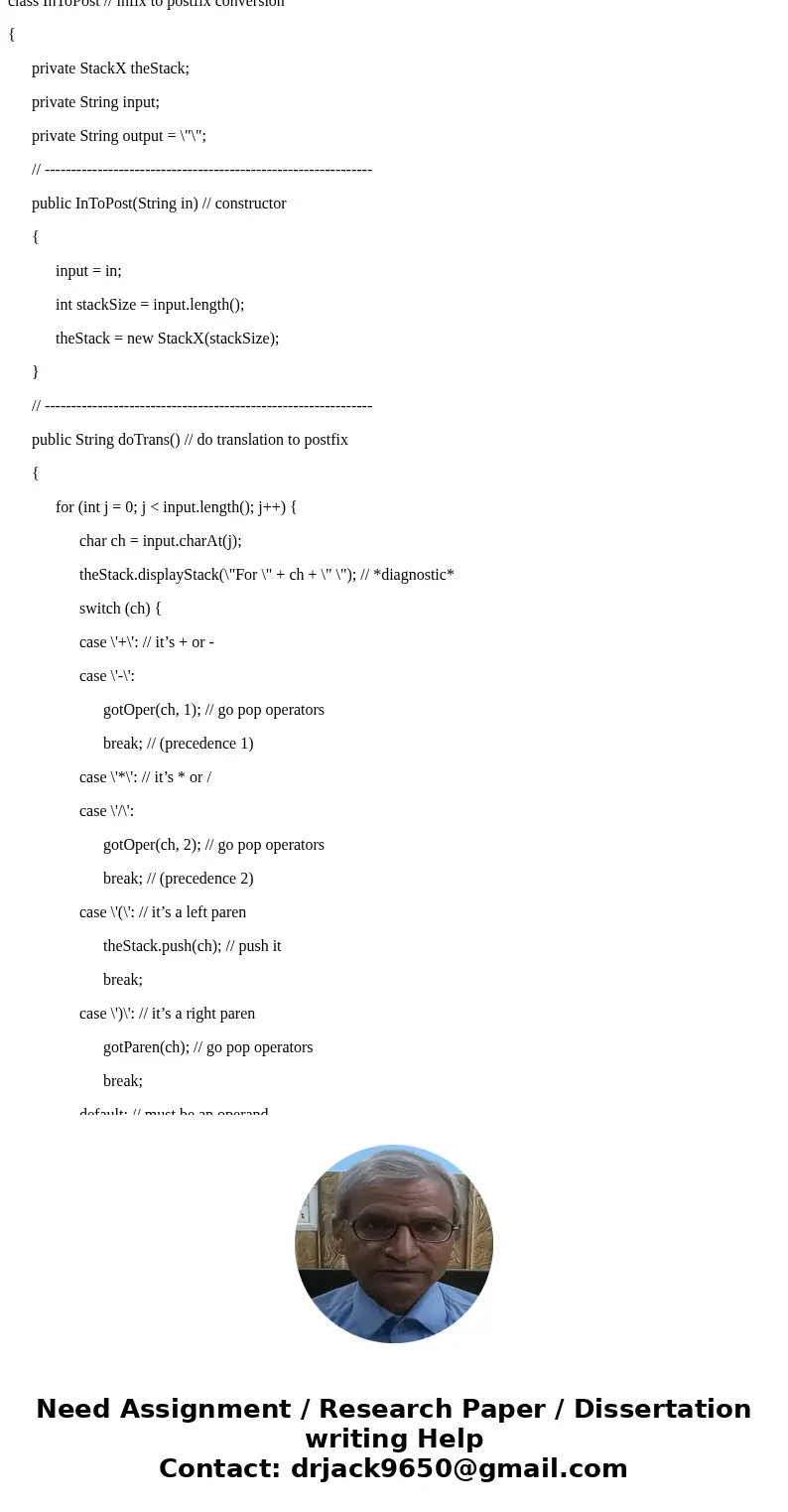

class InToPost // infix to postfix conversion
{
private StackX theStack;
private String input;
private String output = \"\";
// --------------------------------------------------------------
public InToPost(String in) // constructor
{
input = in;
int stackSize = input.length();
theStack = new StackX(stackSize);
}
// --------------------------------------------------------------
public String doTrans() // do translation to postfix
{
for (int j = 0; j < input.length(); j++) {
char ch = input.charAt(j);
theStack.displayStack(\"For \" + ch + \" \"); // *diagnostic*
switch (ch) {
case \'+\': // it’s + or -
case \'-\':
gotOper(ch, 1); // go pop operators
break; // (precedence 1)
case \'*\': // it’s * or /
case \'/\':
gotOper(ch, 2); // go pop operators
break; // (precedence 2)
case \'(\': // it’s a left paren
theStack.push(ch); // push it
break;
case \')\': // it’s a right paren
gotParen(ch); // go pop operators
break;

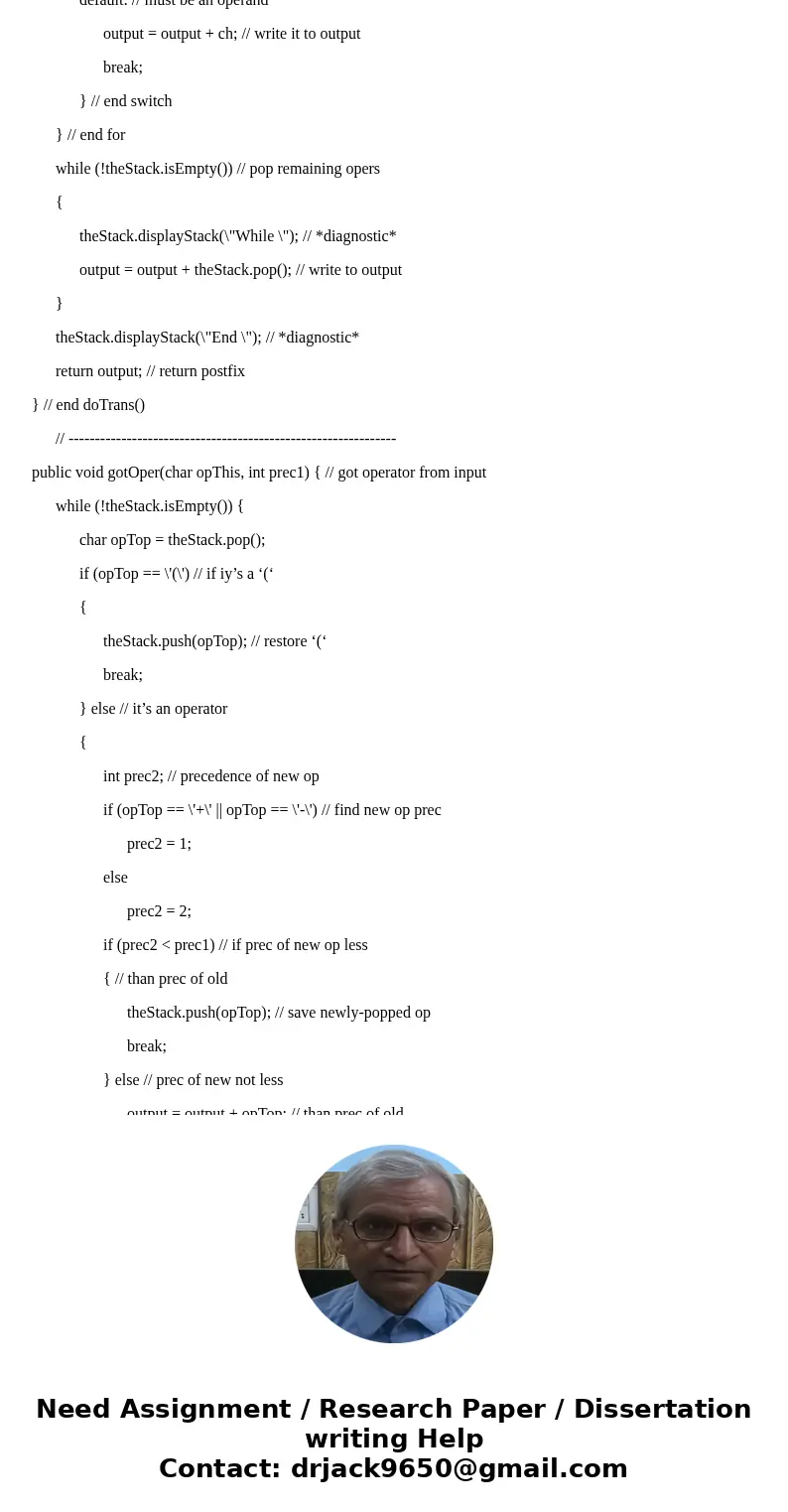

default: // must be an operand
output = output + ch; // write it to output
break;
} // end switch
} // end for
while (!theStack.isEmpty()) // pop remaining opers
{
theStack.displayStack(\"While \"); // *diagnostic*
output = output + theStack.pop(); // write to output
}
theStack.displayStack(\"End \"); // *diagnostic*
return output; // return postfix
} // end doTrans()
// --------------------------------------------------------------
public void gotOper(char opThis, int prec1) { // got operator from input
while (!theStack.isEmpty()) {
char opTop = theStack.pop();
if (opTop == \'(\') // if iy’s a ‘(‘
{
theStack.push(opTop); // restore ‘(‘
break;
} else // it’s an operator
{
int prec2; // precedence of new op
if (opTop == \'+\' || opTop == \'-\') // find new op prec
prec2 = 1;
else
prec2 = 2;
if (prec2 < prec1) // if prec of new op less
{ // than prec of old
theStack.push(opTop); // save newly-popped op
break;
} else // prec of new not less
output = output + opTop; // than prec of old
} // end else (it’s an operator)
} // end while
theStack.push(opThis); // push new operator
} // end gotOp()
// --------------------------------------------------------------

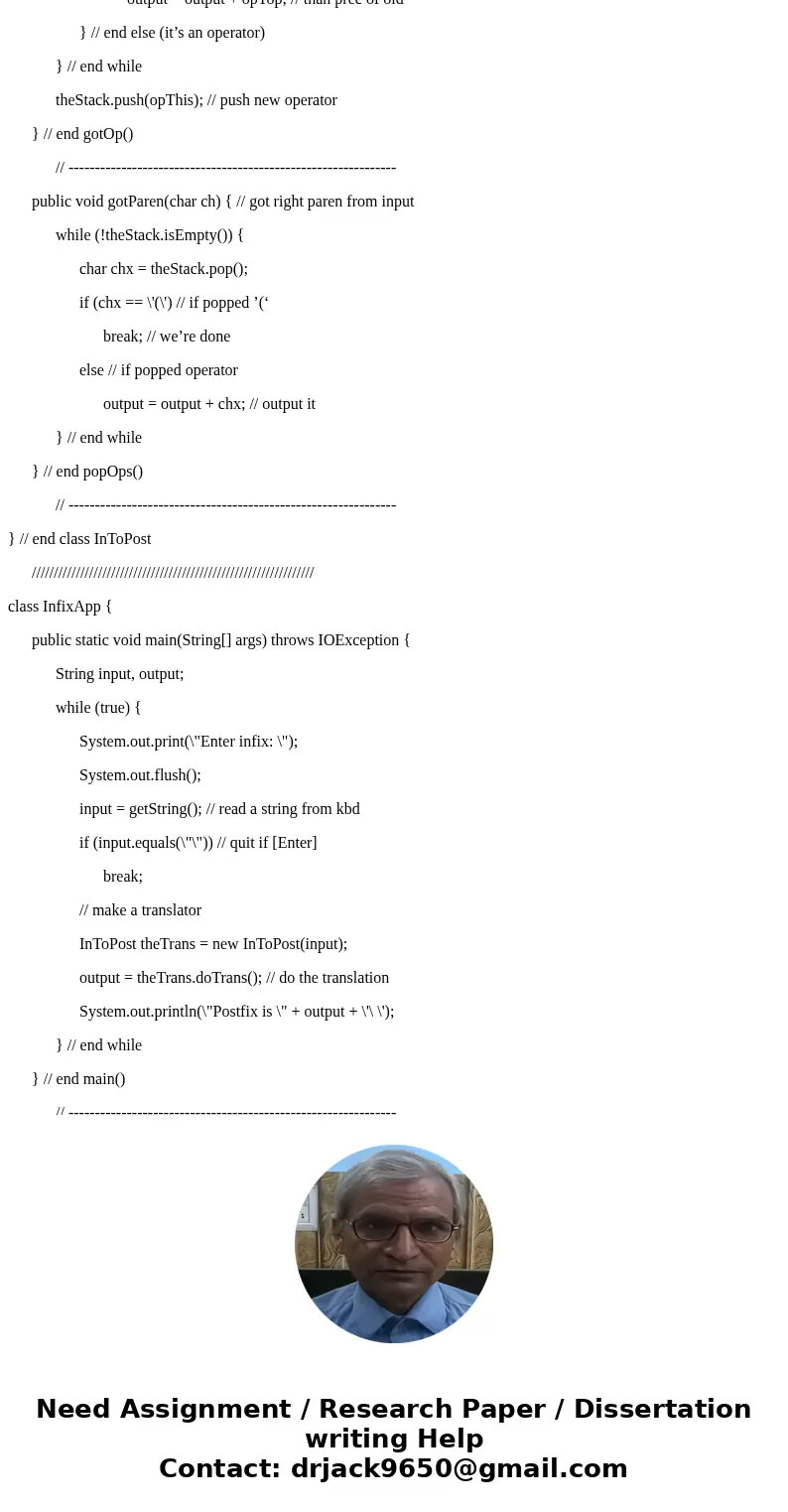

public void gotParen(char ch) { // got right paren from input
while (!theStack.isEmpty()) {
char chx = theStack.pop();
if (chx == \'(\') // if popped ’(‘
break; // we’re done
else // if popped operator
output = output + chx; // output it
} // end while
} // end popOps()
// --------------------------------------------------------------
} // end class InToPost
////////////////////////////////////////////////////////////////
class InfixApp {
public static void main(String[] args) throws IOException {
String input, output;
while (true) {
System.out.print(\"Enter infix: \");
System.out.flush();
input = getString(); // read a string from kbd
if (input.equals(\"\")) // quit if [Enter]
break;
// make a translator
InToPost theTrans = new InToPost(input);
output = theTrans.doTrans(); // do the translation
System.out.println(\"Postfix is \" + output + \'\ \');
} // end while
} // end main()
// --------------------------------------------------------------

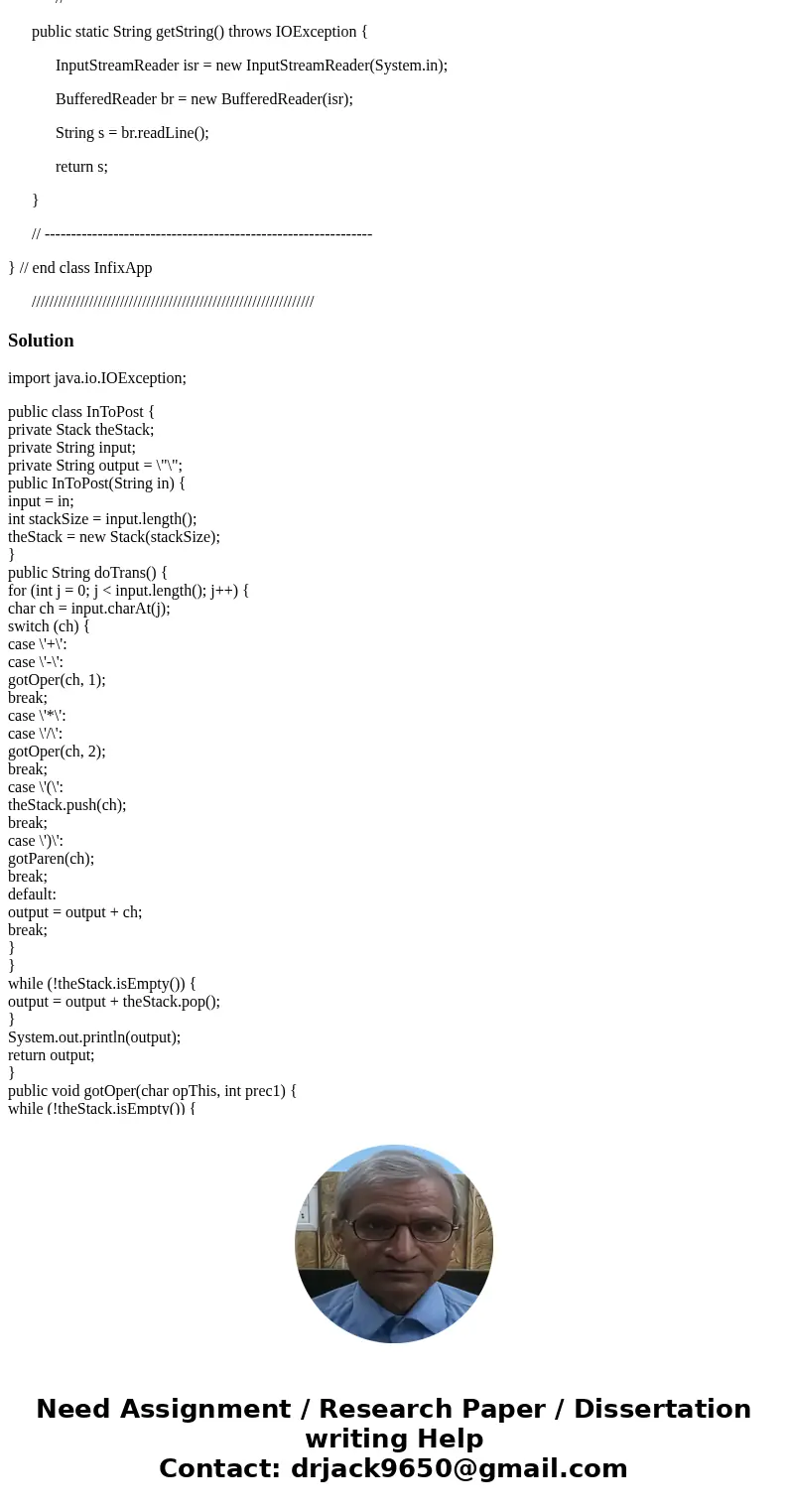

public static String getString() throws IOException {
InputStreamReader isr = new InputStreamReader(System.in);
BufferedReader br = new BufferedReader(isr);
String s = br.readLine();
return s;
}
// --------------------------------------------------------------
} // end class InfixApp
////////////////////////////////////////////////////////////////
Solution
import java.io.IOException;
public class InToPost {
private Stack theStack;
private String input;
private String output = \"\";
public InToPost(String in) {
input = in;
int stackSize = input.length();
theStack = new Stack(stackSize);
}
public String doTrans() {
for (int j = 0; j < input.length(); j++) {
char ch = input.charAt(j);
switch (ch) {
case \'+\':
case \'-\':
gotOper(ch, 1);
break;
case \'*\':
case \'/\':
gotOper(ch, 2);
break;
case \'(\':
theStack.push(ch);
break;
case \')\':
gotParen(ch);
break;
default:
output = output + ch;
break;
}
}
while (!theStack.isEmpty()) {
output = output + theStack.pop();
}
System.out.println(output);
return output;
}

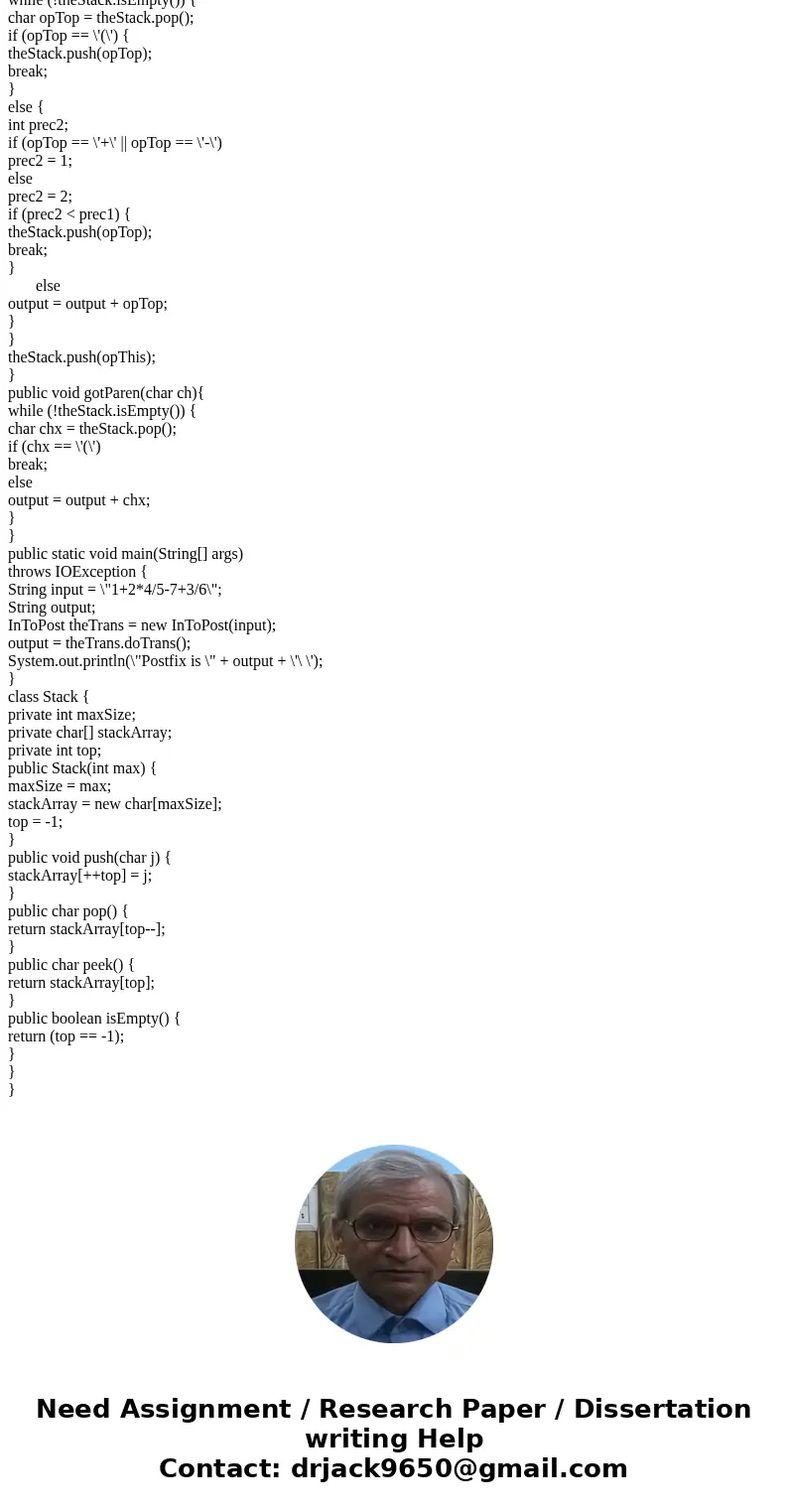

public void gotOper(char opThis, int prec1) {
while (!theStack.isEmpty()) {
char opTop = theStack.pop();
if (opTop == \'(\') {
theStack.push(opTop);
break;
}
else {
int prec2;
if (opTop == \'+\' || opTop == \'-\')
prec2 = 1;
else
prec2 = 2;
if (prec2 < prec1) {
theStack.push(opTop);
break;
}
else
output = output + opTop;
}
}
theStack.push(opThis);
}
public void gotParen(char ch){
while (!theStack.isEmpty()) {
char chx = theStack.pop();
if (chx == \'(\')
break;
else
output = output + chx;
}
}
public static void main(String[] args)
throws IOException {
String input = \"1+2*4/5-7+3/6\";
String output;
InToPost theTrans = new InToPost(input);
output = theTrans.doTrans();
System.out.println(\"Postfix is \" + output + \'\ \');
}
class Stack {
private int maxSize;
private char[] stackArray;
private int top;
public Stack(int max) {
maxSize = max;
stackArray = new char[maxSize];
top = -1;
}
public void push(char j) {
stackArray[++top] = j;
}
public char pop() {
return stackArray[top--];
}
public char peek() {
return stackArray[top];
}
public boolean isEmpty() {
return (top == -1);
}
}
}
