Homework SoursePlease use the following UML diagram and maincpp to complete
?Please use the following UML diagram and main.cpp to complete the code below
Rectangle T width T height: T Rectangle Rectangle(x T y T width height T) getWidth() T getHeight T set Width (newWidth T) void setHeight(newHeight T) void area float circumference float public Square T Square (x T y T, side T)Solution

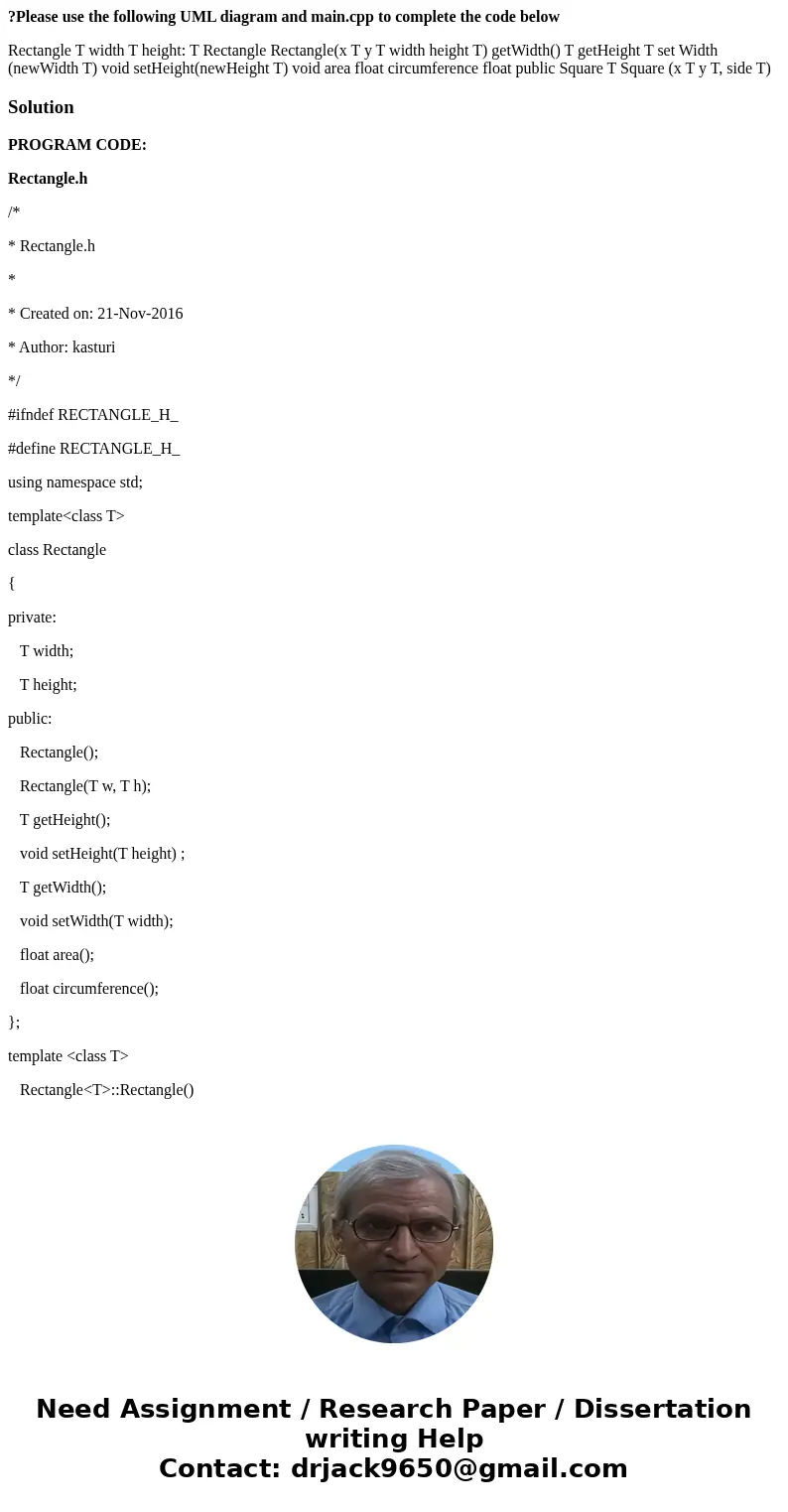

PROGRAM CODE:
Rectangle.h
/*
* Rectangle.h
*
* Created on: 21-Nov-2016
* Author: kasturi
*/
#ifndef RECTANGLE_H_
#define RECTANGLE_H_
using namespace std;
template<class T>
class Rectangle
{
private:
T width;
T height;
public:
Rectangle();
Rectangle(T w, T h);
T getHeight();
void setHeight(T height) ;
T getWidth();
void setWidth(T width);
float area();
float circumference();
};

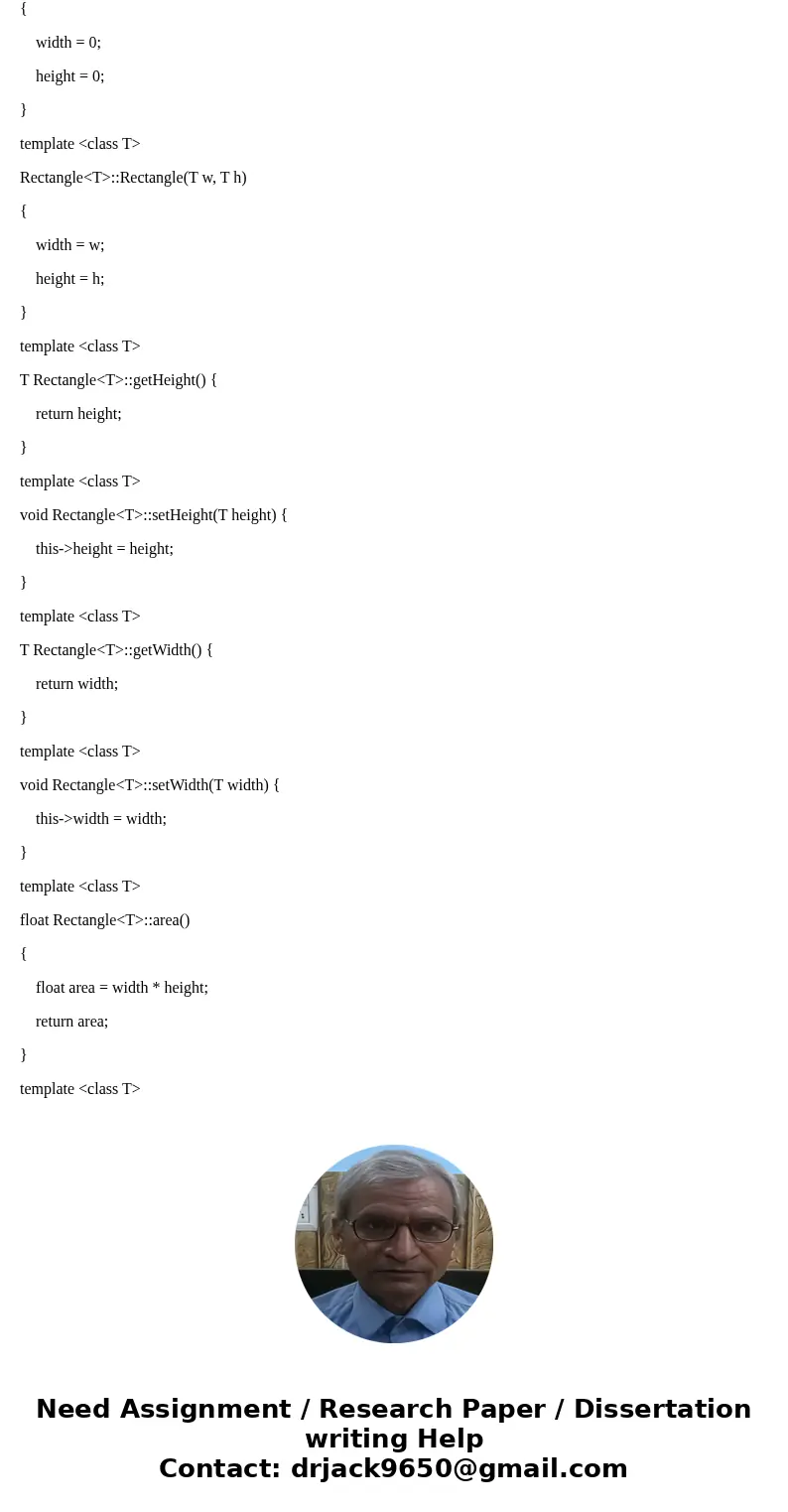

template <class T>
Rectangle<T>::Rectangle()
{
width = 0;
height = 0;
}
template <class T>
Rectangle<T>::Rectangle(T w, T h)
{
width = w;
height = h;
}
template <class T>
T Rectangle<T>::getHeight() {
return height;
}
template <class T>
void Rectangle<T>::setHeight(T height) {
this->height = height;
}
template <class T>
T Rectangle<T>::getWidth() {
return width;
}
template <class T>
void Rectangle<T>::setWidth(T width) {
this->width = width;
}
template <class T>
float Rectangle<T>::area()
{
float area = width * height;
return area;
}
template <class T>

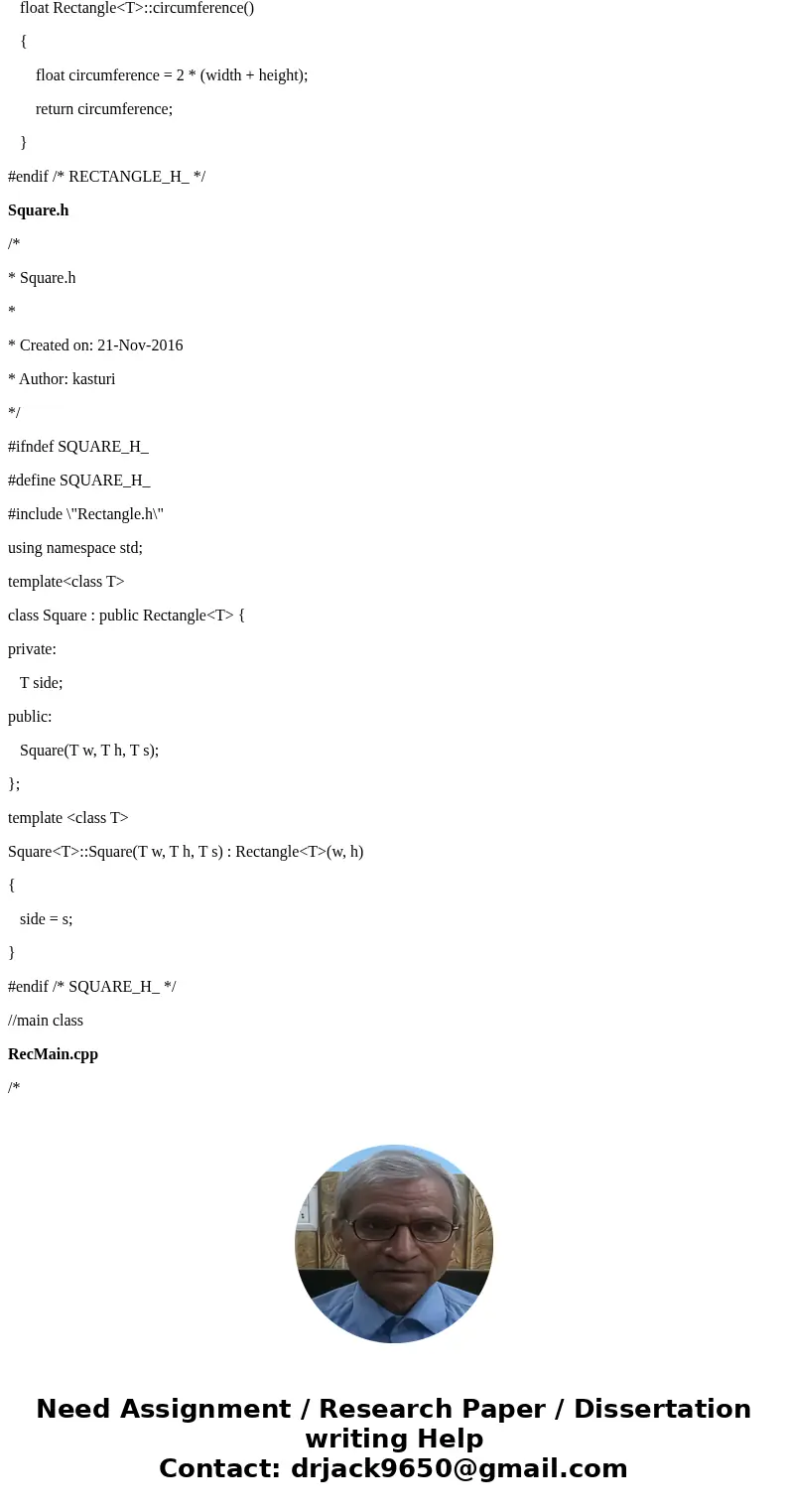

float Rectangle<T>::circumference()
{
float circumference = 2 * (width + height);
return circumference;
}
#endif /* RECTANGLE_H_ */
Square.h
/*
* Square.h
*
* Created on: 21-Nov-2016
* Author: kasturi
*/
#ifndef SQUARE_H_
#define SQUARE_H_
#include \"Rectangle.h\"
using namespace std;
template<class T>
class Square : public Rectangle<T> {
private:
T side;
public:
Square(T w, T h, T s);
};
template <class T>

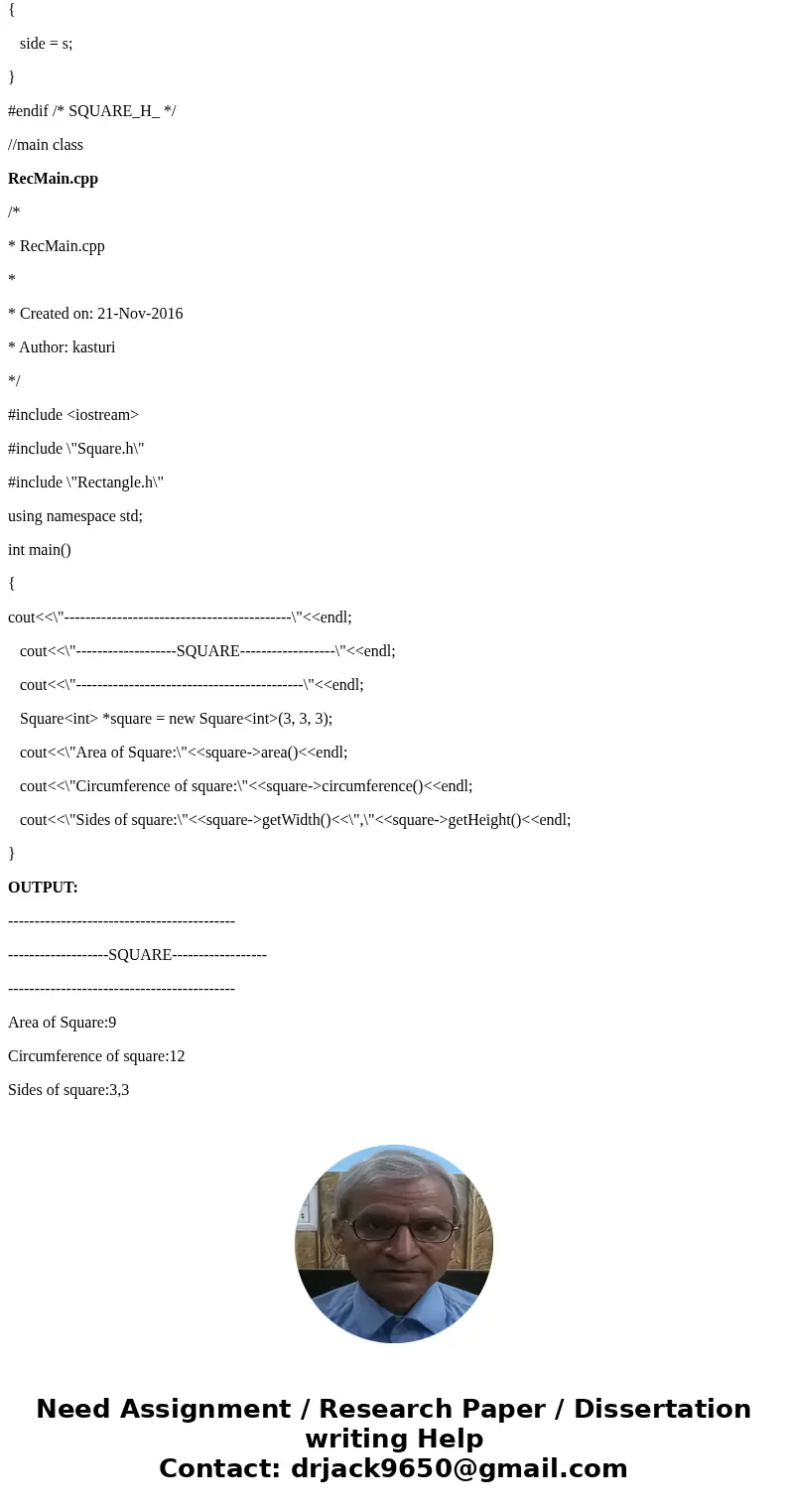

Square<T>::Square(T w, T h, T s) : Rectangle<T>(w, h)
{
side = s;
}
#endif /* SQUARE_H_ */
//main class
RecMain.cpp
/*
* RecMain.cpp
*
* Created on: 21-Nov-2016
* Author: kasturi
*/
#include <iostream>
#include \"Square.h\"
#include \"Rectangle.h\"
using namespace std;
int main()
{
cout<<\"-------------------------------------------\"<<endl;
cout<<\"-------------------SQUARE------------------\"<<endl;
cout<<\"-------------------------------------------\"<<endl;
Square<int> *square = new Square<int>(3, 3, 3);
cout<<\"Area of Square:\"<<square->area()<<endl;
cout<<\"Circumference of square:\"<<square->circumference()<<endl;
cout<<\"Sides of square:\"<<square->getWidth()<<\",\"<<square->getHeight()<<endl;
}
OUTPUT:
-------------------------------------------
-------------------SQUARE------------------
-------------------------------------------
Area of Square:9
Circumference of square:12
Sides of square:3,3
