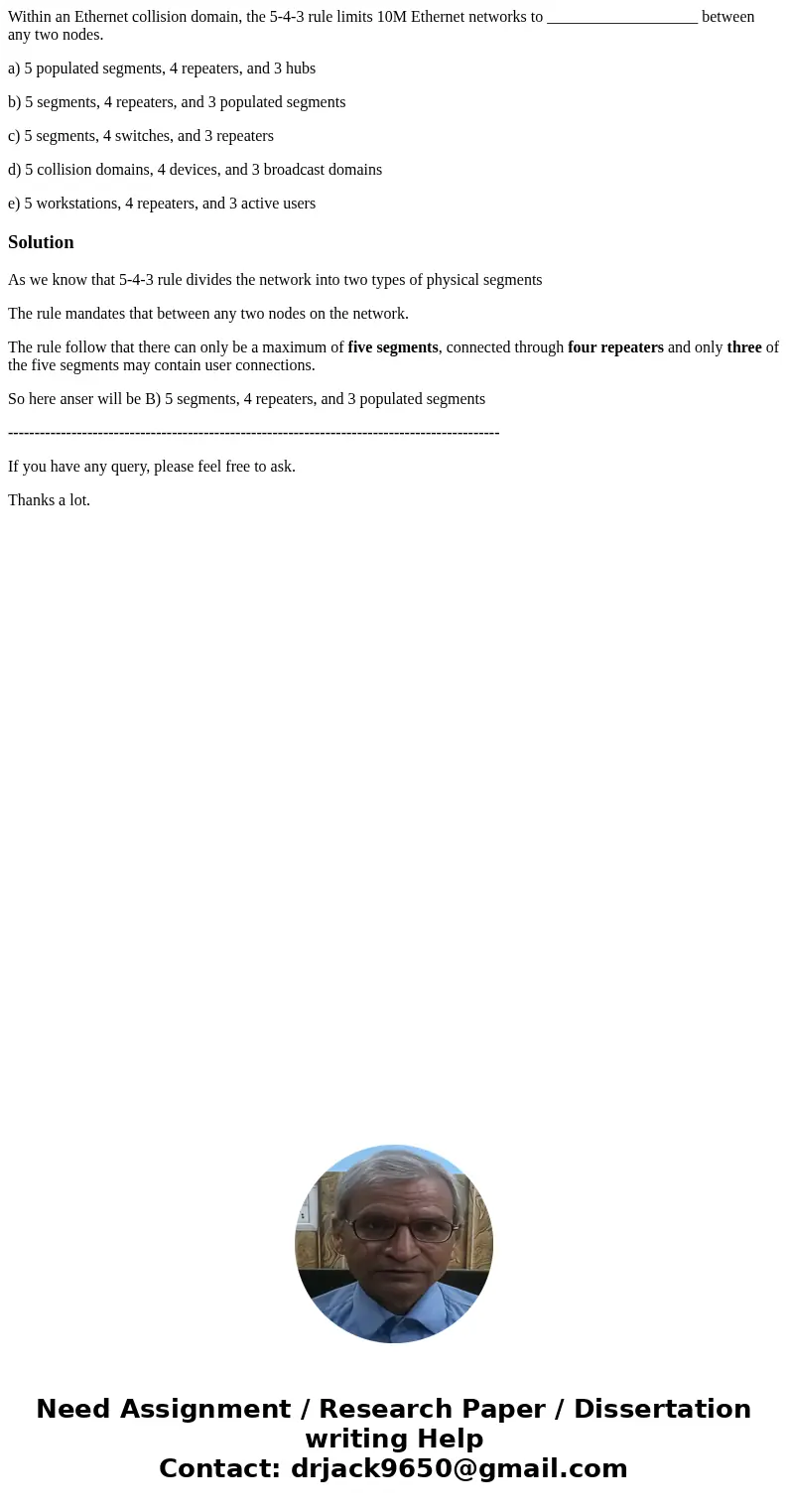

Within an Ethernet collision domain the 543 rule limits 10M

Within an Ethernet collision domain, the 5-4-3 rule limits 10M Ethernet networks to ___________________ between any two nodes.

a) 5 populated segments, 4 repeaters, and 3 hubs

b) 5 segments, 4 repeaters, and 3 populated segments

c) 5 segments, 4 switches, and 3 repeaters

d) 5 collision domains, 4 devices, and 3 broadcast domains

e) 5 workstations, 4 repeaters, and 3 active users

Solution

As we know that 5-4-3 rule divides the network into two types of physical segments

The rule mandates that between any two nodes on the network.

The rule follow that there can only be a maximum of five segments, connected through four repeaters and only three of the five segments may contain user connections.

So here anser will be B) 5 segments, 4 repeaters, and 3 populated segments

---------------------------------------------------------------------------------------------
