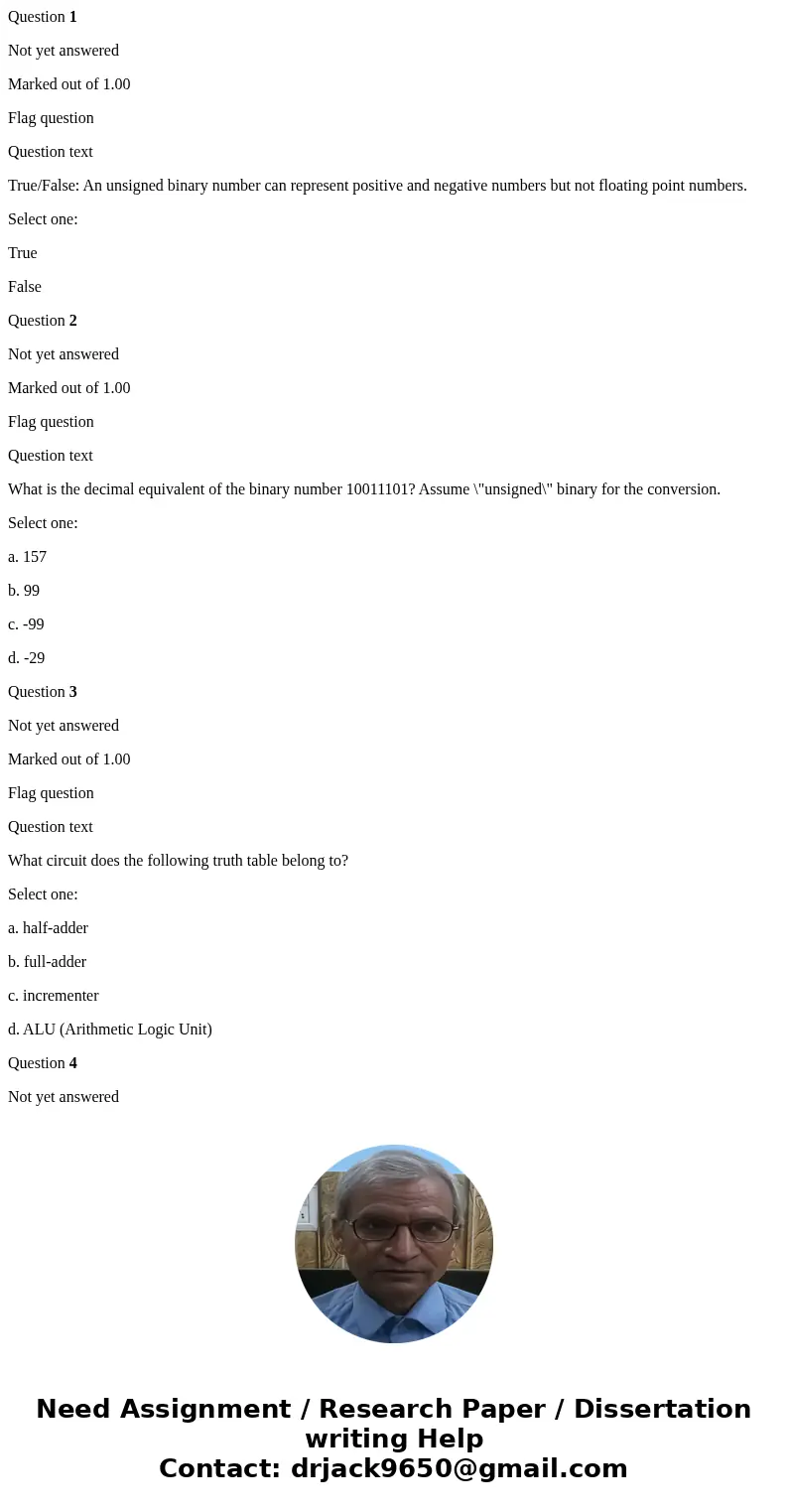

Question 1 Not yet answered Marked out of 100 Flag question

Question 1

Not yet answered

Marked out of 1.00

Flag question

Question text

True/False: An unsigned binary number can represent positive and negative numbers but not floating point numbers.

Select one:

True

False

Question 2

Not yet answered

Marked out of 1.00

Flag question

Question text

What is the decimal equivalent of the binary number 10011101? Assume \"unsigned\" binary for the conversion.

Select one:

a. 157

b. 99

c. -99

d. -29

Question 3

Not yet answered

Marked out of 1.00

Flag question

Question text

What circuit does the following truth table belong to?

Select one:

a. half-adder

b. full-adder

c. incrementer

d. ALU (Arithmetic Logic Unit)

Question 4

Not yet answered

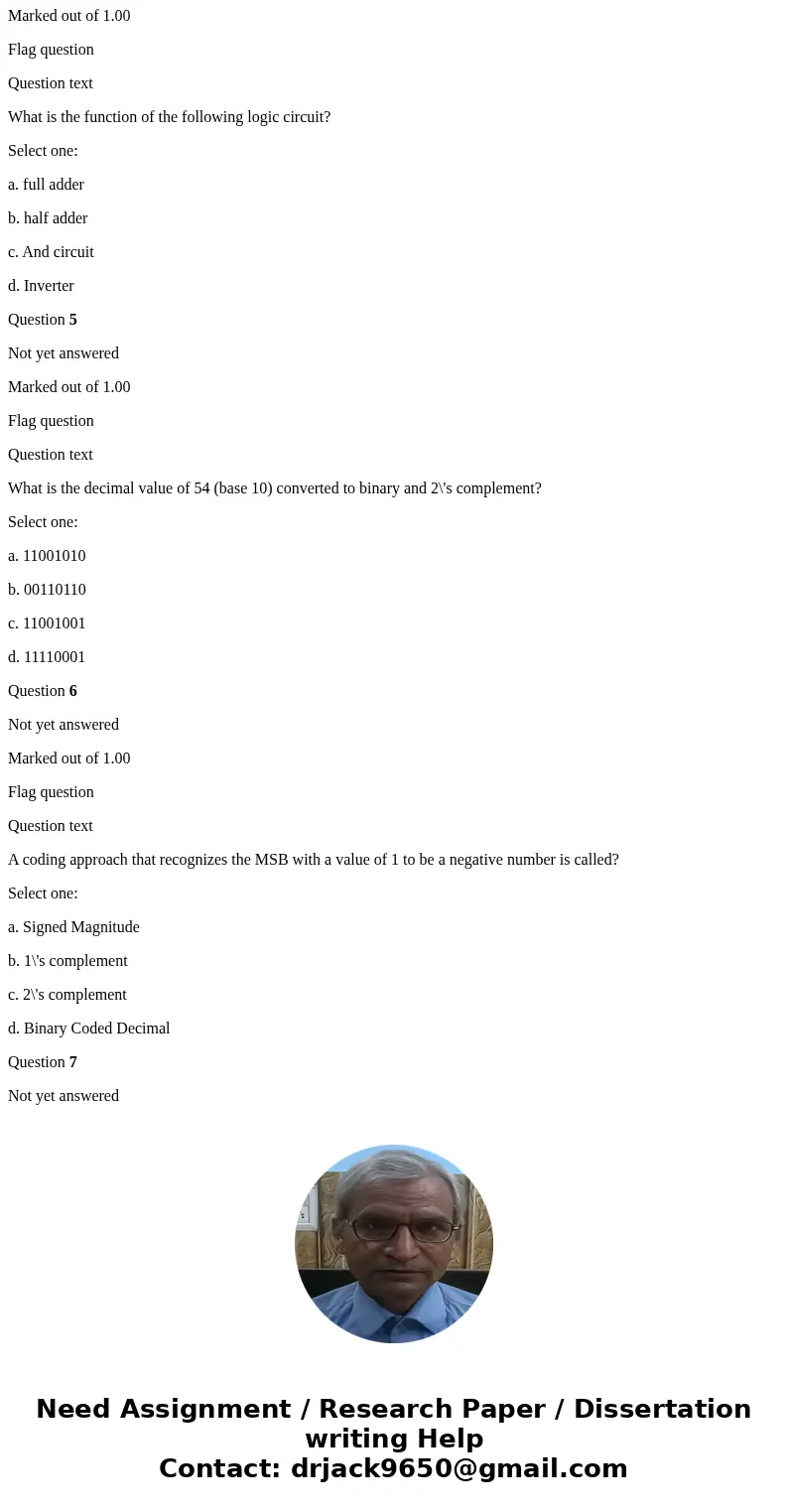

Marked out of 1.00

Flag question

Question text

What is the function of the following logic circuit?

Select one:

a. full adder

b. half adder

c. And circuit

d. Inverter

Question 5

Not yet answered

Marked out of 1.00

Flag question

Question text

What is the decimal value of 54 (base 10) converted to binary and 2\'s complement?

Select one:

a. 11001010

b. 00110110

c. 11001001

d. 11110001

Question 6

Not yet answered

Marked out of 1.00

Flag question

Question text

A coding approach that recognizes the MSB with a value of 1 to be a negative number is called?

Select one:

a. Signed Magnitude

b. 1\'s complement

c. 2\'s complement

d. Binary Coded Decimal

Question 7

Not yet answered

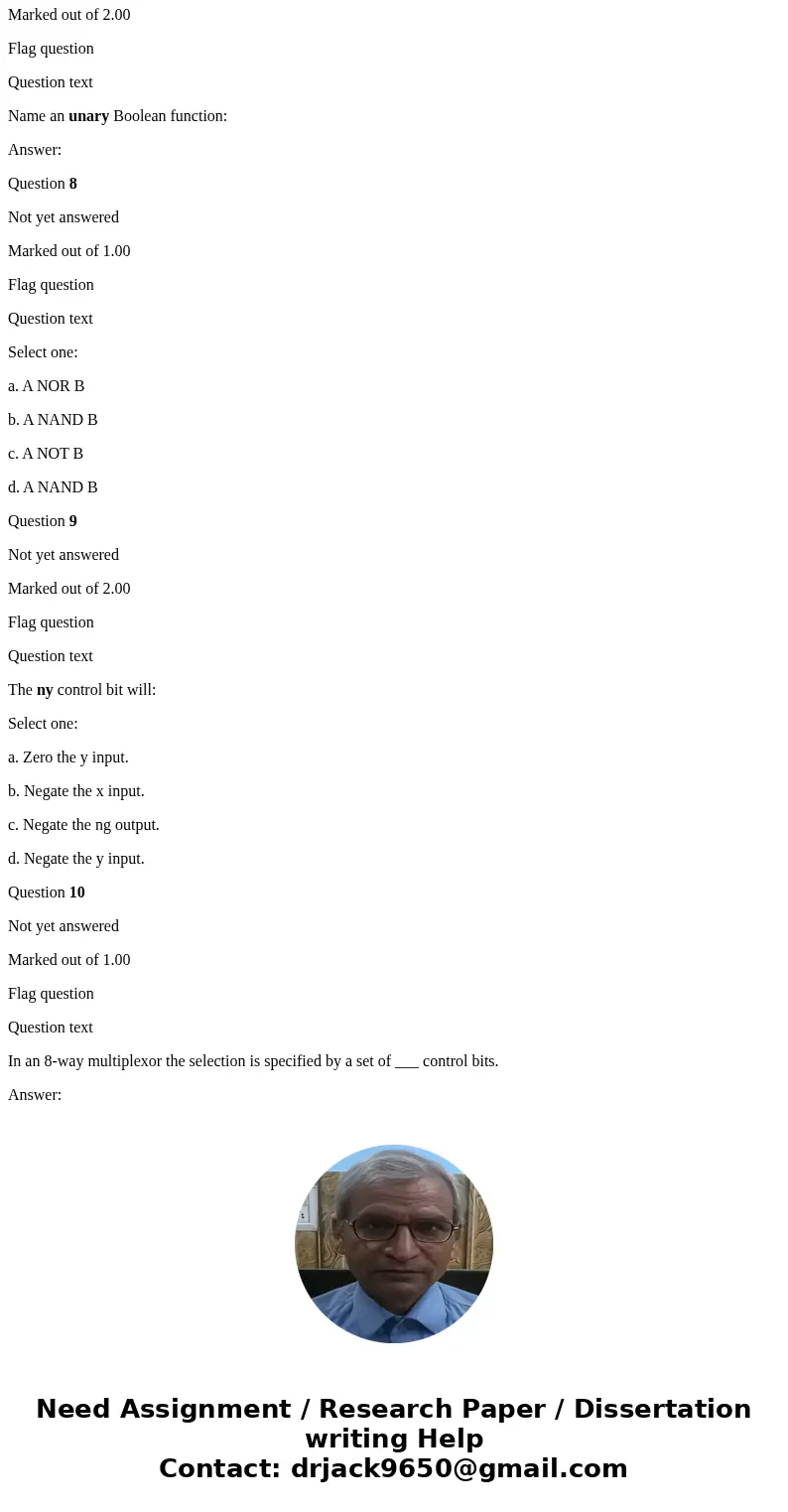

Marked out of 2.00

Flag question

Question text

Name an unary Boolean function:

Answer:

Question 8

Not yet answered

Marked out of 1.00

Flag question

Question text

Select one:

a. A NOR B

b. A NAND B

c. A NOT B

d. A NAND B

Question 9

Not yet answered

Marked out of 2.00

Flag question

Question text

The ny control bit will:

Select one:

a. Zero the y input.

b. Negate the x input.

c. Negate the ng output.

d. Negate the y input.

Question 10

Not yet answered

Marked out of 1.00

Flag question

Question text

In an 8-way multiplexor the selection is specified by a set of ___ control bits.

Answer:

Question 11

Not yet answered

Marked out of 2.00

Flag question

Question text

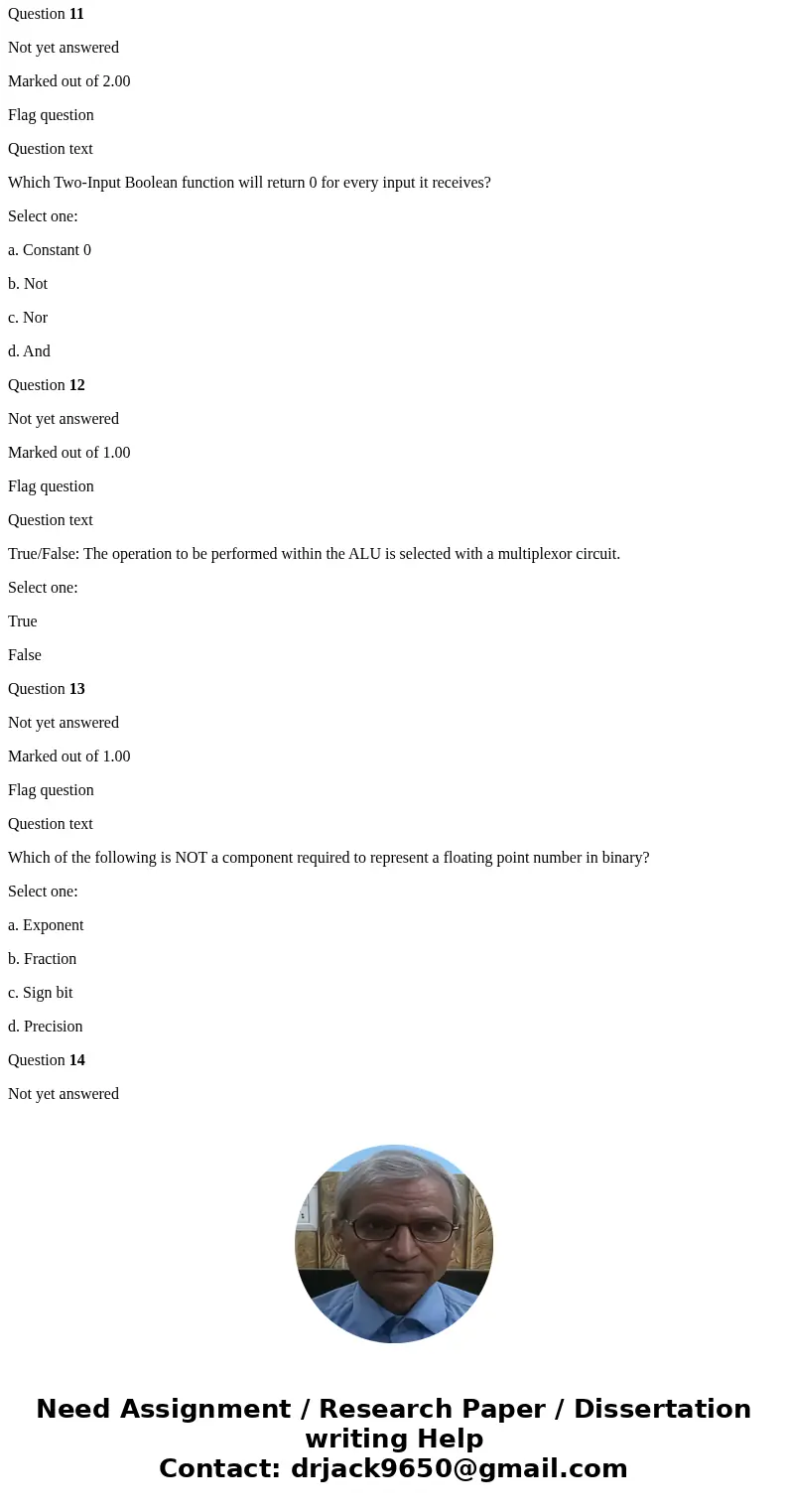

Which Two-Input Boolean function will return 0 for every input it receives?

Select one:

a. Constant 0

b. Not

c. Nor

d. And

Question 12

Not yet answered

Marked out of 1.00

Flag question

Question text

True/False: The operation to be performed within the ALU is selected with a multiplexor circuit.

Select one:

True

False

Question 13

Not yet answered

Marked out of 1.00

Flag question

Question text

Which of the following is NOT a component required to represent a floating point number in binary?

Select one:

a. Exponent

b. Fraction

c. Sign bit

d. Precision

Question 14

Not yet answered

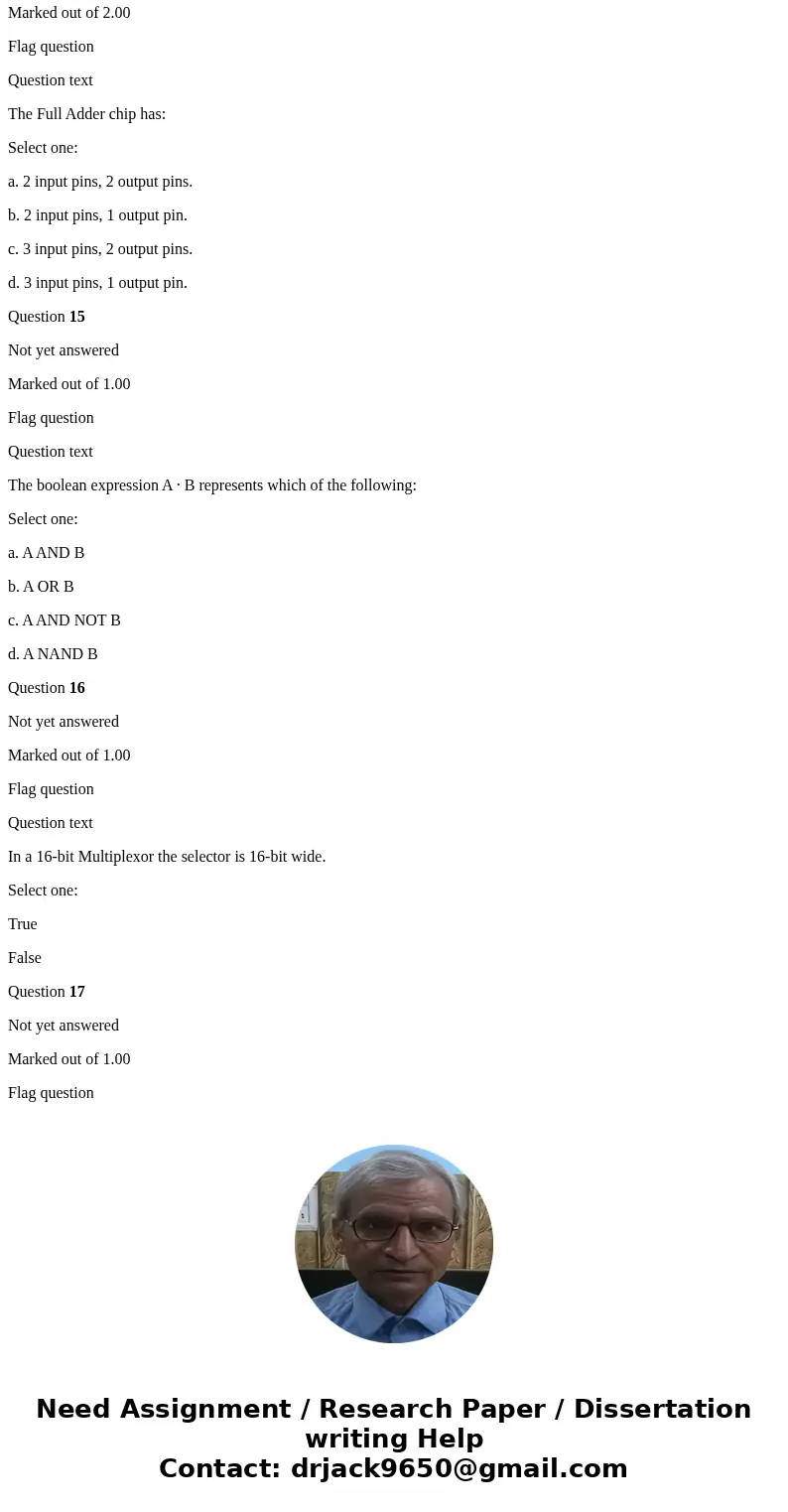

Marked out of 2.00

Flag question

Question text

The Full Adder chip has:

Select one:

a. 2 input pins, 2 output pins.

b. 2 input pins, 1 output pin.

c. 3 input pins, 2 output pins.

d. 3 input pins, 1 output pin.

Question 15

Not yet answered

Marked out of 1.00

Flag question

Question text

The boolean expression A · B represents which of the following:

Select one:

a. A AND B

b. A OR B

c. A AND NOT B

d. A NAND B

Question 16

Not yet answered

Marked out of 1.00

Flag question

Question text

In a 16-bit Multiplexor the selector is 16-bit wide.

Select one:

True

False

Question 17

Not yet answered

Marked out of 1.00

Flag question

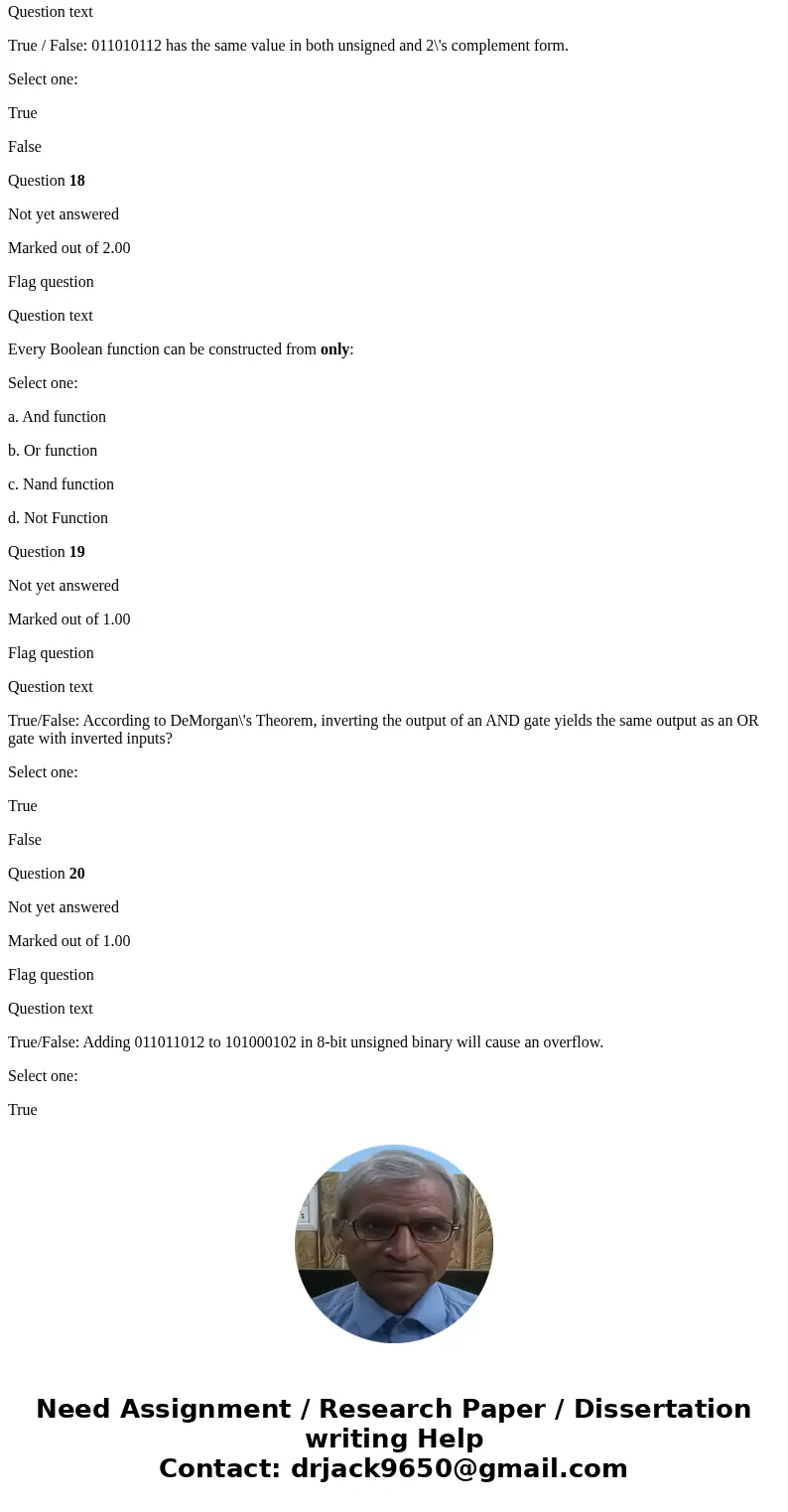

Question text

True / False: 011010112 has the same value in both unsigned and 2\'s complement form.

Select one:

True

False

Question 18

Not yet answered

Marked out of 2.00

Flag question

Question text

Every Boolean function can be constructed from only:

Select one:

a. And function

b. Or function

c. Nand function

d. Not Function

Question 19

Not yet answered

Marked out of 1.00

Flag question

Question text

True/False: According to DeMorgan\'s Theorem, inverting the output of an AND gate yields the same output as an OR gate with inverted inputs?

Select one:

True

False

Question 20

Not yet answered

Marked out of 1.00

Flag question

Question text

True/False: Adding 011011012 to 101000102 in 8-bit unsigned binary will cause an overflow.

Select one:

True

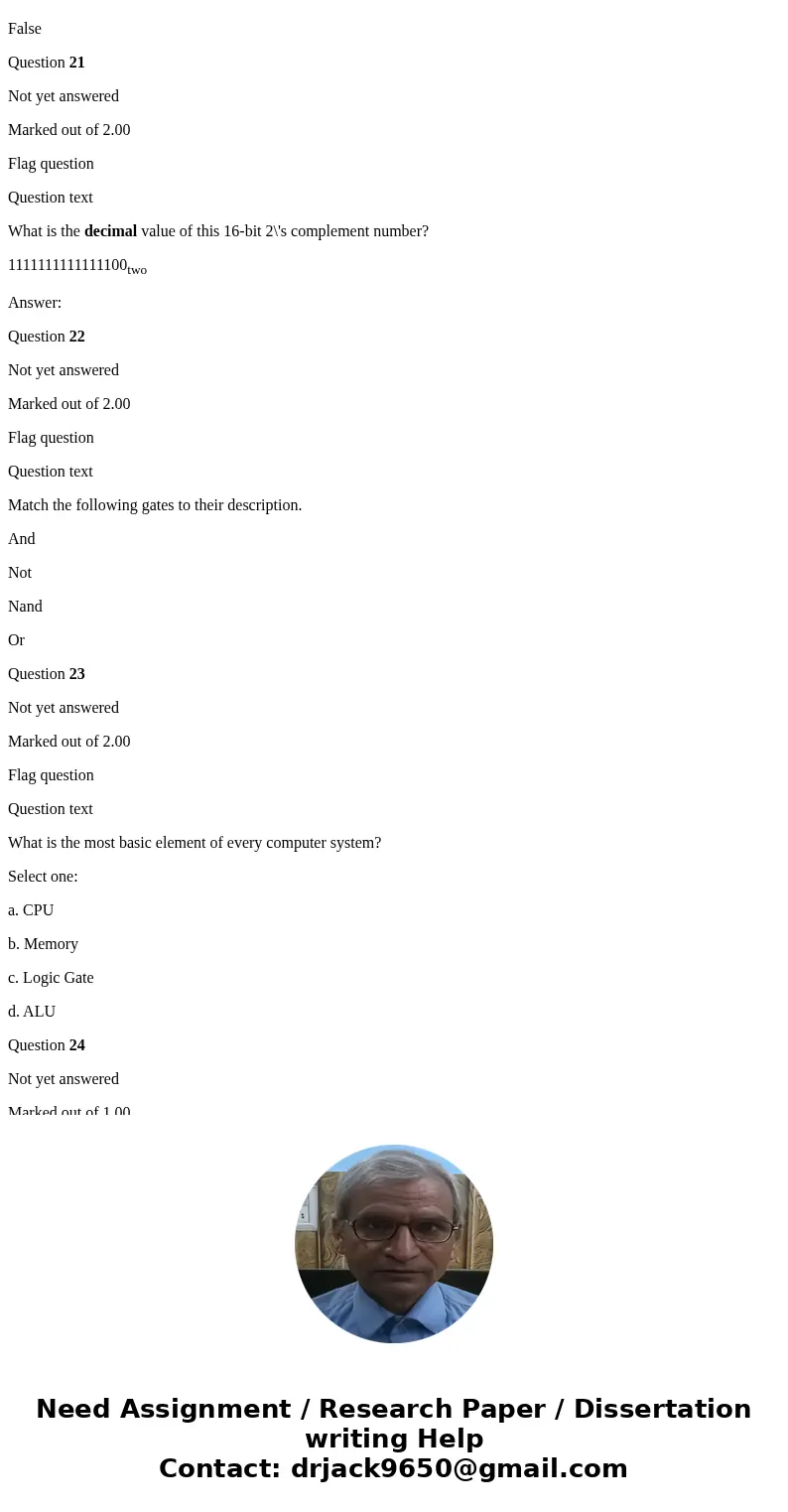

False

Question 21

Not yet answered

Marked out of 2.00

Flag question

Question text

What is the decimal value of this 16-bit 2\'s complement number?

1111111111111100_two

Answer:

Question 22

Not yet answered

Marked out of 2.00

Flag question

Question text

Match the following gates to their description.

And

Not

Nand

Or

Question 23

Not yet answered

Marked out of 2.00

Flag question

Question text

What is the most basic element of every computer system?

Select one:

a. CPU

b. Memory

c. Logic Gate

d. ALU

Question 24

Not yet answered

Marked out of 1.00

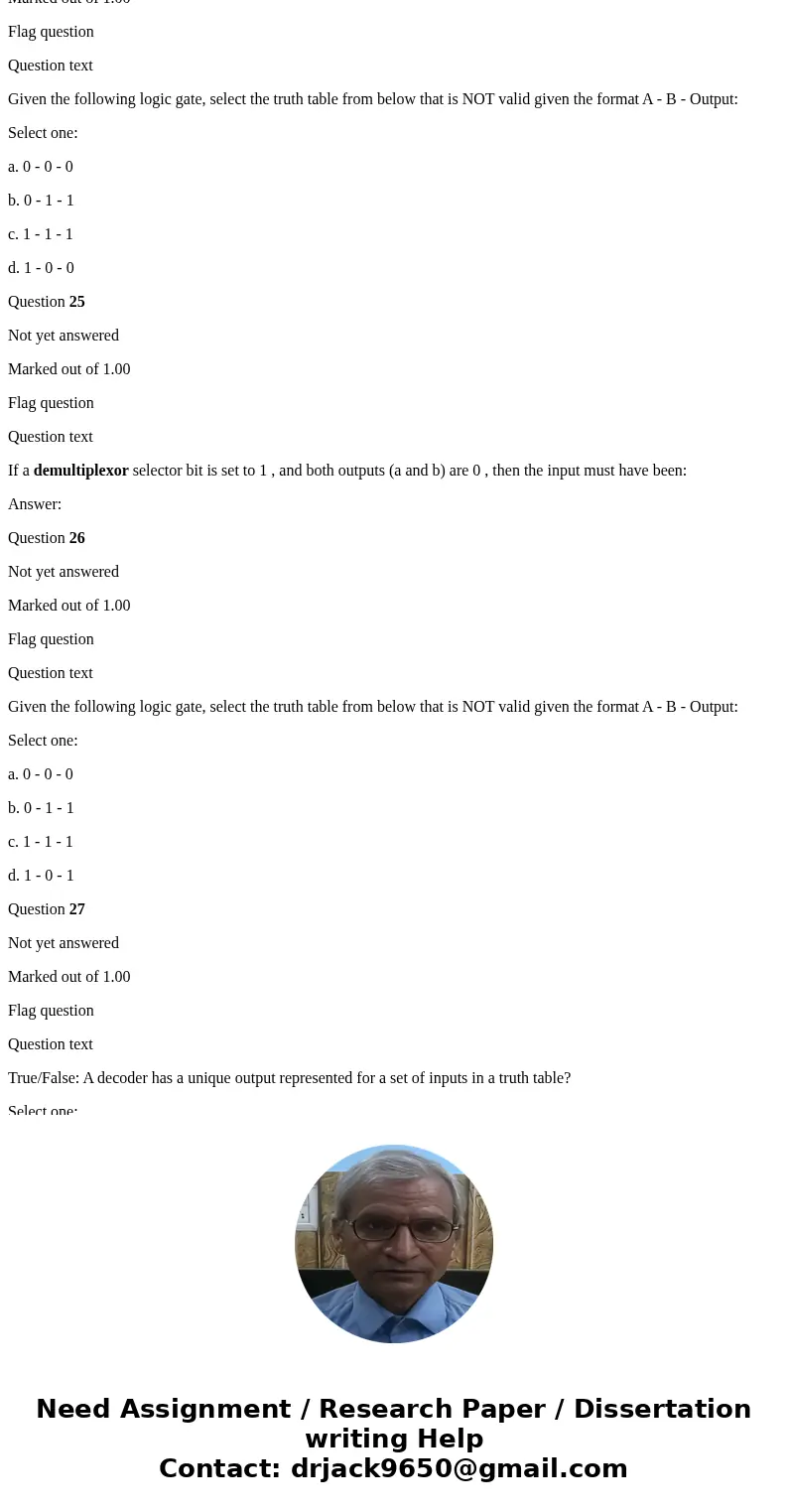

Flag question

Question text

Given the following logic gate, select the truth table from below that is NOT valid given the format A - B - Output:

Select one:

a. 0 - 0 - 0

b. 0 - 1 - 1

c. 1 - 1 - 1

d. 1 - 0 - 0

Question 25

Not yet answered

Marked out of 1.00

Flag question

Question text

If a demultiplexor selector bit is set to 1 , and both outputs (a and b) are 0 , then the input must have been:

Answer:

Question 26

Not yet answered

Marked out of 1.00

Flag question

Question text

Given the following logic gate, select the truth table from below that is NOT valid given the format A - B - Output:

Select one:

a. 0 - 0 - 0

b. 0 - 1 - 1

c. 1 - 1 - 1

d. 1 - 0 - 1

Question 27

Not yet answered

Marked out of 1.00

Flag question

Question text

True/False: A decoder has a unique output represented for a set of inputs in a truth table?

Select one:

True

False

Question 28

Not yet answered

Marked out of 1.00

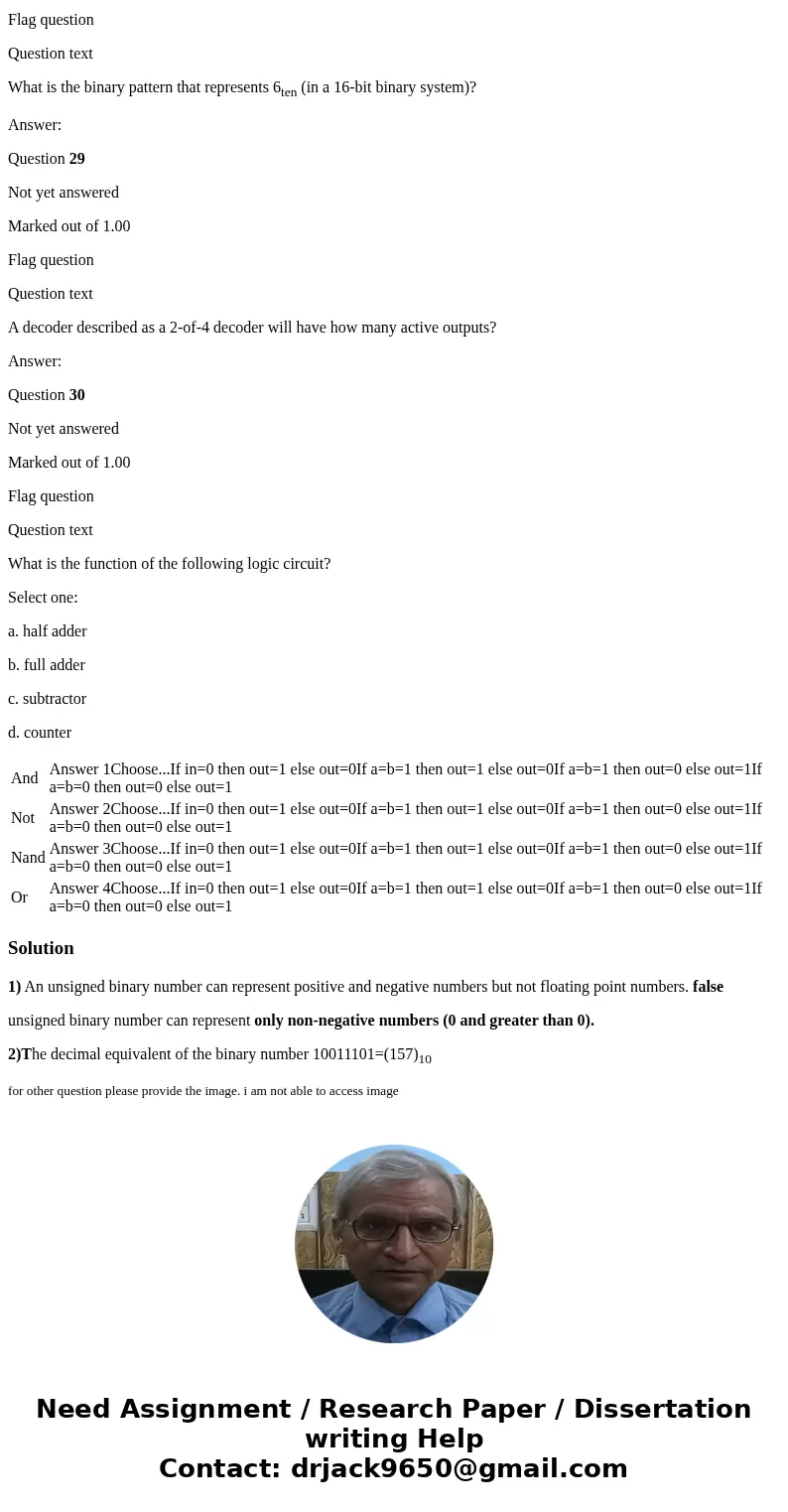

Flag question

Question text

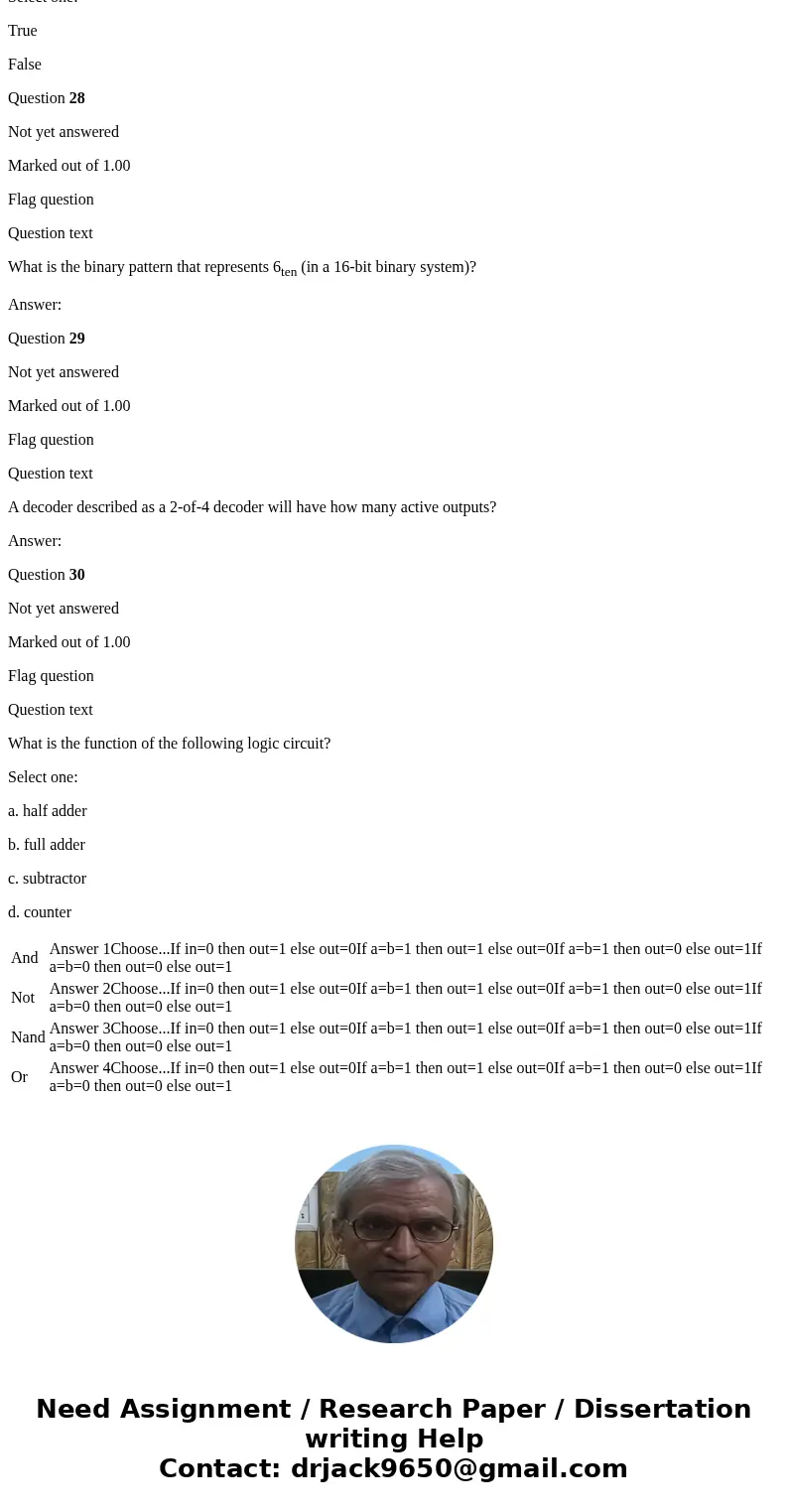

What is the binary pattern that represents 6_ten (in a 16-bit binary system)?

Answer:

Question 29

Not yet answered

Marked out of 1.00

Flag question

Question text

A decoder described as a 2-of-4 decoder will have how many active outputs?

Answer:

Question 30

Not yet answered

Marked out of 1.00

Flag question

Question text

What is the function of the following logic circuit?

Select one:

a. half adder

b. full adder

c. subtractor

d. counter

And	Answer 1Choose...If in=0 then out=1 else out=0If a=b=1 then out=1 else out=0If a=b=1 then out=0 else out=1If a=b=0 then out=0 else out=1
Not	Answer 2Choose...If in=0 then out=1 else out=0If a=b=1 then out=1 else out=0If a=b=1 then out=0 else out=1If a=b=0 then out=0 else out=1
Nand	Answer 3Choose...If in=0 then out=1 else out=0If a=b=1 then out=1 else out=0If a=b=1 then out=0 else out=1If a=b=0 then out=0 else out=1
Or	Answer 4Choose...If in=0 then out=1 else out=0If a=b=1 then out=1 else out=0If a=b=1 then out=0 else out=1If a=b=0 then out=0 else out=1

Solution

1) An unsigned binary number can represent positive and negative numbers but not floating point numbers. false

unsigned binary number can represent only non-negative numbers (0 and greater than 0).

2)The decimal equivalent of the binary number 10011101=(157)₁₀

_{for other question please provide the image. i am not able to access image}
