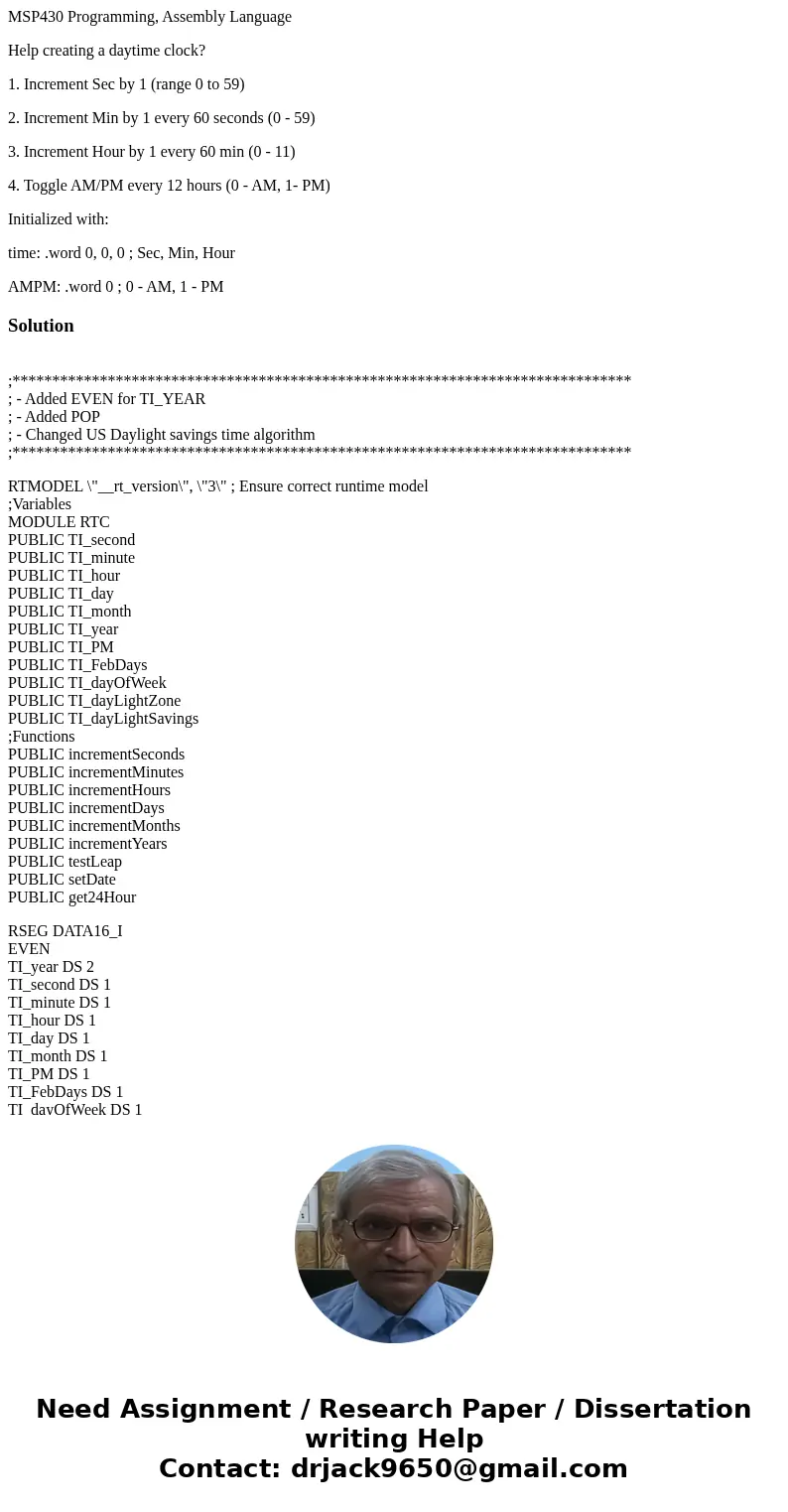

MSP430 Programming, Assembly Language

Help creating a daytime clock?

1. Increment Sec by 1 (range 0 to 59)

2. Increment Min by 1 every 60 seconds (0 - 59)

3. Increment Hour by 1 every 60 min (0 - 11)

4. Toggle AM/PM every 12 hours (0 - AM, 1- PM)

Initialized with:

time: .word 0, 0, 0 ; Sec, Min, Hour

AMPM: .word 0 ; 0 - AM, 1 - PM

Solution

;******************************************************************************
; - Added EVEN for TI_YEAR
; - Added POP
; - Changed US Daylight savings time algorithm
;******************************************************************************

RTMODEL \"__rt_version\", \"3\" ; Ensure correct runtime model
;Variables
MODULE RTC
PUBLIC TI_second
PUBLIC TI_minute
PUBLIC TI_hour
PUBLIC TI_day
PUBLIC TI_month
PUBLIC TI_year
PUBLIC TI_PM
PUBLIC TI_FebDays
PUBLIC TI_dayOfWeek
PUBLIC TI_dayLightZone
PUBLIC TI_dayLightSavings
;Functions
PUBLIC incrementSeconds
PUBLIC incrementMinutes
PUBLIC incrementHours
PUBLIC incrementDays
PUBLIC incrementMonths
PUBLIC incrementYears
PUBLIC testLeap
PUBLIC setDate
PUBLIC get24Hour

RSEG DATA16_I
EVEN
TI_year DS 2
TI_second DS 1
TI_minute DS 1
TI_hour DS 1
TI_day DS 1
TI_month DS 1
TI_PM DS 1
TI_FebDays DS 1
TI_dayOfWeek DS 1

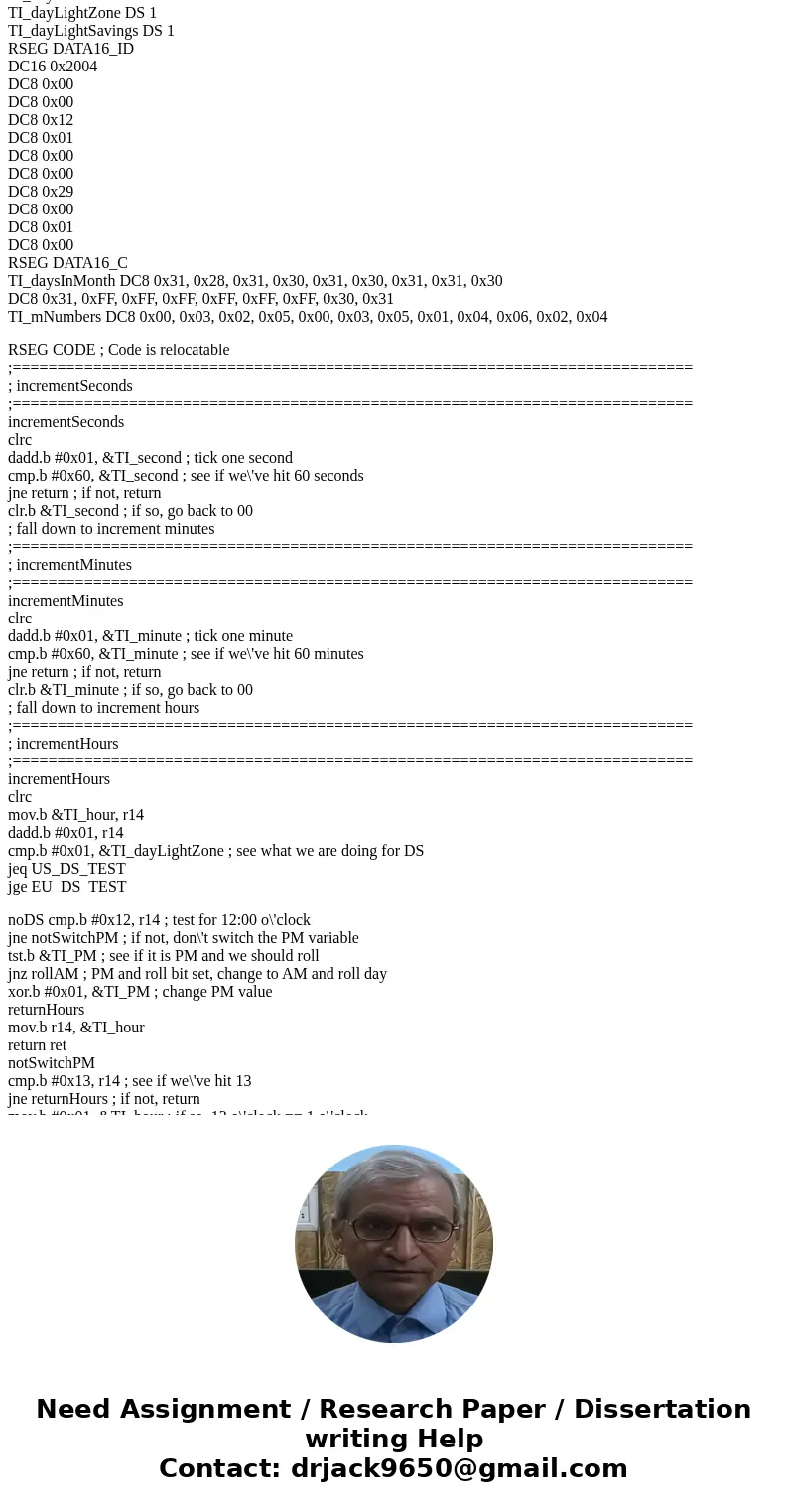

TI_dayLightZone DS 1
TI_dayLightSavings DS 1
RSEG DATA16_ID
DC16 0x2004
DC8 0x00
DC8 0x00
DC8 0x12
DC8 0x01
DC8 0x00
DC8 0x00
DC8 0x29
DC8 0x00
DC8 0x01
DC8 0x00
RSEG DATA16_C
TI_daysInMonth DC8 0x31, 0x28, 0x31, 0x30, 0x31, 0x30, 0x31, 0x31, 0x30
DC8 0x31, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0xFF, 0x30, 0x31
TI_mNumbers DC8 0x00, 0x03, 0x02, 0x05, 0x00, 0x03, 0x05, 0x01, 0x04, 0x06, 0x02, 0x04

RSEG CODE ; Code is relocatable
;============================================================================
; incrementSeconds
;============================================================================
incrementSeconds
clrc
dadd.b #0x01, &TI_second ; tick one second
cmp.b #0x60, &TI_second ; see if we\'ve hit 60 seconds
jne return ; if not, return
clr.b &TI_second ; if so, go back to 00
; fall down to increment minutes
;============================================================================
; incrementMinutes
;============================================================================
incrementMinutes
clrc
dadd.b #0x01, &TI_minute ; tick one minute
cmp.b #0x60, &TI_minute ; see if we\'ve hit 60 minutes
jne return ; if not, return
clr.b &TI_minute ; if so, go back to 00
; fall down to increment hours
;============================================================================
; incrementHours
;============================================================================
incrementHours
clrc
mov.b &TI_hour, r14
dadd.b #0x01, r14
cmp.b #0x01, &TI_dayLightZone ; see what we are doing for DS
jeq US_DS_TEST
jge EU_DS_TEST

noDS cmp.b #0x12, r14 ; test for 12:00 o\'clock
jne notSwitchPM ; if not, don\'t switch the PM variable
tst.b &TI_PM ; see if it is PM and we should roll
jnz rollAM ; PM and roll bit set, change to AM and roll day
xor.b #0x01, &TI_PM ; change PM value
returnHours
mov.b r14, &TI_hour
return ret
notSwitchPM
cmp.b #0x13, r14 ; see if we\'ve hit 13
jne returnHours ; if not, return

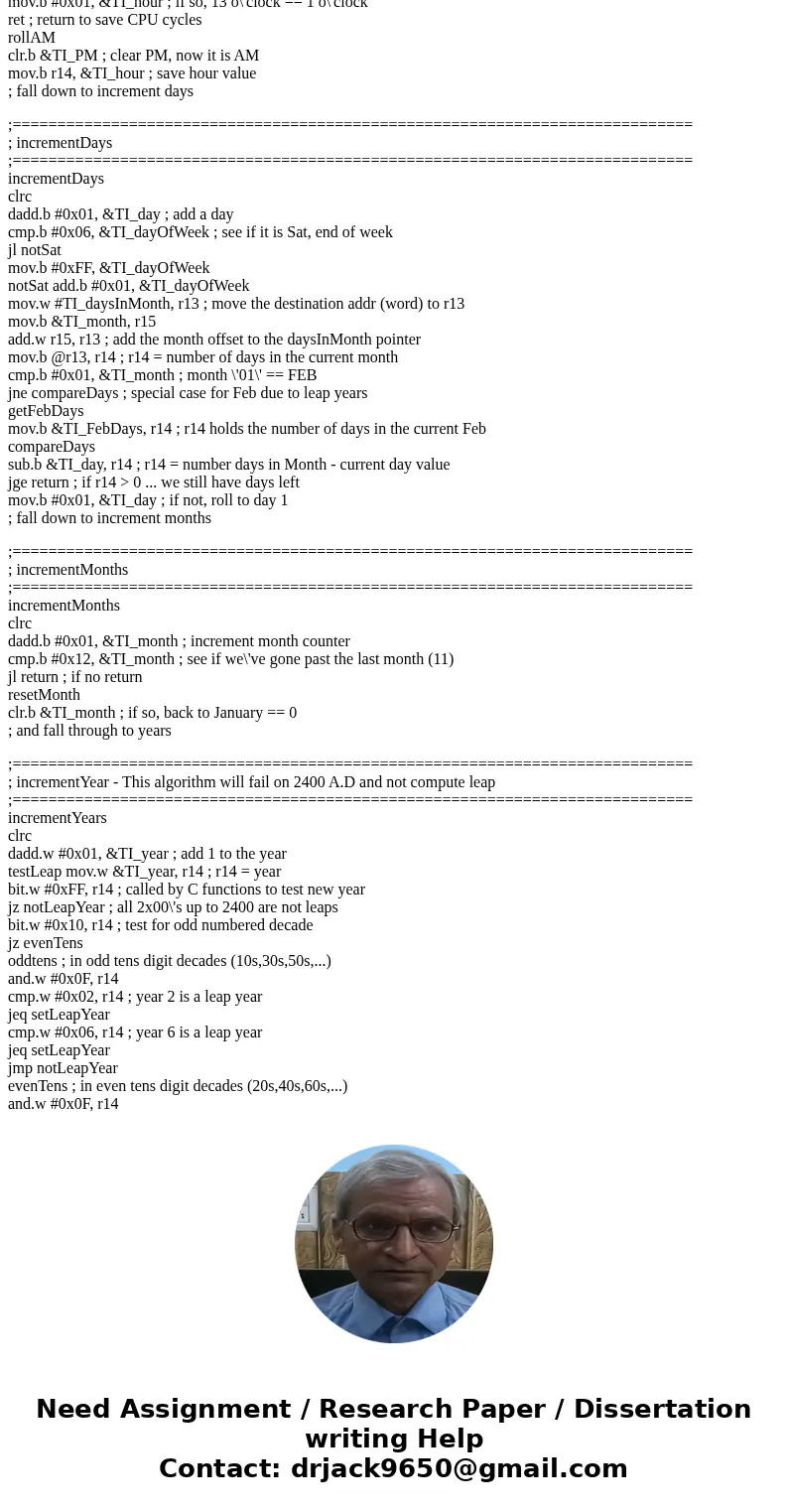

mov.b #0x01, &TI_hour ; if so, 13 o\'clock == 1 o\'clock
ret ; return to save CPU cycles
rollAM
clr.b &TI_PM ; clear PM, now it is AM
mov.b r14, &TI_hour ; save hour value
; fall down to increment days

;============================================================================
; incrementDays
;============================================================================
incrementDays
clrc
dadd.b #0x01, &TI_day ; add a day
cmp.b #0x06, &TI_dayOfWeek ; see if it is Sat, end of week
jl notSat
mov.b #0xFF, &TI_dayOfWeek
notSat add.b #0x01, &TI_dayOfWeek
mov.w #TI_daysInMonth, r13 ; move the destination addr (word) to r13
mov.b &TI_month, r15
add.w r15, r13 ; add the month offset to the daysInMonth pointer
mov.b @r13, r14 ; r14 = number of days in the current month
cmp.b #0x01, &TI_month ; month \'01\' == FEB
jne compareDays ; special case for Feb due to leap years
getFebDays
mov.b &TI_FebDays, r14 ; r14 holds the number of days in the current Feb
compareDays
sub.b &TI_day, r14 ; r14 = number days in Month - current day value
jge return ; if r14 > 0 ... we still have days left
mov.b #0x01, &TI_day ; if not, roll to day 1
; fall down to increment months

;============================================================================
; incrementMonths
;============================================================================
incrementMonths
clrc
dadd.b #0x01, &TI_month ; increment month counter
cmp.b #0x12, &TI_month ; see if we\'ve gone past the last month (11)
jl return ; if no return
resetMonth
clr.b &TI_month ; if so, back to January == 0
; and fall through to years

;============================================================================
; incrementYear - This algorithm will fail on 2400 A.D and not compute leap
;============================================================================
incrementYears
clrc
dadd.w #0x01, &TI_year ; add 1 to the year
testLeap mov.w &TI_year, r14 ; r14 = year
bit.w #0xFF, r14 ; called by C functions to test new year
jz notLeapYear ; all 2x00\'s up to 2400 are not leaps
bit.w #0x10, r14 ; test for odd numbered decade
jz evenTens
oddtens ; in odd tens digit decades (10s,30s,50s,...)
and.w #0x0F, r14
cmp.w #0x02, r14 ; year 2 is a leap year
jeq setLeapYear
cmp.w #0x06, r14 ; year 6 is a leap year
jeq setLeapYear
jmp notLeapYear
evenTens ; in even tens digit decades (20s,40s,60s,...)
and.w #0x0F, r14

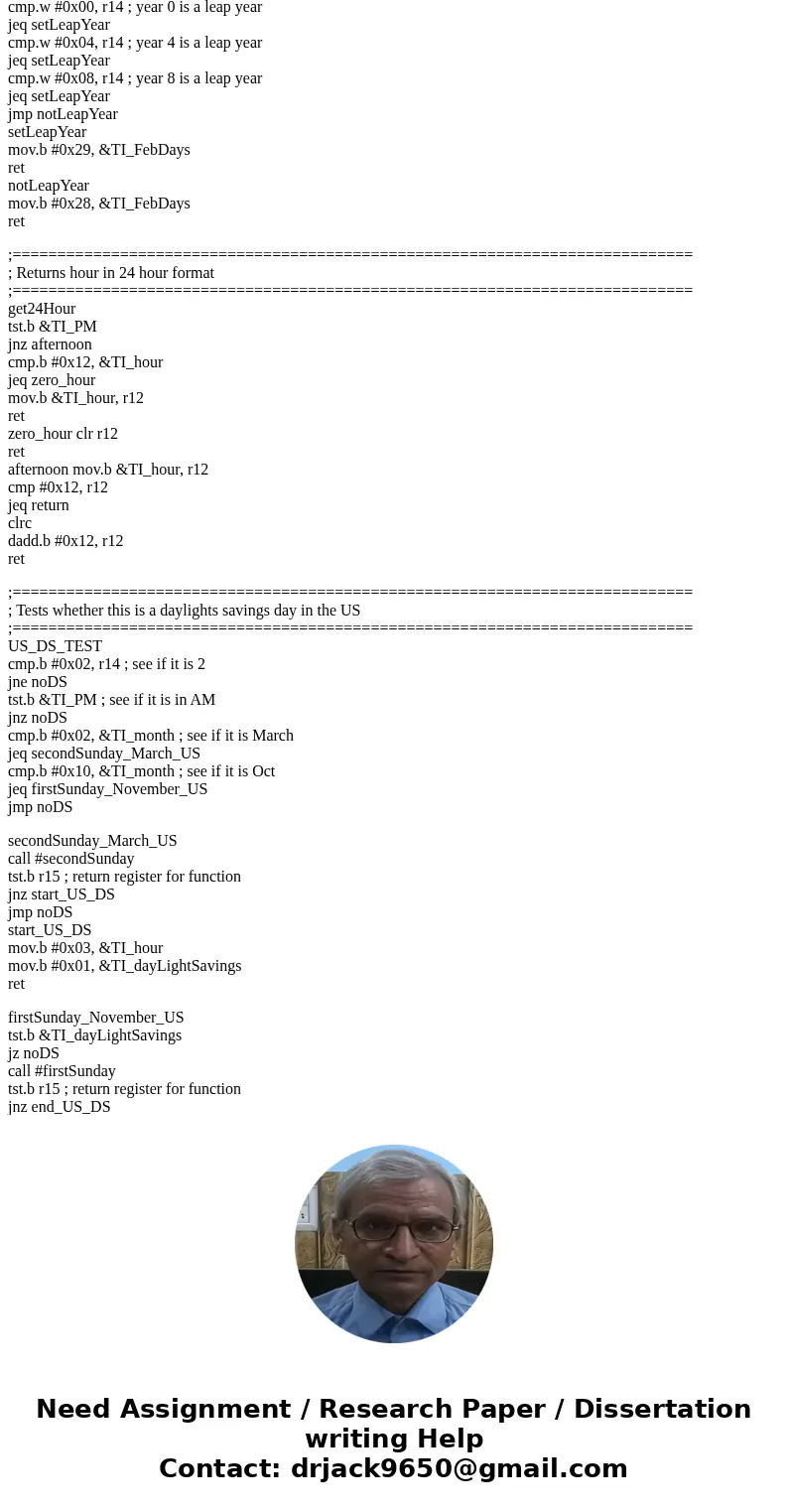

cmp.w #0x00, r14 ; year 0 is a leap year
jeq setLeapYear
cmp.w #0x04, r14 ; year 4 is a leap year
jeq setLeapYear
cmp.w #0x08, r14 ; year 8 is a leap year
jeq setLeapYear
jmp notLeapYear
setLeapYear
mov.b #0x29, &TI_FebDays
ret
notLeapYear
mov.b #0x28, &TI_FebDays
ret

;============================================================================
; Returns hour in 24 hour format
;============================================================================
get24Hour
tst.b &TI_PM
jnz afternoon
cmp.b #0x12, &TI_hour
jeq zero_hour
mov.b &TI_hour, r12
ret
zero_hour clr r12
ret
afternoon mov.b &TI_hour, r12
cmp #0x12, r12
jeq return
clrc
dadd.b #0x12, r12
ret

;============================================================================
; Tests whether this is a daylights savings day in the US
;============================================================================
US_DS_TEST
cmp.b #0x02, r14 ; see if it is 2
jne noDS
tst.b &TI_PM ; see if it is in AM
jnz noDS
cmp.b #0x02, &TI_month ; see if it is March
jeq secondSunday_March_US
cmp.b #0x10, &TI_month ; see if it is Oct
jeq firstSunday_November_US
jmp noDS

secondSunday_March_US
call #secondSunday
tst.b r15 ; return register for function
jnz start_US_DS
jmp noDS
start_US_DS
mov.b #0x03, &TI_hour
mov.b #0x01, &TI_dayLightSavings
ret

firstSunday_November_US
tst.b &TI_dayLightSavings
jz noDS
call #firstSunday
tst.b r15 ; return register for function
jnz end_US_DS

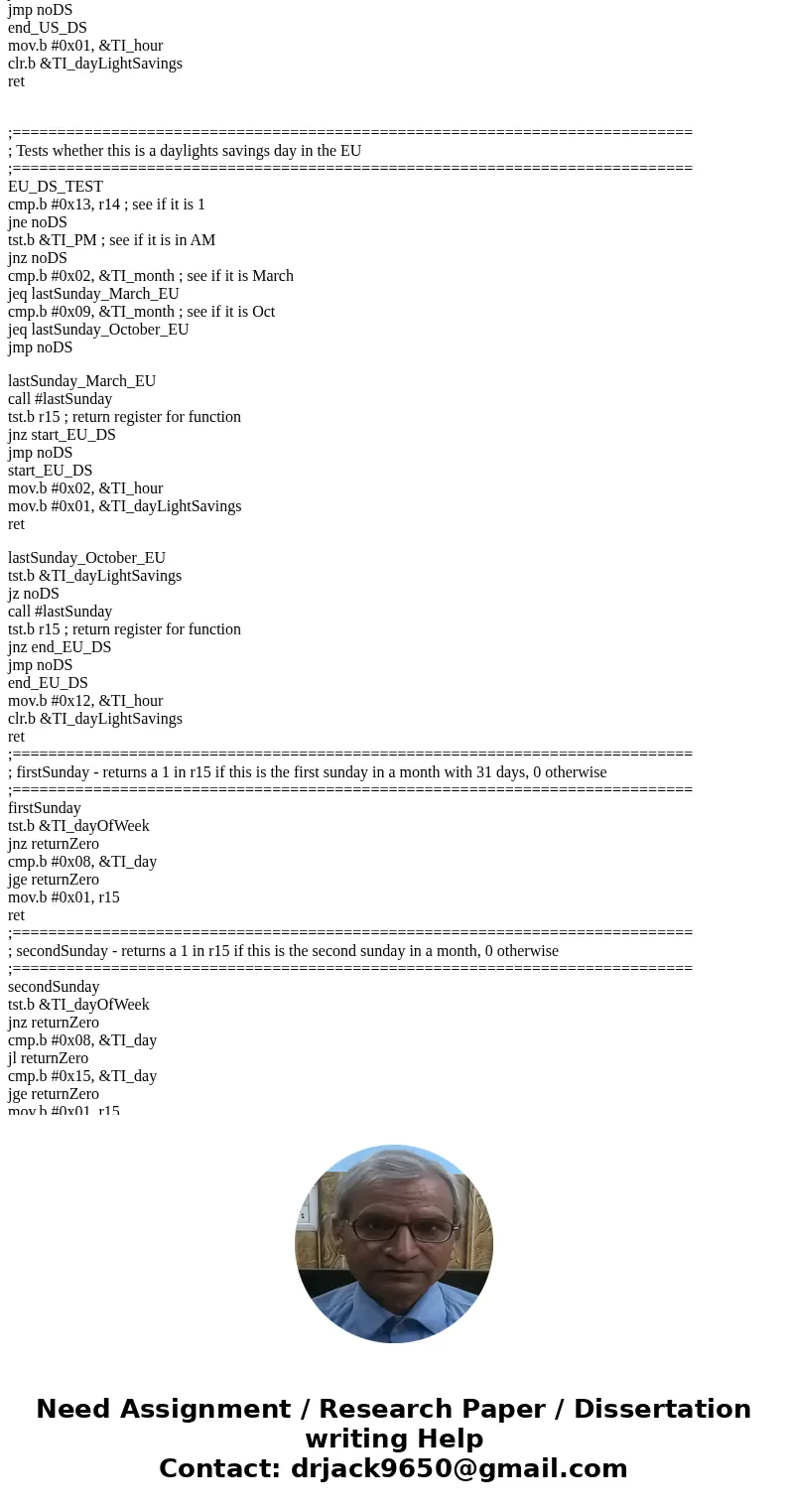

jmp noDS
end_US_DS
mov.b #0x01, &TI_hour
clr.b &TI_dayLightSavings
ret

;============================================================================
; Tests whether this is a daylights savings day in the EU
;============================================================================
EU_DS_TEST
cmp.b #0x13, r14 ; see if it is 1
jne noDS
tst.b &TI_PM ; see if it is in AM
jnz noDS
cmp.b #0x02, &TI_month ; see if it is March
jeq lastSunday_March_EU
cmp.b #0x09, &TI_month ; see if it is Oct
jeq lastSunday_October_EU
jmp noDS

lastSunday_March_EU
call #lastSunday
tst.b r15 ; return register for function
jnz start_EU_DS
jmp noDS
start_EU_DS
mov.b #0x02, &TI_hour
mov.b #0x01, &TI_dayLightSavings
ret

lastSunday_October_EU
tst.b &TI_dayLightSavings
jz noDS
call #lastSunday
tst.b r15 ; return register for function
jnz end_EU_DS
jmp noDS
end_EU_DS
mov.b #0x12, &TI_hour
clr.b &TI_dayLightSavings
ret
;============================================================================
; firstSunday - returns a 1 in r15 if this is the first sunday in a month with 31 days, 0 otherwise
;============================================================================
firstSunday
tst.b &TI_dayOfWeek
jnz returnZero
cmp.b #0x08, &TI_day
jge returnZero
mov.b #0x01, r15
ret
;============================================================================
; secondSunday - returns a 1 in r15 if this is the second sunday in a month, 0 otherwise
;============================================================================
secondSunday
tst.b &TI_dayOfWeek
jnz returnZero
cmp.b #0x08, &TI_day
jl returnZero
cmp.b #0x15, &TI_day
jge returnZero
mov.b #0x01, r15

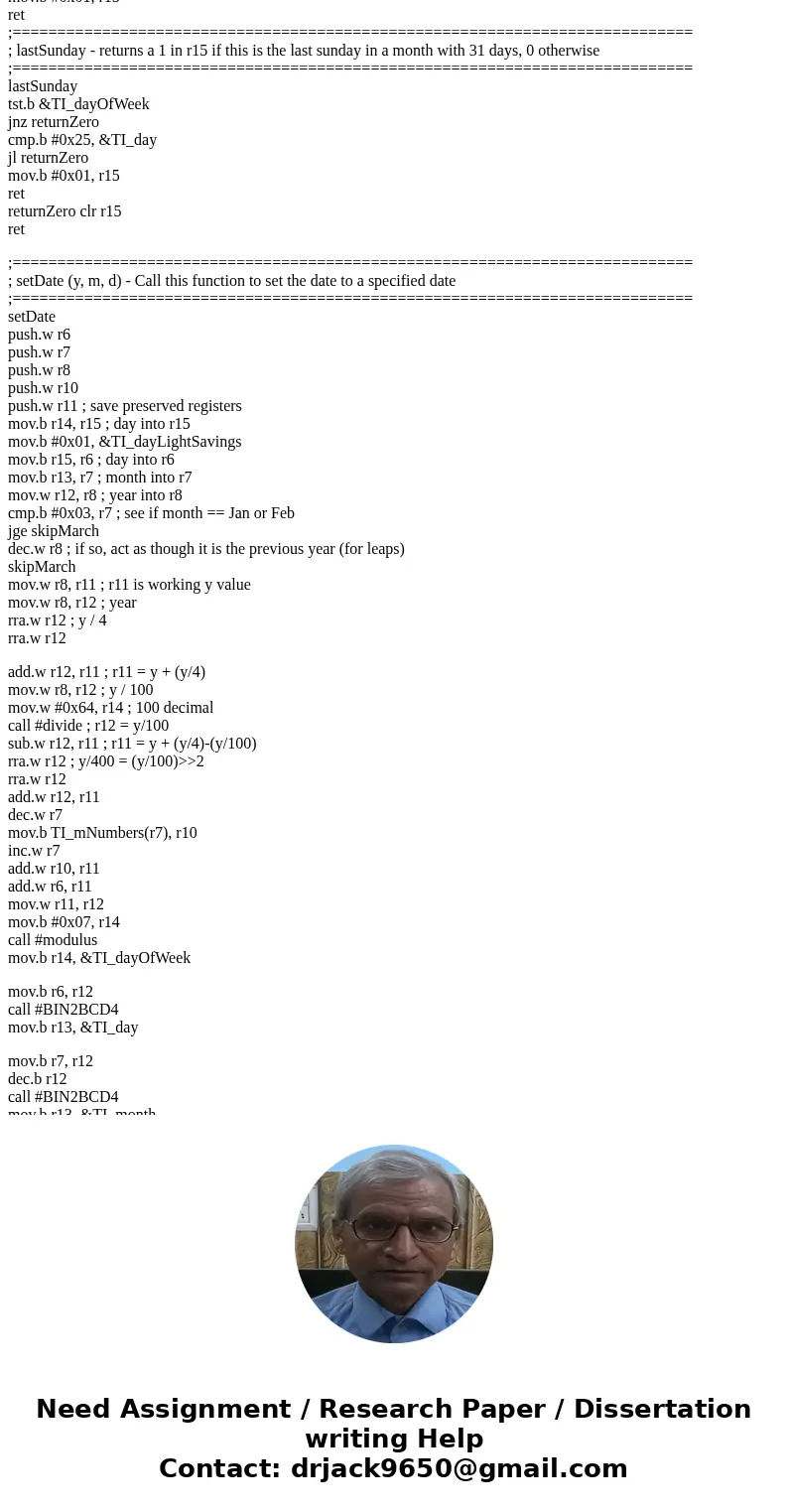

ret
;============================================================================
; lastSunday - returns a 1 in r15 if this is the last sunday in a month with 31 days, 0 otherwise
;============================================================================
lastSunday
tst.b &TI_dayOfWeek
jnz returnZero
cmp.b #0x25, &TI_day
jl returnZero
mov.b #0x01, r15
ret
returnZero clr r15
ret

;============================================================================
; setDate (y, m, d) - Call this function to set the date to a specified date
;============================================================================
setDate
push.w r6
push.w r7
push.w r8
push.w r10
push.w r11 ; save preserved registers
mov.b r14, r15 ; day into r15
mov.b #0x01, &TI_dayLightSavings
mov.b r15, r6 ; day into r6
mov.b r13, r7 ; month into r7
mov.w r12, r8 ; year into r8
cmp.b #0x03, r7 ; see if month == Jan or Feb
jge skipMarch
dec.w r8 ; if so, act as though it is the previous year (for leaps)
skipMarch
mov.w r8, r11 ; r11 is working y value
mov.w r8, r12 ; year
rra.w r12 ; y / 4
rra.w r12

add.w r12, r11 ; r11 = y + (y/4)
mov.w r8, r12 ; y / 100
mov.w #0x64, r14 ; 100 decimal
call #divide ; r12 = y/100
sub.w r12, r11 ; r11 = y + (y/4)-(y/100)
rra.w r12 ; y/400 = (y/100)>>2
rra.w r12
add.w r12, r11
dec.w r7
mov.b TI_mNumbers(r7), r10
inc.w r7
add.w r10, r11
add.w r6, r11
mov.w r11, r12
mov.b #0x07, r14
call #modulus
mov.b r14, &TI_dayOfWeek

mov.b r6, r12
call #BIN2BCD4
mov.b r13, &TI_day

mov.b r7, r12
dec.b r12
call #BIN2BCD4
mov.b r13, &TI_month

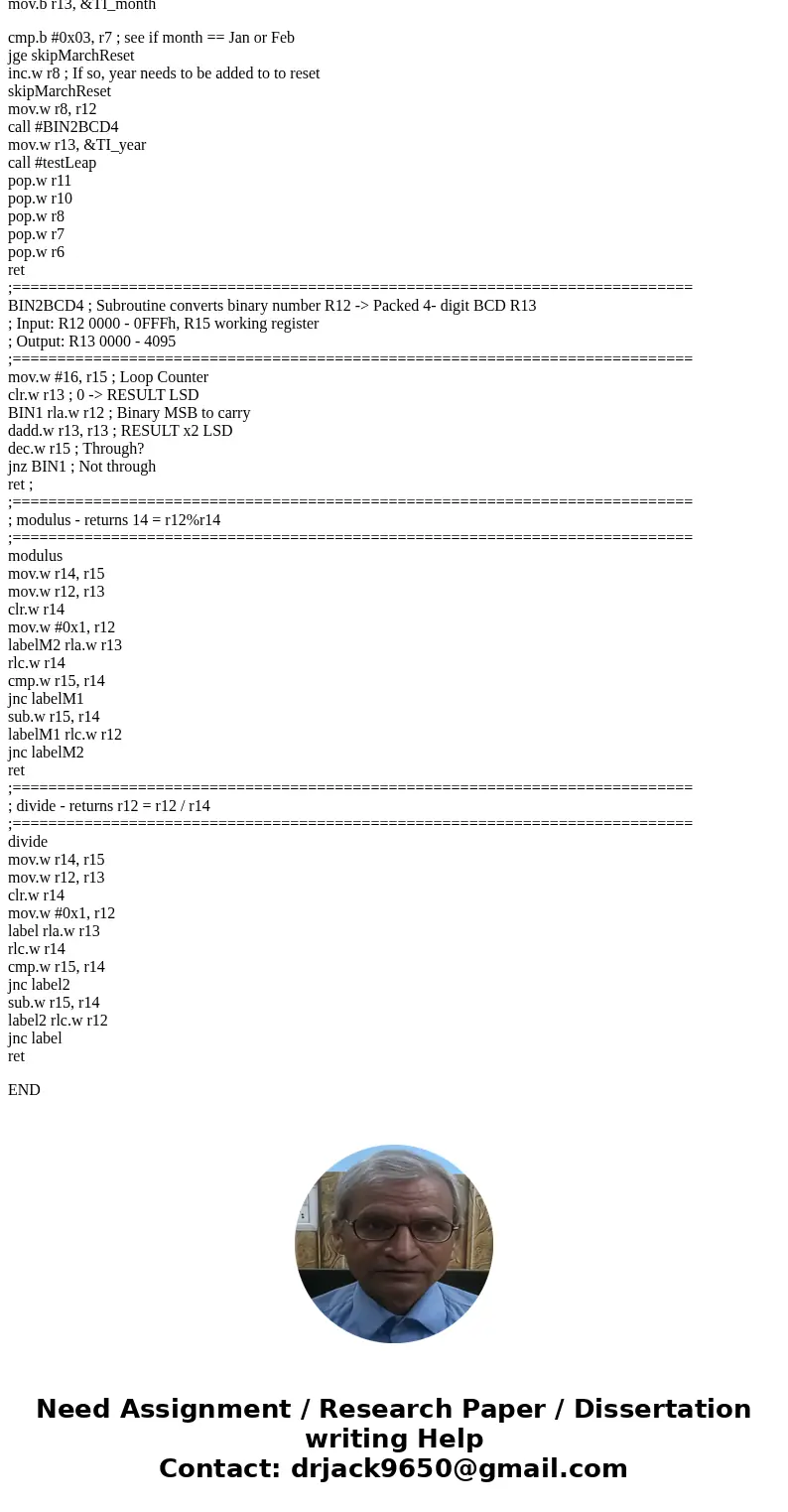

cmp.b #0x03, r7 ; see if month == Jan or Feb
jge skipMarchReset
inc.w r8 ; If so, year needs to be added to to reset
skipMarchReset
mov.w r8, r12
call #BIN2BCD4
mov.w r13, &TI_year
call #testLeap
pop.w r11
pop.w r10
pop.w r8
pop.w r7
pop.w r6
ret
;============================================================================
BIN2BCD4 ; Subroutine converts binary number R12 -> Packed 4- digit BCD R13
; Input: R12 0000 - 0FFFh, R15 working register
; Output: R13 0000 - 4095
;============================================================================
mov.w #16, r15 ; Loop Counter
clr.w r13 ; 0 -> RESULT LSD
BIN1 rla.w r12 ; Binary MSB to carry
dadd.w r13, r13 ; RESULT x2 LSD
dec.w r15 ; Through?
jnz BIN1 ; Not through
ret ;
;============================================================================
; modulus - returns 14 = r12%r14
;============================================================================
modulus
mov.w r14, r15
mov.w r12, r13
clr.w r14
mov.w #0x1, r12
labelM2 rla.w r13
rlc.w r14
cmp.w r15, r14
jnc labelM1
sub.w r15, r14
labelM1 rlc.w r12
jnc labelM2
ret
;============================================================================
; divide - returns r12 = r12 / r14
;============================================================================
divide
mov.w r14, r15
mov.w r12, r13
clr.w r14
mov.w #0x1, r12
label rla.w r13
rlc.w r14
cmp.w r15, r14
jnc label2
sub.w r15, r14
label2 rlc.w r12
jnc label
ret

END
