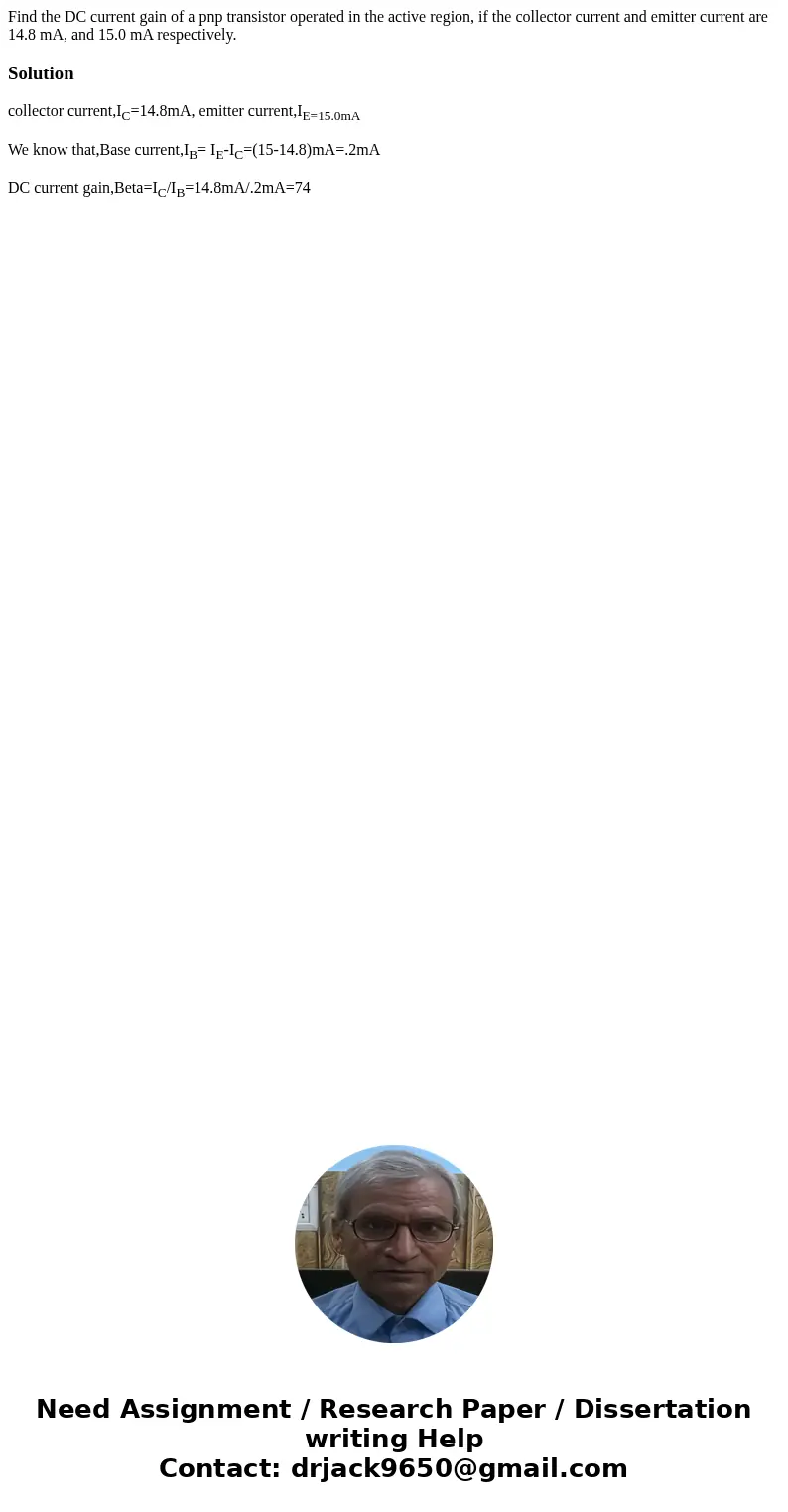

Find the DC current gain of a pnp transistor operated in the active region, if the collector current and emitter current are 14.8 mA, and 15.0 mA respectively.

Solution

collector current,IC=14.8mA, emitter current,IE=15.0mA

We know that,Base current,IB= IE-IC=(15-14.8)mA=.2mA

DC current gain,Beta=IC/IB=14.8mA/.2mA=74
