Homework SourseConvert the following infix expression into postfix using a

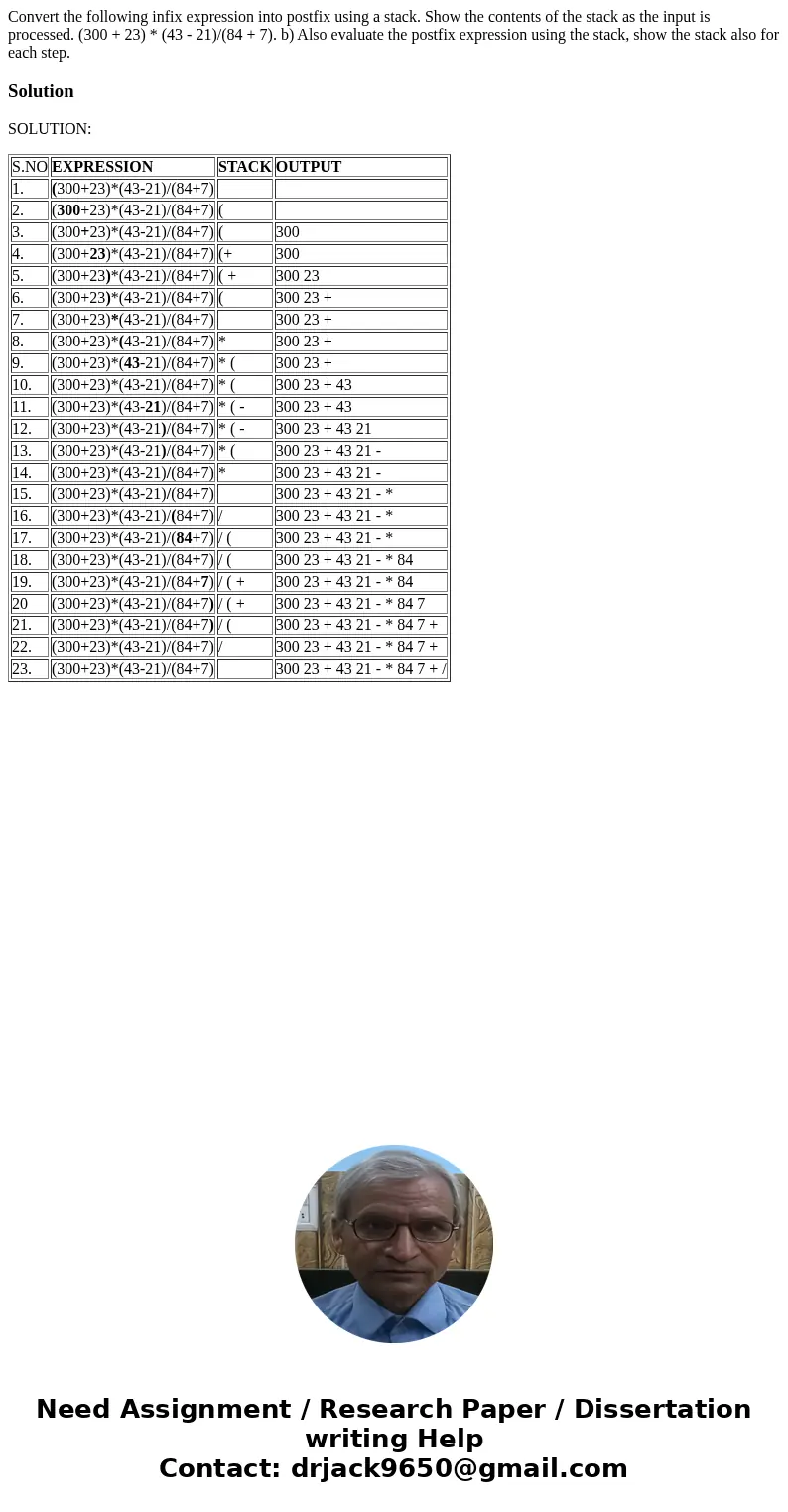

Convert the following infix expression into postfix using a stack. Show the contents of the stack as the input is processed. (300 + 23) * (43 - 21)/(84 + 7). b) Also evaluate the postfix expression using the stack, show the stack also for each step.
Solution
SOLUTION:
| S.NO | EXPRESSION | STACK | OUTPUT |
| 1. | (300+23)*(43-21)/(84+7) | ||
| 2. | (300+23)*(43-21)/(84+7) | ( | |
| 3. | (300+23)*(43-21)/(84+7) | ( | 300 |
| 4. | (300+23)*(43-21)/(84+7) | (+ | 300 |
| 5. | (300+23)*(43-21)/(84+7) | ( + | 300 23 |
| 6. | (300+23)*(43-21)/(84+7) | ( | 300 23 + |
| 7. | (300+23)*(43-21)/(84+7) | 300 23 + | |
| 8. | (300+23)*(43-21)/(84+7) | * | 300 23 + |
| 9. | (300+23)*(43-21)/(84+7) | * ( | 300 23 + |
| 10. | (300+23)*(43-21)/(84+7) | * ( | 300 23 + 43 |
| 11. | (300+23)*(43-21)/(84+7) | * ( - | 300 23 + 43 |
| 12. | (300+23)*(43-21)/(84+7) | * ( - | 300 23 + 43 21 |
| 13. | (300+23)*(43-21)/(84+7) | * ( | 300 23 + 43 21 - |
| 14. | (300+23)*(43-21)/(84+7) | * | 300 23 + 43 21 - |
| 15. | (300+23)*(43-21)/(84+7) | 300 23 + 43 21 - * | |
| 16. | (300+23)*(43-21)/(84+7) | / | 300 23 + 43 21 - * |
| 17. | (300+23)*(43-21)/(84+7) | / ( | 300 23 + 43 21 - * |
| 18. | (300+23)*(43-21)/(84+7) | / ( | 300 23 + 43 21 - * 84 |
| 19. | (300+23)*(43-21)/(84+7) | / ( + | 300 23 + 43 21 - * 84 |
| 20 | (300+23)*(43-21)/(84+7) | / ( + | 300 23 + 43 21 - * 84 7 |
| 21. | (300+23)*(43-21)/(84+7) | / ( | 300 23 + 43 21 - * 84 7 + |
| 22. | (300+23)*(43-21)/(84+7) | / | 300 23 + 43 21 - * 84 7 + |
| 23. | (300+23)*(43-21)/(84+7) | 300 23 + 43 21 - * 84 7 + / |
